JL Audio

Fathom IWS-SYS-108 8-inch(200mm) In-Wall Powered Subwoofer System

Regular price $4,000.00 $0.00 Unit price per

Shipping : FREE in Canada

CALL FOR INFORMATION

Born from the same ground breaking technologies used to develop our free-standing powered subwoofers, the Fathom® IWS in-wall subwoofer systems deliver remarkable bass performance, while remaining largely concealed within most home audio/theater environments.

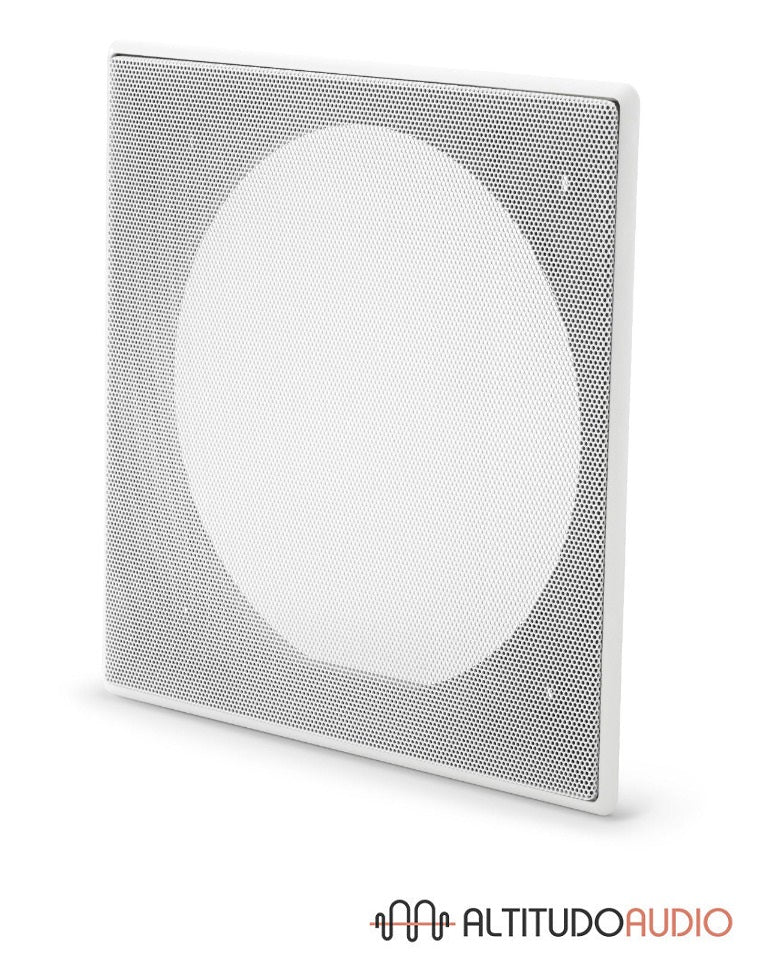

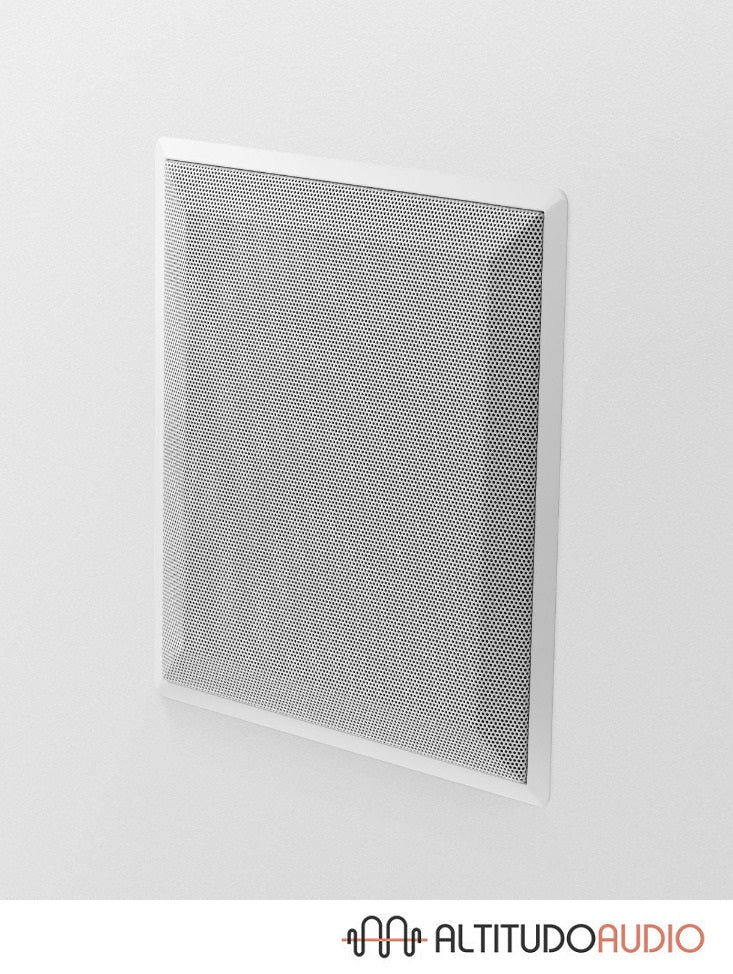

The 8-inch Fathom® IWS systems are smaller and easier to integrate than our larger in-wall Fathoms, fitting in all standard, 16-inch, on-center stud openings, and operating through very small grilles. These grilles accommodate all common drywall thicknesses, and can be easily painted to match the wall.

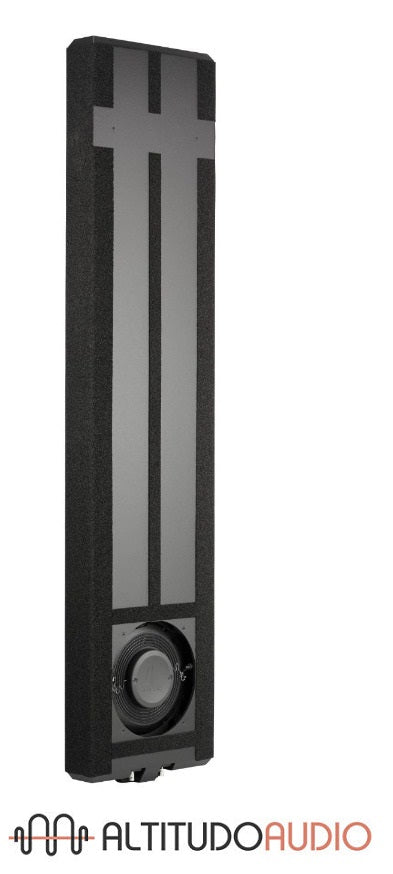

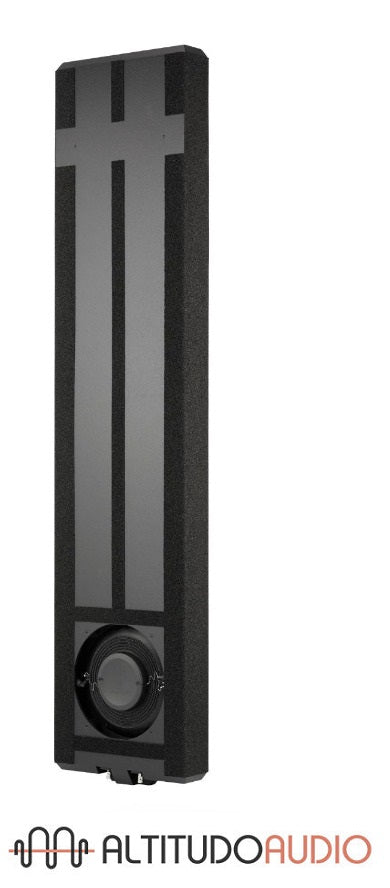

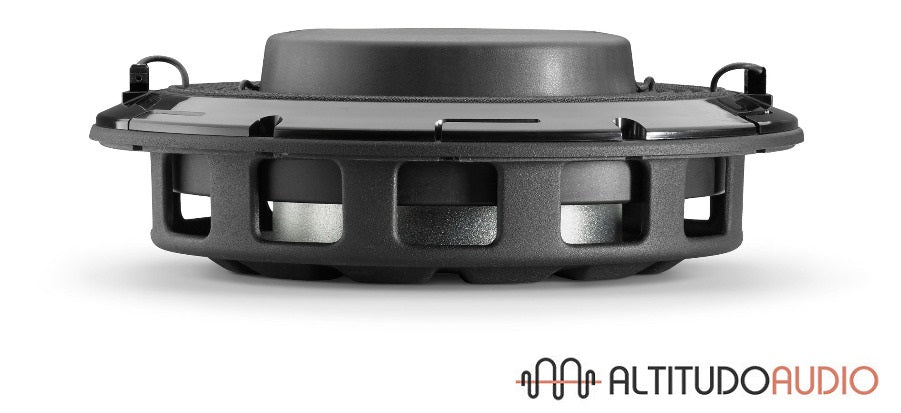

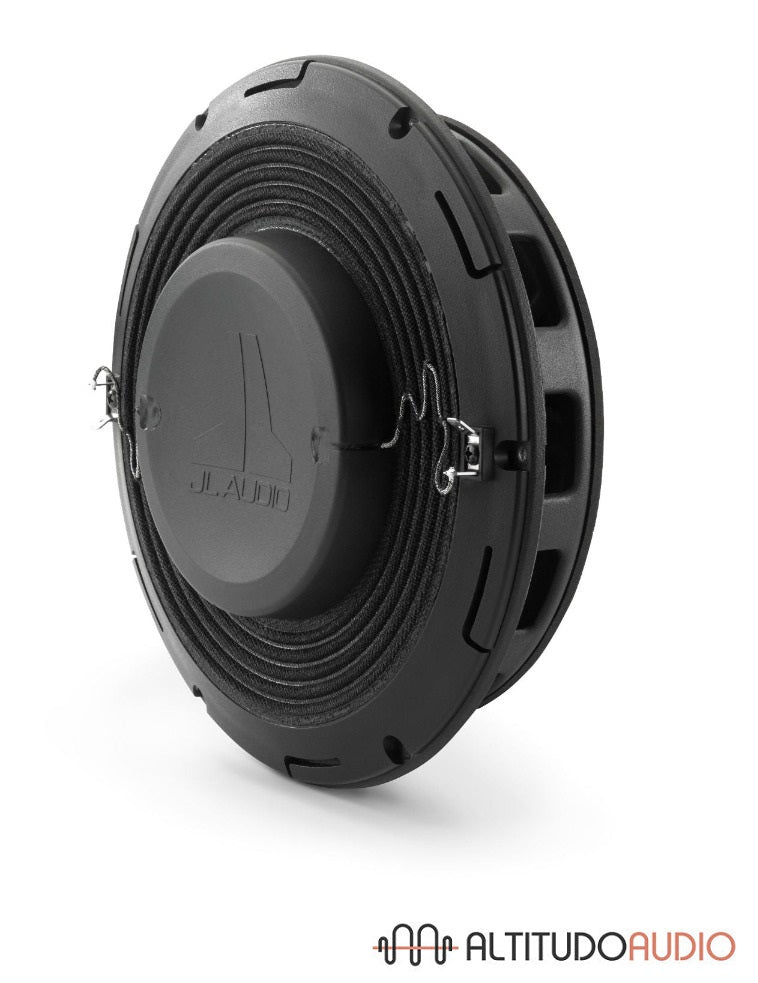

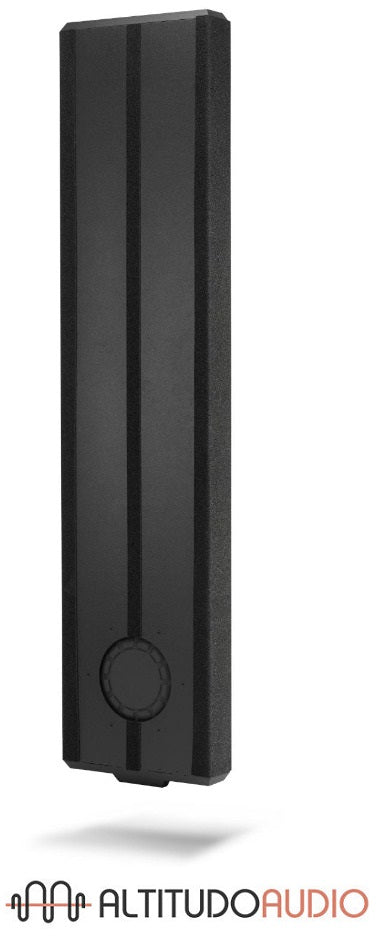

The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® IWS products.

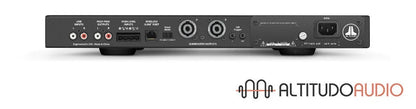

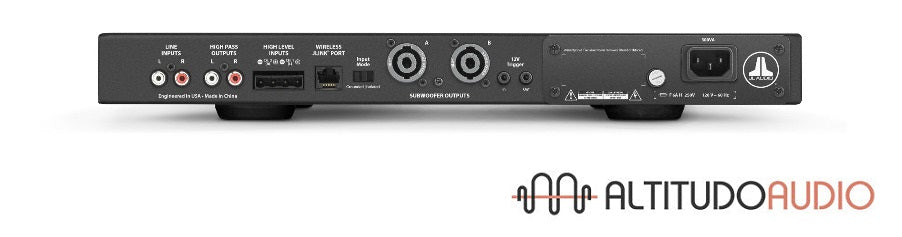

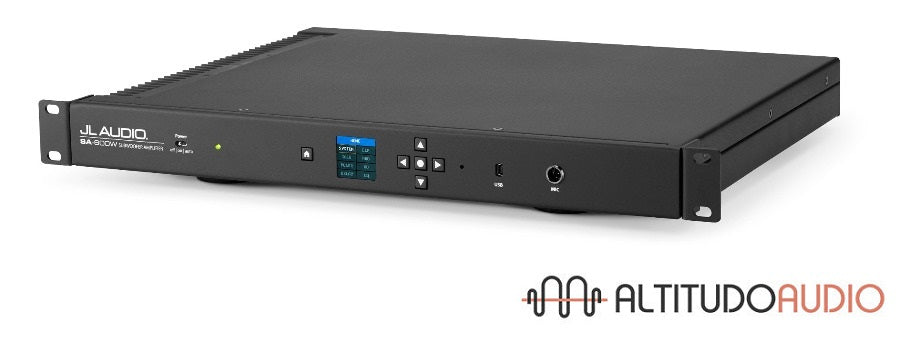

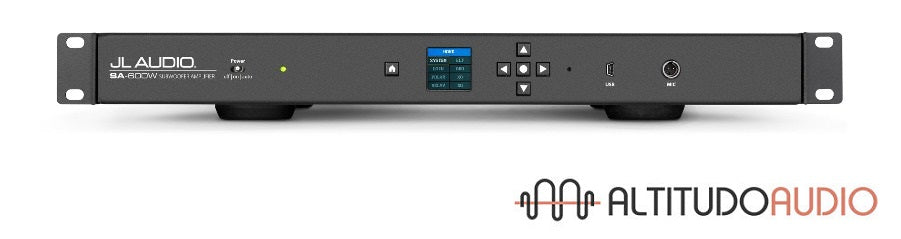

Each 8-inch Fathom® IWS system is powered by a rack-mountable amplifier, capable of generating up to 600 watts of clean power and can drive up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, all managed via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).

The IWS-108 System fits 2″ x 4″ wall studs or larger. Consult your Authorized JL Audio Dealer for specific application information.

Enclosure Finish: Flat Black (hidden from view when installed)

Grille finish: Primer White (paintable)

Enclosure Construction: CNC-Cut Birch Plywood

Features & Specifications

Enclosure Type: Ported
Enclosure Finish: Black Texture-Coated
Frequency Response (Anechoic): 24.9 Hz – 109 Hz (± 1.5 dB) -3dB at 24.6 Hz / 111 Hz -10dB at 23.4 Hz / 118 Hz
Effective Piston Area (Sd): 31.62 sq in / 0.0204 sq m
Effective Displacement: 47.5 cu in / 0.78 L
Amplifier Power: 300 W RMS short-term
Power Mode(s): Off, On or Automatic (Signal-Sensing or 12V Trigger)
12V Trigger Output Capacity: 150 mA (1/8-inch/3.5mm mini jack)
Light Modes: N/A
Unbalanced Inputs: Stereo or Mono (two RCA jacks – Input Impedance of 50k Ohms)
Speaker/High-Level Inputs: Stereo or Mono (removable plug – Input Impedance of 4.4k Ohms)
Input Grounding: Isolated or Grounded
Level Control: Reference (fixed gain) or Variable from -50dB to +15dB over reference gain (0.5 dB increments)
Filter Mode(s): Low-Pass, with tracking High-Pass Outputs
Filter Slope(s): 12/24 dB/octave
Filter Frequency Range: 30 Hz – 130.1 Hz
Filter Defeat Function: Yes
Polarity: 0 or 180 degrees
Delay (Phase): Variable from 0 – 25 ms
(0.1 ms increments, Sub and HP outputs)
Extreme Low Frequency (E.L.F.) Trim: Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments)
Line Outputs: Stereo or Mono (two RCA jacks – Pass-Through or High-Pass)
Subwoofer Outputs: Neutrik speakOn® 2-Pole Connectors
(uses Neutrik part: NL2FX)
Calibration Mode: Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately)
Equalizer Bands: 3
Equalizer Frequency Range: 20 to 160 Hz (1 Hz increments)
Equalizer Gain Range: -12 dB to +12 dB (0.2 dB increments)
Equalizer Q Range: 0.7 to 5.0 (0.1 increments)
