Fathom V2 F212V2 Gloss Subwoofer
Shipping : FREE in Canada
CALL FOR INFORMATION

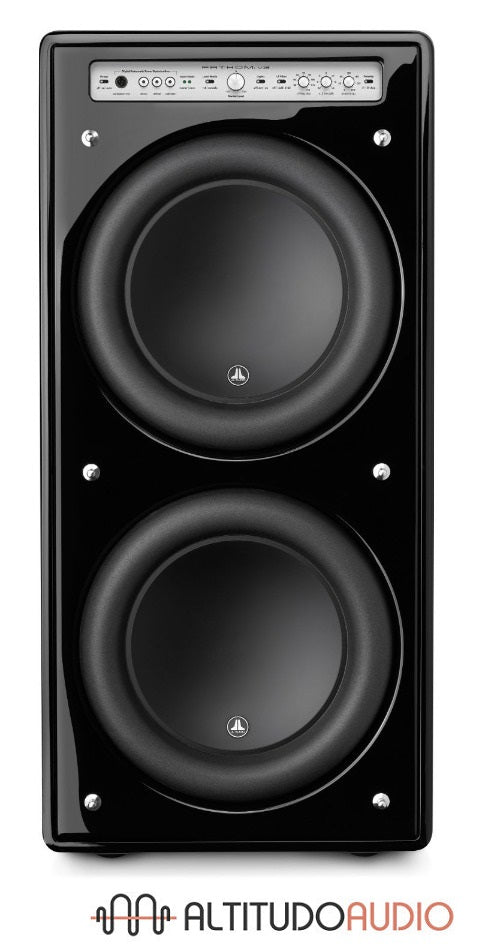

The f212v2 is the ultimate expression of the Fathom formula. It is ideal for larger spaces thanks to its higher efficiency and higher power output. The combination of dual ultra-long throw W7 12-inch drivers and a very powerful switching amplifier give it jaw-dropping performance capabilities at any listening level.
Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f212v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

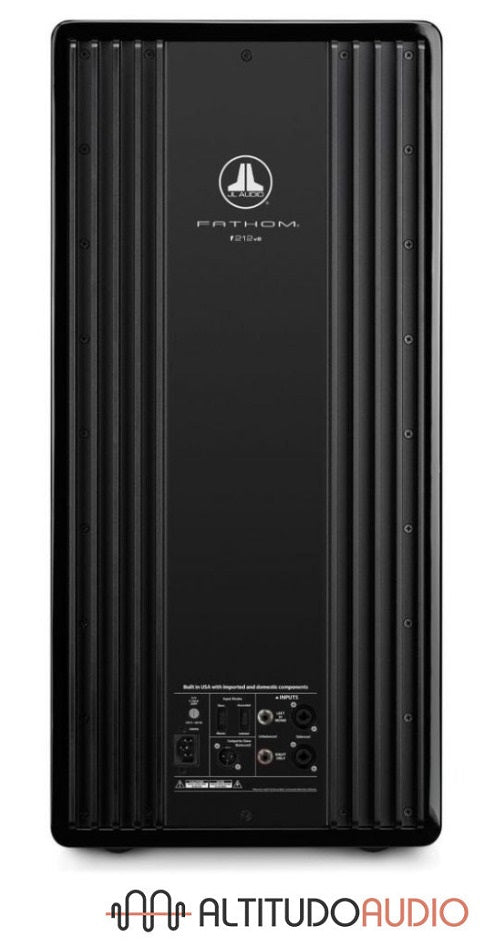

A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.
Finish: Gloss Black

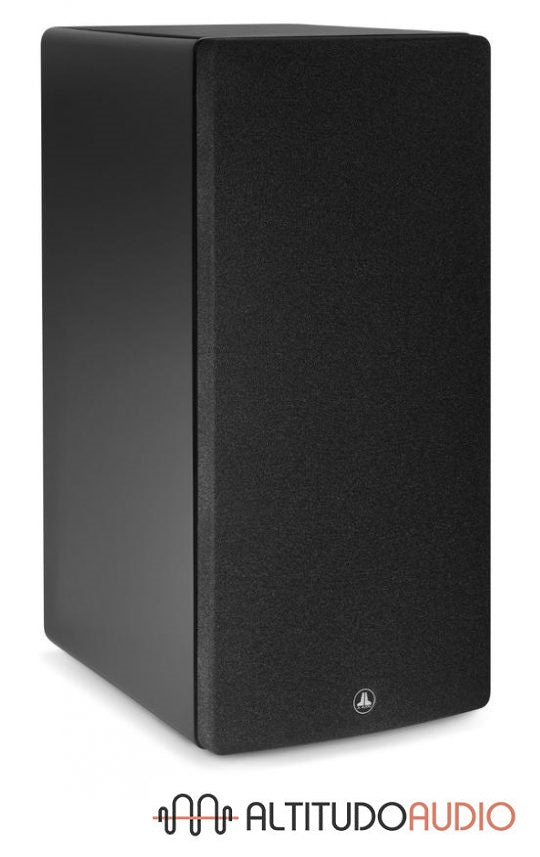

Grille finish: Black fabric
Enclosure Construction: MDF
Features & Specifications
Enclosure Type: Sealed
Enclosure Finish: Black Gloss
Frequency Response (Anechoic): 20 – 97 Hz (±1.5dB) -3 dB at 19 Hz / 110 Hz -10 dB at 15 Hz / 157 Hz
Effective Piston Area (Sd): 168 sq in / 0.1084 sq m
Effective Displacement: 574 cu in / 9.4 L
Amplifier Power: 3.6 kW RMS short-term
Power Mode(s): Off, On or Automatic (Signal-Sensing)
Light Modes: Off, On or Dim
Unbalanced Inputs: Stereo or Mono (two RCA jacks)
Balanced Inputs: Stereo or Mono (two female XLR jacks)
Speaker/High-Level Inputs: N/A
Input Grounding: Isolated or Grounded
Input Modes: Master or Slave
Level Control: Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
Filter Mode(s): Low-Pass
Filter Slope(s): 12/24 dB/octave
Filter Frequency Range: 30 Hz – 130 Hz
Filter Defeat Function: Yes
Polarity: 0 or 180 degrees
Phase: Variable, 0 – 280 degrees
Extreme Low Frequency (E.L.F.) Trim: Variable, -12 dB to +3 dB at 25 Hz
Line Outputs: N/A
Output to Slave: Balanced (one male XLR jack)
Calibration Mode: Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone
