JL Audio

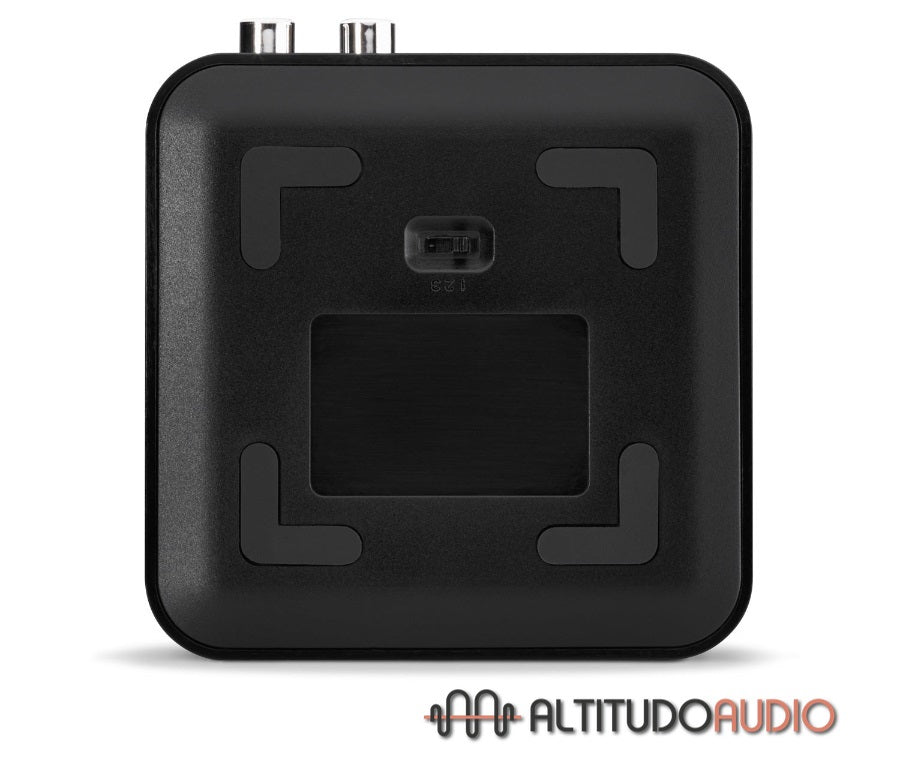

JLink TRX Wireless High-Fidelity Audio Transmitter & Receiver Kit

JLink TRX Wireless High-Fidelity Audio Transmitter & Receiver Kit

$380.00 CAD
$380.00 CAD
Sale Sold out

CALL FOR INFORMATION


JLINK™ TRX
Wireless, High-Fidelity Audio Transmitter & Receiver Kit

Using state-of-the-art wireless technology, the JLINK™ RX receives pure, high-fidelity sound broadcast from a JLINK™ transmitter (sold separately) from up to 100 feet away (30 meters).

Operating at an ultra-high frequency of 2.4 GHz, the JLINK™ RX delivers crystal clear, stereo sound virtually anywhere throughout your home without needing to route or hide long expanses of signal cables. RCA-type input/output connectors are compatible with most audio equipment and a compact design makes it easy to hide out of sight. A JLINK™ port is also included for direct connection with JLINK™ compatible JL Audio products.

Especially useful in system designs that include remote source applications, lengthy signal cable runs or demanding installations due to challenging architecture, the JLINK™ TRX system (sold separately) gives you the freedom to position a source unit or outlying amplifier/powered loudspeakers (subwoofer or full-range) almost anywhere you would like.

  • Add-on receiver for use with JLINK™ TRX kit (sold separately)
  • Outstanding fidelity in subwoofer and full-range applications
  • Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)
  • RCA-type input/output connectors are compatible with most audio equipment
  • Up to 4 JLINK™ receivers (sold separately) can be paired to each JLINK™ transmitter
  • Includes JLINK™ port for use with compatible JL Audio products.

Features & Specifications

S/N Ratio 80 dB @ 1 kHz, 500 mV
THD+N 0.02% @ 1 kHz, 500 mV
Crosstalk >75 dB @ 1 kHz, 500 mV
Frequency Response 16 Hz – 22 kHz (+0, -1dB)
Wireless Range 100 feet / 30 meters (typical)
Wireless Channels 3 available, selectable via switch
Latency 14 mS
Operating Temperature 32 to 104 °F / 0 to 40 °C
AC Power Adaptor 1 A, 5 volts DC
Input Impedance 25 kΩ
Outputs Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless
Receivers Supported
Up to 4

Transmitter specification

Inputs Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless
Outputs Analog, left & right RCA-type Analog via JLINK port to compatible product
Output Impedance 250 Ω
Full Scale Output Voltage 1.2 V
Power Requirements 100 mA, 5 volts (via AC adaptor or JLINK port)
Height (H) 1.12 in / 28.5 mm
Width (W) 3.5 in / 89 mm
Depth (D) 3.5 in / 89 mm

Receiver Specification

Bit Depth/Sample Rate 16 Bit / 48 kHz
Power Requirements 200 mA, 5 volts (via AC adaptor)
Height (H) 1.12 in / 28.5 mm
Width (W) 3.5 in / 89 mm
Depth (D) 3.5 in / 89 mm
Inputs Analog, left and right RCA-type
