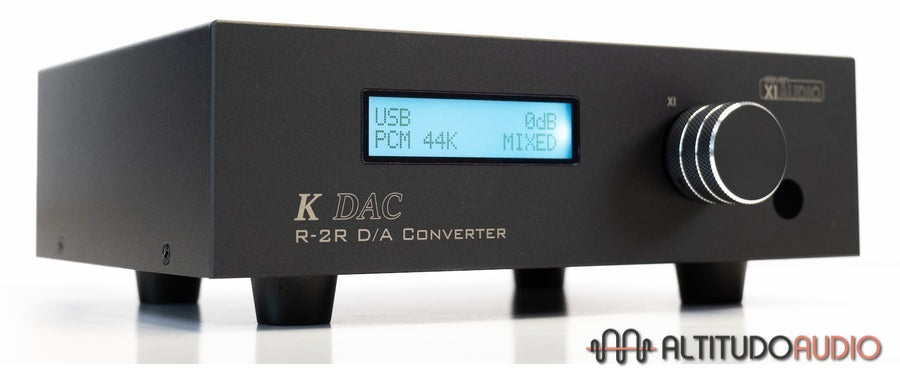

K DAC R-2R Digital to Analog Converter

In music theory, the key is a group of pitches, or scale, around which a piece of music revolves. Key is tonality, and relates to the color and emotion of the music. For example, the key C major is white, innocent and pure, E major is orange, warm and energetic, and A minor is turquoise, gentle soothing sadness like a rainy day.

K DAC is the key point, it’s the core of an audio system. XIAUDIO uses a custom R-2R ladder developed exclusively for them by Soekris of Denmark. This method of digital to analog audio conversion has become quite popular in high-performance audio, particularly with more critical headphone systems where the ability to listen to music in a highly linear fashion is key. Subtle nuances between shades of tonal colors simply flow and more accurately define the artists emotional intent hidden within.

Music flows smoothly from this K DAC with the beauty of a very finely tuned instrument, maintaining live harmonic structure and vocals in a way XIAUDIO products are so well known for. K DAC reproduces the delicate nuances in your music like no other near this price point.

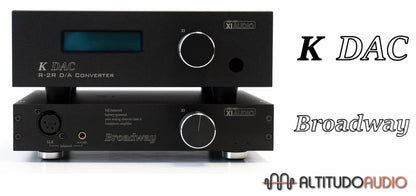

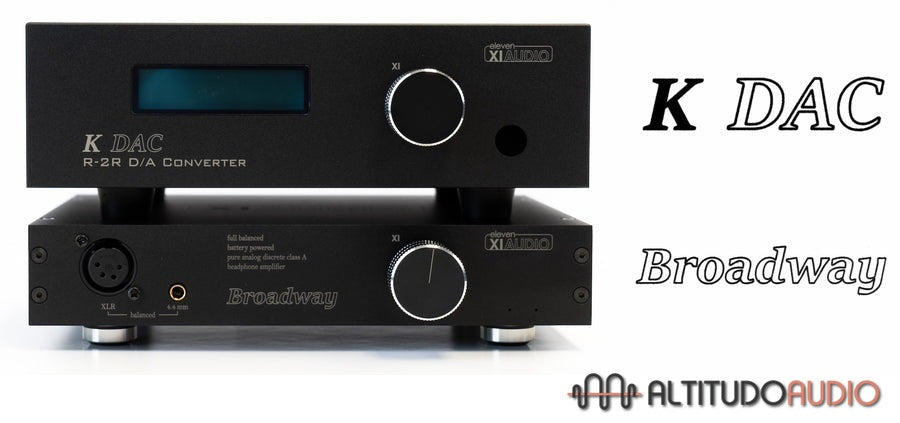

Combine the K DAC with their matching Broadway Balanced headphone amplifier for a compact, high-performance audiophile desktop/gaming headphone audio system, and receive a  free set of JPS Labs 0.5 meter UltraConductor 2 XLR balanced interconnect cables.

Features:

- Custom R-2R Ladder DAC
- Amanero USB Interface (Made in Italy)
- 384KHz / 24bit and native DSD256 support
- Compact Size (mates with Broadway headphone amplifier)
 IR remote control (Volume, inputs, filters,
- Selectable digital filter settings
Digital volume control
- Self burn-in mode (hold volume in for 6 seconds for menu)
Floating ground switch
Input jack for optional linear power supper or 12 V battery

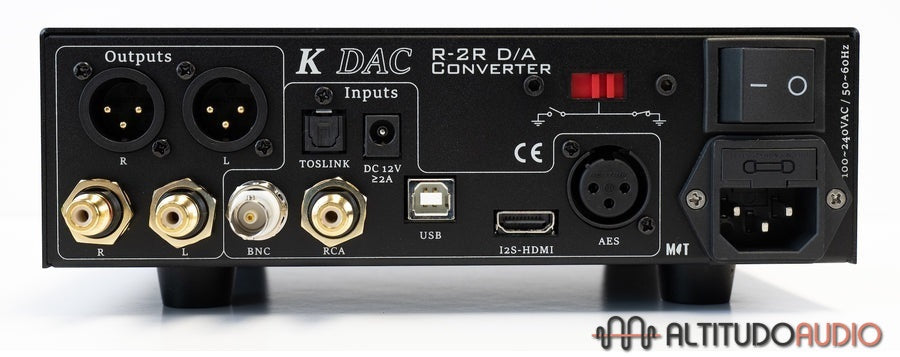

Digital Inputs:

USB
Balanced AES/EBU 110 Ω
S/PDIF RCA 75 Ω (Isolated) and S/PDIF BNC 75 Ω
Toslink (optical)
I2S via HDMI

USB & HDMI I2S input up to PCM 24 bit / 384 KHz sample rate, DSD64, DSD128, DSD256. All other inputs up to PCM 24 bit 192 KHz

Analog Outputs:

RCA x2 (stereo) and XLR x2 (stereo)

Specifications:

THD@-1dB: 0.008%

THD@-60dB 0.03%

Clock Jitter RMS: 0.8 ps typical

Dynamic range: 130.5 dB

S/N ratio (0 Hz-20 Khz): 127dB unweighted

Latency from digital input to analog output: <= 1 ms (great for video and gaming!)

Audio output RCA single ended (R-2R ladder direct): 1.4V RMS (variable)

Audio output XLR balanced (buffered): 4V RMS (variable)

Dimensions: 212 mm * 62 mm (not including feet) * 156 mm (not including in/output terminal and volume control knob)

Input Voltage: Standard IEC mains inlet, auto switching 100-240 VAC, 50-60 Hz (AC cable not included)(DC 12 V input jack, 12-14 VDC, >= 1.0 A)

Weight:1.3 KG
