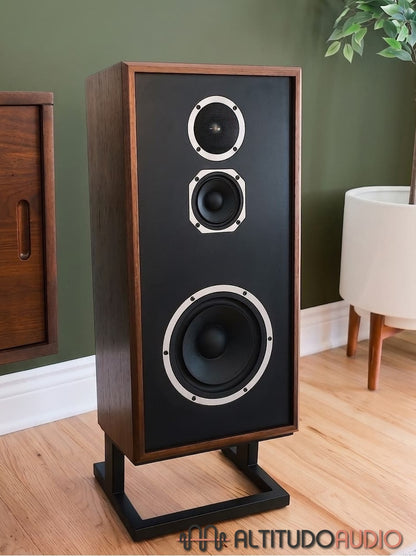

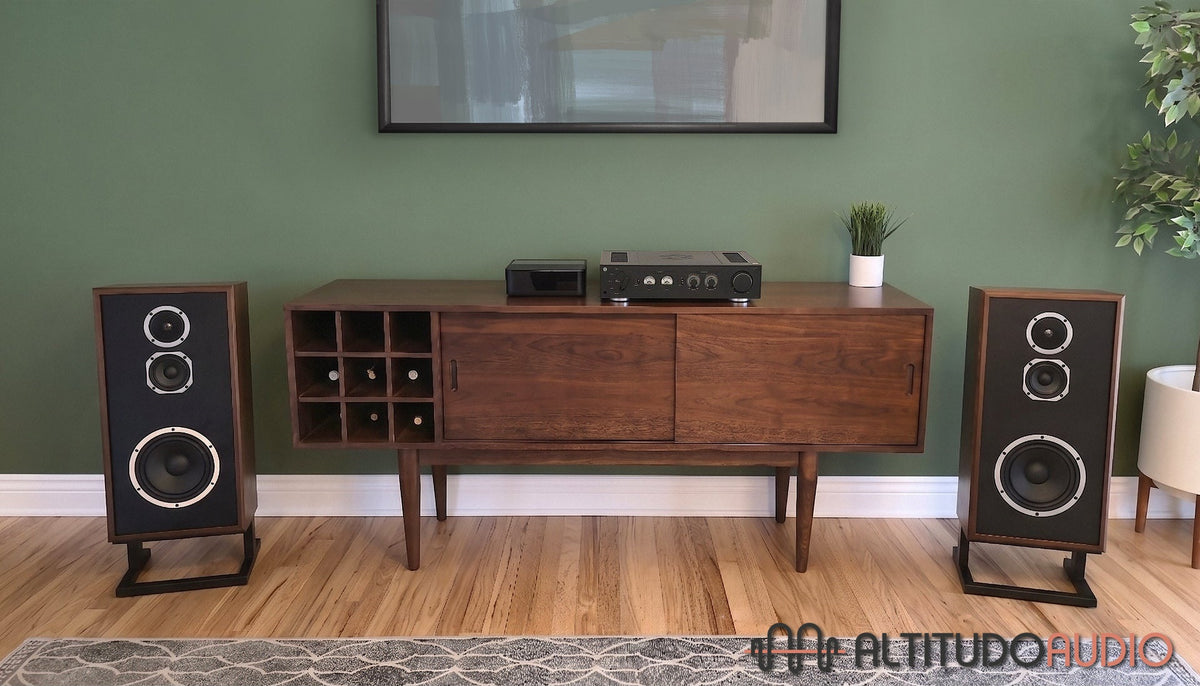

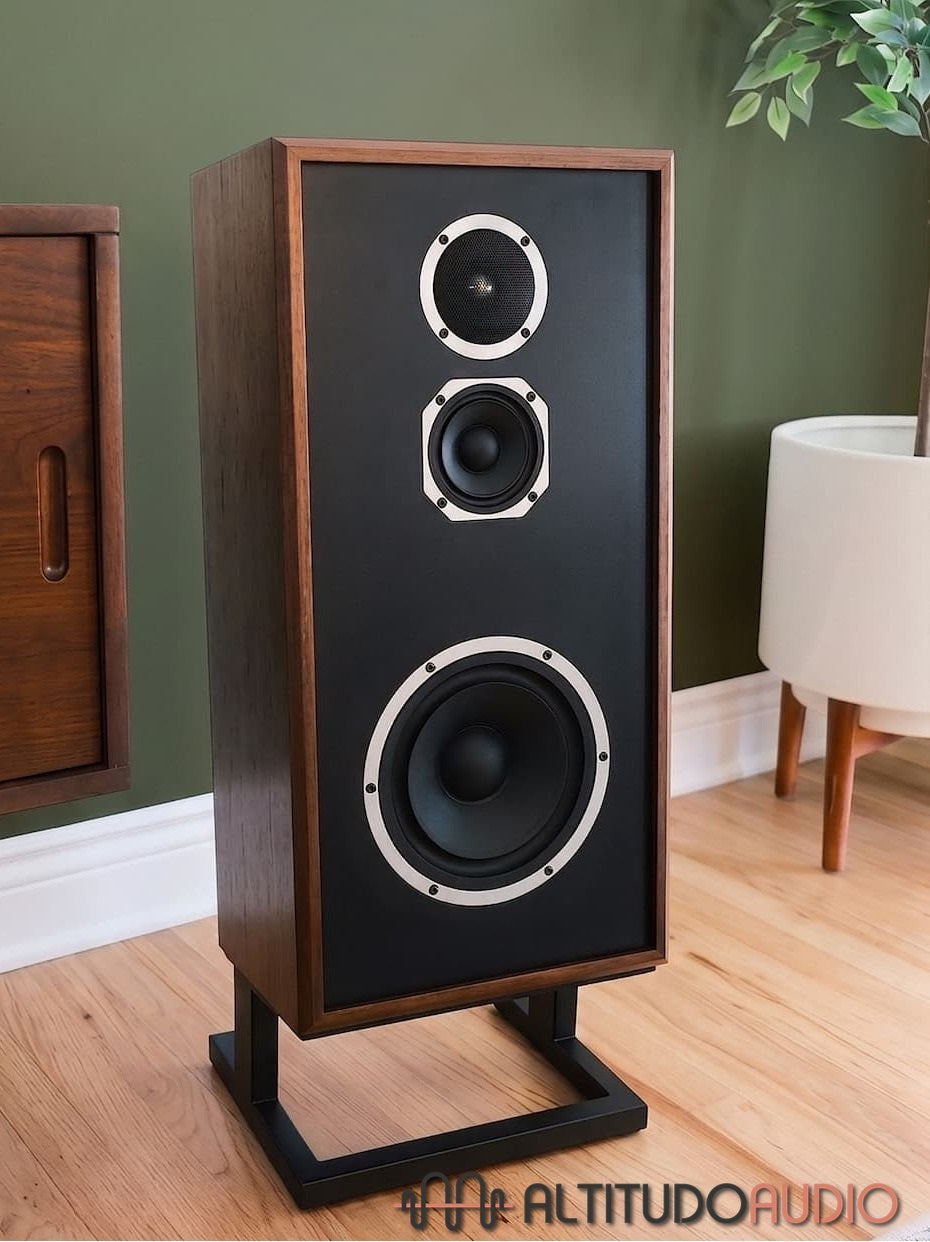

KLH Model Four (Each)

The KLH Model Four brings acoustic suspension performance to rooms where size and placement flexibility matter. Featuring an 8" woofer paired with the same midrange and tweeter array as the acclaimed Model Five, the Model Four delivers exceptional vocal clarity and high-frequency detail. Its slim 8.25" cabinet depth (11" with stand) makes it the most placement-friendly speaker in the Model Collection, able to sit as close as six inches from a wall without compromise.

FEATURES
Acoustic Suspension Engineering

Originally developed by Edgar Villchur and Henry Kloss at Acoustic Research and perfected by Kloss at KLH, the acoustic suspension design uses air as a spring to control the woofer’s movement. This approach delivers deep, accurate bass and allows placement as close as six inches from a wall— offering powerful performance and real-world flexibility.

Three-Position Acoustic Balance Control

Originally introduced by KLH in the late 1960s, the three-position switch allows listeners to reduce midrange and high-frequency response by 1.5 or 3dB to match different rooms and reflective surfaces — ensuring consistent, high-fidelity sound in any environment.

Wide Baffle Design

A defining KLH hallmark, the wide front baffle minimizes edge diffraction for smoother sound dispersion and natural midrange presence. The result is a broad, stable soundstage with precise imaging and natural midrange presence.

SPECIFICATIONS (ALL SPECIFICATIONS FOR A SINGLE SPEAKER)
Frequency Response. . . . . . . . . . . . . . . . . 46Hz – 20,000Hz +/- 3dB
Low Frequency Extension. . . . . . . . . . . . . . . . . . . . . . -10dB @ 35Hz
In-Room Sensitivity. . . . . . . . . . . . . . . . . . . . . . . 88dB @ 2.83V / 1M
Free-field Sensitivity. . . . . . . . . . . . . . . . . . . . . . . 85dB @ 2.83V / 1M
Power Handling. . . . . . . . . . . . . . . . . . . 150 Watts / 600 Watts Peak
Recommended Amplification. . . . . . . . . . . . . . 30 Watts to 150 Watts
In-Room Maximum SPL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108dB
Maximum Output @ 45Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . 101dB
Impedance. . . . . . . . . . . . . . . . 6 Ohms (3.5 ohm minimum @ 120Hz)
-6dB Horizontal Dispersion. . . . . . . . . . . . . . . . . . . . . . . 140 degrees
Enclosure Material. . . . . . . . . . . . . . . . . Structurally Reinforced 3⁄4" &
1" Medium Density Fiberboard
Inputs. . . . . . . . . . . . . . . . . . . . . Five-Way Gold-Plated Binding Posts
Riser Base (Included). . . . . . . . . . . . Matte Black 6° Steel Riser Base

DRIVERS & CROSSOVER
Crossover Frequency. . . . . . . MF: 380Hz (2nd order electro-acoustic)
HF: 2,500Hz (2nd order electro-acoustic)
High Frequency Driver. . . . . . . . . . . . . . . . . . . . . 1" Aluminum Dome
with Soft Rubber Surround
Mid Frequency Driver. . . . . . . . . . . . . . . . . . 4" Pulp-Paper Cone with
Reverse Roll Rubber Surround
Low-Frequency Driver. . . 8" Pulp-Paper Cone with Reverse Roll Rubber
Surround & 1.5" Diameter Flat-Wire Voice Coil

DIMENSIONS AND WEIGHTS
Height. . . . . . . . . . . . . . . . . . . . 32.2" (81.8cm) w/ included Riser Base
26" (66.0cm) w/o Riser Base
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13" (33.0cm)
Depth. . . . . . . . . . . . . . . . . . . . . 11" (27.9cm) w/ included Riser Base
8.25" (21.0cm) w/o Riser Base
Weight. . . . . . . . . . . . . . . . . . . 47lbs (21.3kg) w/ included Riser Base
39lbs (17.7kg) w/o Riser Base
