Klipsch RF-7 III Floorstanding Speaker (Each)

Featuring an all-new titanium compression driver, 90x90 compressed molded-rubber Tractrix horn, redesigned bifurcated cabinet, cast basket Cerametallic woofers and finished in a premium, furniture-grade wood veneer - the Klipsch RF-7 III floor standing speaker champions our legendary, high-performance Klipsch sound.

90x90 Compressed Molded-Rubber Tractrix Horn and Titanium Compression Driver

The RF-7 III's high-frequency section pairs a redesigned 8.5-inch square Tractrix horn with an all-new 1.75-inch titanium diaphragm compression driver to deliver Klipsch's hallmark combination of high efficiency, controlled dispersion, and low distortion through the critical 1,300Hz to 25kHz operating range. The Tractrix horn uses a circular throat that expands into a square mouth geometry, a transition that produces more uniform dispersion across both horizontal and vertical planes simultaneously compared to a conventional circular mouth horn. The 90x90-degree coverage pattern ensures consistent frequency response across a wide listening area rather than narrowing the effective sweet spot to a small center region. The compressed molded-rubber construction of the horn body, rather than the rigid plastic or aluminum used in earlier Reference Series designs, provides inherent high-frequency damping that absorbs internal reflections and reduces the coloration those reflections introduce at the upper end of the horn's operating range. The new phase plug on the compression driver equalizes acoustic path lengths from across the titanium diaphragm to the horn throat exit simultaneously, improving phase coherency and producing more linear sound pressure output at high frequencies for cleaner, more detailed treble reproduction.

Dual 10" Cerametallic Woofers in Bifurcated Dual-Chamber Enclosure with Tractrix Ports

The RF-7 III's low-frequency architecture addresses the three primary challenges of housing dual woofers in a single cabinet: cone distortion at high excursion, internal standing waves, and port turbulence. Each of the two 10-inch Cerametallic woofers combines a ceramic-coated cone surface with a metallic substrate for exceptional rigidity at minimal mass, resisting the breakup modes that introduce distortion in lighter or less rigid cone materials during high-excursion bass transients. A cast aluminum frame eliminates the structural resonances that stamped steel frames develop under the mechanical stress of woofer operation, and a dual shorting-ring magnet structure cancels magnetic flux modulation during cone movement for more linear cone excursion with lower distortion across the full operating range. The bifurcated enclosure physically divides the cabinet into two independent acoustic chambers, assigning each woofer and its own dedicated Tractrix port to a separate volume. This prevents the two woofers from generating shared standing wave patterns that would otherwise create frequency response anomalies in the upper bass and lower midrange region immediately below the 1,300Hz crossover point. Each of the two rear-firing Tractrix ports applies horn-expansion geometry to the port profile, minimizing air turbulence at the port exit and producing cleaner, faster low-frequency output than conventional cylindrical ports at equivalent cabinet volume.

Key Features

• 90x90 Degree Tractrix Horn (Compressed Molded Rubber): An 8.5-inch square horn with a circular-to-square throat-to-mouth transition delivers uniform 90-degree horizontal and vertical dispersion, with molded-rubber construction providing high-frequency damping to reduce harshness and improve treble detail.
• 1.75" Titanium Compression Driver with New Phase Plug: A large-format titanium diaphragm compression driver with a redesigned phase plug improves phase coherency at the horn throat for more linear sound pressure output and cleaner high-frequency extension to 25kHz.
• Dual 10" Spun Copper Cerametallic Woofers: Two 10-inch Cerametallic cone woofers combine ceramic-coated rigidity with low mass for minimal cone breakup distortion, mounted in cast aluminum frames with dual shorting-ring magnet structures for improved excursion linearity.
• Bifurcated Dual-Chamber Cabinet: Each woofer operates in its own physically isolated acoustic chamber, eliminating shared standing waves and improving low-frequency and midrange linearity across both drive systems independently.

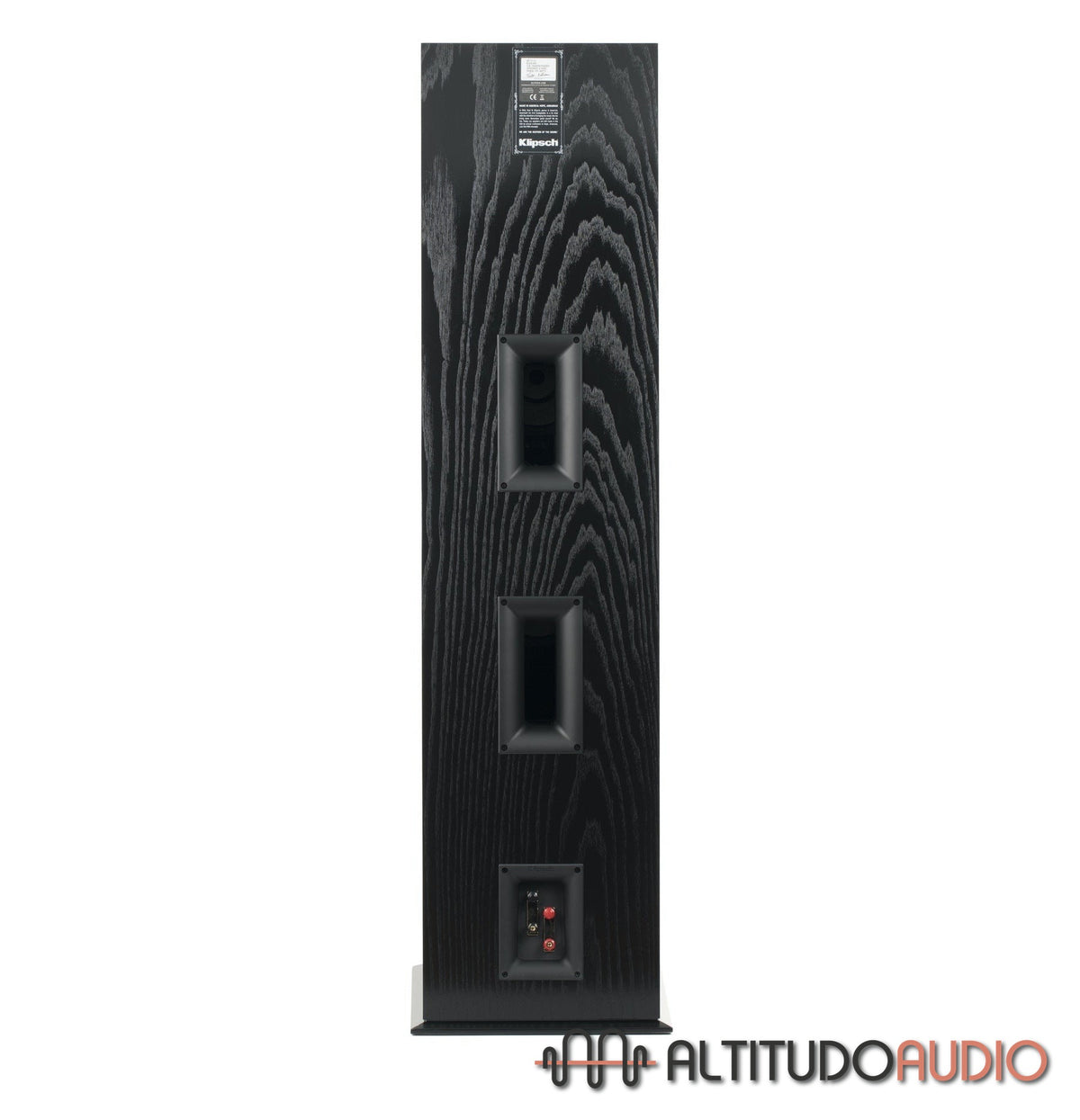

• Dual Rear-Firing Tractrix Ports: Each independent cabinet chamber vents through a dedicated rear-firing Tractrix-geometry port that minimizes air turbulence at the port exit for cleaner and more powerful low-frequency output.
• 100 dB Sensitivity: Reference Series flagship efficiency enables high-output listening with modest amplification and supports compatibility across AV receivers, integrated amplifiers, and high-power dedicated power amplifiers.
• 250W Continuous / 1000W Peak Power Handling: Exceptional power handling accommodates high-power amplification in large listening rooms and demanding home theater environments without driver compression or stress.
• Dual Binding Posts for Bi-Wire / Bi-Amp: A rear input panel with dual 5-way binding posts accepts large-gauge speaker cables and supports bi-wiring and bi-amplification configurations for improved channel separation and signal fidelity.
• Furniture-Grade Wood Veneer Finishes: Available in Black Ash, Cherry, and Walnut, the RF-7 III enclosures use premium furniture-grade wood veneers that elevate the cabinet presentation above standard vinyl-wrapped Reference Series models.
• Designed and Assembled in Hope, Arkansas: Built to Klipsch Reference Series standards by craftsmen in Hope, Arkansas using domestic and imported components, in the same facility as the Klipsch Heritage Series.

Technical Specifications
