KRELL DUO 300 XD STEREO AMPLIFIER
KRELL DUO 300 XD STEREO AMPLIFIER
Krell

KRELL DUO 300 XD STEREO AMPLIFIER

Regular price $16,750.00 $0.00 Unit price per

Shipping : FREE in Canada

A comment on the new Krell sound from our XD upgraded amplifiers…Initially, there’s no comparison between the two models (pre and post XD upgrade) – the jump in resolution and musicality is massive. It’s like they are channeling the sound that made Krell famous, while incorporating the changes in technology that have come to be over the last 35 years

When developing the DUO300-XD, David Goodman, our Director of Product Development, whom has been with Krell since 1987 and was largely responsible for design work on all Krell products, discovered that with modifications to the output stage, we could vastly improve sound quality, across the board, to all of our amplifiers.

THE RESULT
A deeper, darker, blacker background that provided significantly better macro and micro dynamics, more silence between the notes. Vocals and midrange took on an organic, yet more vibrant tone, enabling us to hear much more body, and even though our amps were great before, there was a very significant improvement.
The speakers disappeared; yet, instruments were more focused with appropriate size and specific soundstage locations. All in all, a much better sounding, much improved experience that was easily, immediately heard by all that listened.

Features & Specifications

300 Watt Amplifier Featuring Krell iBias Technology

Specifications

Frequency response
20 Hz to 20 kHz +0, -0.13 dB
0.5 Hz to 100 kHz +0, -3 dB

Signal-to-noise ratio
>98 dB, wideband, unweighted, referred to full power output
>116 dB, “A”-weighted

Gain
26.2 dB

Total harmonic distortion
<0.045% at 1 kHz, at 400 W, 8 Ω
<0.17% at 20 kHz, at 400 W, 8 Ω

Input Impedance
Single-ended: 100 kΩ
Balanced: 200 kΩ

Input sensitivity
Single-ended or balanced: 2.4 V RMS

Output power
300 W RMS at 8 Ω
540 W RMS at 4 Ω

Output voltage
138 V peak-to-peak
49 V RMS

Output current
16 A peak

Slew rate
40 V/μs

Output impedance
<0.017 , 20 Hz to 20 kHz Damping factor >470, 20 Hz to 20 kHz, referred to 8 Ω

Power consumption
Standby: 4 W
Idle: 180 W
Maximum: 1600 W

Heat output
Standby: 13.7 BTU/hr.
Idle: 615 BTU/hr.
Maximum: 5677 BTU/hr.

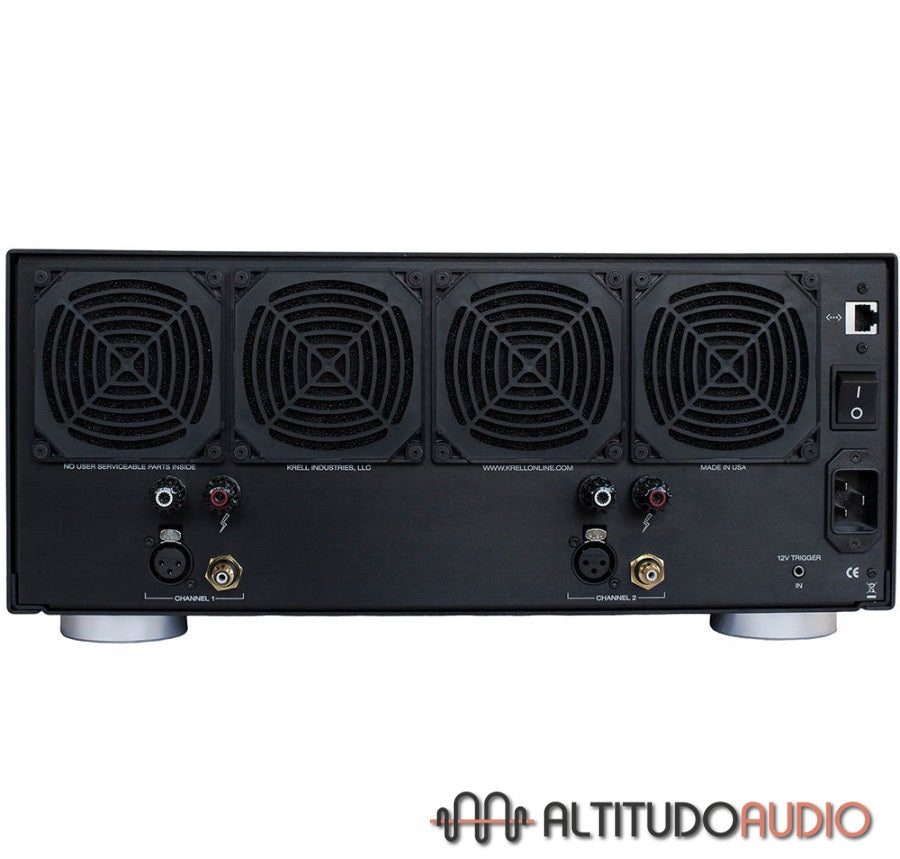

Inputs
2 single-ended via RCA connector
2 balanced via XLR connector

Outputs
2 pairs binding posts

Dimensions
17.1 in. W x 7.65 in. H x 21.10in. D
434 mm W x 194 mm H x 536mm D

Weight
80 lbs., 3.64 kg (shipping)
70 lbs., 31.8 kg (unit only)
