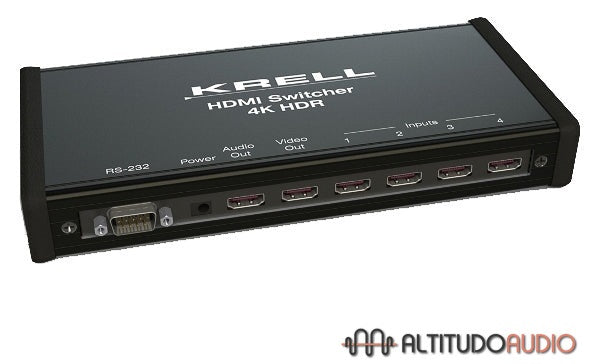

HDMI 4K HDR SWITCHER
Krell

HDMI 4K HDR SWITCHER

Regular price $1,800.00 $0.00 Unit price per

Shipping : FREE in Canada

Product Details


The switcher extends the video capabilities of the Foundation, Foundation 4K, S-1200, and Evolution 707 to full 4K with HDR as outlined in the HDMI v2.0b specification. HDR (High Dynamic Range) as defined by the HDR10 or Dolby Vision specifications increases the color gamut from 256 colors to at least 1024 colors which produces an image with stunning clarity, brightness, and realism. When used with the Foundation or Foundation 4K the switcher provides three HDMI inputs for 4K HDR sources, replacing HDMI inputs 2-4. Integration is as simple as connecting the switcher per the instruction manual and running the software update from the front panel of the Foundation or Foundation 4K. There are no changes required in the device setup (unless HDMI input 1 is in use) or home control system programming (if present). For the S-1200 or Evolution 707 the addition of the switcher increases the number of HDMI inputs from four to six (three for 4K HDR and three for non-4K sources). Both units will require updated software which can be installed using a home computer and Krell’s software update utility program. Please contact Krell for software and installation instructions.

Technical Specifications

HDMI:
4 HDMI inputs (3 available for sources, 1 used for loop back configuration)
HDMI v2.0b with HDCP v1.4/2.2
Single HDMI connection to TV
HDMI video output for connection to TV
HDMI audio output for connection to the Processor

Control:
Seamless operation with the Foundation using the supplied USB to RS-232 adapter (the 4 HDMI inputs are mapped to HDMI inputs 1- 4 on the Foundation)
RS-232 control for stand-alone use with a home control system

Bandwidth: 18Gbps
Video: 4K/60Hz, RGB 4:4:4/YUV 4:4:4/YUV 4:2:0, 12-bits, HDR10, HDR10+, Dolby Vision
Audio: LPCM, Dolby Digital, Dolby TrueHD, DTS, DTS-HD
Power Supply: 24VDC, 0.5A
Power Consumption: <12W
Dimensions: 8.9in (22.6cm) W x 1.2in (3.0cm) H x 4.25in (10.8cm) D
Shipping Weight: 3lbs (1.4kg)
