Trio 300 XD Multi-Channel Amplifier
Shipping : FREE in Canada
Krell Class A iBias Technology
Krell’s history is rich with breakthrough Class A amplifiers that have helped build the Krell legacy of offering the best sounding amplifiers available. Audiophiles have always considered Class A technology to be the best sounding operating state for amplifiers. However, despite Class A’s unrivalled sound quality, it has fallen out of fashion because of recent demands to reduce power consumption and heat in home electronics products. Krell engineering took this challenge and redefined the meaning of high performance power amplifier. Our goal – unmatched performance, elegant design, and a compelling array of features. The breakthrough – a patent pending circuit delivering Class A operation without the excessive heat and wasted energy of conventional designs, housed in a striking new form factor, with network connectivity for advanced access and monitoring. The sound is open and unconstrained, in a manner that rivals live performance and the true sound of voices and instruments. Music and dialogue are reproduced with a richness, detail, and startling dynamics that fill a room.
When developing the TRI300-XD, David Goodman, our Director of Product Development, whom has been with Krell since 1987 and was largely responsible for design work on all Krell products, discovered that with modifications to the output stage, we could vastly improve sound quality, across the board, to all of our amplifiers.
A deeper, darker, blacker background that provided significantly better macro and micro dynamics, more silence between the notes. Vocals and midrange took on an organic, yet more vibrant tone, enabling us to hear much more body, and even though our amps were great before, there was a very significant improvement.
The speakers disappeared; yet, instruments were more focused with appropriate size and specific soundstage locations. All in all, a much better sounding, much improved experience that was easily, immediately heard by all that listened.
Features & Specifications
3 Channel Power Amplifier
300 Watt Amplifier Featuring Krell iBias Technology
20 Hz to 20 kHz +0, –0.13 dB
<0.5 Hz to 100 kHz +0, –3 dB Signal-to-noise ratio >98 dB, wideband, unweighted, referred to full power output
>116 dB, “A”-weighted
Total harmonic distortion
<0.045% at 1 kHz, at 300 W, 8 Ω
<0.17% at 20 kHz, at 300 W, 8 Ω
Single-ended: 100 kΩ
Balanced: 200 kΩ
Single-ended or balanced: 2.4 V RMS
300 W RMS at 8 Ω
540 W RMS at 4 Ω
138 V peak-to-peak
49 V RMS
16 A peak
<0.017 W, 20 Hz to 20 kHz Damping factor >470, 20 Hz to 20 kHz, referred to 8W
Standby: 4 W
Idle: 200 W
Maximum: 2160 W
< Standby: 13.7 BTU/hr.
Idle: 800 BTU/hr.
Maximum: 7387 BTU/hr.

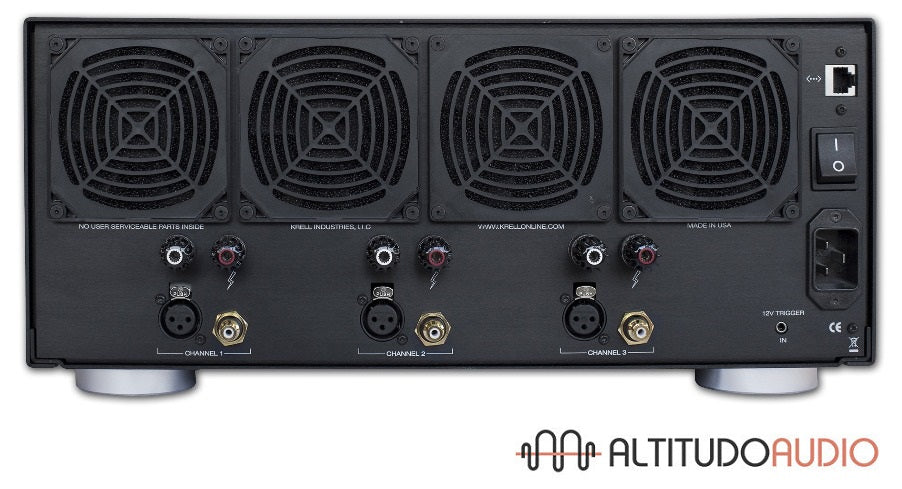

3 single-ended via RCA connector
3 balanced via XLR connector
3 pairs binding posts
17.1 in. W x 7.65 in. H x 21.10 in. D
434 mm W x 194 mm H x 536 mm D
100lbs., 45.4 kg (shipping)
85 lbs., 38.6 kg (unit only)
