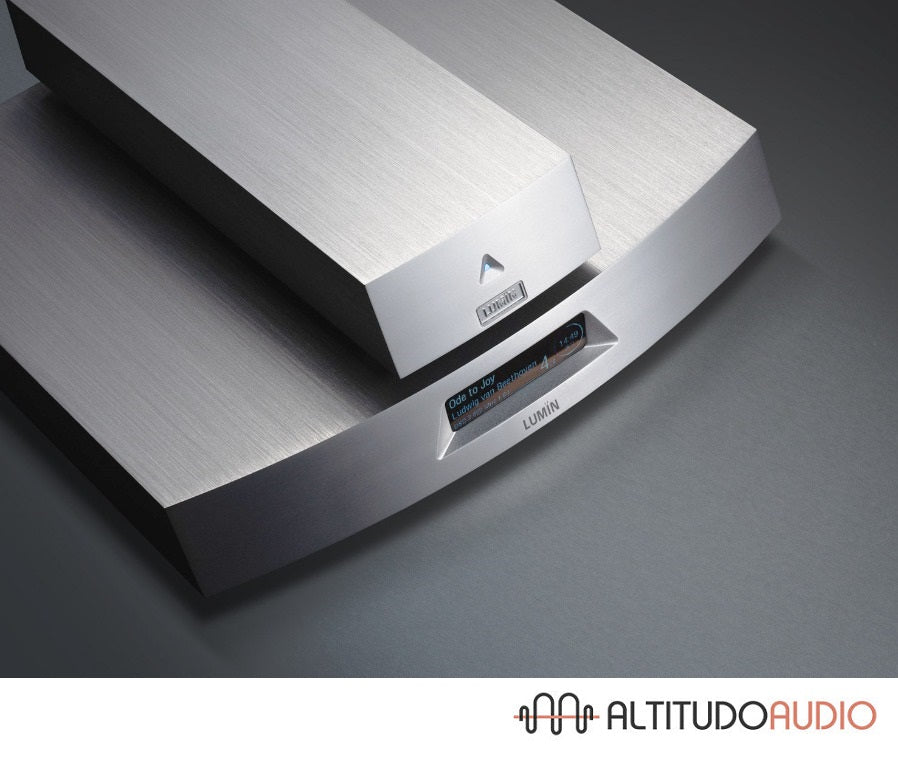

WHY LUMIN U1X

With our flagship PSU becoming available as an upgrade to other models, many customers requested a bundle including this new PSU as standard.

LUMIN U1X arrives already-upgraded, with the X1 PSU included in the box.

Not only will you benefit from its sleeker finish and heavyweight solid-billet construction, owners are reporting improvements to every aspect of their favourite music

The best – right out of the box

  • No need for add-on upgrades
  • Power supply uses the same solid billet construction techniques as the main U1 chassis
  • Thick aluminium walls provide even more shielding
  • Available in anodised black and raw silver
  • Supplied with a custom version of the X1 cable
  • Separate digital and analogue circuitry
  • Low-noise Linear Regulator
  • The highest quality components used throughout

SPECIFICATION

U1 SPECIFICATION

  • DSD SUPPORT:

    • Up to DSD512 22.5MHz, 1-bit

  • PCM SUPPORT:

    • Up to 768kHz, 16–32-bit, Stereo

  • UPSAMPLING RATES & BIT DEPTHS:

    • DSD128 upsampling option for all files
    • PCM 384kHz upsampling option for all files

  • DIGITAL OUTPUT STAGE:

    • USB:
      • DSD512 22.5MHz, 1-bit, Stereo
      • PCM 44.1–768kHz, 16–32-bit, Stereo
    • OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU:
      • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
      • PCM 44.1kHz–192kHz, 16–24-bit

  • POWER SUPPLY:

    • External dual-toroidal
    • Available in 240V and 110V versions

  • PHYSICAL:

    • FINISH:

      • Raw brushed aluminium or black anodised brushed aluminium

      LUMIN (SOLID ALUMINIUM CHASSIS):

      • 350mm (W), 345mm (D), 60mm (H), 8kg

    • PSU:

      • 100mm (W), 315mm (D), 55mm (H), 2kg

SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS

  • STREAMING PROTOCOL:

    • UPnP AV protocol with audio streaming extension (OpenHome)
    • Roon Ready
    • TIDAL Connect
    • Spotify Connect
    • AirPlay-compatible
    • Gapless Playback
    • On-Device Playlist

  • APP FEATURES:

    • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
    • Tidal MQA icons to identify high-res music
    • Qobuz high-res icons to identify high-res music
    • Volume control
    • High-resolution artwork
    • Artwork caching
    • Search
    • Multiple tag handling
    • Composer tag support
    • Album-grouping in playlist
    • Automatic internet links to artists/album/songs
    • Saving and restoring of playlists (including Tidal and Qobuz)

  • SUPPORTED AUDIO FILE FORMATS:

    • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
    • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
    • Compressed (lossy) Audio: MP3
    • MQA (Core decode)

  • INPUT:

    • Ethernet RJ45 network 1000Base-T
    • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

  • SUPPORTED CONTROL DEVICES:

    • All models of Apple iPad (v2 or later). iOS 9.0 or later required. Full Retina Display support.
    • Android devices. Android 4.0 (Ice Cream Sandwich) or later required

  • OTHER:

    • Leedh Processing lossless digital volume control
    • Programme of Continuous Development – Firmware-upgradable for further features and enhancements
