Rotel

Michi X430 Integrated Amplifier

Michi X430 Integrated Amplifier

$6,500.00 CAD
$6,500.00 CAD
Sale Sold out

The Michi Prestige X430 Integrated Amplifier delivers a commanding 340 Watts of Class AB power into 4 ohms (210 Watts into 8 ohms) with exceptional control and ultra-low distortion. Precision-engineered with an ESS SABRE ES9039Q2M 32-bit DAC, premium power supply driven by an in-house manufactured transformer, and a stunning full-color display, the X430 redefines modern elegance and high-end performance.

The Michi Prestige X430 Integrated Amplifier is a statement of power, precision, and refinement. Delivering 340 Watts per channel into even the most demanding 4-ohm speakers (210 Watts into 8 ohms), its Class AB architecture offers effortless dynamics with remarkable control and transparency.

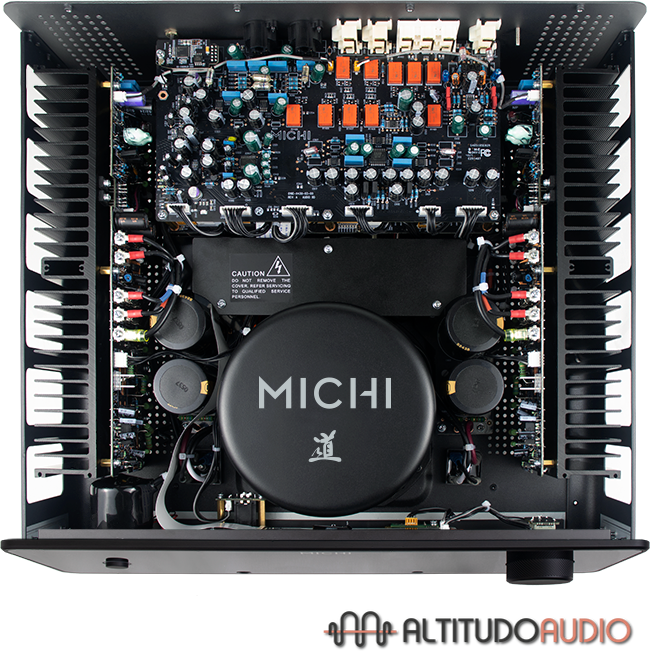

At its core, a premium ESS SABRE ES9039Q2M 32-bit DAC delivers exceptional digital to analog conversion, paired with a custom in-house engineered toroidal transformer and fully isolated power supplies minimizing noise and distortion.

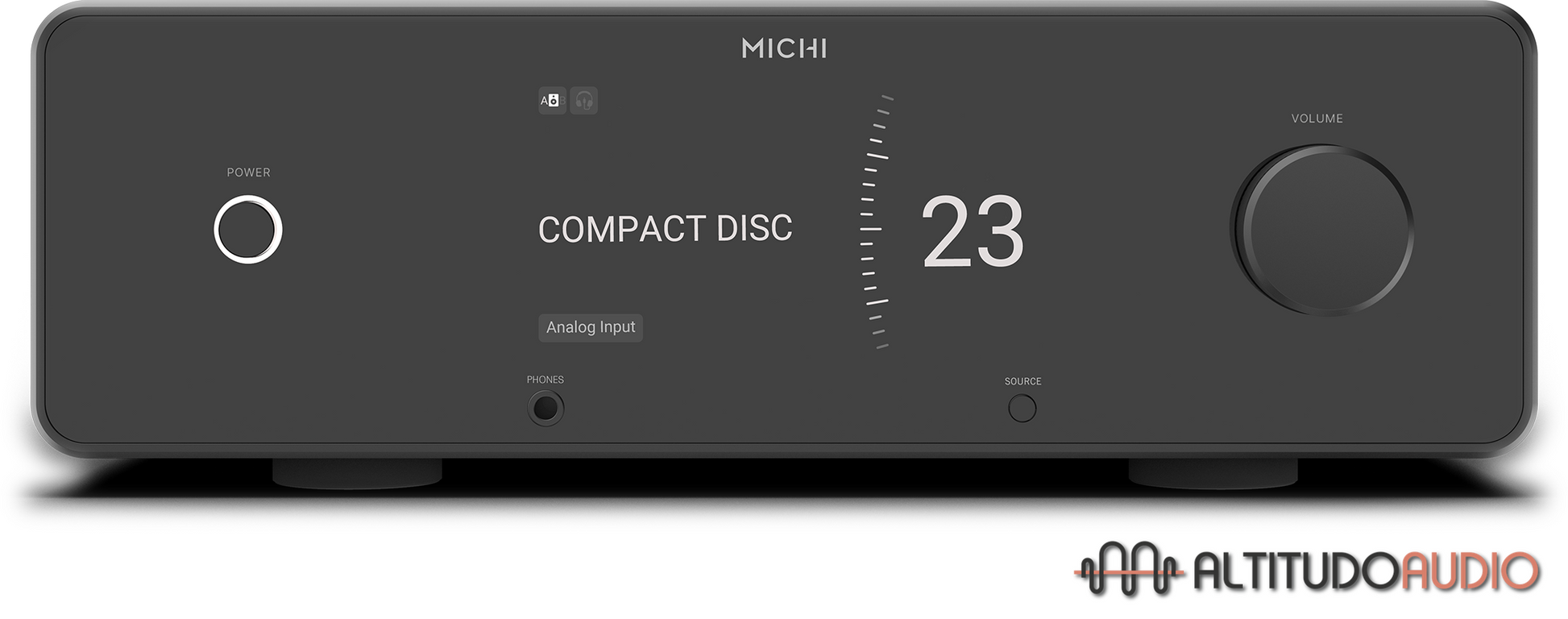

The aluminum chassis, precision-knurled volume controller, glass front panel, and high-resolution full-color display - featuring spectrum and VU meter views – reflects Michi's dedication to craftsmanship where engineering, art, and musical passion converge.

Specifications:

Dimensions (W × H × D)
431 x 148 x 422 mm
17 x 6 3/5 x 15 5/6 "

Front Panel Height
131 mm (5 1/6")

Power Requirements
120 V, 60 Hz

Power Consumption
520 W

Standby Power Consumption
 Normal < 0.5 W
 Network wakeup < 2 W

Net Weight
16.9 kg ( 37.26 lbs.)

BTU Rating
1476 BTU/h

Power Output (FTC)
220 W/Ch (8 ohms)

Maximum Power Output (Non FTC)
340 W/Ch (4 ohms)

Continuous Power Output  (Non FTC)
210 W/Ch (8 ohms)

Total Harmonic Distortion
<0.03%

Frequency Response
Line Level Inputs: 10 Hz - 100 kHz
(+0 dB, -0.5 dB)
Digital Inputs: 10 Hz - 20 kHz
(+0 dB, - 0.4 dB, Max)
Phono Input: 20 Hz - 20 kHz
(+0 dB, -0.5 dB)

Signal to Noise Ratio (A Weighted)
Line Level Inputs (RCA) : > 105 dB
Line Level Inputs (XLR) : > 100 dB
Digital Inputs: > 110 dB
Phono Input: > 80 dB
Intermodulation Distortion (60 Hz:7 kHz, 4:1)
<0.03%

Damping Factor (20 Hz - 20kHz, 8 ohms)
260

Channel Separation
> 55 dB

Preout Level
1.92 V

Output Impedance
100 ohms

Tone Controls
±10 dB at 100 Hz / 10 kHz
Input Sensitivity
Line Level Inputs (RCA): 356 mV
Line Level Inputs (XLR): 743 mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.56 mV

Input Impedance
Line Level Inputs (RCA): 100k ohms
Line Level Inputs (XLR): 50k ohms
Digital Inputs: 75 ohms
Phono Input (MM): 47k ohms

Input Overload
Line Level Inputs (RCA): 4 V
Line Level Inputs (XLR): 10 V
Phono Input (MM): 66 mV
Digital to Analog Converter
ESS ES9039Q2M DAC

HDMI
Support CEC with ARC function
2-channel PCM only (up to 24-bit/48 kHz)

Coax/Optical Digital Input Signals
SPDIF LPCM (Up to 24-bit/192 kHz)

PC-USB
USB Audio Class 2 (up to 32-bit/384 kHz)
*Driver installation required
Support DSD (up to 4X, 11.2 MHz)
and DoP (up to 2X, 5.6 MHz)
Support Roon Tested
