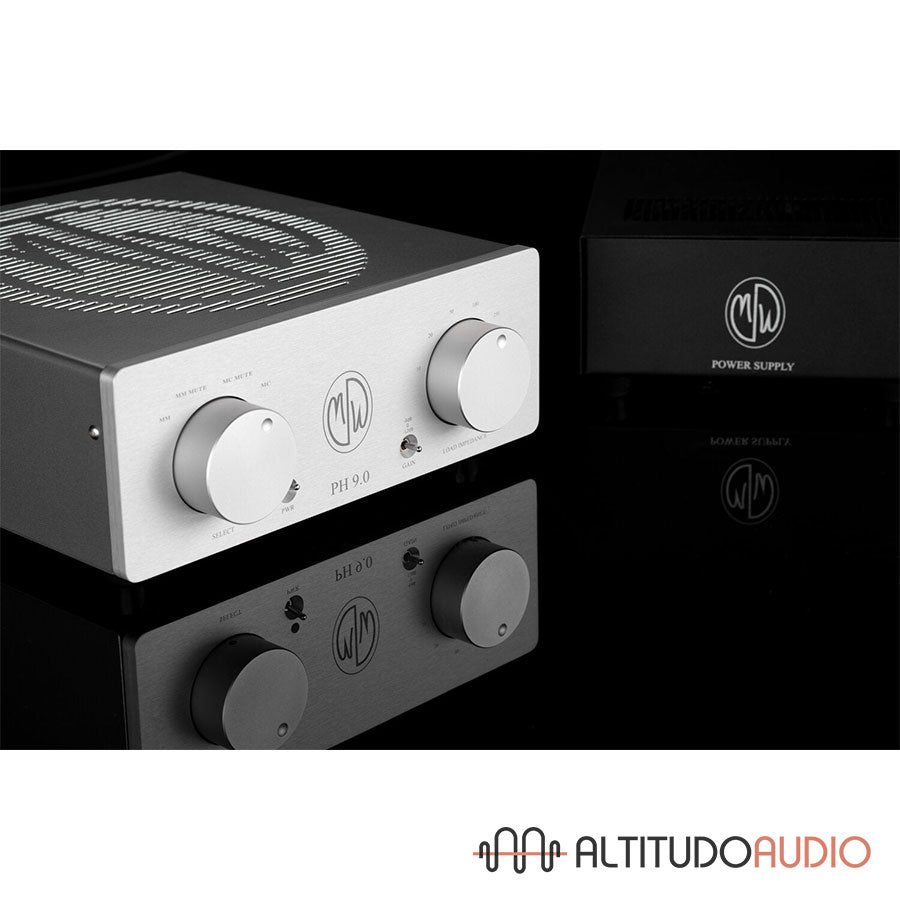

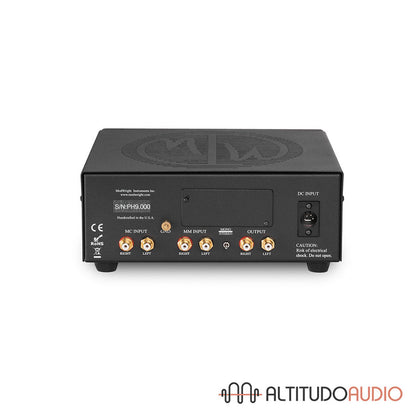

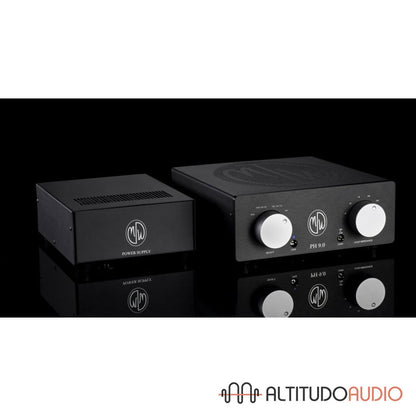

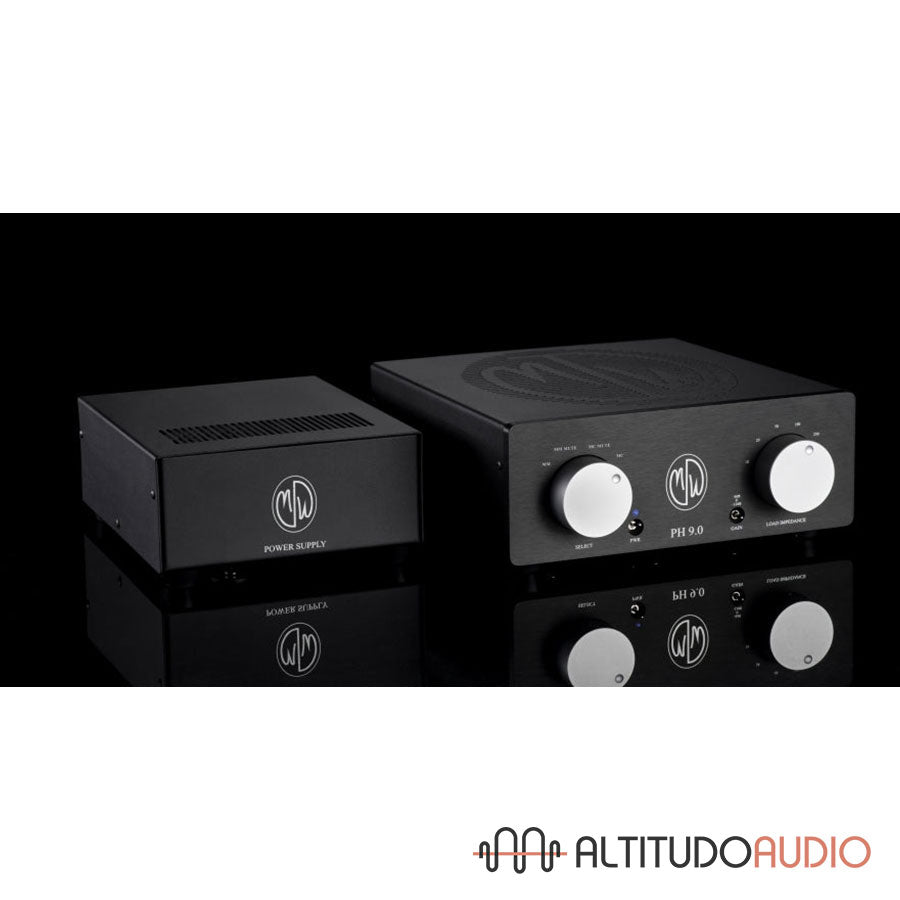

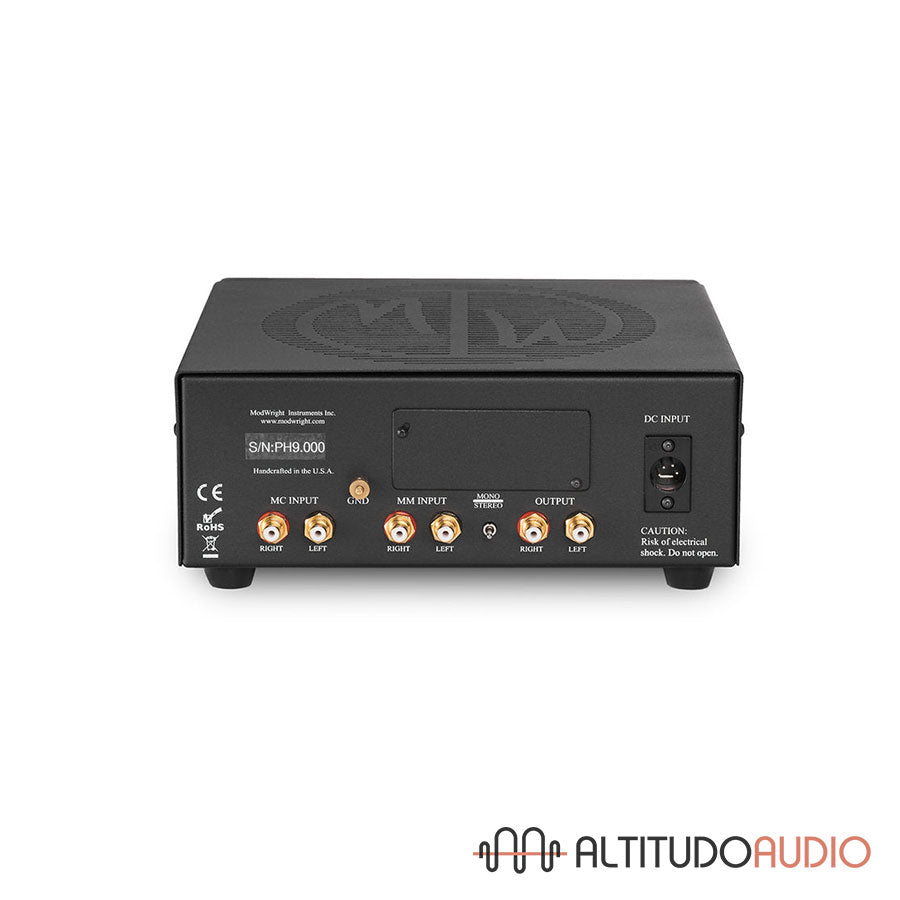

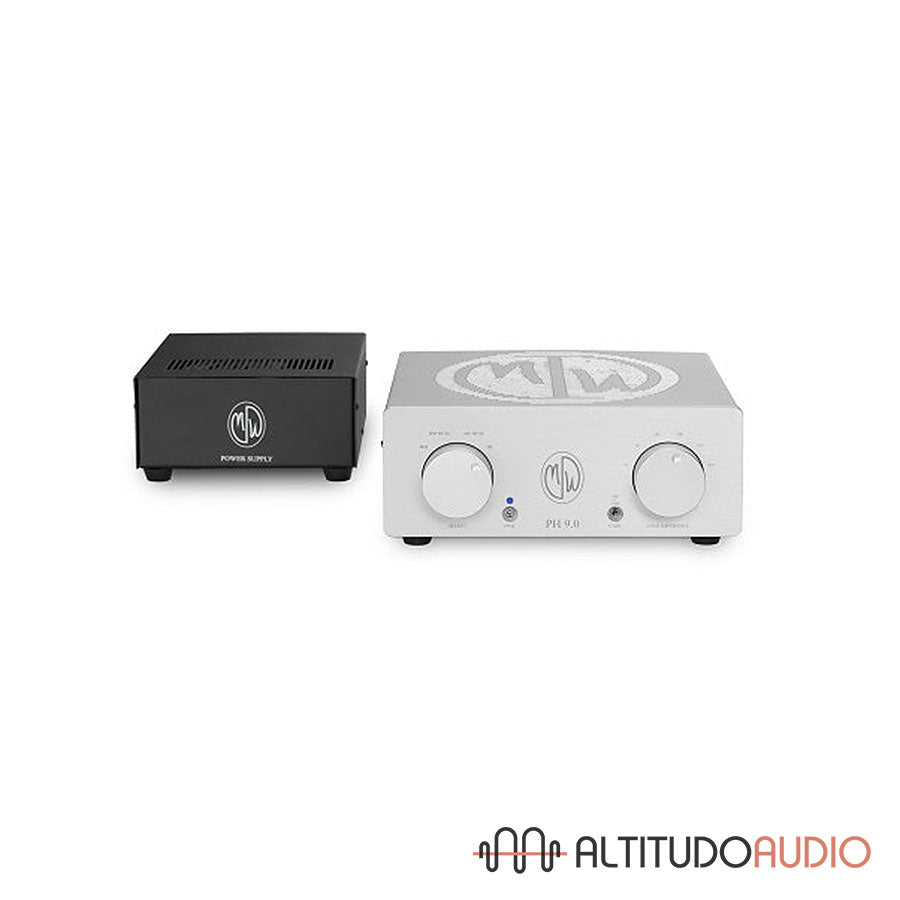

PH 9.0 Tube Phono Stage
PH 9.0 Tube Phono Stage
PH 9.0 Tube Phono Stage
PH 9.0 Tube Phono Stage
ModWright

PH 9.0 Tube Phono Stage

Regular price $700.00 $0.00 Unit price per

Shipping : FREE in Canada

Technical

  • MC Gain: 64dB (58dB, 52dB)
  • MM Gain: 52dB (46dB, 40dB)
  • Gain Adjust: 0, -6dB, -12dB
  • Inputs: MM & MC
  • MC Loading: 10-20-50-100-250-470
  • MM Loading: 47K fixed.
  • Stereo/Mono: Rear Toggle.
  • Frequency: 20Hz – 50Khz (+/-.2dB)
  • Tubes: (2)6C45, (2)6922/6dj8/7308
  • Power Supply: External, solid state
  • Phono Dim = 10“Wx10“Dx4“H
  • Power Supply Dim = 7“Wx9“Dx3“H
  • Power Umbilical: 4-pin XLR, 6 ft
  • Balanced Outs: Transformer Coupled (additional cost)

*Upgrade!



PH 9.0 to PH9.0T OR
PH 9.0X to PH9.0XT
UPGRADE

Upgraded tube rectification and high voltage pre-regulation stage.
With Balanced Outputs. Must be done at Modwright!


PH 9.0 to PH9.0X
UPGRADE

Upgrade from PH9.0 to PH9.0X with Lundahl gapped output
transformers, and Balanced Outputs. Must be done at Modwright!
