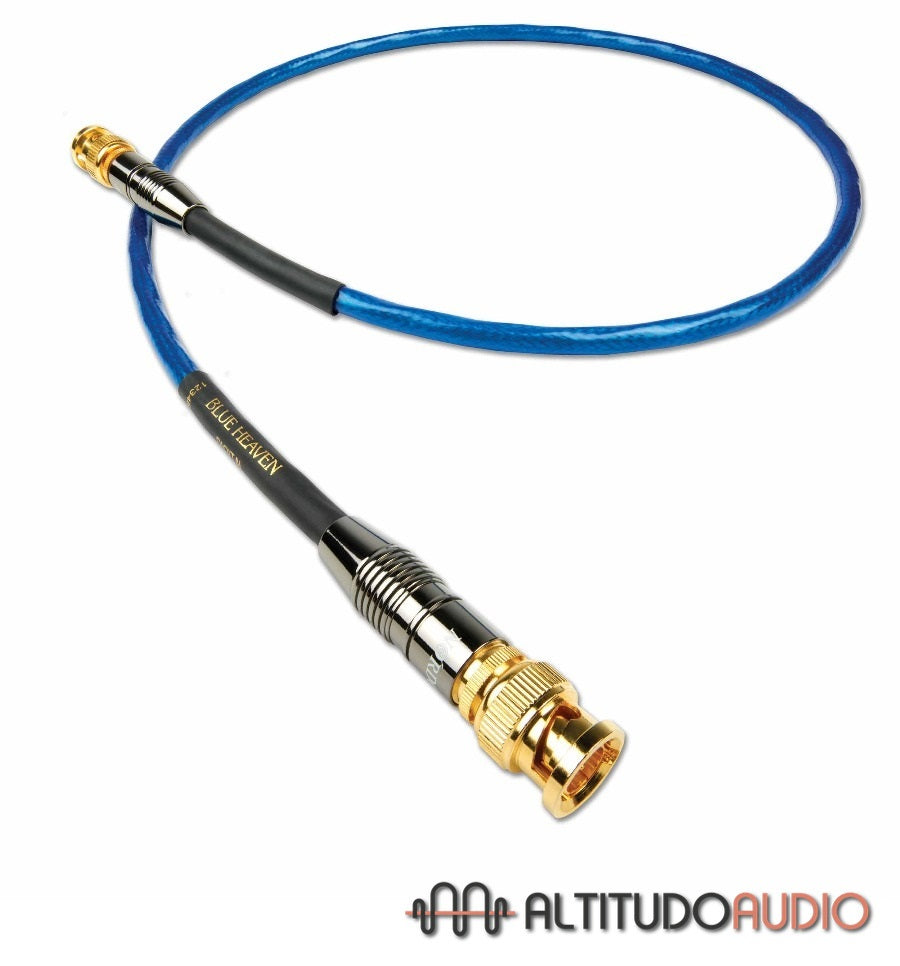

Nordost Blue Heaven 75 Ohm Digital interconnect

Nordost Blue Heaven 75 Ohm Digital interconnect

Regular price $317.99 $0.00 Unit price per

Shipping : FREE in Canada

Blue Heaven Digital Interconnect

Leif Blue Heaven Digital Interconnect


The safe transfer of digital data streams depends on achieving accurate impedance within the transmission chain. The S/PDIF transmission standard dictates a 75 Ohm co-axial lead, but it is surprising how few cables meet that specification.

The Blue Heaven Digital Interconnect is a true 75 Ohm conductor. Employing a Micro Mono-Filament, co-axial construction. This advanced topology allows us to achieve superior electrical performance and geometrical accuracy, irrespective of cable length. The Blue Heaven Digital Interconnect ensures high-speed, low-loss characteristics and, due to its BNC termination, the 75 Ohm standard is maintained, even across the connectors. Each BNC connector is supplied with a gold-plated RCA adaptor, keeping the cable consistent in performance across any combination of co-axial inputs or outputs. To accommodate even more applications, this cable is also available in a BNC to 3.5mm mono mini configuration.


Insulation:   Fluorinated Ethylene Propylene (FEP)
Construction:   Mechanically tuned spacing, Micro Mono-Filament, co-axial design
Conductors:   1 x 24 AWG
Material:   Silver-plated 99.9999% solid core OFC
Capacitance:   16pF/ft
Impedance:   75 Ohm
Overall Shield Coverage:   95%
Velocity of Propagation:   85%
  Gold-plated true 75 Ohm BNC to Gold-plated true 75 Ohm BNC or Gold-plated 3.5mm mono mini (Gold-plated BNC to RCA adapters included)



Blue Heaven Digital Interconnect Connectors

Hi-Fi+ Blue Heaven Review


"This is a very sweet set of cables indeed that can offer tonal balance that is just about perfect with a depth, image stability and quietness that you normally only hear in much more expensive models."

Publication: Hi-Fi+
Issue/Date:  Issue 87
Reviewer: Chris Thomas
