Nordost QRT QB8 QBASE Mark II Power Conditioner
Shipping : FREE in Canada
Nordost QBASE QB8 Mark II - AC Distribution Unit
-
Dimensions (HxD):
QB4 (US, EU and AUS) – 234 x 67 x 120mm
QB6 (UK ) – 460 x 67 x 120mm
QB8 (US, EU and AUS) – 460 x 67 x 120mmInput:C-14 IEC (15/10amp)

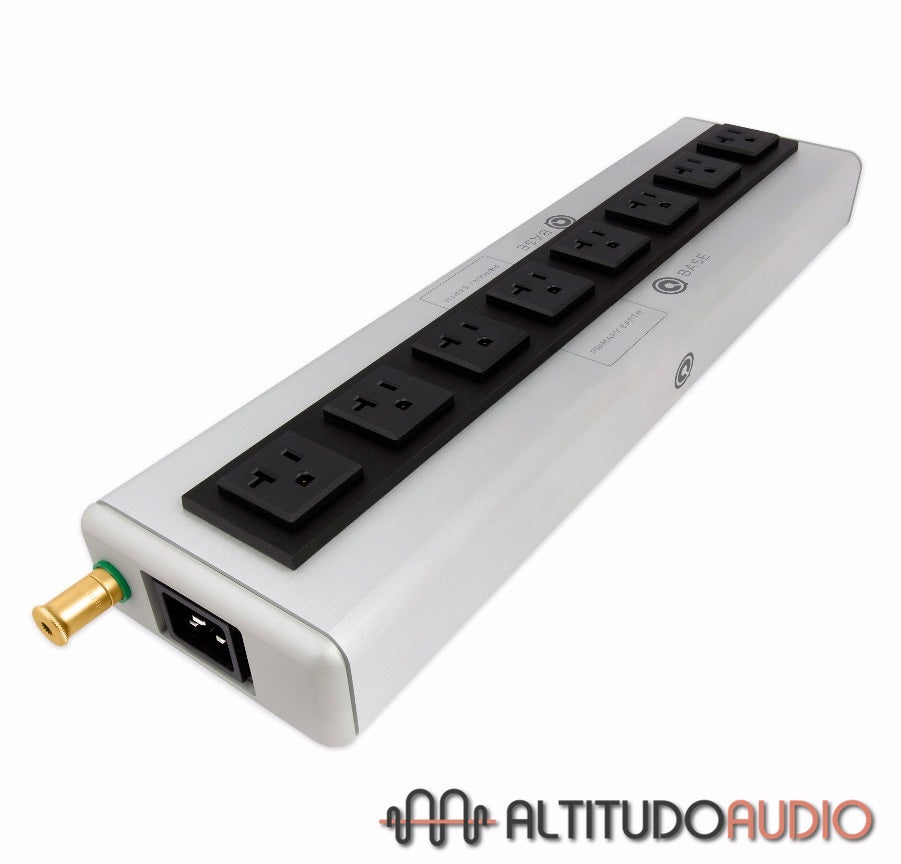

C-20 IEC (20/16amp) (QB8 and QB6 Only)Output:US, EU (Schuko), Australian or 13A UKFuse:Yes
QBASE AC DISTRIBUTION
The essence of the QBASE-Mark II concept is a straight-line AC distribution path, combined with star-earthed topology for connection to a clean ground. By eliminating any form of in-line filtering or active circuitry we maintain the lowest possible AC supply impedance, while a tiny lift in the earth impedance of all but one of the output sockets routes the signal grounds directly to the center of the star and the clean earth terminal. Clearly identified on the casework, this Primary Earth socket is at the center of your system’s performance, literally and metaphorically. It defines both the order in which you connect your components and also, their listening priority in your musical enjoyment, allowing you to further optimize the performance of your primary sources.
The sockets themselves are mounted on a customized frame plate and solidly constructed aluminum extrusion with machined end-caps that deliver a reassuring sense of substance. But the casework has far greater significance than that, the metal pieces and internal PCB (deliberately preferred to hard-wiring) constituting a single, mechanically tuned construction, designed specifically to enhance performance. Compare the musical performance of the QBASE-Mark II to the competition and you’ll hear just how effective this is.

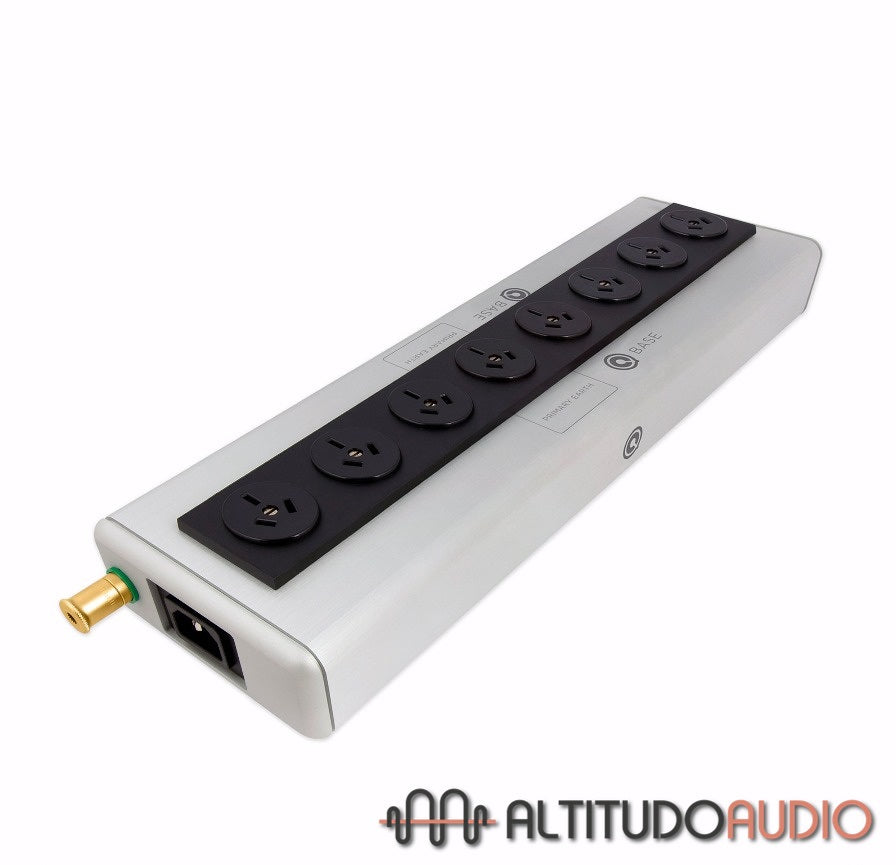

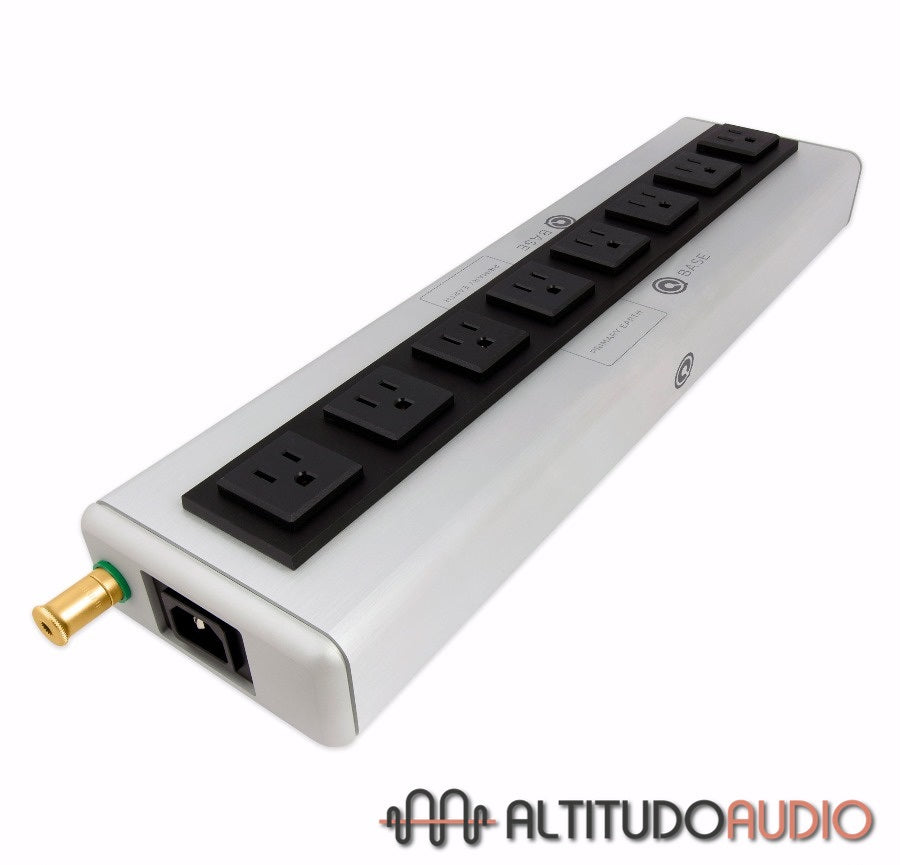

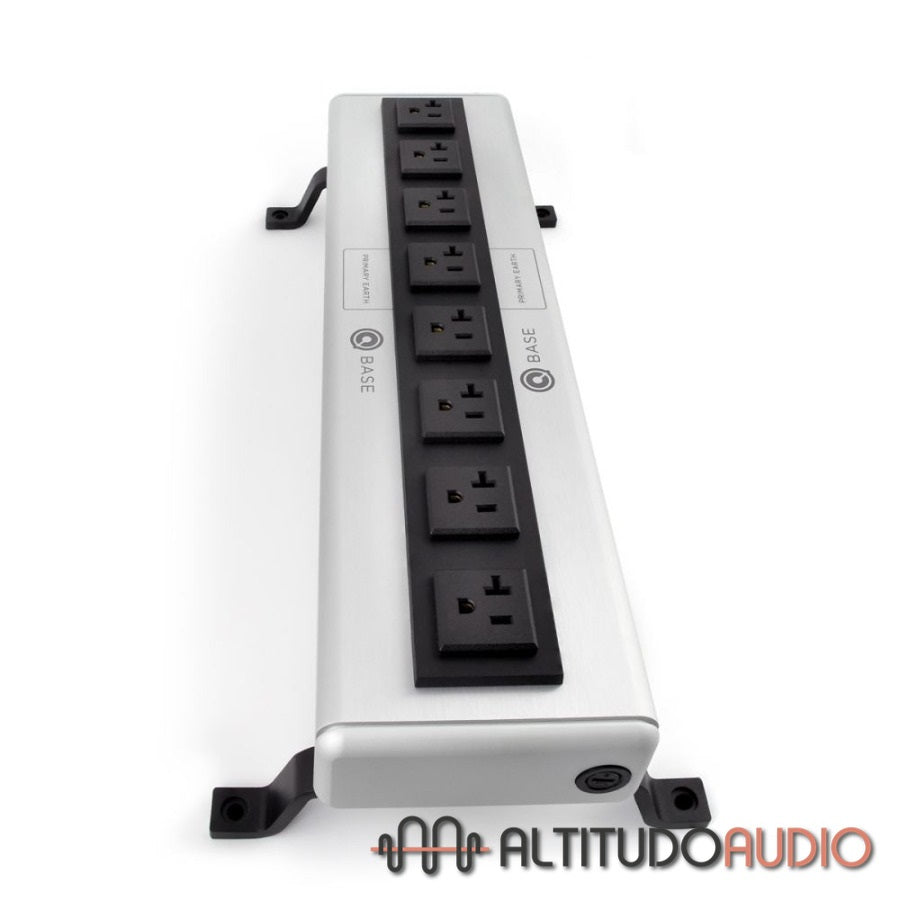

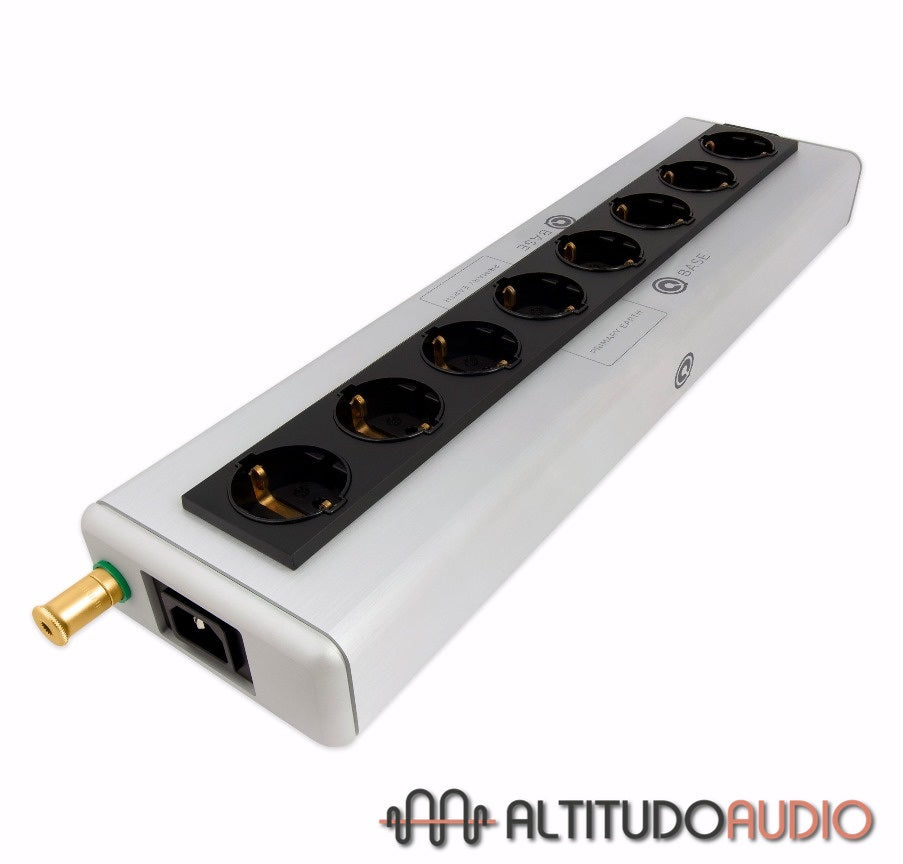

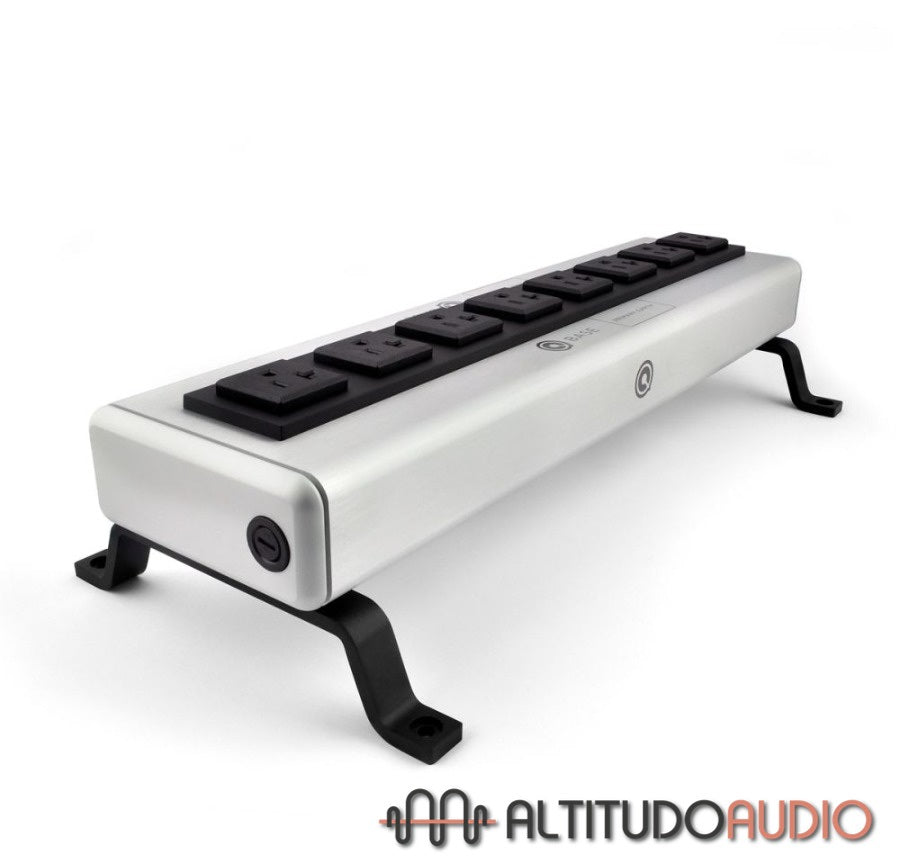

QBASE-Mark II units are available in four different models. US, European and Australian versions are available in four and eight output configurations, while the dimensions of the UK 13A socket mean that it is only available as a six-way unit. Each unit now includes a dedicated fuse, providing overcurrent protection of the source circuit to prevent overheating and system damage. A QBASE-Mark II unit is the perfect starting point in the construction of a high-quality, modular AC supply for your system. Its compact dimensions mean that it can be easily combined with one or more Qx power purifiers and outfitted with Qv2 AC Line Harmonizers and Qk1 AC Enhancers as funds allow, while its slim profile makes it ideal for tucking away behind a rack or mounting on the wall.
