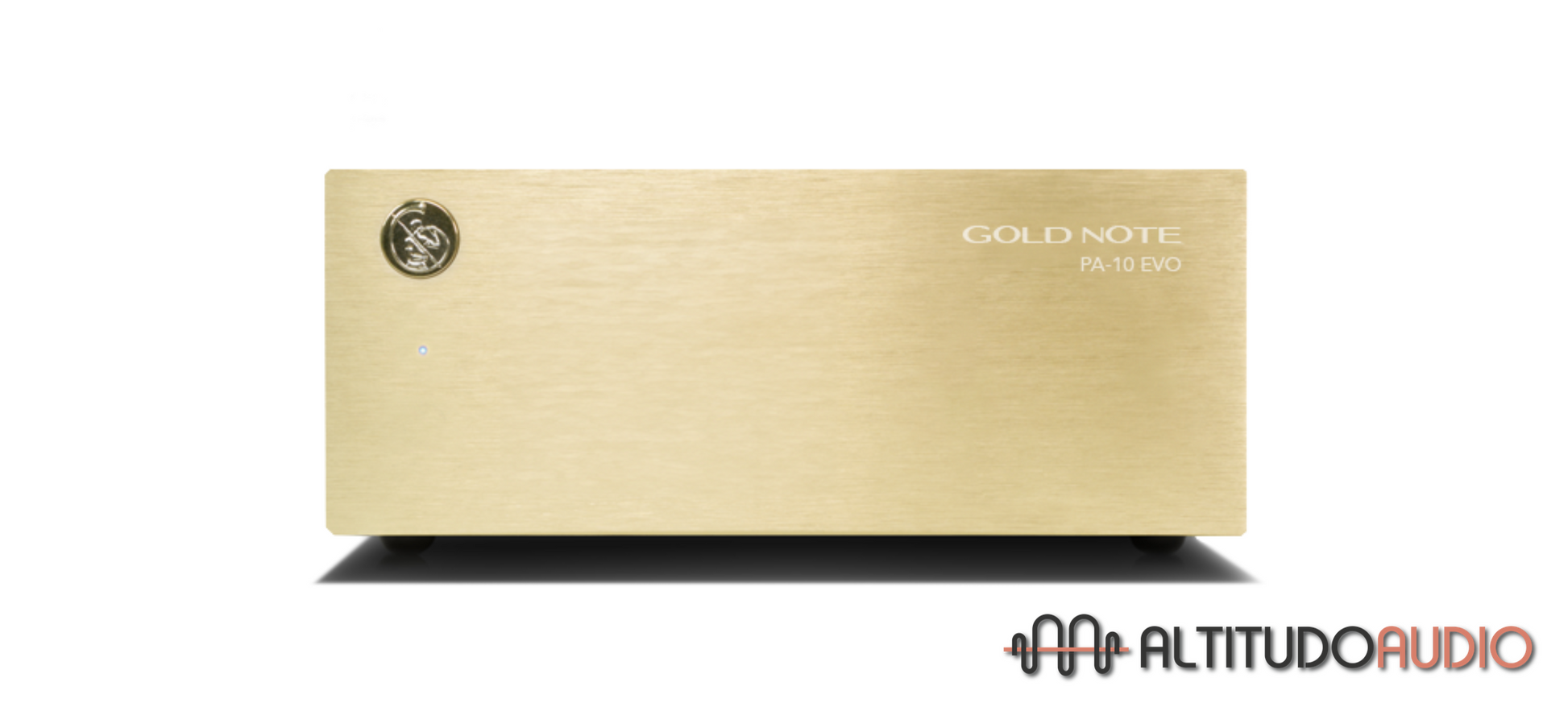

PA-10 EVO
Gold Note

PA-10 EVO

Regular price $2,400.00 $0.00 Unit price per

Shipping : FREE in Canada


Compact and powerful: our new Mono/Stereo power amplifier

The new PA-10 EVO is a compact and versatile power amplifier, fully balanced and with high-power output, designed for modern High-End audio systems.
Musically engaging and controlled, capable of driving a wide selection of loudspeakers with power and control.

The PA-10 EVO can be used in Stereo or Mono mode, with two units as monoblocks to get the best audio performance. Carefully designed with select components, meticulously assembled and tested by hand, it features the ultra-solid chassis of the Series 10 in solid aluminium, inspired by the Italian style and our modular philosophy. Despite the size, the PA-10 EVO is extremely capable and efficient, delivering 140W of power in Stereo (8Ω) and up to 250W in Mono (8Ω).

Thanks to the adjustable damping factor, the amp can be perfectly matched with any loudspeakers – 3-way floor-standing designs as well as mini-monitors. Featuring both balanced and unbalanced inputs, it can be connected to all sorts of sources and thanks to the GN Link technology, the amp can be easily switched ON/OFF from the source in master-slave mode.

Paired with the DS-10 EVO and the A3 EVO II (or A6 EVO II) loudspeakers, the PA-10 EVO is the ideal power amplifier for a contemporary, compact high-performance system.

Please Note – The PA-10 EVO cannot be matched to the PA-10, but it is fully compatible with all of our electronics, pre-amplifiers and valve output stages.

MAIN FEATURES

POWER OUTPUT(THD 1%)

2x 140W @ 8Ω / 4Ω (Stereo)

1x 250W @ 8Ω / 4Ω (Mono)

 FREQUENCY RESPONSE

5Hz-50kHz (@ -3dB)

 TOTAL HARMONIC DISTORTION (THD)

0,01% (1kHz @ 1W)

 DAMPING FACTOR

High = 250 or Low = 25

INPUTS AND OUTPUTS

 AUDIO INPUTS

1x RCA Stereo unbalanced

1x XLR Stereo balanced

 INPUT SENSITIVITY

2,5Vrms RCA/XLR

 INPUT IMPEDANCE

3,6kΩ RCA

7,2kΩ XLR

 AUDIO OUTPUTS

Speaker terminals: Binding posts

POWER

 POWER CONSUMPTION

<1W standby

<6W no signal

 POWER SUPPLY

100-240V, 50/60Hz

 FUSE

5A T

 DIMENSIONS AND WEIGHT

 DIMENSIONS

200mm W | 80mm H | 260mm D

 WEIGHT

Kg. 3 – net

Kg. 4 – boxed

FINISHES

Black, Silver or Gold anodised aluminium with a traditional brushed finish
