PH-10 Phono Stage
Shipping : FREE in Canada
THE EXTRAORDINARY PHONO STAGE
The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD, and GAIN adjustments: a fully analogue design, engineered exclusively with the best components to recreate the musical event in the most natural way possible.
To control the PH-10 we developed the user-friendly Single Knob Control (SKC). Combined with the color display this rotary joggle allows quick adjustments of any function in real-time during music playback.
The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA LONDON, or the AMERICAN COLUMBIA, and all selection appears clearly on the display.
Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality.
THE PERFECT CARTRIDGE MATCHING
9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ] and 4 different selectable GAIN options [0dB, ± 3dB, +6dB] will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.
CONNECT TWO SEPARATE TONEARMS
With his two separate RCA inputs, the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off, guaranteeing flexibility and impressive user-friendliness.
PH-10 AT ITS BEST
To maximize the performance of the PH-10 we also developed the PSU-10, a dedicated external super inductive power supply that allows the phono stage to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics, and greater three-dimensionality sound.

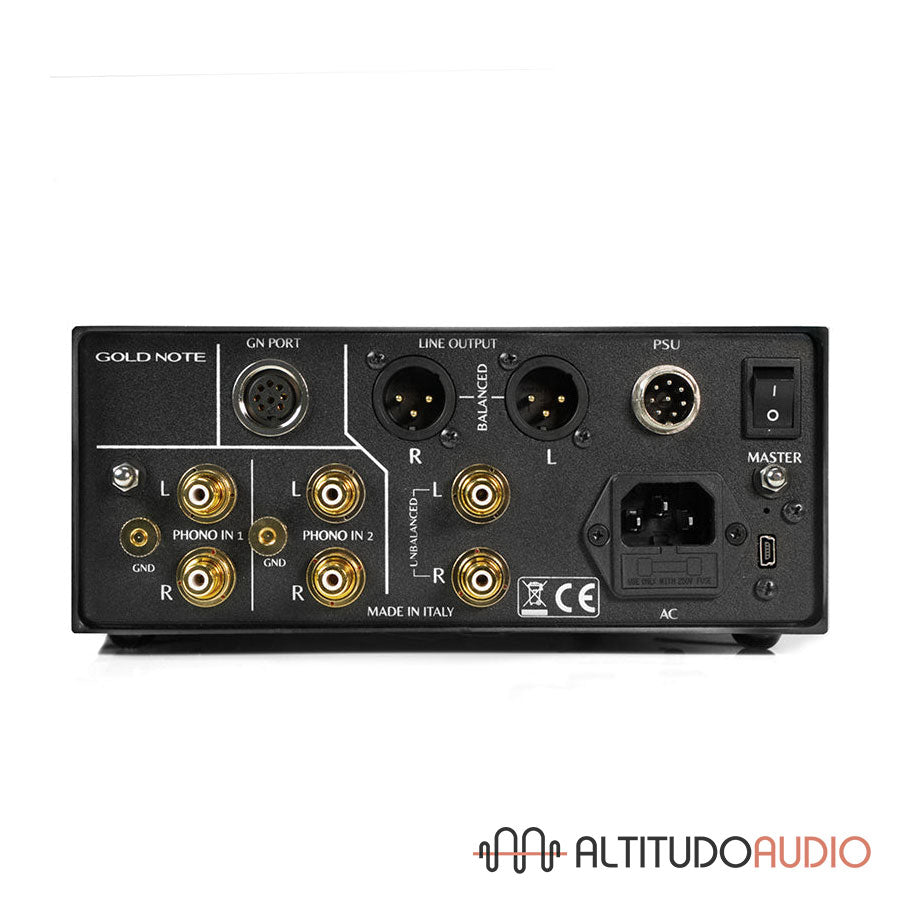

2 SEPARATE INPUTS
With two separate RCA inputs you can connect two different tonearms and adjust settings independently for each single cartridge
4 GAIN OPTIONS
PH-10 offers 4 different selectable GAIN levels -3dB, 0dB, +3dB, +6dB to precisely match any kind of output level for MM and MC cartridges
9 LOAD OPTIONS
Perfect matching is easy and quick to achieve with 9 different load options 10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ
6 EQ CURVES
To achieve the best vinyl experience select the correct EQ curve: RIAA, DECCA-LONDON or AMERICAN-CBS-COLUMBIA
DISPLAY & KNOB
SKC is a unique technology that combined with a TFT display allows quick control of the functions through the single knob joggle
ELEGANT & FUNCTIONAL
Made of solid machined aluminium, the shell body guarantees low frequency resonance, feedback vibrational control and low magnetic inertial field
|ANALOG INPUTS||MM/MC two independent stereo RCA|
|ANALOG OUTPUTS||Stereo unbalanced RCA and balanced XLR|
|SUBSONIC FILTER||10Hz/36dB octave|
|TOTAL HARMONIC DISTORTION THD||<0.05%|
|SIGNAL TO NOISE RATIO||-89dB|
|FREQUENCY RESPONSE||20Hz – 20KHz
[Enhanced 20Hz – 50KHz] @ +/- 0.3dB
|LINE OUTPUTS LEVEL (FIXED)||Stereo RCA @ 2V and balanced XLR @4V|
|INPUT SENSITVITY||0.1mV MC up to 7.0mV MM|
|INPUT IMPEDANCE||9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ]|
|POWER SUPPLY||100-120V / 220-240V, 50/60Hz
Power consumption: 10W Super Linear supply
Standby consumption: < 0,5W
|DIMENSIONS||200mm W 80mm H 260mm D|

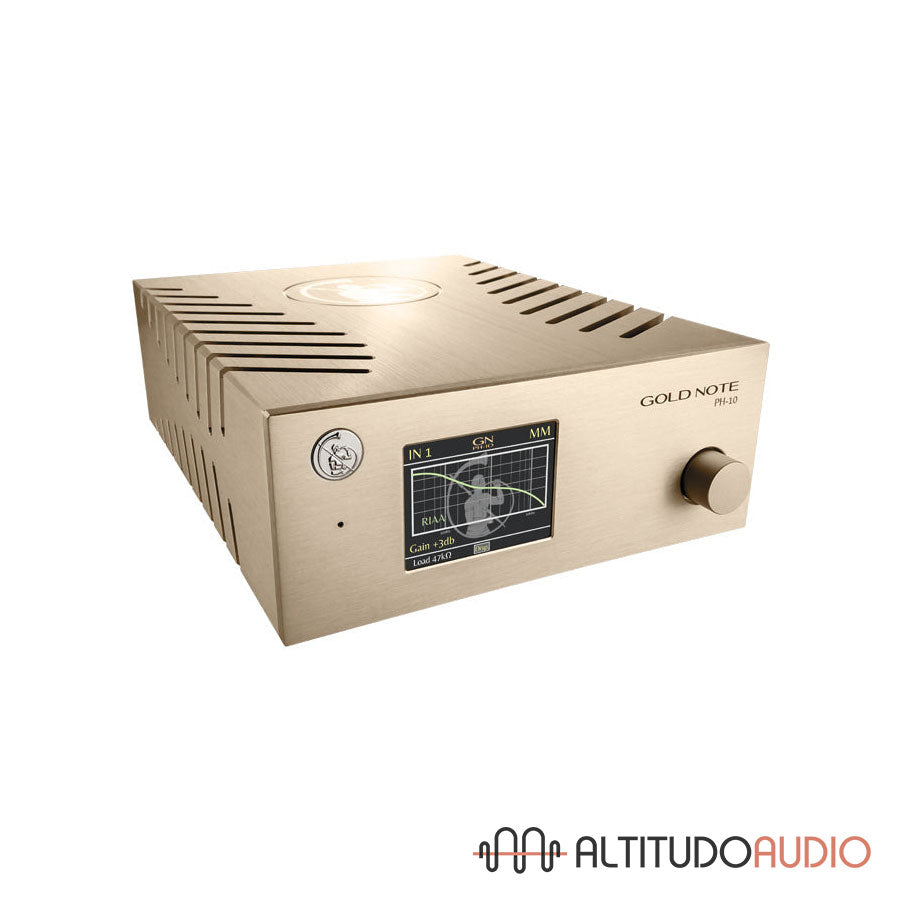

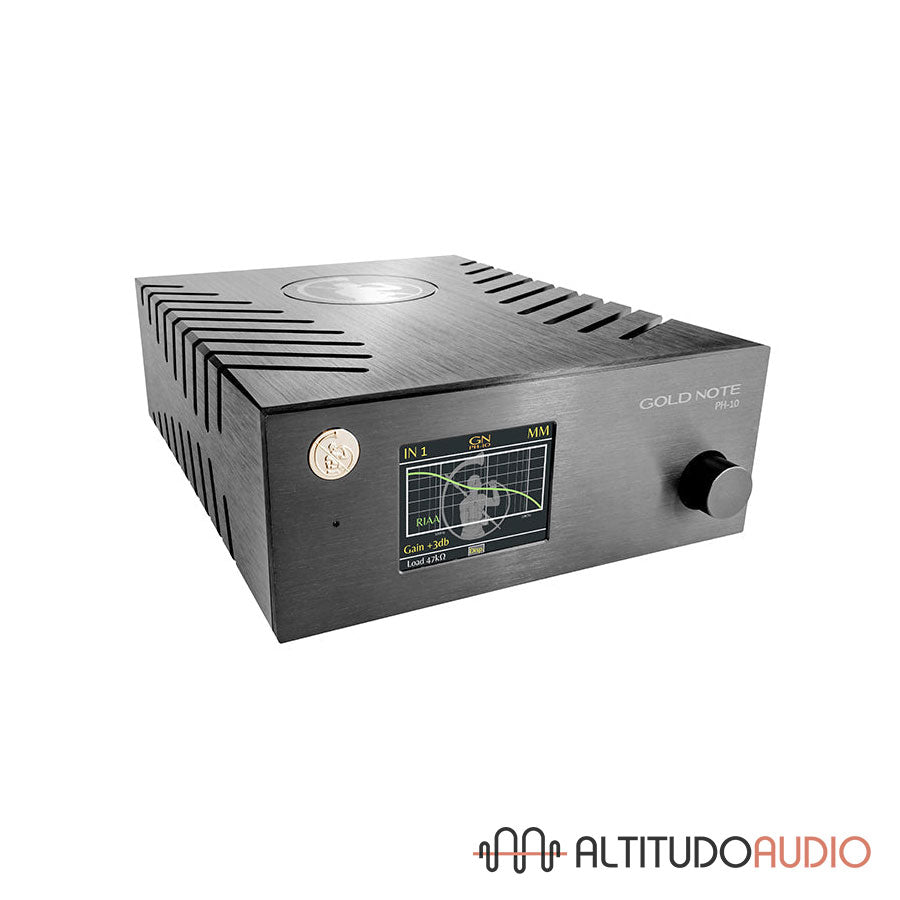

|FINISHES||Brushed Aluminium Black, Gold or Silver|
