Monitor Audio
Platinum In-Wall 3G
Platinum In-Wall 3G
Couldn't load pickup availability

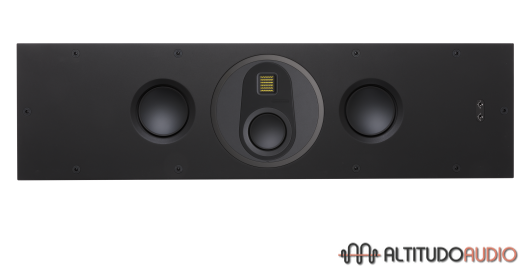

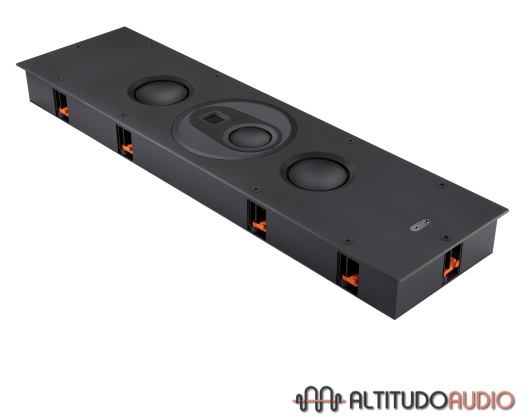

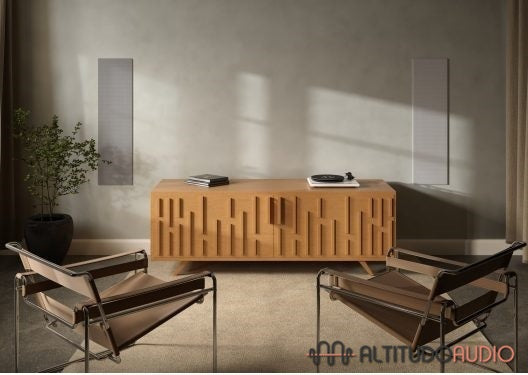

Platinum In-Wall 3G is Monitor Audio’s flagship high-performance, architectural, in-wall speaker. It is designed for use in high-end audio and movie systems, where accurate, clear and lifelike sound is required. With the minimum of room intrusion but with maximum scale and sonic impact.

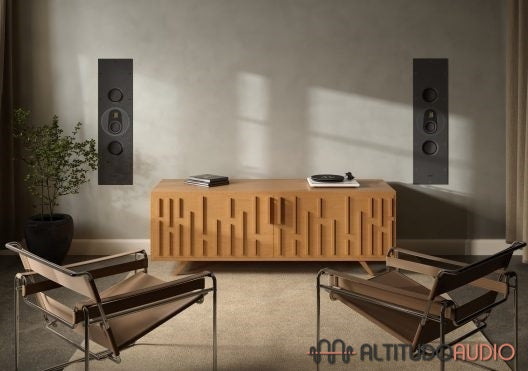

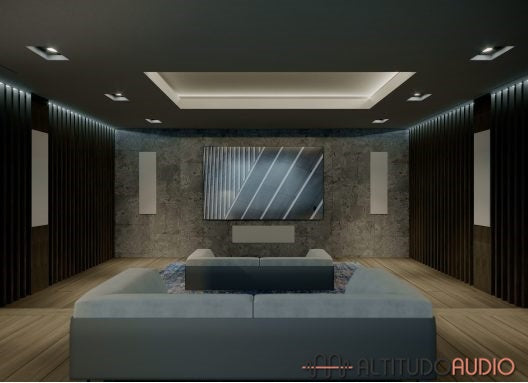

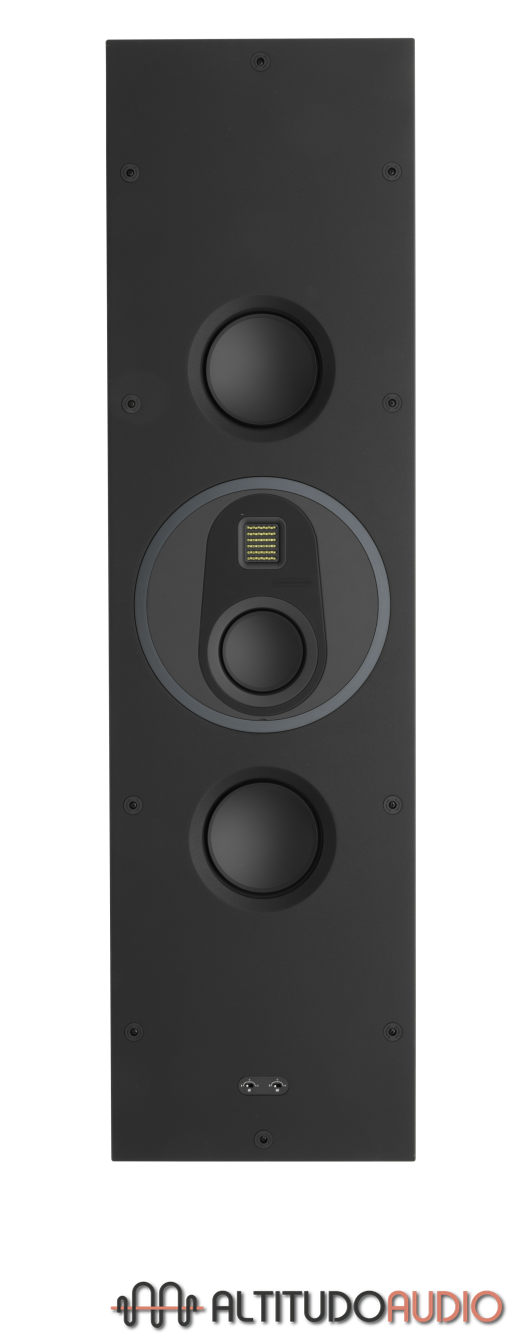

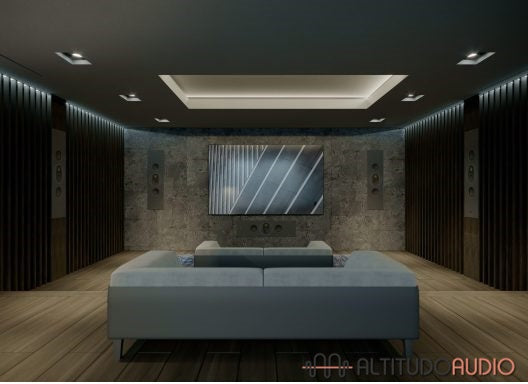

Platinum In-Wall 3G can be installed either vertically or horizontally, which means it can be used on any channel within a system and is ideal for LCR applications and for seamless tonal accuracy within a theatre system.
Key Features
- 1 x MPD III high-frequency transducer for a larger, clearer, and more lifelike sound
- 1 x 4” RDT III mid-bass driver for incredible levels of clarity and scale
- 2 x 6” RDT III bass drivers for exceptional weight and depth
- Patented ‘DCF’ (Dynamic Coupling Filter) mechanism for more natural sound
- Bespoke speaker terminals and footings
- Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion

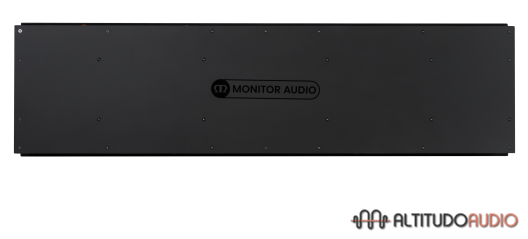

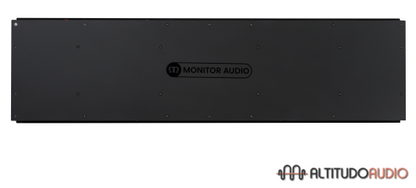

- Rigid cabinet construction made from 25 mm MDF with steel back
- Extensive internal bracing using thick MDF cross bracing techniques
Features & Specifications
System Format
3-Way
Frequency Response, Free-Field (-6dB)
41 Hz – >60 kHz
Frequency Response, In-Room (-6dB)
27 Hz – >60 kHz
Sensitivity (2.83 Vrms @ 1m, Free-Field)
88 dB
Nominal Impedance
4 Ohms
Minimum Impedance
4.1 Ohms @ 1.6 kHz
Continuous Power Handling (RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)
300 W
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
150 – 600 W
Bass Alignment
Sealed
Port Tuning Frequency
N/A
Crossover Frequency
LF/MF: 825 Hz
MF/HF: 3 kHz
Drive Unit Complement
2 x 6” RDT III bass driver,
1 x 4” RDT III mid-range driver,
1 x MPD III tweeter
External Dimensions (Including Grille and Terminals (H x W x D))
1207 x 332 x 105.5 mm (479/16x 131/16 x 44/16”)
Cut-Out Dimensions
1175 x 300 x 97.5 mm (461/4 x 1113/16 x 313/16“)
Weight (each)
27.7 kg (61 lb)
