ci140sub Custom Install Loudspeaker

ci140sub

The Custom Install (ci) series from PMC brings all the magic of the movies and music to the home. Since 1991, when the company was founded, PMC have been the speaker brand used to create hit music as well as the biggest Hollywood movie soundtracks, from Titanic to Skyfall and Iron Man to Spiderman, and have been awarded an Emmy for their contribution to recording excellence. To recreate the awe-inspiring realism and stunning dynamics of any type of music or movie, then there is no better choice of loudspeaker than those used to create it.

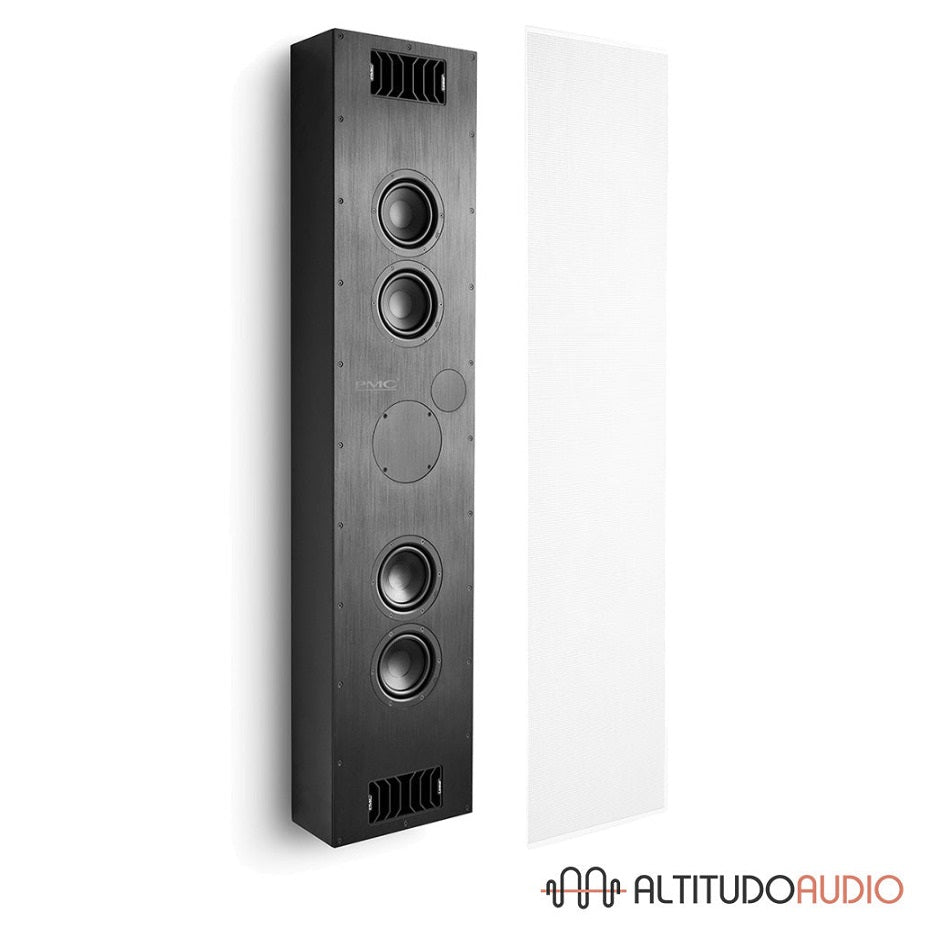

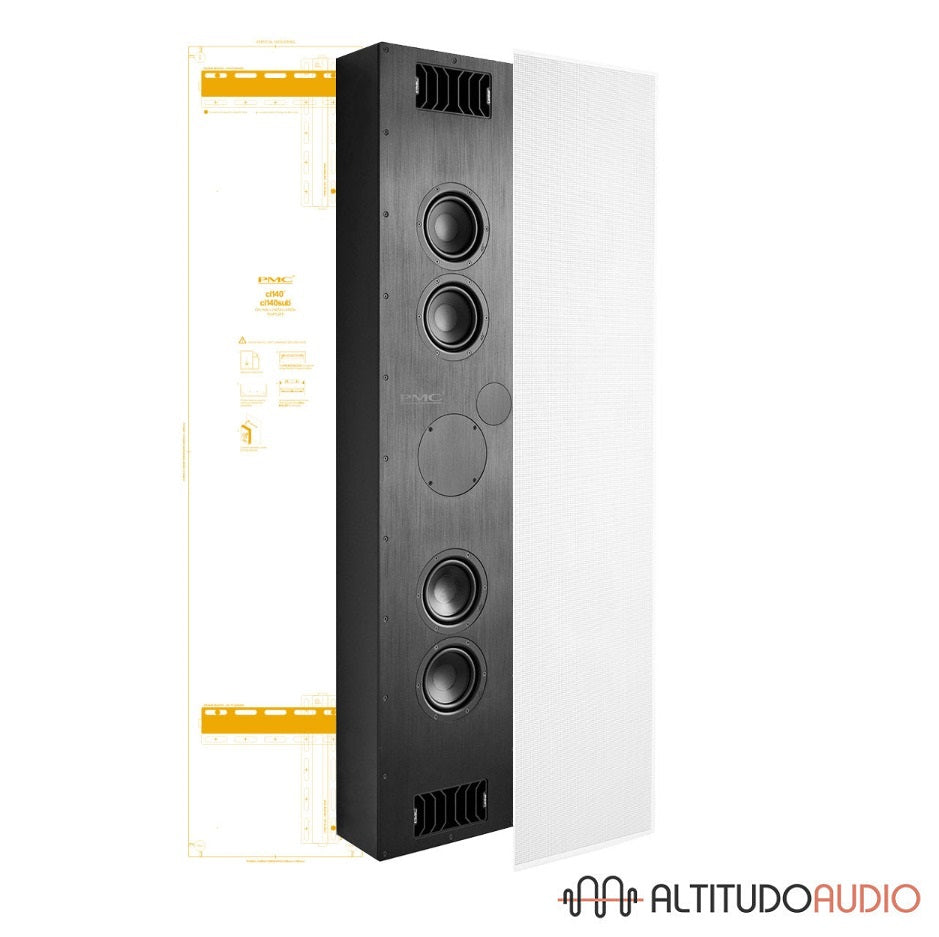

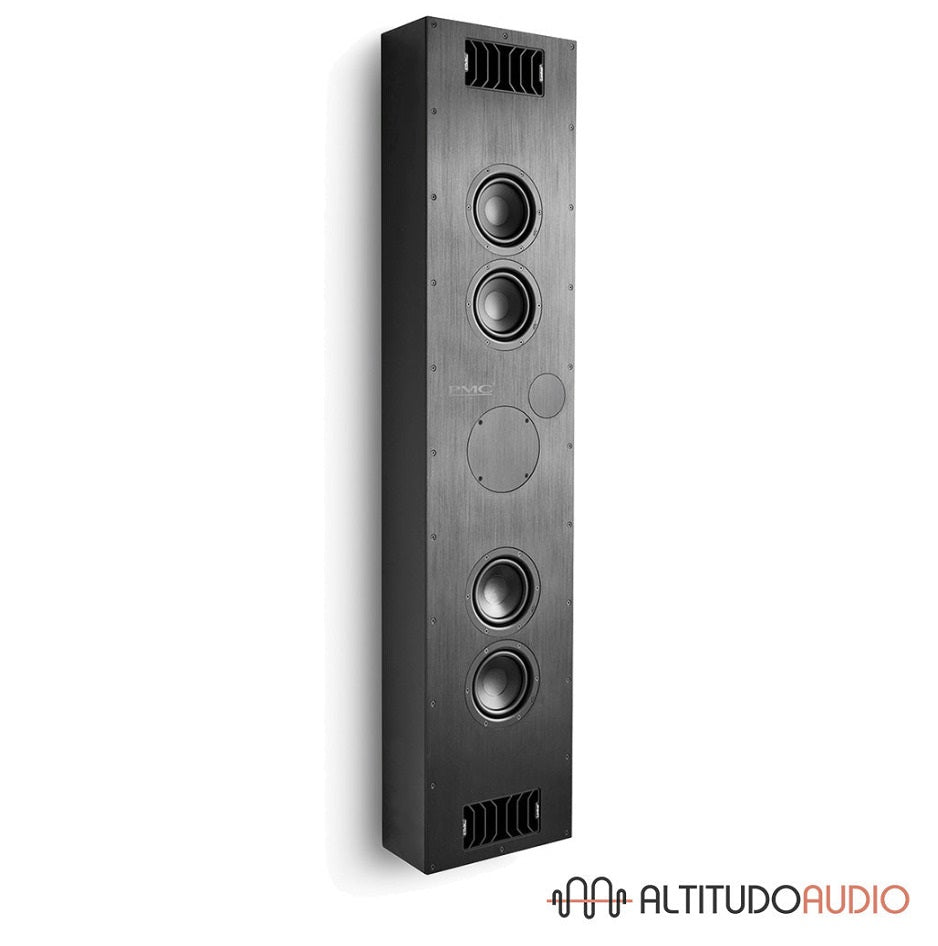

The ci140 is complemented by the dedicated and identically sized ci140sub, for the apex in on-wall home theatre performance. Employing the same four bass drive units used in the ci140 and operating with the ATL, the sub reproduces additional low-frequency energy, perfect for home theatre installations and full-frequency music reproduction in high-end home audio and professional studio situations.

All ci series models are ideal for playback of stereo and immersive formats, and the largest models provide the greatest headroom, bass and dynamics. All models apart from the ci140 and ci140sub may be mounted in-or-on-wall, thanks to their Qikfire™ fittings, bezel-less grille and stylish cabinet sleeve.

The Qikfire™ in-wall mounting system makes the range very installer-friendly. The ci30, ci45, ci90slim and ci65 are fitted with Qikfire™, a spring-loaded mounting system which allows the loudspeaker to be fixed in position with a simple twist of a screwdriver. Removal is just as easy as installation.

On-wall mounting is just as straightforward, using the supplied interlocking bracket, which is designed to also offer pin-point level adjustment. For the ci30, ci45, ci90slim and ci65, an optional mounting sleeve in white or black may be fitted around the cabinets to conceal the in-wall mounting system creating an elegant and discrete on-wall loudspeaker.

All models feature precision-perforated grilles with magnetic fixings which are finished in white silk. Black silk is available as an option.

Specifications

• Available Finishes: ci series black
• Dimensions: HxWxD 1400 x 300 x 153 mm
• Drive Units: LF 4x 133 mm, Natural Fibre LT™
• Effective ATL™ Length: 2.3 m
• Frequency Response: 32 Hz (-3 dB), 29 Hz (-6 dB)
• Impedance: 4 Ohms
• Input Connectors: 1 pair 4 mm sockets
• Recommended Amp Power: 40 – 300 W
• Recommended Drive Unit Torque Settings: LF: 0.6 Nm
• Weight: 25.0 kg inc grille (unboxed)

Optional Extras

• Grille-ci140 – Additional in-wall/on-wall grille, available in black or white
