QED

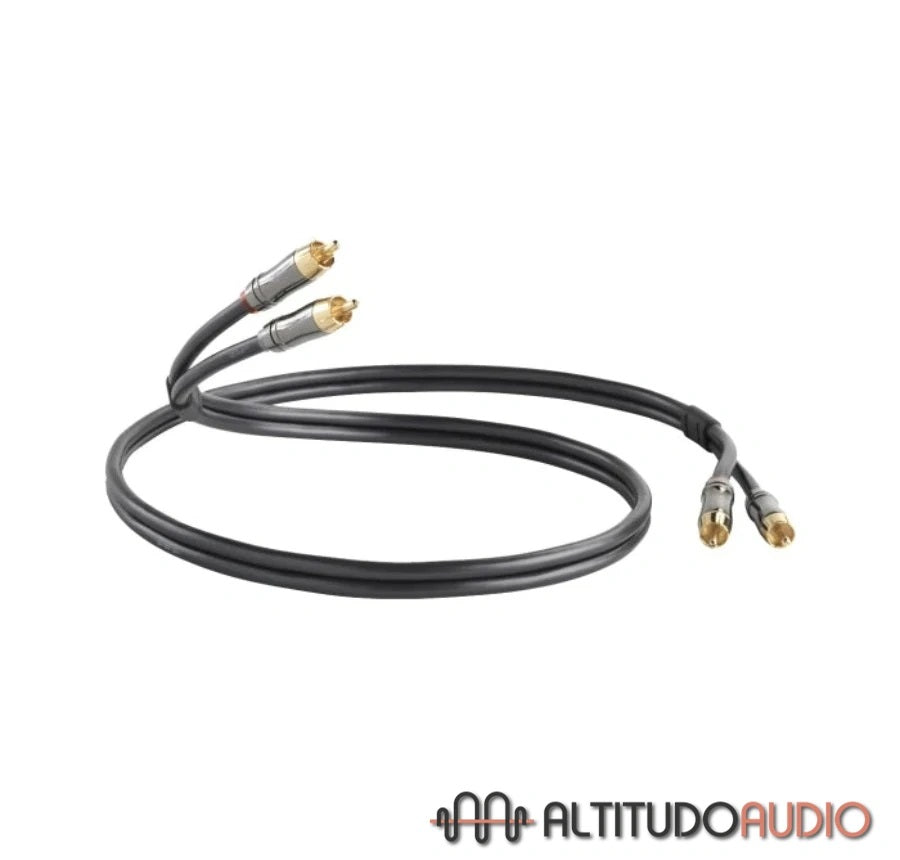

QED Graphite Performance Audio Cable - Pair

$69.99

Shipping : FREE in Canada

The multi-award winning Performance range presents the Performance Audio analog interconnect.

Performance Audio utilizes design concepts from the high end Reference range to optimize audio performance when connecting your CD player, DAC or Tuner to your amplifier or receiver. These include quasi-balanced geometry, low capacitance dielectric materials and 24k gold plated RCA plugs. All QED cables are covered by a lifetime guarantee.

FEATURES AND BENEFITS

99.999% Oxygen Free Copper conductors

Provide a low resistance pathway for the audio signal

Low density polyethylene dielectric

because of its low dielectric constant this material has been used to cut down on the amount of audio signal energy lost due to cable capacitance

Ergonomically sculptured zinc plated alloy barrel

Provides ease of installation and a stunning finish

Quasi-balanced geometry

Signal and return conductors are twisted together to give a level of common mode noise rejection above that of conventional unbalanced cables

Electrostatic Screen

Provides immunity from external high voltage noise signals. Only connected at the source equipment end hence the directionality arrows on the cable jacket.

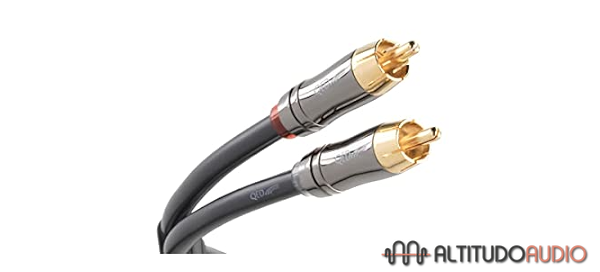

24k gold plated RCA plugs

Because gold does not tarnish it provides a lasting low resistance contact

SPECIFICATIONS

99.999% Oxygen Free Copper (OFC) conductors with LDPE dielectric
Quasi-balanced twisted pair geometry

Al/Mylar wrap provides 100% electrostatic shield structure

OFC drain wire completes electrostatic screening

24k Gold plated QED 6 leaf RCA plugs

Capacitance: 115 pF/m

Inductance: 0.74 μH/m

Loop resistance: 0.160 Ω/m

Dissipation Factor: 0.0012
