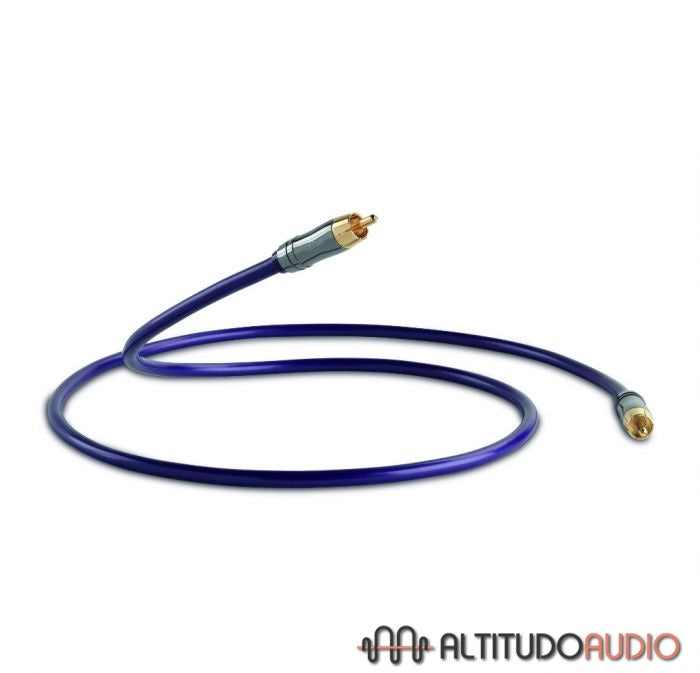

QED Performance Digital Audio
Shipping : FREE in Canada

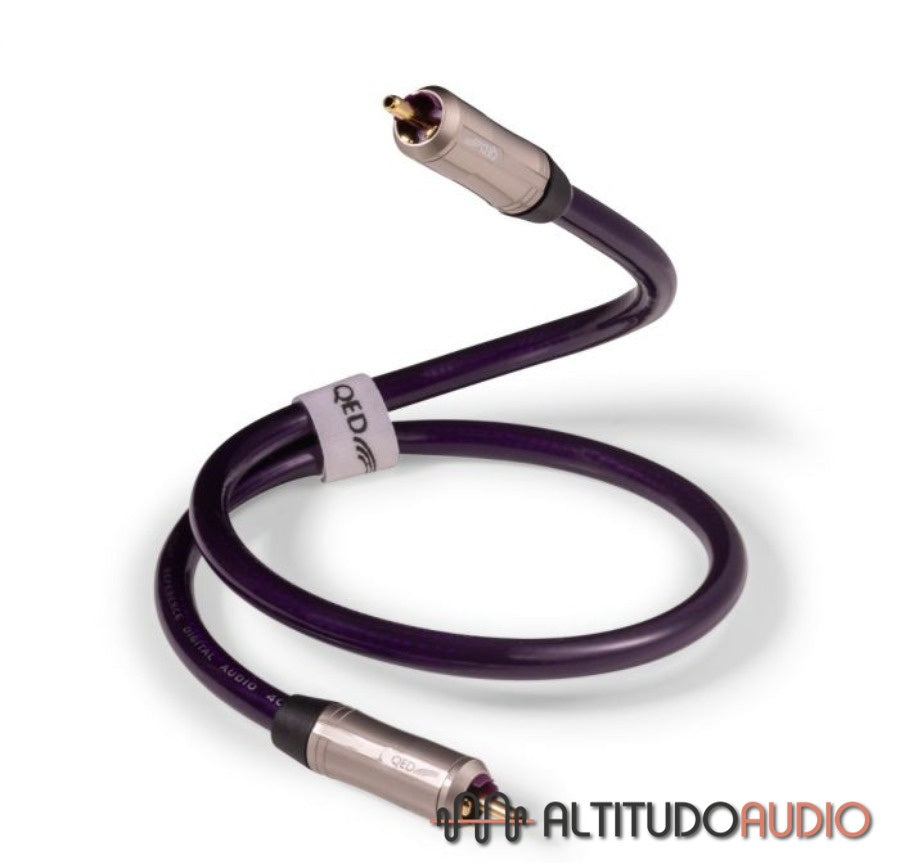

Reference Digital Audio 40
Reference Digital Audio 40, the new standard for digital coaxial S/PDIF signals.
Reference Digital Audio 40 utilises a carefully engineered geometry to achieve the precise characteristic impedance required for the maximum transfer of S/PDIF signals. Silver plated conductors deliver a low resistance path for high frequencies and QED Digiloc2™ plugs more closely match the cable's characteristic impedance, reducing return loss by up to 1.5dB when compared to conventional RCA plugs. This ensures optimal signal transfer and improved micro-timing of the audio signal
FEATURES AND BENEFITS
Just Listen
Silver plated signal carriers, effective high-quality shielding and impedance matched cordage and plugs all combine to create audible sonic improvements when compared to the competition
Triple Layer Electromagnetic Shielding
By implementing factory-controlled geometry and low permittivity foamed polyethylene dielectrics, Reference Digital Audio 40 maintains the correct characteristic impedance to match the transmission line between digital source and sink precisely. This makes for a very low jitter signal transfer which, listening tests have shown, leads to clearly audible sonic improvements.75 Ohm Impedance matched Digiloc2TM RCA plugs
Feature high-purity copper signal and ground connections supported by a new non-conductive low eddy current body. The hollow central pin eliminates the skin effect at high frequencies and the revised locking barrel design clamps the dual blade ground connection firmly to the RCA sockets for improved noise rejection. The optimised geometry of the plugs and the dielectric materials selected have resulted in a closer impedance match for low jitter S/PDIF transmission, resulting in a measurable 1.5 dB reduction in insertion loss, compared to ordinary RCA plugs
The all new Digiloc2™ design cleverly substitutes high rigidity thermoplastic material for both the inner support structure and the cable strain relief to eliminate the distorting effects of eddy currents, which are always present in ordinary plugs where bulk brass is used instead.
Triple Layer Electromagnetic Shielding
A dual layer closely woven 99.999% OFC shield braid and aluminium mylar wrap with 100% coverage comprise a triple layer electromagnetic shield coaxially spaced around the central signal carrier within a foamed polyethylene dielectric. This ensures that interference signals induced by nearby high current noise sources do not contribute to higher signal jitter than would otherwise be the case. By the same token the shielding prevents unwanted voltage induced interference escaping the cable which might affect nearby analogue signal carriers.
Specifications
Silver Plated 99.999% Oxygen Free Copper central conductor
Extruded foamed Polyethylene (PE) dielectric - for sonic purity and low return loss
Double 99.999% OFC braid plus Al/Mylar wrap for 100% electromagnetic screening coverage
Twin leaf 24c Gold plated QED Digiloc2™ RCA plugs featuring high purity copper contacts, pin and low eddy current design
75 ohm coaxial design with closely matched locking plug for reduced return loss
OVERALL PERFORMANCE
Ultra Low Jitter
Jitter is the undesired deviation from true periodicity of an assumed periodic signal in electronics and telecommunications, often in relation to a reference clock source. A cable displaying ultra low jitter has been measured at
typically 30ps.
Digiloc2™ Technology
QED Digiloc2™ RCA plugs feature high-purity copper signal and ground connections supported by a new non-conductive low eddy current body. The hollow central pin eliminates the skin effect at high frequencies and the revised locking barrel design clamps the dual blade ground connection firmly to the RCA sockets for improved noise rejection. The optimised geometry of the plugs and the dielectric materials selected have resulted in a closer impedance match for low jitter S/PDIF transmission, resulting in a measurable 1.5 dB reduction in insertion loss. The all new Digiloc2™ design cleverly substitutes high rigidity thermoplastic material for both the inner support structure and the cable strain relief to eliminate the distorting effects of eddy currents, which are always present in ordinary plugs where bulk brass is used instead.
