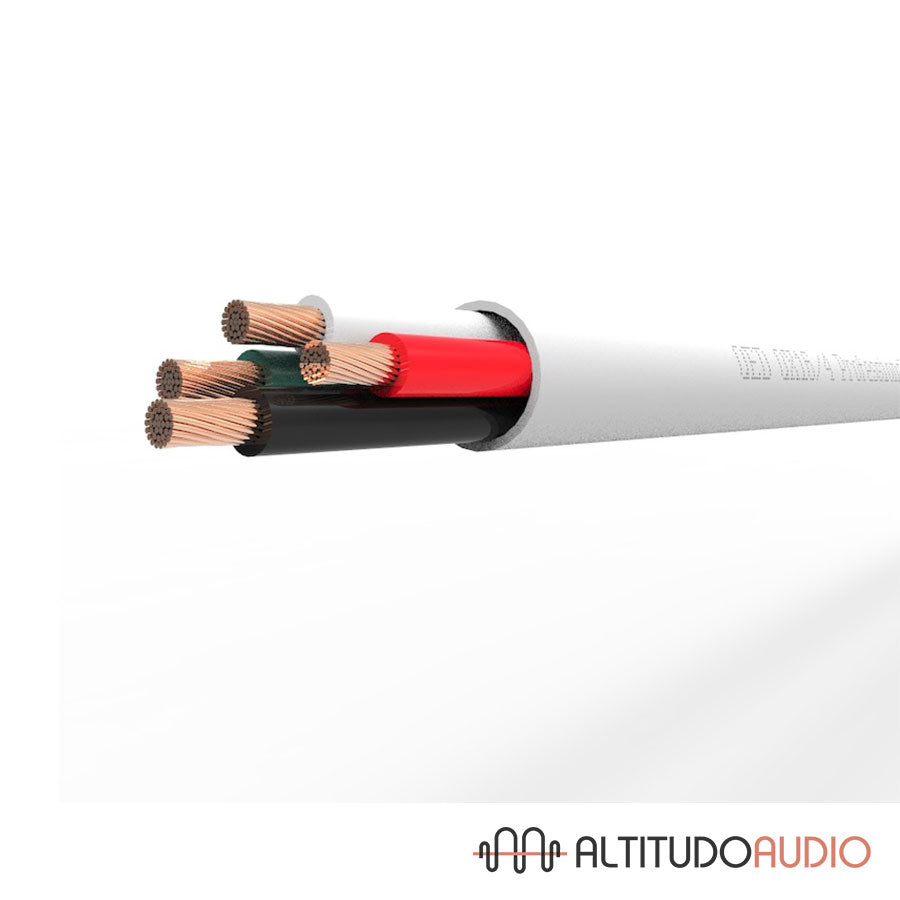

PROFESSIONAL QX16/4 PVC Flame Retardant Speaker Cable (Priced Per Meter)
QX16/2 and QX16/4 PVC Speaker Cable
Flame Retardant PVC
QX16/2 and QX16/4 PVC are high performance and exceptional quality installation speaker cables with a flame retardant PVC outer sheath. They are designed to deliver excellent levels of performance vs cost in all multi-room and home cinema installations where low smoke zero halogen (LSZH) cables are not specified.
FEATURES AND BENEFITS
Large cross-sectional area of high purity copper conductors
Ensures good performance levels are maintained even on longer runs
Sequentially metre marked - counting down so you always know what you have left on the reel or in the box
PVC Flame retardant high performance outer jacket
Colour-coded conductor sheaths
Fully tested flame retardant design meets and exceeds IEC60332-1
Full test report available on request
RoHS2 Compliant
Supplied in 100m (328ft) PRObox & on 300m (984ft) reel
SPECIFICATIONS
|
Conductor Size |
16 AWG |
|
|
Conductor Construction |
30/0.26 |
|
|
Conductor Resistance |
13.3 Ω/km |
|
|
Conductor Cross-sectional Area |
1.5 mm2 |
|
|
Insulation Colour |
16/2 |
Red, Black |
|
16/4 |
Red, Black, White, Green |
|
Dielectric Strength |
600 kV AC |
|
|
Jacket Material |
PVC |
|
|
Outside Diameter |
16/2 |
6.20 mm |
|
16/4 |
7.20 mm |
|
|
Jacket Colour |
White |
|
|
Weight |
16/2 |
58 kg/km |
|
16/4 |
98 kg/km |
Conductor Size
16 AWG
Conductor Construction
30/0.26
Conductor Resistance
13.3 Ω/km
Conductor Cross-sectional Area
1.5 mm2
Insulation Colour
16/2
Red, Black
16/4
Red, Black, White, Green
Dielectric Strength
600 kV AC
Jacket Material
PVC
Outside Diameter
16/2
6.20 mm
16/4
7.20 mm
Jacket Colour
White
Weight
16/2
58 kg/km
16/4
98 kg/km
