QED SIGNATURE Genesis Silver Spiral
QED

QED SIGNATURE Genesis Silver Spiral

Regular price $649.99 $0.00 Unit price per

Shipping : FREE in Canada

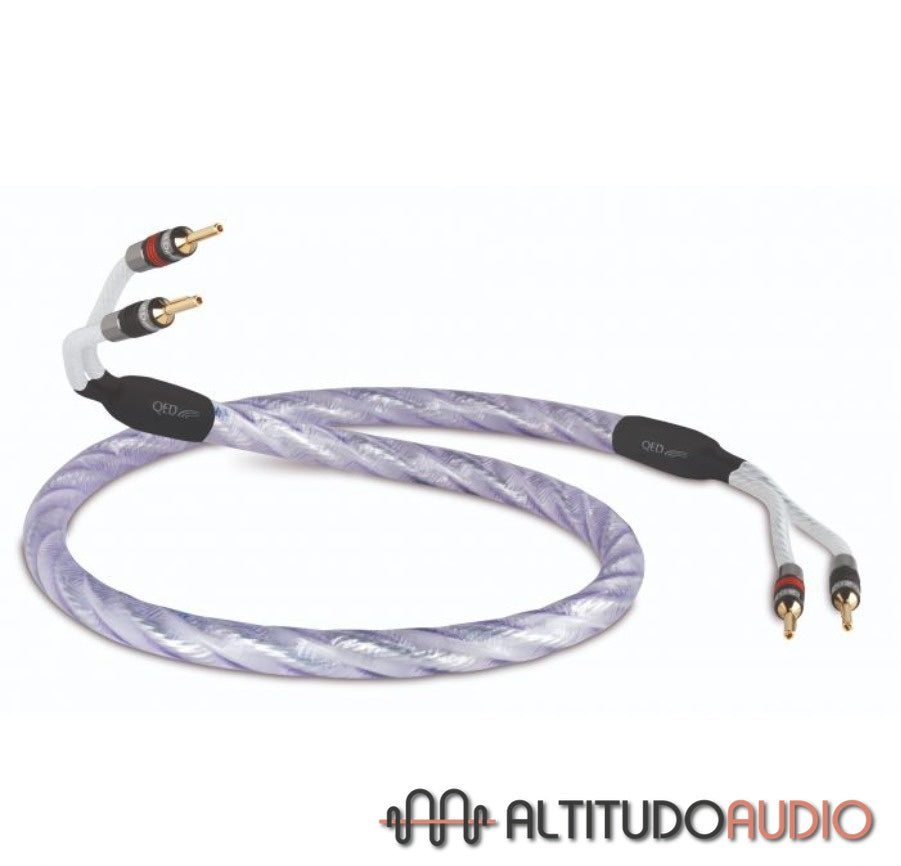

Signature Genesis Silver Spiral

QED's audiophile-grade speaker cable. The award winning Genesis Silver Spiral cable is the result of over 40 years of scientific research and development into speaker cables

Silver Spiral's exceptionally low resistance allows amplifiers to exert outstanding grip and control over the speakers they're driving, especially at low frequencies. This isn't just another speaker cable it's a high performance audio component .This  cable represents the culmination of QED research and development over the past 40 years.

AWARDS AND REVIEWS

Award 1

FEATURES AND BENEFITS

AIRCORE TECHNOLOGY™

QED cables above 2.5 mm2 cross sectional area utilise air core technology to obviate the skin effect by bundling several separately insulated smaller cores together to make up a larger CSA. If these conductors are arranged around a hollow central core of polyethylene the self inductance exhibited by the cable can be reduced to around half that predicted by calculation.


Unique triple concentric spiral geometry


Concentric screen technology

For interference immunity

9 bunches of silver plated 99.999% oxygen free copper conductors

Deliver exceptionally low resistance


Specifications

Wire gauge - 10 AWG
Silver plated 99.999% Oxygen Free Copper conductors
Aircore™ Technology
Jacket OD 16.60 mm
Cross-sectional area - 5.50 mm2
Loop resistance - 0.006
 Ω/m
Capacitance - 76 pF/m
Inductance - 0.46
 µH/m
Dissipation factor - 0.0070
Recommended for high end installations
Stranded Diameter - 3.25 mm (min)
Suitable for ABS, Metal & Maxi Airloc
