Red Dawn Specialty Cables are the solutions that NAIM® owners have awaited for decades: a path to upgrade their highly coveted components. Using Nordost’s technology and design philosophy, Red Dawn Specialty Cables provide an impressive improvement to NAIM® electronics.

Red Dawn Specialty Cables use technology found in Nordost’s Leif Series to create a custom aftermarket solution. This includes a fully-shielded design which employs six, heavy-gauge 24 AWG, silver-plated 99.9999% OFC solid core conductors. These conductors are precisely wound in a minimum cross-section configuration to eliminate unnecessary fillers or padding elements, and then insulated using high-grade FEP, selected for its superior dielectric performance. The result is a high-speed, low-loss cable which will allow NAIM® components to reach their next level in performance capabilities.

Red Dawn Specialty Cables are available in various configurations and terminations to suit a variety of components:

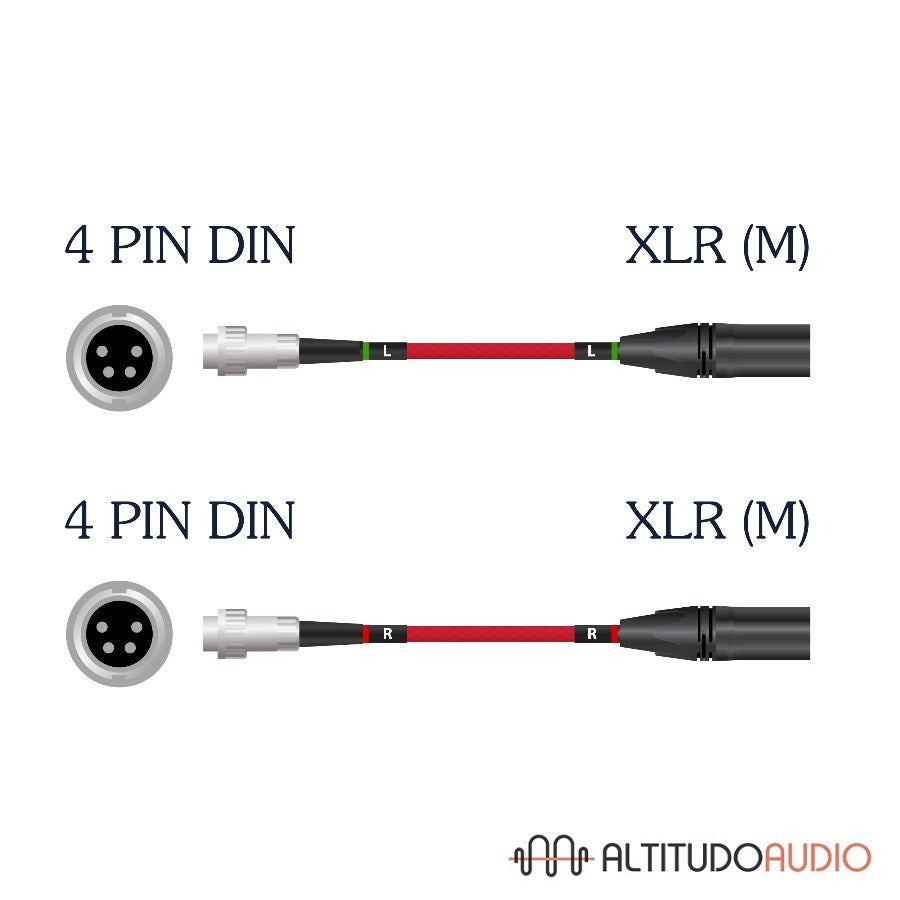

RED DAWN SPECIALTY 4 PIN DIN TO XLR (M) CABLE SET

Use From:

  • NAC 552 PS to NAP 500
  • Supercap to NAP 300
  • SNAXO 362 to NAP 300 or NAP 500 (uses three pairs)
  • SNAXO 242 to NAP 300 or NAP 500 (uses two pairs)

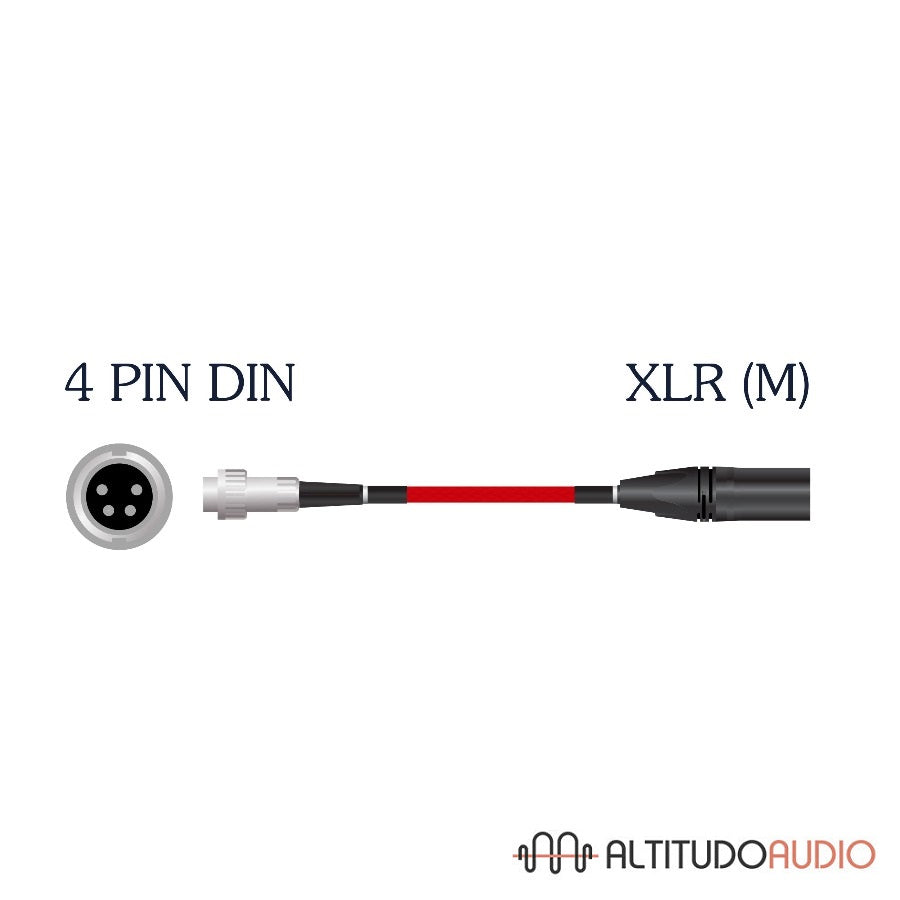

RED DAWN SPECIALTY 4 PIN DIN TO XLR (M) CABLE

Use From:

  • Supercap to NAP 250
  • Highcap to NAP 250
  • SNAXO 242 to NAP 250 (uses two cables)
  • SNAXO 362 to NAP 250 (uses three cables)



RED DAWN SPECIALTY 5 PIN DIN TO 5 PIN DIN (240) CABLE

Use from (SNAIC Applications):

  • NAC 552 PS to NAC 552 Pre
  • Supercap to NAP 252
  • NAC 252 to Superline
  • High-Cap to SNAXO 362, SNAXO 242, NAC 282, or NAC 202
  • Flat-Cap to SNAXO 362, SNAXO 242, NAC 282, or NAC 202

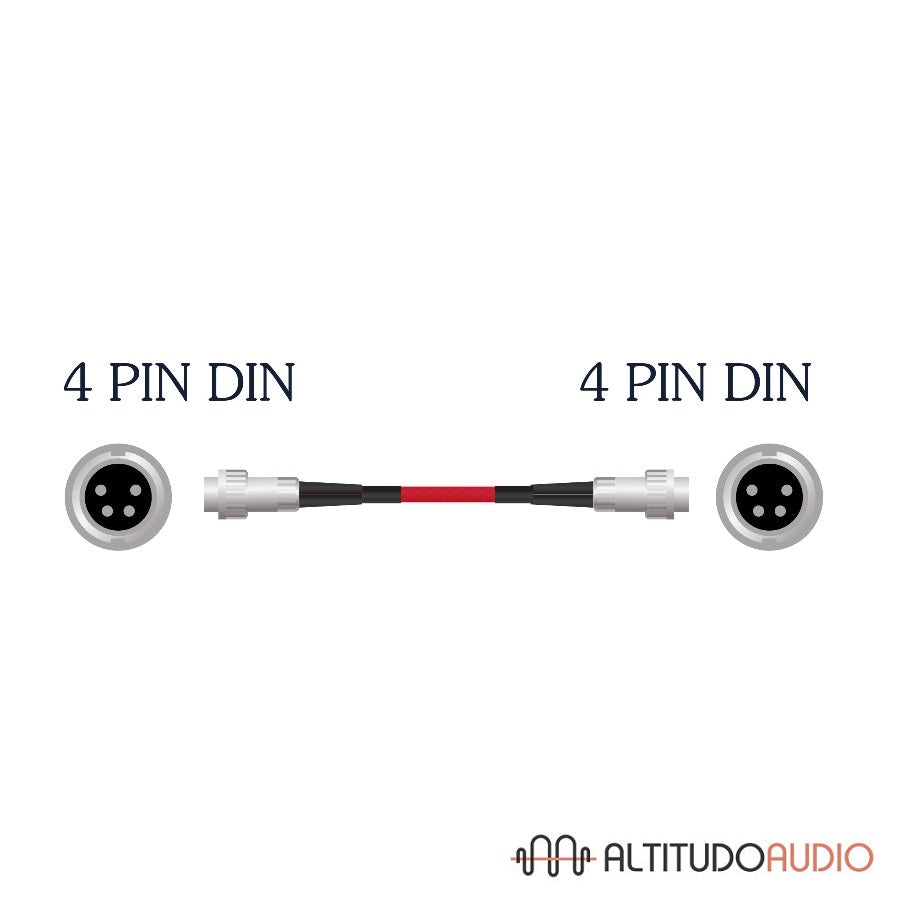

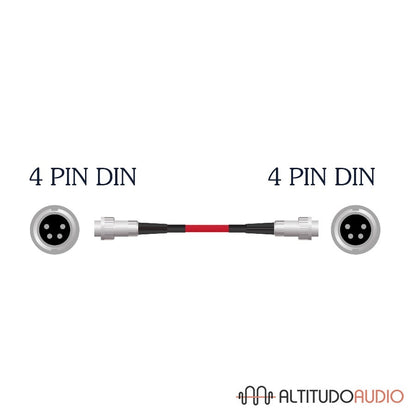

RED DAWN SPECIALTY 4 PIN DIN TO 4 PIN DIN CABLE

Use from (SNAIC Applications):

  • NAC 552 PS to Supercap
  • Supercap to Highcap
  • NAP 200 Power Amp to NAC 282 Pre-Amp or NAC 202 Pre-Amp
  • High-Cap to NAP 200 Power Amp
  • Flat-Cap to NAP 200 Power Amp



SPECIFICATIONS


Insulation:
Fluorinated Ethylene Propylene (FEP)
Construction:
Mechanically tuned lay
Conductors:
6 x 24 AWG
Material:
Silver-plated 99.9999% solid core OFC
Capacitance:
60.0pF/ft
Inductance:
0.035μH/ft
Overall Shield Coverage:
95%
Termination Options:



4 Pin Din to Neutrik XLR (male) Set
4 Pin Din to Neutrik XLR (male)
5 Pin Din (240) to 5 Pin Din (240)
4 Pin Din to 4 Pin Din
