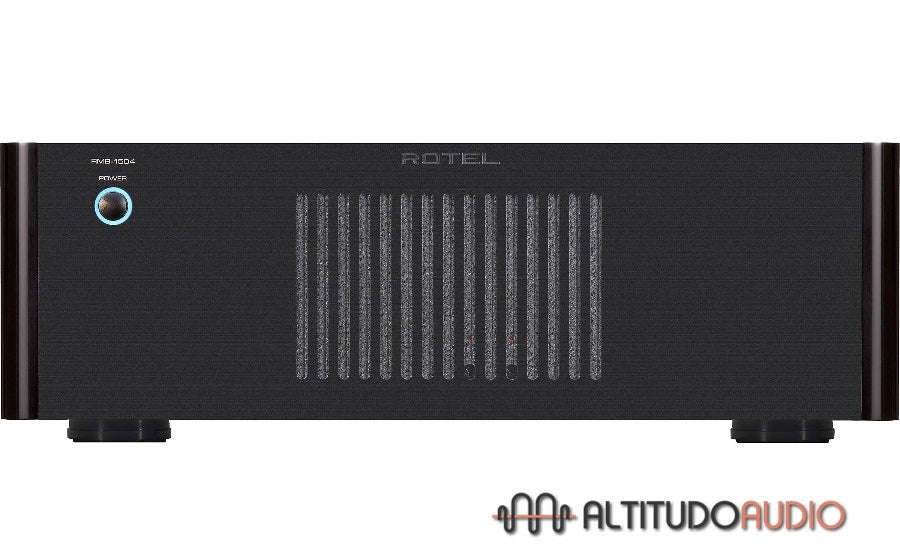

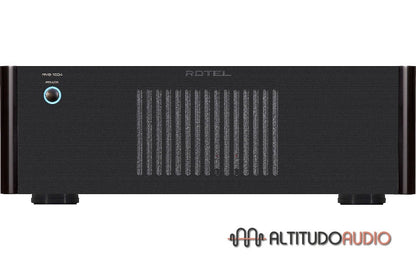

RMB-1504

The RMB-1504 4-channel power amplifier delivers 70 continuous watts per channel in Class AB into 8 ohms or 115 continuous watts per channel into 4 ohms backed by Rotel 's more than 60 years of engineering, design and manufacturing experience. of amplifiers.

Intended for use in a wide spectrum of multi-room installations, the RMB-1504 provides power and refinement for in-ceiling speakers in both home theater and custom systems.

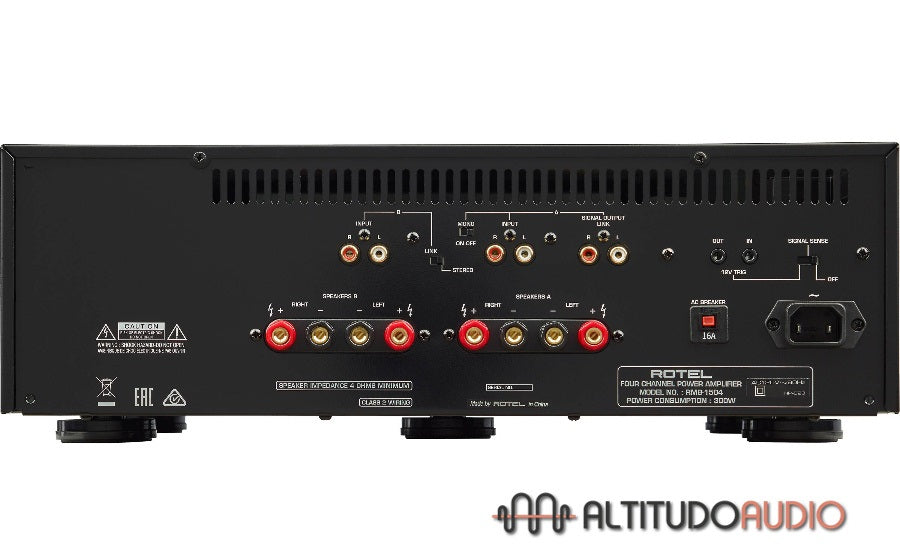

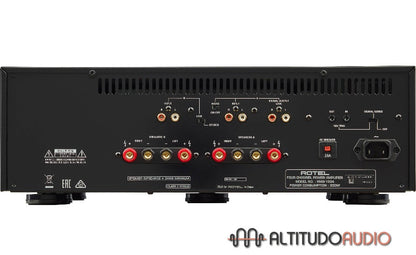

12-volt trigger signal input and output connections, audio signal detection sensors, front panel volume attenuators, linked audio output connections, and a rack-mount kit provide maximum installation flexibility.

Inside, a large Rotel -built toroidal transformer and specially selected high-efficiency capacitors power high-current output transistors that ensure fast transients, precise detail, and consistent, controlled bass regardless of the speakers' impedance. used.

Characteristics:

• Multichannel power amplifier with exceptional quality/price ratio.

• 4 channel configuration.

• Ideal for custom installations.

• Made with audiophile grade components.

• Unbalanced inputs.

• Input for 12 V trigger signal.

• Power output of 4 x 70 W RMS into 8 ohms or 4 x 115 W RMS into 4 ohms.

• Frequency response of 10-100,000 Hz, +/-1 dB.

• Signal-to-noise ratio of 115 dB.

• 26 dB gain.

• Dimensions: 431 x 144 x 443 mm (W x H x D).
• Weight: 14.9 kg.
