RMB-1587MKII

Rotel’s new RMB-1587MKII 7-channel amplifier furthers our heritage of producing high powered, high current, exceptionally manufactured Class AB amplifiers for multi-channel systems. The RMB-1587MKII delivers 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms and drives 4 ohm speakers with over 250 Watts per channel, all channels driven

Rotel’s new RMB-1587MKII 7-channel amplifier continues our heritage of producing high powered, perfectionist amplifiers for multi-channel systems.

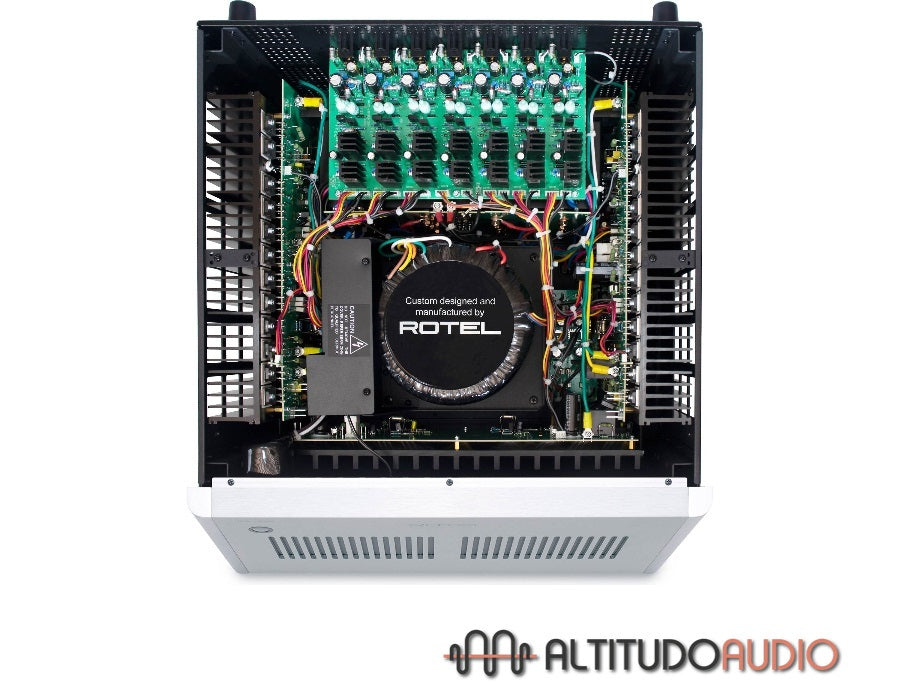

Following Rotel's MKII design architecture, the RMB-1587MKII incorporates significant circuit and component upgrades in both the power supply and amplifier stages achieving ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.

Differing from multi-channel amplifiers whose output drops when driving multiple channels simultaneously, the RMB-1587MKII delivers all 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms, and 250 Watts per channel into 4 ohms with all channels driven.

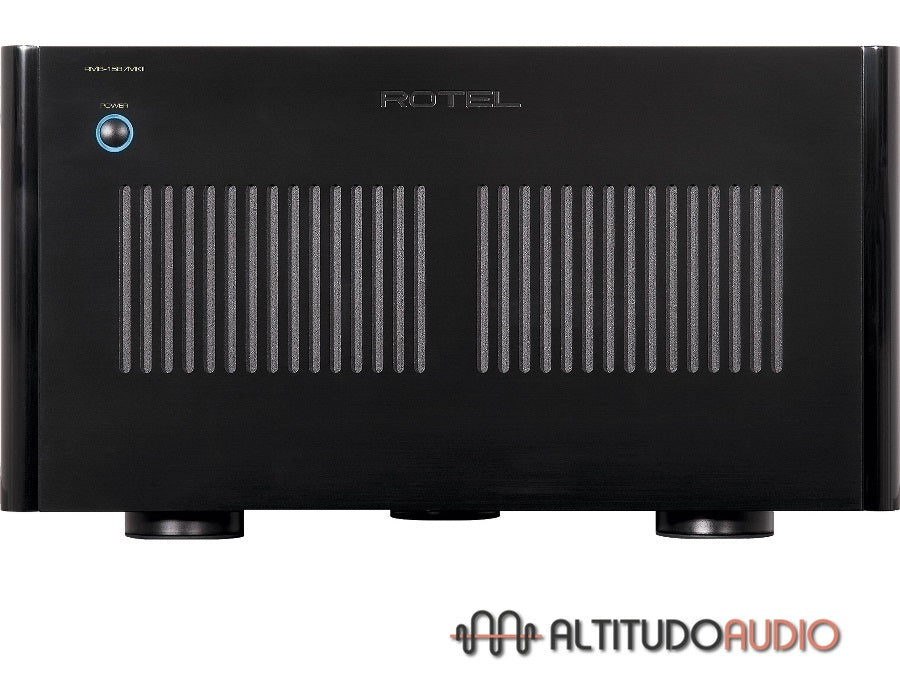

The RMB-1587MKII is available in both black and silver colors.

Specifications:

Dimensions (W × H × D)
431 × 237 × 456 mm
17" × 9.4" × 18"

Front Panel Height
5U / 221 mm (8.75")

Power Requirements
120 V, 60 Hz

Power Consumption
1400 W

Net Weight
37.6 kg (82.9 lbs.)

BTU Rating (4 Ω, 1/8th power)
4016 BTU/h

Continuous Power Output
155 W/Ch (7 channels driven, 8Ω)
250 W/Ch (7 channels driven, 4Ω)
335 W/Ch (2 channels driven, 4Ω)


Total Harmonic Distortion (THD)
(20 Hz–20 kHz) <0.03%

Frequency Response
10 Hz - 100 kHz +0 dB, -3 dB

S/N Ratio (IHF "A" Weighted)
111 dB

Gain
26.6 dB

Crosstalk/Separation
>55 dB
Intermodulation Distortion (60 Hz:7 kHz, 4:1)
<0.03%

Damping Factor
330

Input Sensitivity
Line Level Inputs (RCA): 1.61 V
Line Level Inputs (XLR): 3.4 V

Input Impedance
Line Level Inputs (RCA): 12 kΩ
Line Level Inputs (XLR): 50 kΩ
