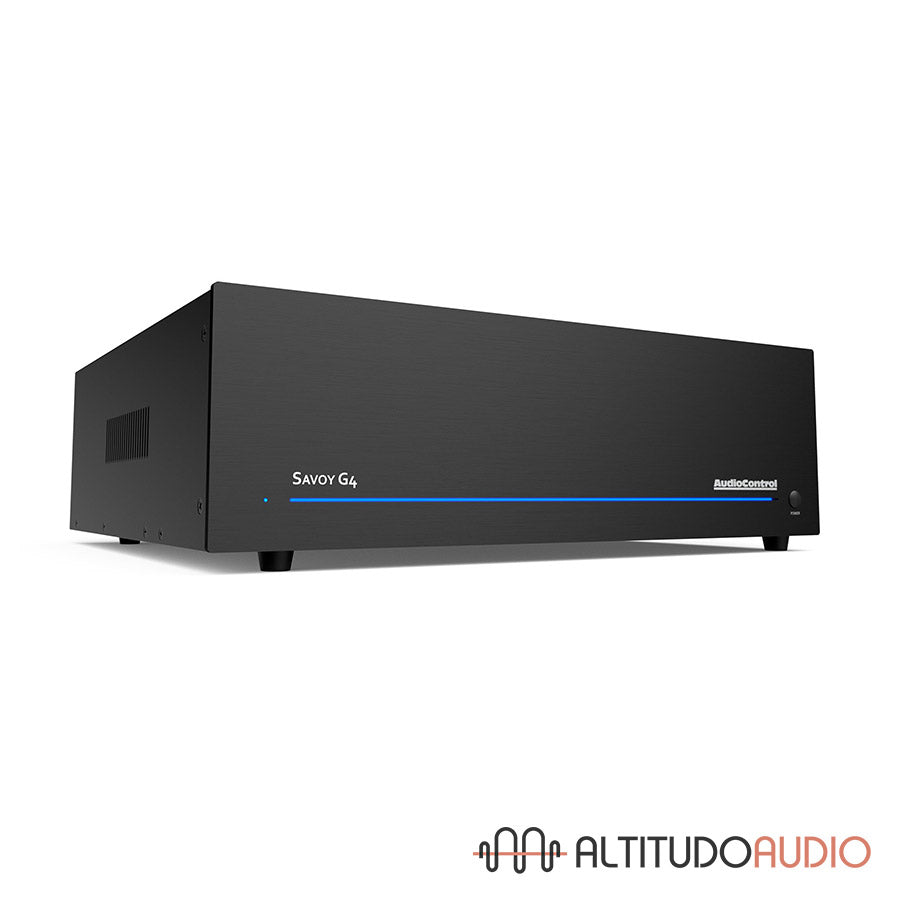

Savoy G4 Multi-Channel Power Amplifier
Shipping : FREE in Canada
savoy G4
7 channel power amplifier
Built from a legacy of respected premium power amplifiers, AudioControl’s G4 series amplifiers offer effortless power and efficiency, delivering impressively dynamic and detailed audio across all channels.
Incorporating AudioControl’s unique, highly efficient, and cool-running Class H design, the Savoy G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Savoy G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. AudioControl’s LightDrive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions.
Designed as a perfect match to AudioControl’s preamp processors or as standalone critical listening power amplifier, the Savoy G4 can be configured for anything from a powerful 3 channel listening room to a detailed and dynamic, multichannel home theater.
FEATURES
- Award winning theater amplifier technologies
- Seven channel home theater amplifier
- Multi-mode operation: 7 channel, 5.1 channel, 5 channel
- 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
- 600 watts at 8 ohms bridged on select channels
- Stable into low impedances
- Stereo/mono operation
- Unparalleled Energy Efficiency
- High Definition BiMOS Outputs
- Cool Running Class H Operation
- LightDrive Anti-Clipping Protection Circuitry

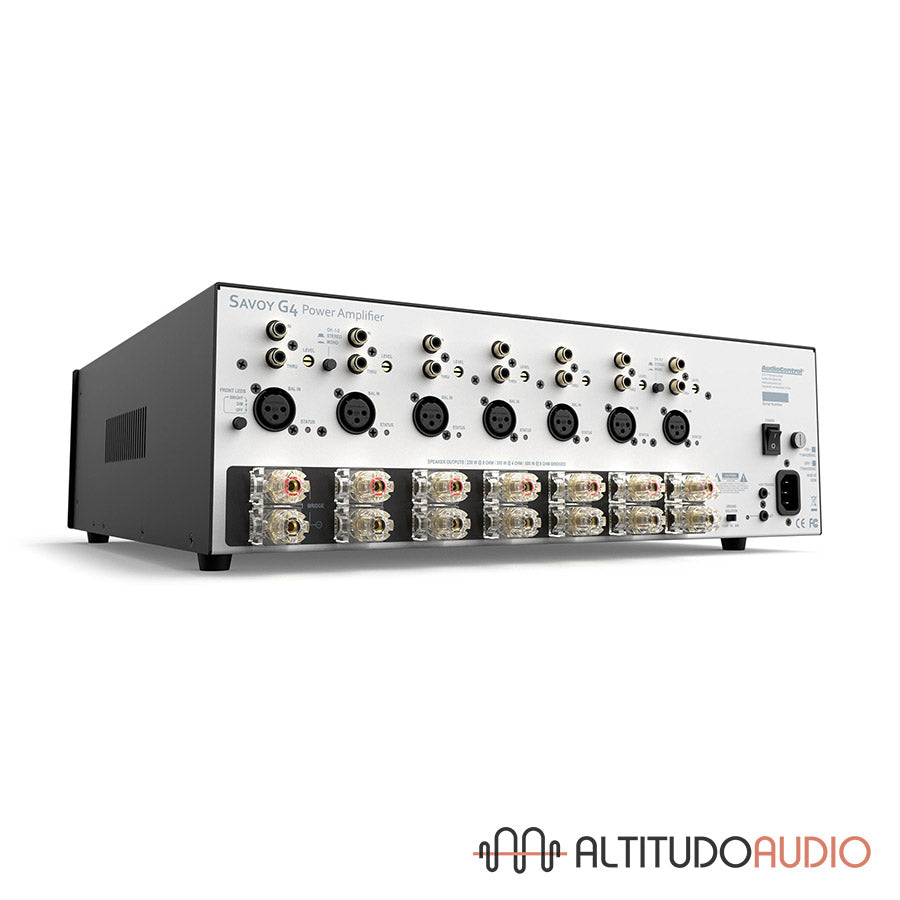

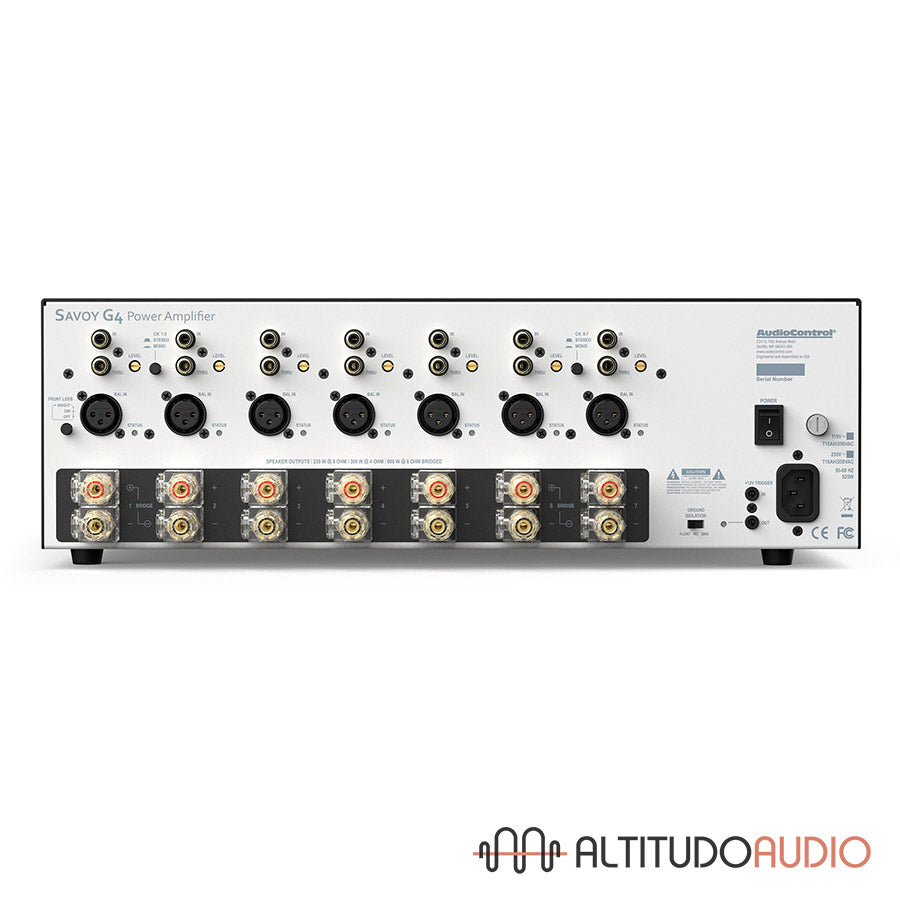

- 5-way Binding Posts
- Unbalanced RCA inputs with pass through
- Balanced XLR Inputs
- Bullet-Proof Reliability
- Remote 12 volt Trigger
- Perfect paired with AudioControl’s home theater preamplifiers
INPUTS
- Inputs: 7 RCA Unbalanced, 7 XLR Balanced
- Input Sensitivity: 1.42 Vrms for full output
- Maximum Input Voltage: 2.7 Vrms
- Input Impedance: 100 kΩ
OUTPUTS
- Amplifier Channels: 7
- Power Output (8Ω): 230 watts per channel
- Power Output (4Ω): 300 watts per channel
- Power Output (8Ω Bridged Mono): 600 watts
- Minimum Speaker Load: 4Ω
PERFORMANCE
- Damping Factor: >450
- Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
- Signal to Noise: >102dB, A-wtd ref Full Output
- Frequency Response: 10 Hz -20 kHz, ±1 dB
CONTROL
- Remote Power Trigger: +12 VDC or Dry Contact Closure
GENERAL
- Power Consumption (Standby): < 2W
- Power Consumption (Idle): 38W
- Power Consumption (loud listening level): 367W
- Power Consumption (maximum): 2100W
- BTU/Hour Output (Standby): 5.6 BTU/hr
- BTU/Hour Output (Idle): 129 BTU/hr
- BTU/Hour Output (1/8th power, loud listening level): 477 BTU/hr
- BTU/Hour Output (maximum): 2507 BTU/hr
- Protection: clipping, short circuit, thermal, DC offset
WEIGHTS & DIMENSIONS
- Dimensions: 17”W x 16.5”D x 5.25”H (3U)
- Weight: 43.0 lbs (19.5 kg)
IN THE BOX: Savoy G4, Power Cord, Manual, Warranty
