Schiit Audio Yggdrasil DAC (Pre-Owned)

*Pre-owned

** Original box, accessories (power cord/manual) & Mint condition

Sidebar 1: Specifications

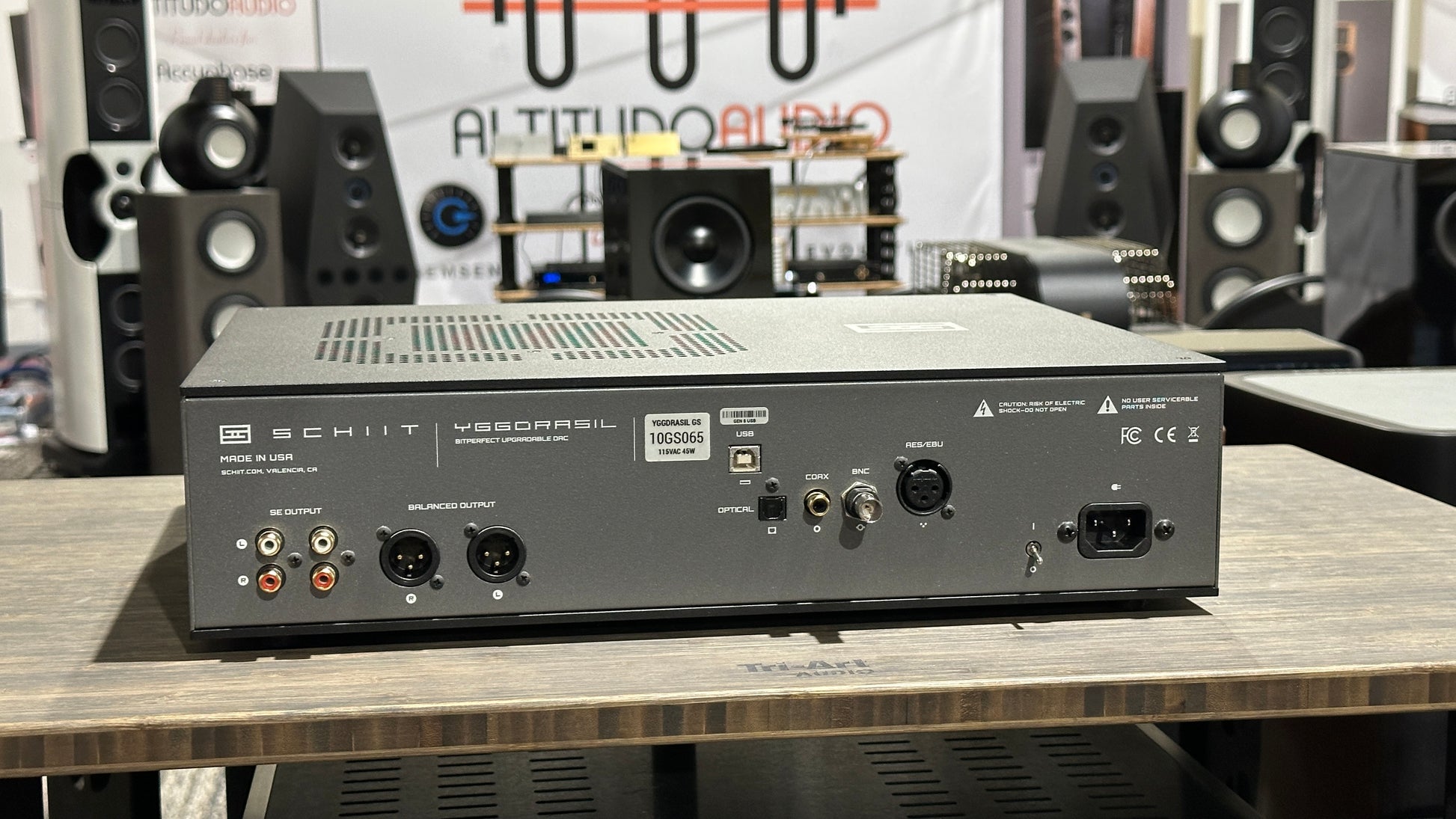

Description: Digital-to-analog converter. Inputs: AES/EBU (XLR), S/PDIF (RCA, optical, BNC), USB. Input capability, all inputs: up to 24-bit/192kHz. Input receiver: S/PDIF, AKM AK4113; USB, C-Media CM6632. Digital filter: proprietary, implemented on Analog Devices SHARC DSP processor. D/A conversion IC: Analog Devices AD5791BRUZ (2 per channel, hardware balanced configuration). Analog stages: fully discrete JFET buffers for balanced output; discrete JFET summing stages for single-ended output, direct-coupled throughout. Outputs: 1 pair balanced (XLR), 2 pairs single-ended (RCA). Output impedance: 75 ohms. Maximum output (RMS): 4.0V balanced, 2.0V single-ended. Frequency response, analog stage: 20Hz–20kHz, ±0.1dB; 0.5Hz–200kHz, –1dB. THD: 0.006%, 20Hz–20kHz, at full output. IMD: 0.007%, CCIF, at full output. Signal/noise: >117dB, ref. 2V RMS. Power consumption: 35W.
Dimensions: 16" (410mm) W by 3.875" (100mm) H by 12" (310mm) D. Weight: 25 lbs (11.4kg).
Finish: Silver.
