SoundPath Subwoofer Cable
Shipping : FREE in Canada
Subwoofer cable maintains signal purity while eliminating interference to unlock your speaker system’s full sonic potential.
Premium Cables for Subwoofers and Audio Components
Enjoy a high-end listening experience with the SVS SoundPath Subwoofer Cable. 24K gold-plated brass connectors and a five-layer dielectric insulation system ensure signal purity and reject interference for pristine low frequency output.
Durable and Truthful RCA Subwoofer Cables
Multi-strand 99.99% pure copper conductors deliver ultra-high bandwidth and low capacitance for truthful audio signal rendering. SVS SoundPath subwoofer cables have a substantial feel with braided cotton sheath for added protection and style. All for a value only SVS can offer.
Available in convenient lengths ranging from one to 15 meters, SVS SoundPath is ideal for getting the best subwoofer cable connection possible.
Specifications
- Pristine signal transfer from pure copper center conductor and 24K gold plated brass connectors
- Precision-engineered five-layer dielectric insulation system
- Ultra-high bandwidth and ultra-low capacitance
Cable - Materials of Construction:
- All new premium cotton braided jacket – attractive, durable, outermost boundary of five-layer dielectric insulation system
- High density 7.0mm PVC outside core dielectric – part of five-layer insulation system
- 1.6mm HDPE inside core dielectric – part of five-layer insulation system, shields each unique conductor
- PET Mylar shield layer – part of five-layer insulated system, shields and binds internal structure
- Directional shield layer is a spiral braid of premium grade Aluminum foil and 56 strands of 99.99% OFC tinned copper Shielding – critical part of five-layer insulation system. Soldered to ground terminal at the source side helps reduce EMI and RF noise between electronics.
- Total five-layer isolation system rejects electromagnetic (EM) and radio frequency (RF) interference.
- The Dual balanced conductors are made from 14 strands of 99.99% OFC stranded copper conductors, and individually isolated in independent HDPE dielectric jackets - allow consistent signal flow, high signal purity, and minimize signal loss.
- Nominal Cable Diameter: 7mm

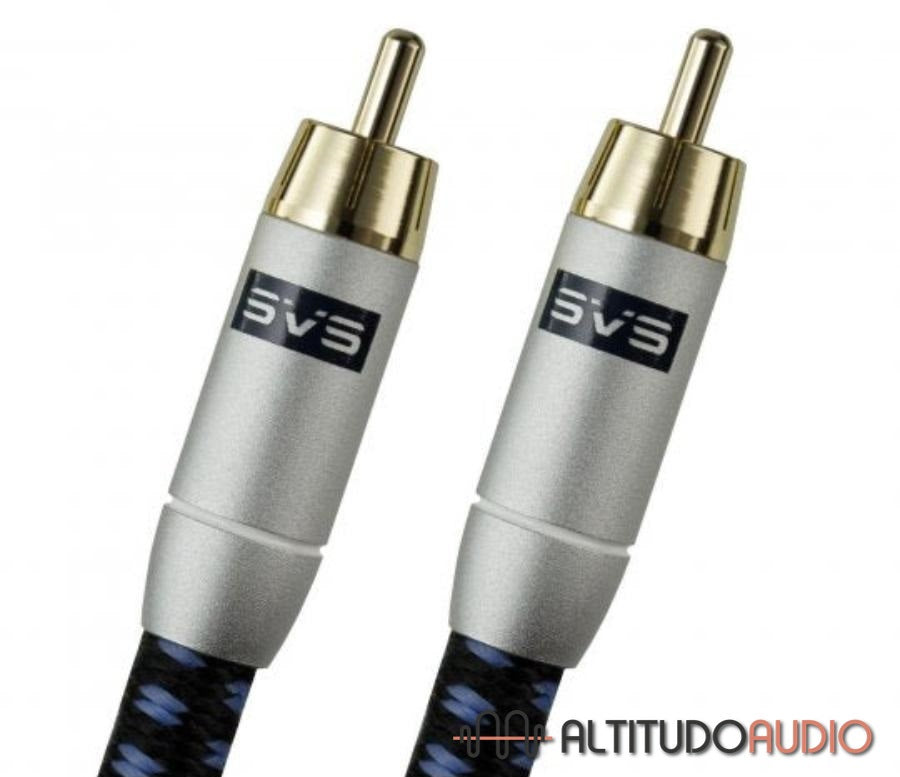

RCA Connector - Materials Of Construction:
- Precision soldered with high grade lead-free solder – Durable and consistent electrical contacts with consistent signal flow.
- 24K gold plated brass conductor pin – effective electrical contact and signal flow.
- 24K gold plated brass split grounding body – tight fit with consistent electrical contact for stable grounding.
- Precision machined and anodized aircraft grade aluminum shell with white and red marking bands – Stylish and durable body with a great feel and easy handling. Red and White marking bands for easy Left and Right designation.
- Center Pin and Outer Ring: Gold-plated brass for optimum signal quality and integrity.
Electrical Properties:
- Conductor DCR = 77 mΩ/meter
- Shield DCR: 30 mΩ/meter
- Nominal Impedance: 110Ω. Cable and RCA connectors are impedance-matched to minimize Voltage Standing Wave Ratio (VSWR) and Return Loss.
- Nominal Capacitance: 39 pF/meter @ 1kHz
- Rated Bandwidth: DC-5.0 MHz (3M cable) with ≤1.09 VSWR and ≥27dB Return Loss
