PS Audio

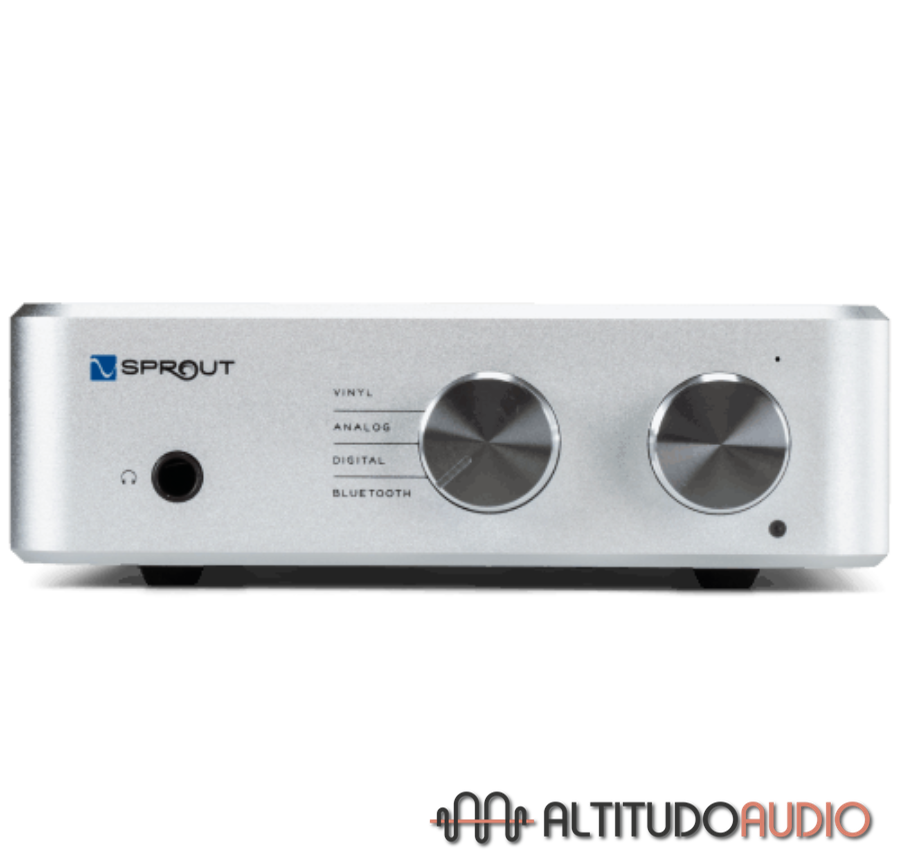

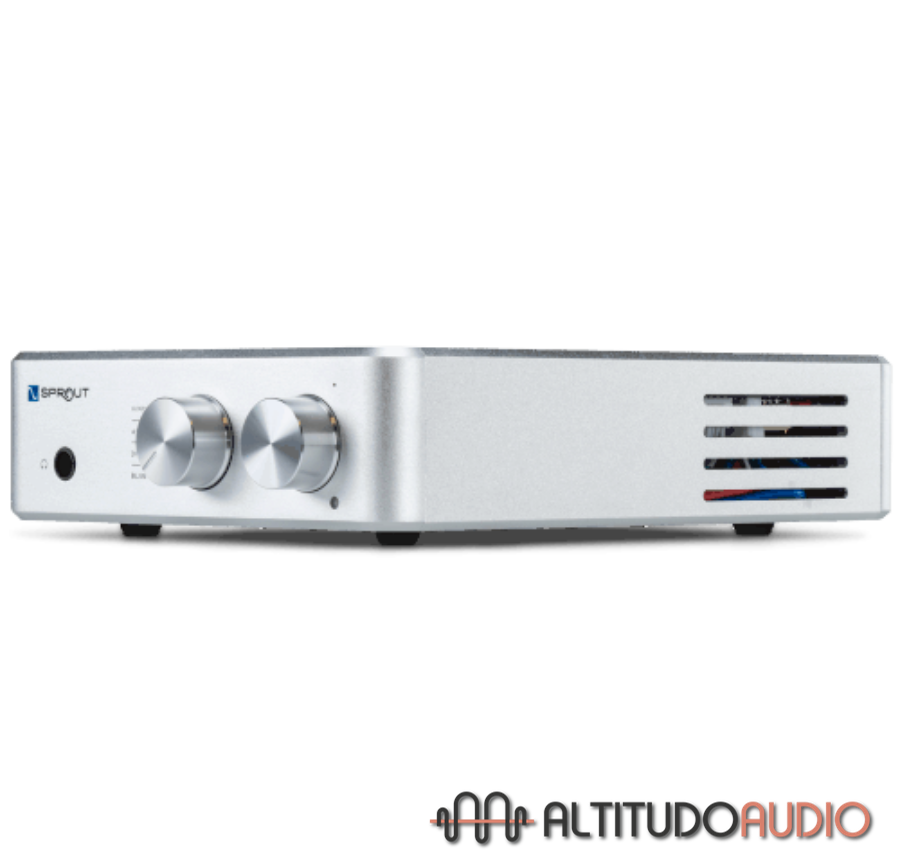

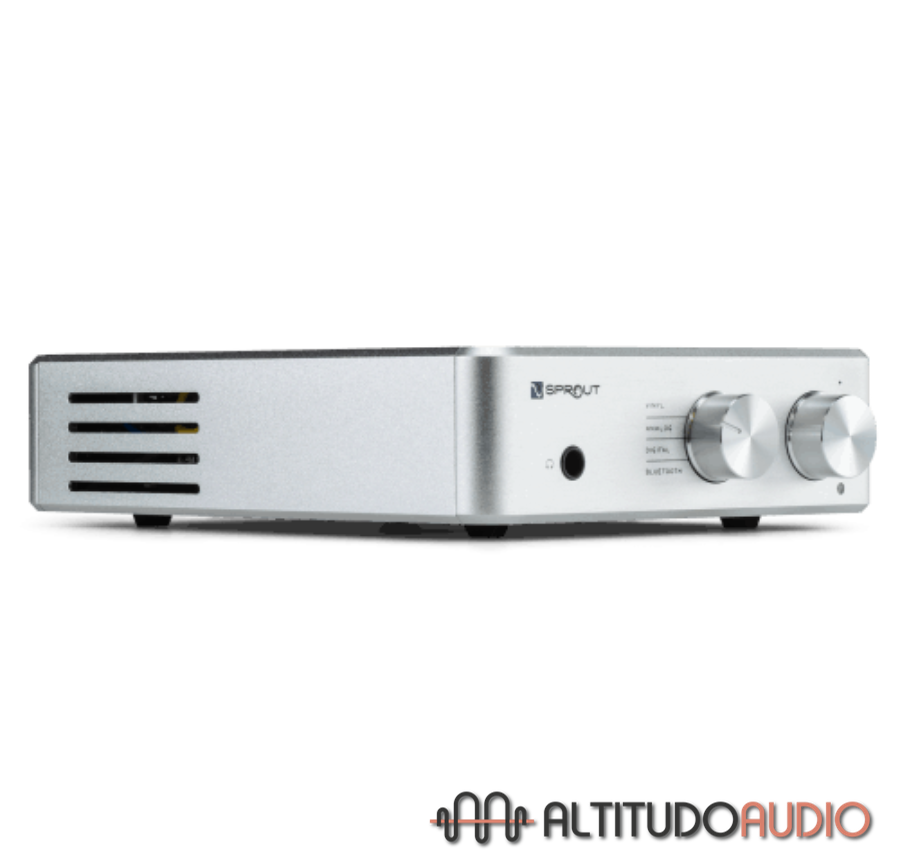

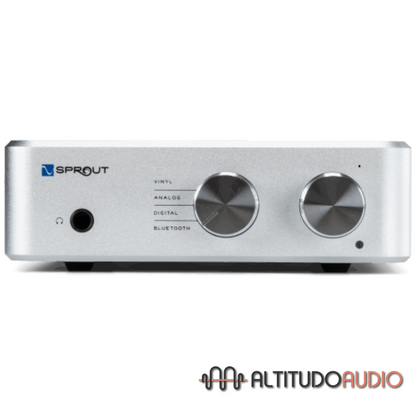

Sprout100 Integrated Amplifier
Regular price
$999.00
Shipping : FREE in Canada
Product Details
As PS Audio's newest, first-tier integrated amplifier, Sprout100 represents our vision of a simple, elegant means of playing music at home.
Sprout represents our vision of a simple, elegant means of playing music at home. We created it for those of us who want quality sound without the hassles that sometimes come with it. Sprout features a phono preamplifier for vinyl, a Bluetooth receiver for music streamed from smartphones, a high-quality hi-res DAC to handle anything stored on a computer, enough power for any speaker, and a headphone amp that drives even the toughest loads. Roughly the size of a large novel, Sprout100 is a source of music for those who want quality sound without the hassles that come with it.
DESIGN

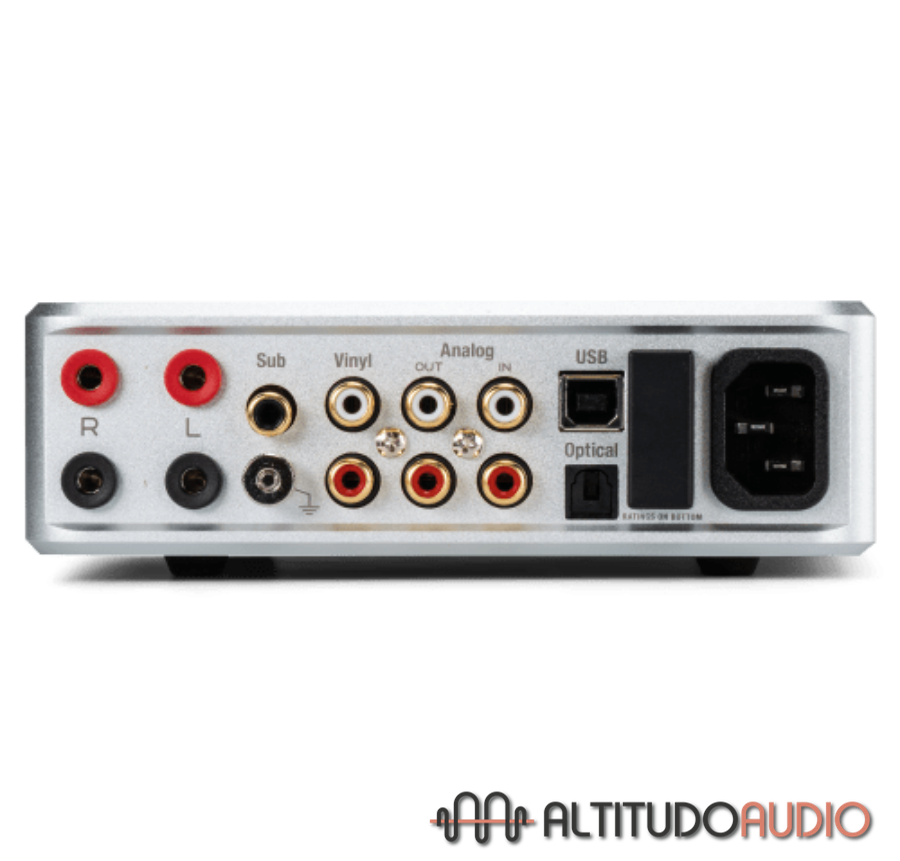

Designed to be compact and elegantly versatile, Sprout100 brings the content of yesterday to the technology of today. Sprout100 offers a maximum-resolution DAC, a variable subwoofer mono output, full RCA analog in/out connectors, a world-class RIAA phono-stage, a z-feedback low impedance headphone amplifier, and a universal internal power supply that allows you to take your new integrated amplifier abroad for maximum flexibility. Adorned with real walnut and machined aluminum knobs, each and every Sprout100 is unique.
APPLICATION
Sprout100's ease of use makes it appealing and accessible to those who would find most audio gear intimidating. Sonically notable for its lucid spatial detail, acute tonal retrieval, and commanding noise immunity, Sprout100 is equipped to drive your loudspeakers and headphones better than ever. For those seeking a better, simpler way to play music in their home, Sprout100 will fill your living room, bedroom, or any room with enormous, live sound. Sprout100 provides quality without complication.
Specifications
Physical |
|
| Unit Weight | 2.9 lbs [1.3 kg] |
| Unit Dimensions | Width 6.2″, Height 1.9″, Depth 8.2″ (chassis only, not including knobs) or 9.2” (including connectors and knobs) |
| Shipping Weight | 5lbs [2.2 kg] |
| Shipping Dimensions | Width 10.5″, Height 5″, Depth 14″ |
Power requirements |
|
| Voltage Options | 100-240 VAC, 50-60Hz, Auto-Detect |
| Power Consumption | 280W Maximum |
| Mains Power Input | IEC C14 |
Phono Audio Input |
|
| Connector | 1 Stereo Pair, Phono RCA |
| Cartridge type | Moving Magnet |
| Cartridge Output | 3mV-10mV (5mV recommended) |
| Cartridge Loading | 47KΩ (100pF) |
| EQ Type | RIAA |
| Gain | +40dB |
| S/N ratio | >84dB A-weighted (analog output) |
Analog Audio Inputs |
|
| Connector | 1 Stereo Pair, Line Level RCA |
| Maximum Input level | 2.1VRMS (+6.44dBV) |
| Input impedance | 10KΩ |
Analog Audio Output |
|
| Connector | 1 Stereo Pair, Line Level RCA |
| Output level, maximum | 3.0VRMS (+9.5dBV) |
| Output Max Gain (using Analog Inputs) | 8.45dB |
| S/N ratio | >105dB (3VRMS ref) |
| THD (Analog) | <0.01% (1VRMS, 1KHz) |
S/PDIF Digital Input |
|
| Connector | Optical (Toslink) |
| Format | PCM (96KHz max), 24 bits |
USB Input |
|
| Connector | USB “B” Type |
| Format | PCM (384KHz max), 24 bits, DSD64 (DoP), DSD128 (DoP) |
| Transfer mode | Asynchronous |
Bluetooth |
|
| Antenna | Built in |
| DAC | Uses Sprout’s built in asynchronous DAC over S/PDIF (ESS Sabre 9016 DAC) |
Stereo Power Amplifier Output |
|
| 8Ω loudspeakers connected | 50 watts per channel, both channels driven |
| 4Ω loudspeakers connected | 100 watts per channel, both channels driven |
| THD (Speaker Output) | <0.01% (1W, 1KHz into 4Ω) |
| Frequency Response | +/- 1dB (1VRMS out, 20Hz – 20Khz into 4-8Ω) |
| Signal to Noise | >100dB at max power into 4Ω |
Headphone Output |
|
| 32Ω headphones connected | 500mW |
| 300Ω headphones connected | 125mW |
| THD | <0.01% (1KHz, 50mW into 32 Ω) |
| Signal to Noise | >105dB at max power into 300Ω |
