PS Audio

Stellar S300 Amplifier

Stellar S300 Amplifier

Regular price $2,299.00 CAD
Regular price Sale price $2,299.00 CAD
Sale Sold out



shipping : free in canada, roc en apply

    Product Details

    From the deepest bass to the warmest, sweetest highs, the Stellar S300 makes any loudspeaker sing and is our most affordable stereo power amplifier ever.

    Breathe new life into your loudspeakers with the Stellar S300, a full-sized, affordable stereo power amplifier that honors the music and controls your loudspeakers better than you ever imagined possible. The S300 combines the slam, linearity, and toe-tapping pacing of a Class D output stage with the warmth, grace, and rich inner detail of Stellar’s Class A Analog Cell. The results are nothing short of ground breaking. Liberate a wealth of untapped energy trapped in your media library. Plumb music’s subterranean depths and finally hear the bass your speakers were capable of. Revel in rich layers of fine, full detail. Marvel at the deep, extraordinary, wall-to-wall soundstage. Effortless. Lush. Stellar.

    DESIGN

    The Stellar S300 stereo power amplifier is a dual mono power amplifier capable of effortlessly driving demanding loudspeaker loads to concert levels. It combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The S300's rich, warm, and engaging sonic character comes from the Analog Cell. It's powerful, authoritative control over the loudspeaker stems from its high current, ultra-low impedance Class D output stage.

    APPLICATION

    The perfect choice for just about any loudspeaker, the S300 slips into any system, surprising and delighting even the most discriminating Audiophile. Rated at 140 watts per channel into 8‎Ω and 300 watts per channel into 4‎Ω, the S300 has plenty of horsepower for even the most demanding loudspeakers. Your musical library will open up in ways you might not have thought possible, revealing nuance and detail covered up by traditional amplifiers.

    Specifications

    Stellar S300 Stereo Amplifier

    Unit Weight 13 lbs [5.9 kg]
    Unit Dimensions 17”W x 3”H x 12”D (13″D w/connectors)
    Shipping Weight 16.5 lbs [7.5 kg]
    Shipping Dimensions 22”W x 8”H x 17”D
    Color Options Black
    Silver
    Voltage Options
    (Factory set only)
    Japan 100V
    North America 120V
    Europe/Asia/Australia/New Zealand 230V
    Mains Power Inputs IEC C14
    Idle Power Consumption 13W
    Accessories Included US (NEMA 5-15P) (all versions)
    Schuko (CEE7/7) (230V version)
    UK (BS 1363) (230V version)

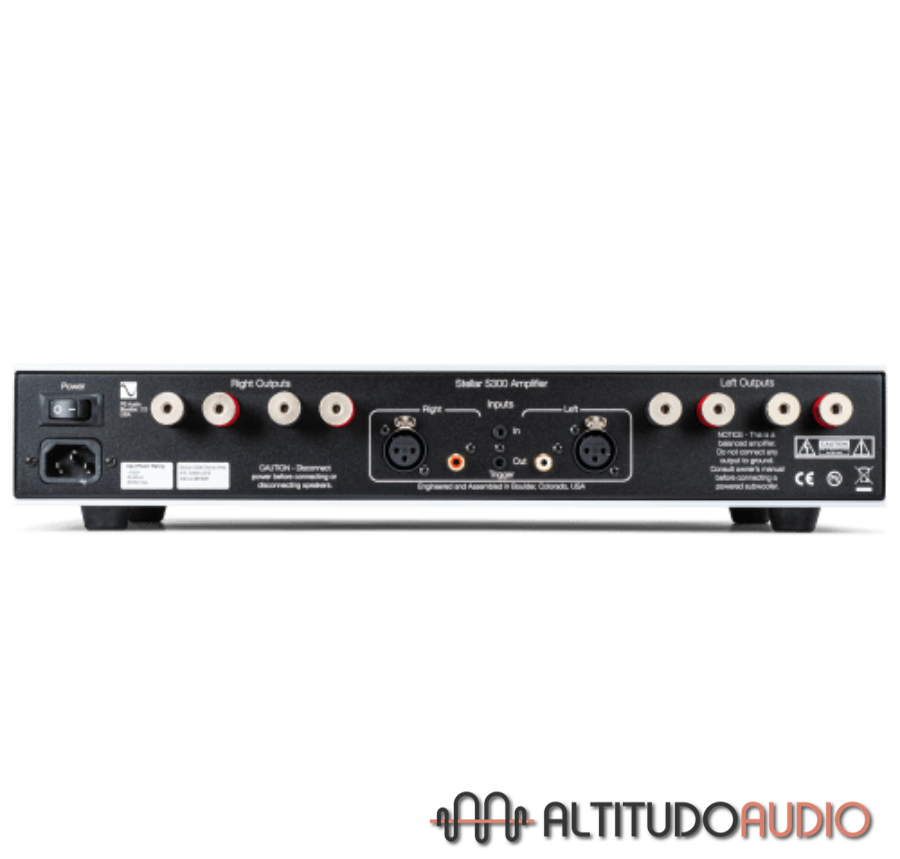

    Audio Inputs RCA (Unbalanced)
    XLR (Balanced)
    Speaker Outputs Copper base nickel plated binding posts (2 pair per channel)
    DC Trigger Input 3.5mm 5-15VDC
    Warranty 3 years parts and labor

    Signal

    Gain 30.5dB +/-0.5dB
    Sensitivity for rated output power 1.01V
    Noise 1kHz@300 Watts < -100dB
    Input impedance Unbalanced 50KΩ
    Balanced 100KΩ
    Output Impedance 50Hz, 2.8VRMS <0.007Ω
    Damping factor 50Hz. 2.8VRMS
    8Ω >1100
    4Ω >550
    Frequency Response 2.8VRMS into 4Ω
    10Hz – 20KHz +/- 0.5dB
    10Hz – 50KHz +0.1/-3.0dB

    THD&IM

    1KHz, 1W/4Ω <0.02%
    10-20KHz, 1W/4Ω <0.02%
    10-50KHz, 1W/4Ω < 0.05% (90kHz BW)
    1KHz, 37.5W/4Ω < 0.01%

    Output Power

    Both channels driven 120vac mains, 1kHz, 1% THD
    8Ω 140W minimum
    4Ω 300W minimum
    2Ω Stable for musical transients
