SVS 3000 In-Wall Pre-construction Kit

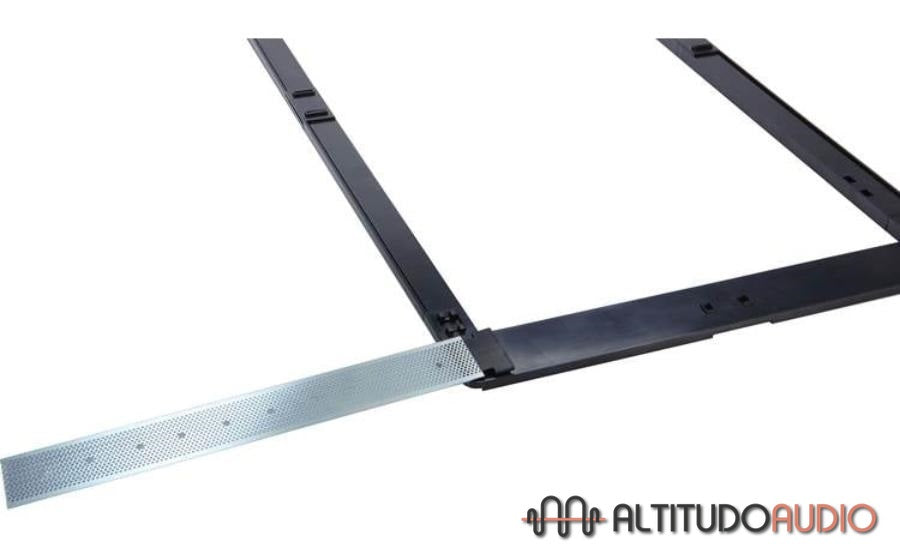

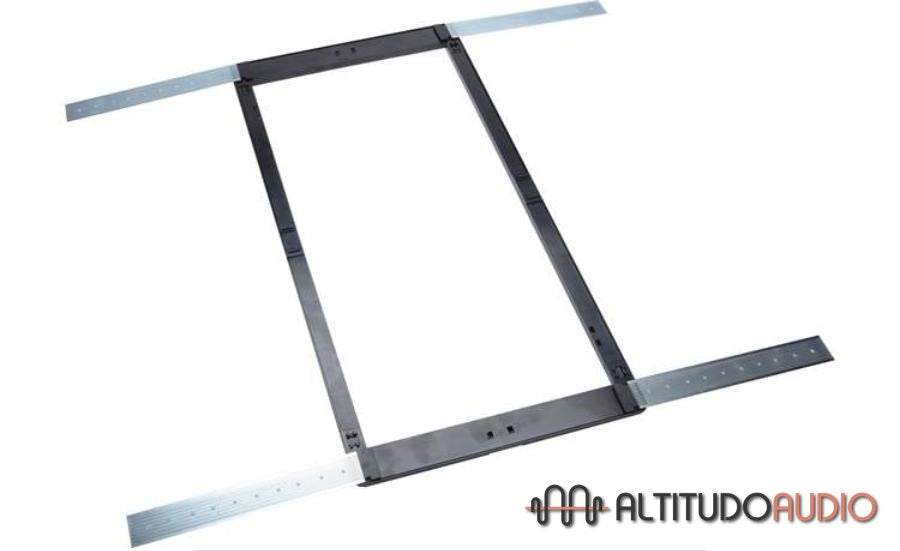

In-Wall Subwoofer Pre-Construction Kit: If you're building a new home, the 3000 In-Wall Subwoofer Pre-Construction Kit will make installing the SVS 3000 In-Wall Subwoofer easier and more efficient. This in-wall subwoofer pre-construction kit is used to designate the location of where the SVS in-wall subwoofer will be installed. The included bracket defines the hole that will need to be cut out for the in-wall sub. The SVS 3000 In-Wall Subwoofer Pre-Construction Kit consists of 6 plastic frame assemblies that will snap together to form the bracket for the SVS 3000 in-wall subwoofer. Four included wings snap onto the bracket and mount to two vertical wood studs of your exposed wall. Four Screws are included to secure the wings to the wood studs. The 3000 In-Wall Subwoofer Pre-Construction Kit can be mounted vertically or horizontally.

• Vertical Mount Dimensions:
  • Outer Bracket Dimensions: 14.1875" (w) x 28.625" (h) x 0.5" (d)
  • Inner Bracket Dimensions: 12.125" (w) x 25.125" (h) x 0.25" (d)
  • Wing Span (Stud Spacing): 16" to 32.5"
• Horizontal Mount Dimensions:
  • Outer Bracket Dimensions: 28.625" (w) x 14.1875" (h) x 0.5" (d)
  • Inner Bracket Dimensions: 25.125" (w) x 12.125" (h) x 0.25" (d)
  • Wing Span (Stud Spacing): 31" to 46"
