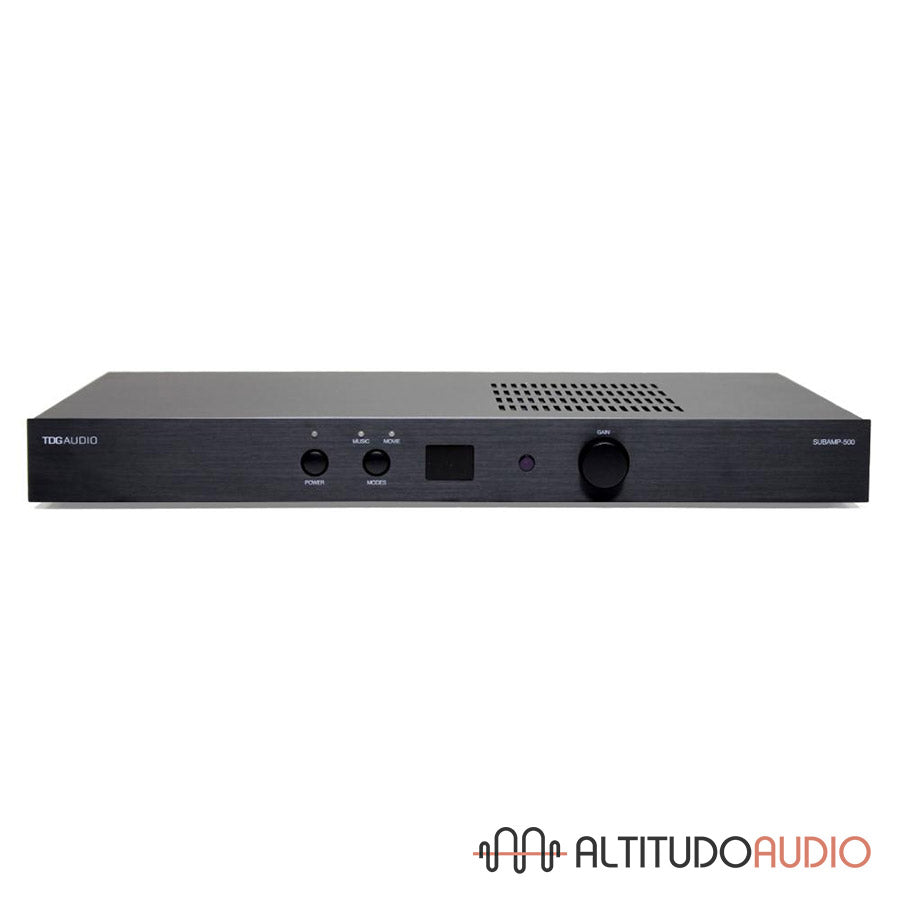

TDG Audio SUBAMP-500 (Clearance/Final Sale)
TDG Audio SUBAMP-500 (Clearance/Final Sale)
Couldn't load pickup availability
*Floor Demo
Subwoofers are the foundation of every great audio system. Just like a building’s foundation if it’s not right the rest of the structure will be compromised no matter how good it is. TDG Audio’s SUBAMP-500 provides a reliable and sonically accurate platform upon which to build your dream system. While the SUBAMP-500 is built to strict audiophile standards, it has controls that allow it to be flexible and become a perfect match for any environment. We back our confidence in the reliability and performance with a unique Limited 5-year warranty.
Key Features
- High Power Dual Subwoofer Amplifier
- Low Pass Filter Crossover Adjustment
- EQ Modes: Music (Flat), Movie (+8dB @40Hz)
- ON/Auto/12v Trigger
- Rack Mountable (1U Space)
- Remote Control Included
- 110V/230V
Mechanical Specification
- Power Output: 312W RMS at 8ohms, 500W RMS at 4ohms
- Frequency Response: 18Hz-160Hz
- Low Pass Variable Filter: 40Hz-160Hz
- Impedance: 4ohm or greater
- Phase: 0 and 180
- Distortion: 0.04% THD+N 1W/2W 100Hz
- Auto On Sensitivity: 3Mv

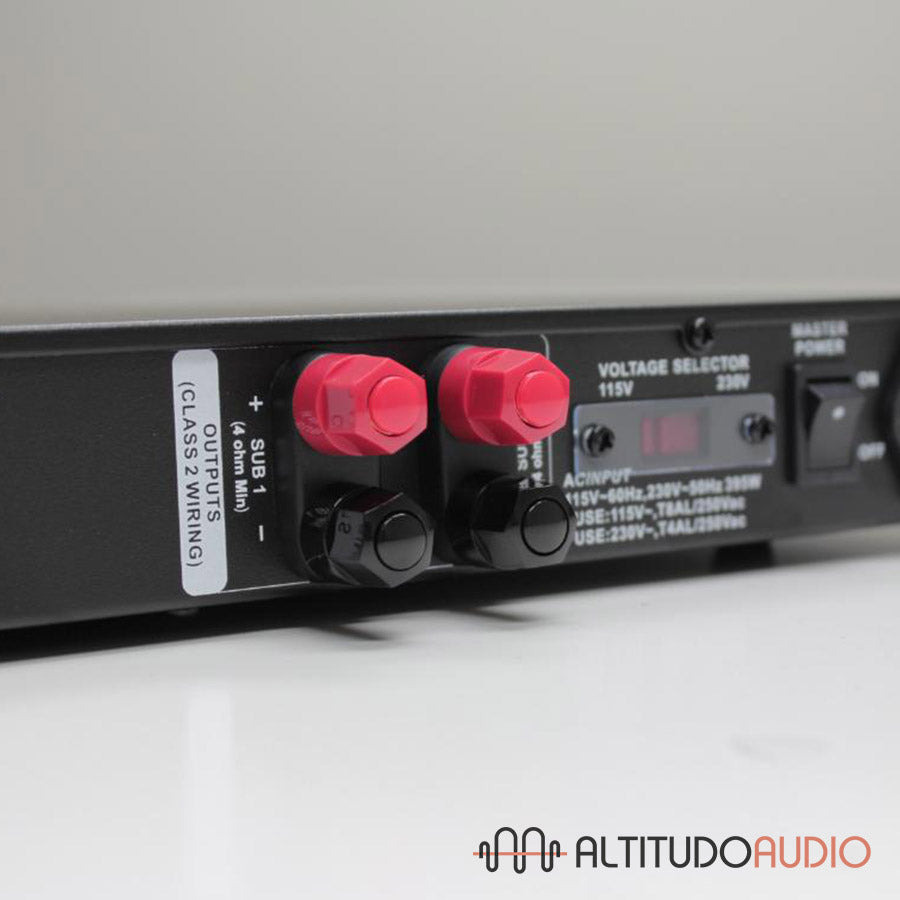

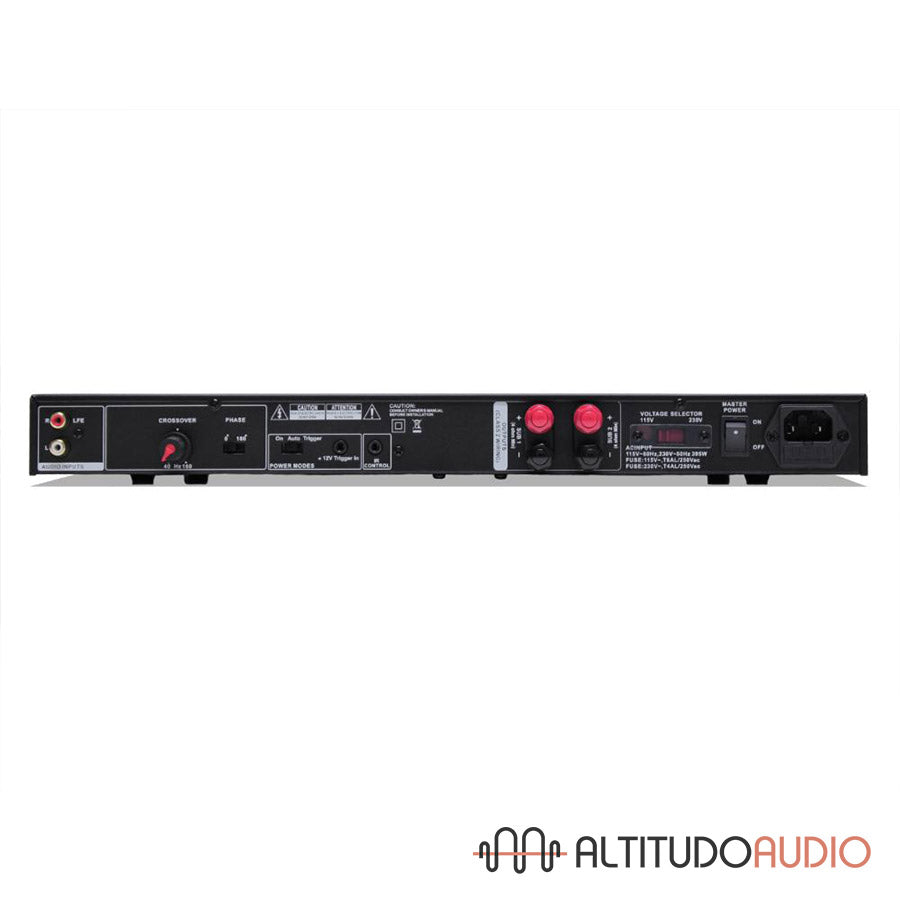

- Input Connection: RCA
- Output Connection: Binding Posts
- Weight: 19.7 lbs.
- Dimensions: W 17" (432mm) x H 1 3/4" (45mm) x D 13 1/4" (337mm)
