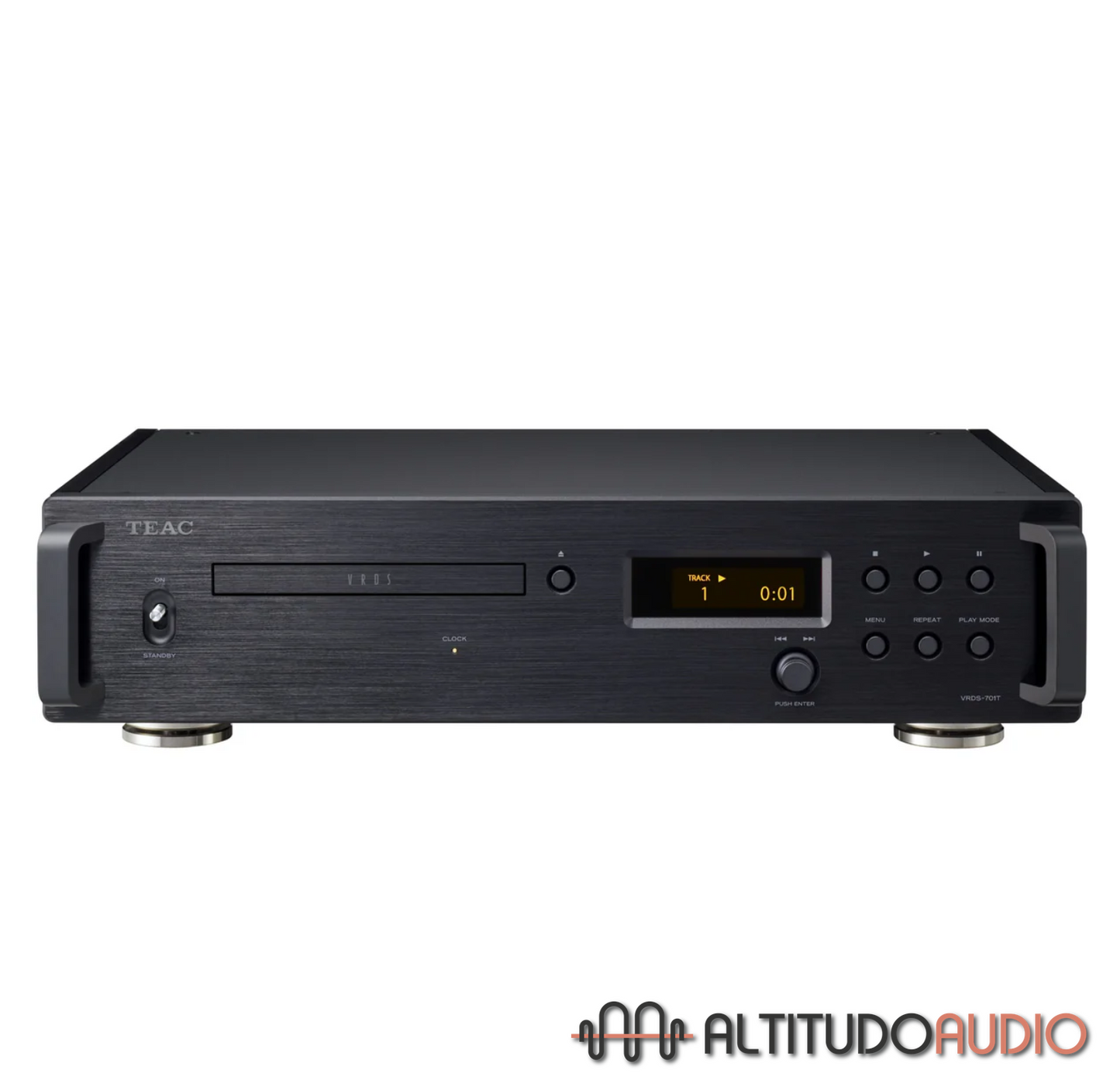

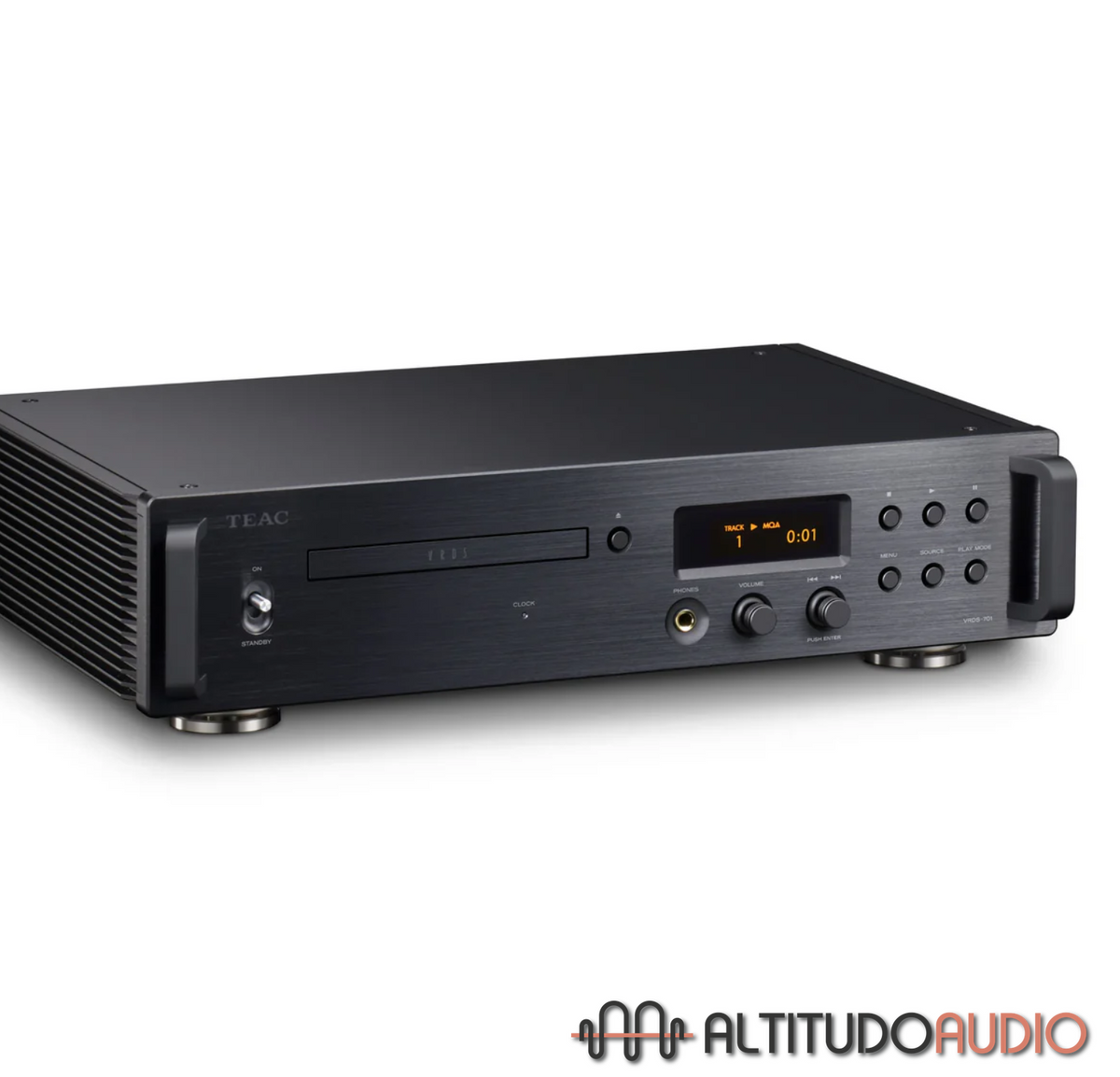

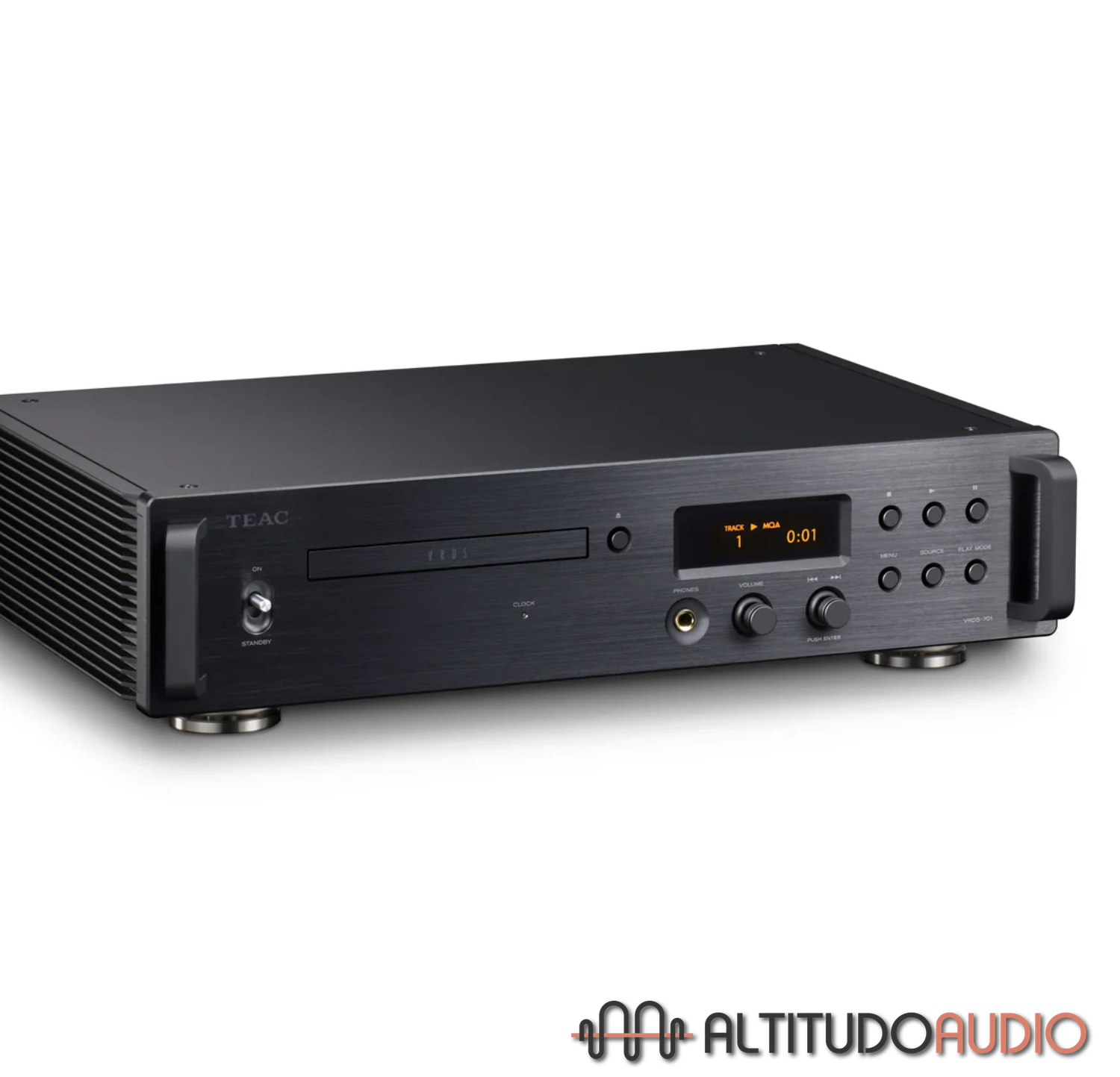

Teac VRDS-701 CD Player
The VRDS-701 CD player employs a newly-developed VRDS mechanism and a TEAC original discrete DAC. The VRDS is a TEAC-original CD drive mechanism that reduces rotation vibration and other unwanted vibration by clamping the CD to an aluminum turntable with the same diameter in order to maximize inertial mass.
Furthermore, instead of an ordinary DAC IC for the DAC section, which is crucial to audio quality, the VRDS-701 has a TEAC ΔΣ (delta-sigma) discrete DAC that incorporates our unique algorithms in a discrete circuit.
Unconstrained by conventional CD player definitions, the VRDS-701 is enhanced with future-forward functionality. The ability to play MQA CDs using full MQA decoding capabilities and support for 22.5MHz DSD and 384kHz/32-bit PCM formats as a USB DAC are some of the features that make it more than just a CD player.
Spec description
| CD section | |
| Supported media | Audio CD, CD (CD-R/CD-RW) * 8cm CDs not supported. |
| Frequencey response | 5Hz to 80kHz (+1dB, –6dB) |
| S/N ratio | 108dB (A-weight, 1kHz) |
| Total harmonic distortion | 0.002% (1kHz, LPF: 20Hz to 20kHz) |

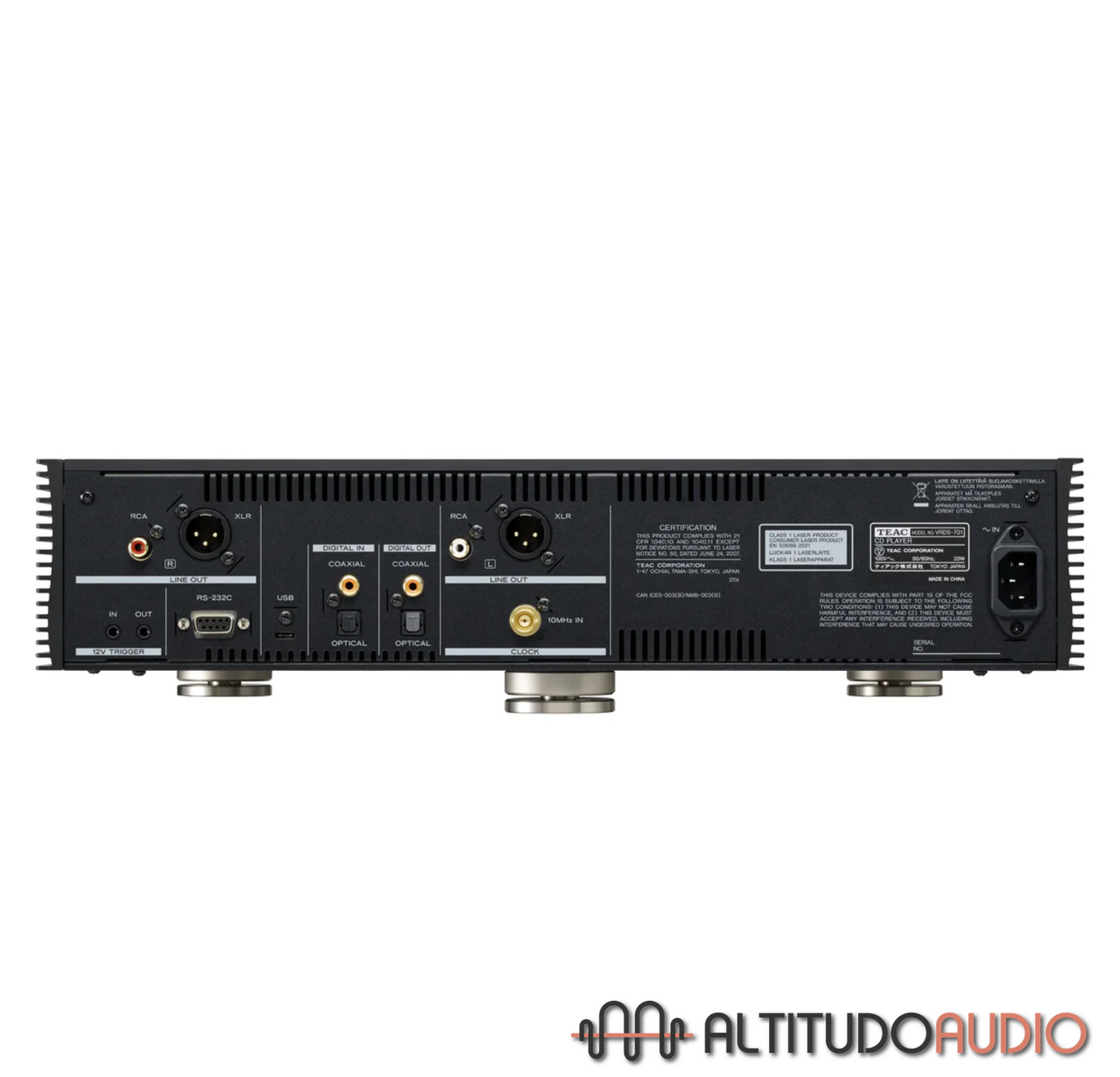

| Analog audio outputs | |
| Balanced | |
| Connectors | XLR × 1 pair |
| Maximum output level | 2.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED 0dB) 4.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED +6dB) 12Vrms (1kHz, Full scale, 10kΩ loaded, VARIABLE) |
| Output impedance | 220Ω |
| Unbalanced | |
| Connectors | RCA × 1 pair |
| Maximum output level | 2.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED 0dB) 4.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED +6dB) 6Vrms (1kHz, Full scale, 10kΩ loaded, VRIABLE) |
| Output impedance | 180Ω |
| Digital audio inputs | |
| USB | |
| Connector | USB Type-C × 1 (USB2.0 or more) |
| Supported formats | |
| PCM | 16 / 24 / 32bit 44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384kHz |
| DSD | 2.8M / 5.6M / 11.2M / 22.5MHz |
| COAXIAL | |
| Connector | RCA × 1 |
| Input level | 0.5Vp-p |
| Input impedance | 75Ω |
| Supported formats | |
| PCM | 16 / 24bit 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz |
| DSD | 2.8MHz |
| OPTICAL | |
| Connector | TOS (JEITA RC5720C) × 1 |
| Input level | –24.0 to –14.5dBm peak |
| Supported formats | |
| PCM | 16 / 24bit 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz |
| DSD | 2.8MHz |
| Digital audio outputs | |
| COAXIAL | |
| Connector | RCA × 1 |
| Output level | 0.5Vp-p |
| Output impedance | 75Ω |
| OPTICAL | |
| Connector | TOS (JEITA RC5720C) × 1 |
| Headphones out | |
| Connector | ¼″ (6.3mm) Stereo jack × 1 |
| Maximum output | 500mW + 500mW (into 32Ω) |
| Clock sync input | |
| Connector | BNC × 1 |
| Input frequency | 10MHz |
| Input impedance | 50Ω |
| Input level | |
| Rectangle wave | Equivalent to TTL level |
| Sine wave | 0.5 to 1.0Vrms |
| External control | |
| Trigger in (12V TRIGGER IN) | |
| Connector | 3.5mm Mono mini jack × 1 |
| Input level | 12V, 1mA |
| Trigger out (12V TRIGGER THRU) | |
| Connector | 3.5mm Mono mini jack × 1 |
| Output level | 12V |
| Maximum curret supply | 100mA |
| Power | AC120V, 60Hz AC220-240V, 50/60Hz |
| Power consumption | 20W |
| Standby power | 0.4W |
| Overall dimensions | 444 (W) × 111 (H) × 333 (D) mm (including protrusions) |
| Weight | 11.1kg |
| Operating temperature | +5℃ to +35℃ |
| Operating humidity | 5％ to 85％ (no condensation) |
| Storage Temperature range | −20℃ to +55℃ |
| Included accessories | AC cord, Remote control (RC-1338), Foot pads × 3, Owner's manual |
* RoHS complied.
* Design and specification may subject to change without notice.
