Originally introduced in 1992, the Borderland was our first flagship model and has since provided the inspiration for the current Unlimited and HRS-130 models. Now in its MK IV form, the Borderland remains our most popular loudspeaker. It combines our unique carbon fibre DDD driver with a downward firing 12–inch woofer and a sophisticated new crossover network. Housed in an extremely rigid octagonal cabinet, it sets impressively high standards for stereo imaging, transparency and musicality.

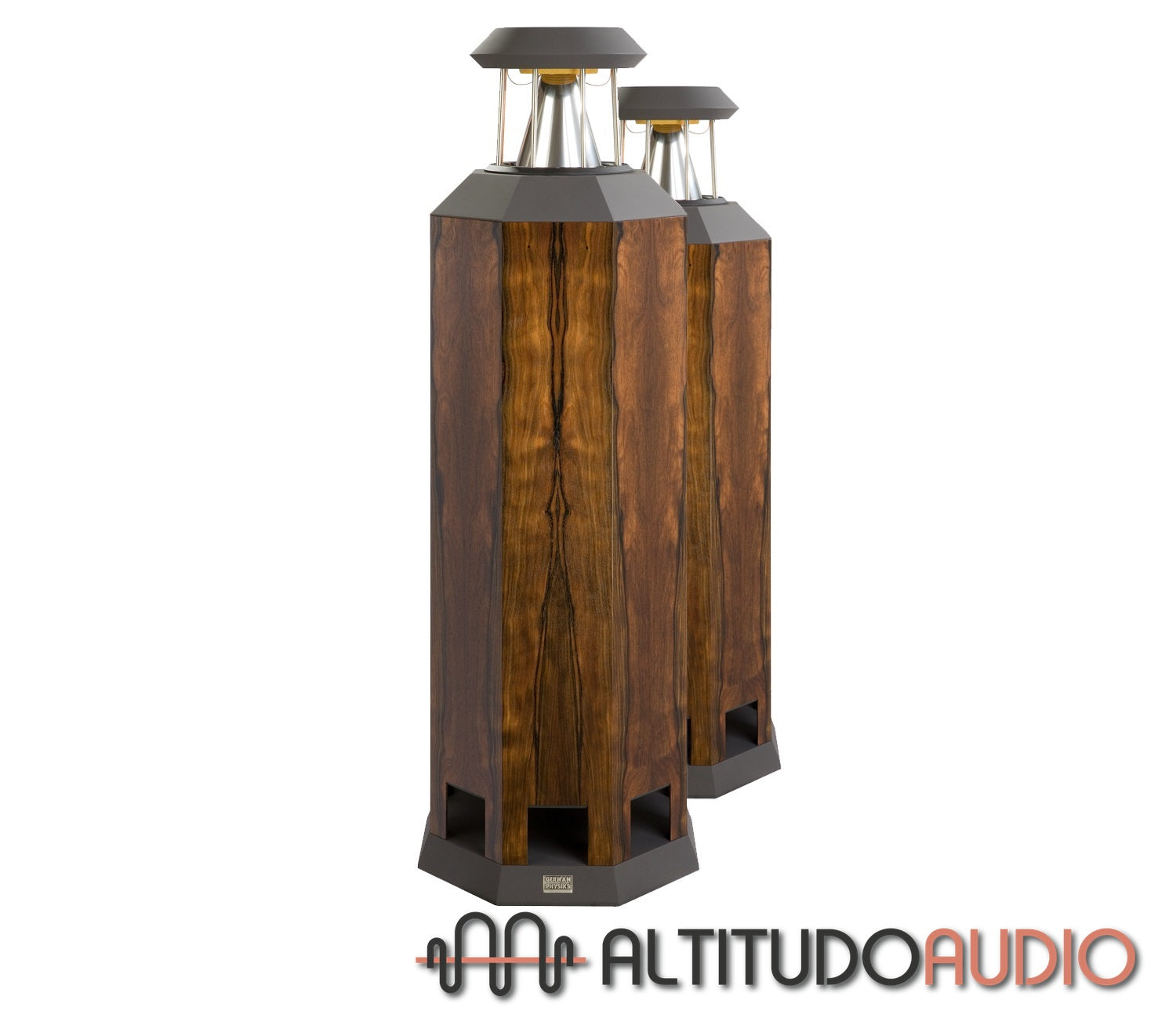

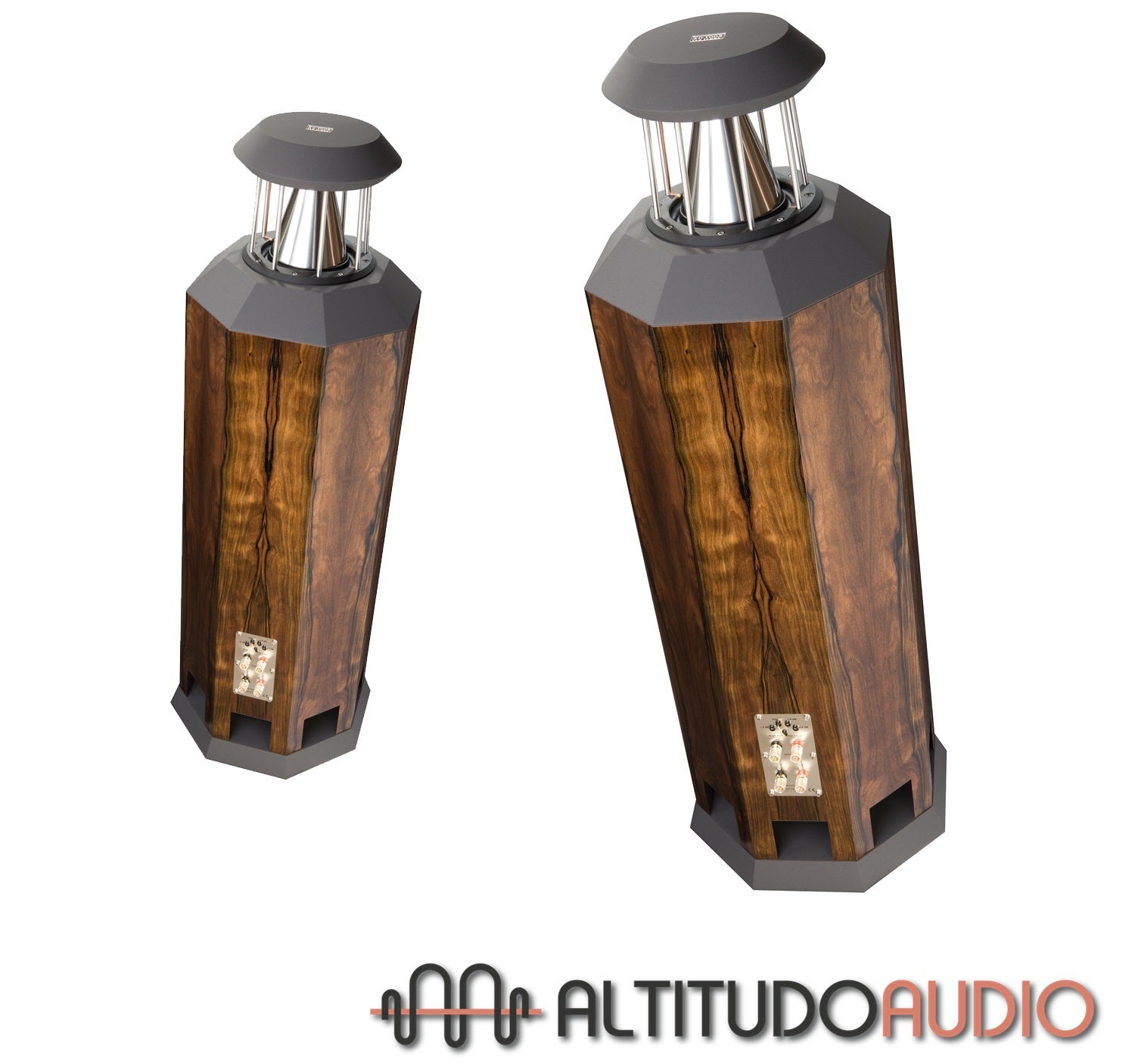

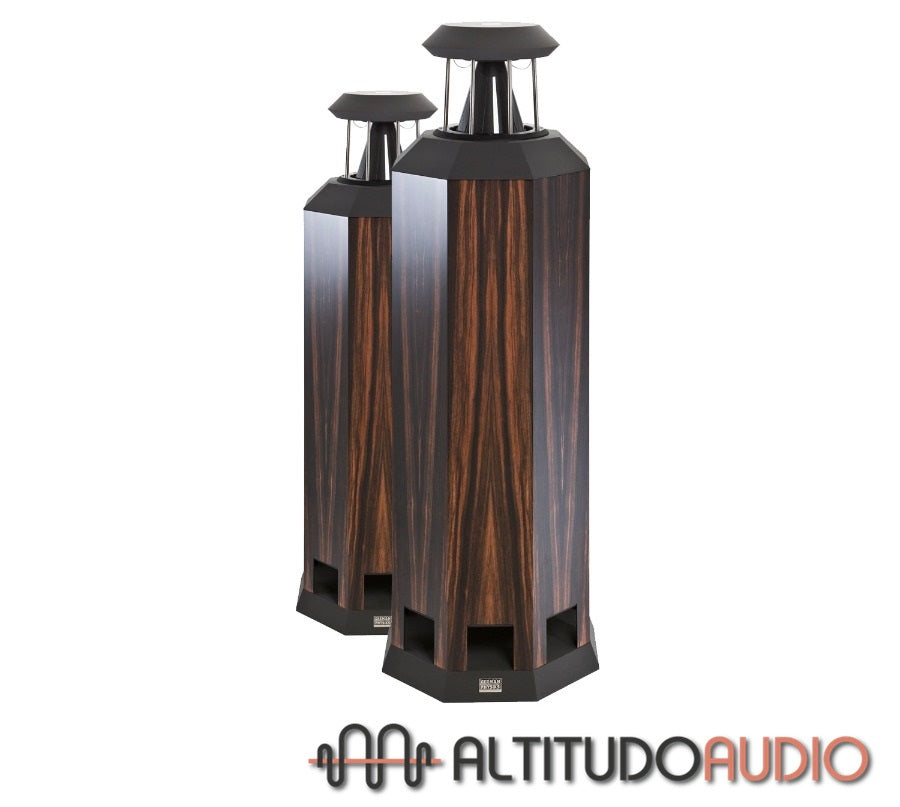

The Borderland MK IV loudspeaker uses a single carbon fibre German Physiks DDD driver mounted on top of a slim, octagonal, floor standing cabinet, with a downward firing 12-inch woofer set in its base.
Improved Bass, Resolution and Dynamics
The Borderland MK IV has always been an exceptional performer. The latest version has a new crossover design that provides significantly better bass, with improved integration with the DDD driver, resulting in exceptional top to bottom coherence. The resolution and dynamics have also been noticeably improved, removing another veil between the listener and the music. All these improvements come together to produce a sound that is truly effortless.
Extended Bass with Low Distortion
The Borderland Mk IV uses a single 12-inch woofer of the same type used in our prestige Loreley model. This provides the Borderland Mk IV with a degree of bass extension normally associated with high quality component sub-woofers. Most impressive is that this is achieved with a cabinet of relatively modest dimensions, making this a loudspeaker that is easy to live with.

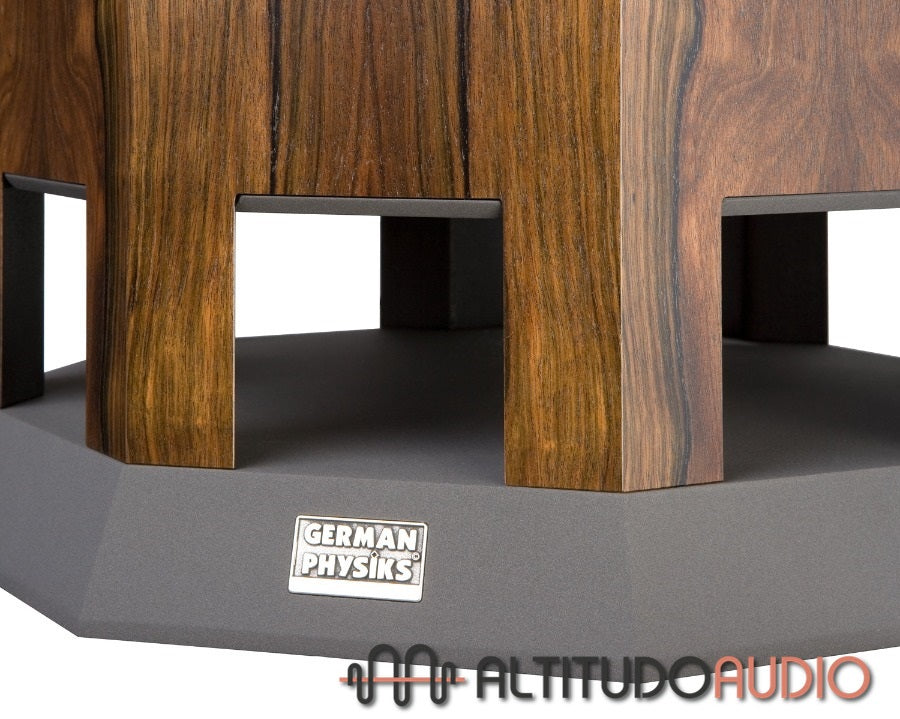

The bass driver is located at the bottom of the cabinet and works in a “sealed” enclosure. This enclosure is linked via a small opening to a smaller cavity located at the top of the cabinet. This cavity acts as a Helmholtz Resonator and is tuned to the resonant frequency of the main bass enclosure and ensures a smoother bass response.

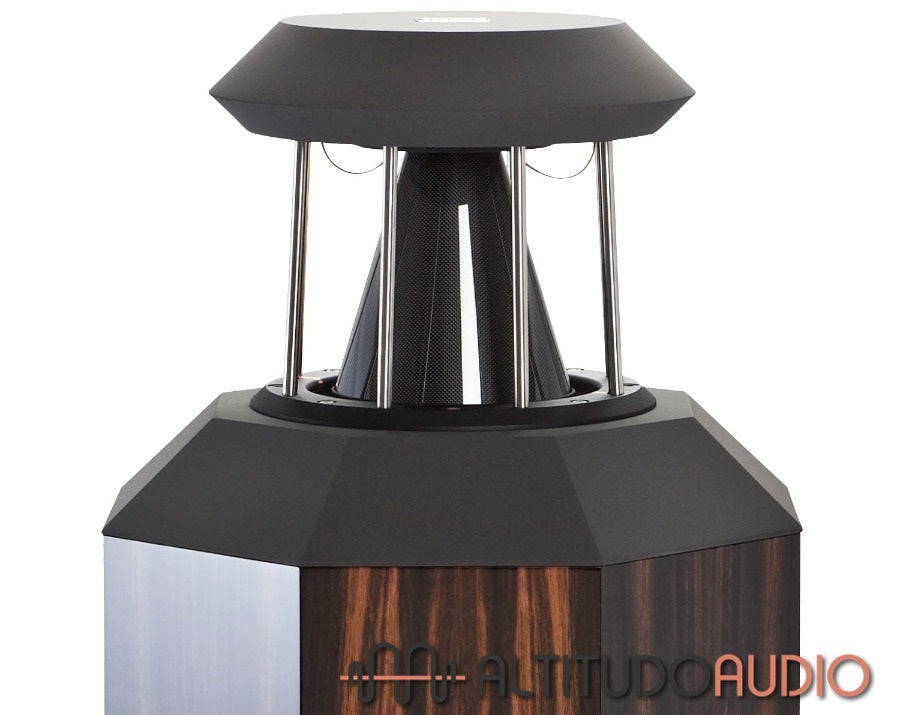

The heart of all German Physiks loudspeakers is the unique omnidirectional DDD driver
The German Physiks DDD driver uses a cone made of extremely thin (0.15mm) carbon fibre. This is very light, but also very rigid. Each driver is hand-built by a skilled technician in our factory in Germany. This is a painstaking process that takes 6 hours. After assembly, each driver undergoes a series of rigorous tests. It is then subject to a 96 hour pre-aging process, playing specially selected music at high level. Finally, it is retested and put together with another driver to form a matched pair.
The DDD driver has two key distinguishing features
1. It is omnidirectional, meaning that it radiates the sound evenly around it.
2. It has an exceptionally wide operating range. In the Borderland MK IV it covers the range from 190Hz up to 24kHz – almost 7 octaves.
This extremely wide range is achieved by the use of 3 modes of radiation
Pistonic radiation
Bending wave radiation
Modal radiation
By comparison, most loudspeakers use drivers that only use pistonic radiation. These have a much narrower operating range and as the frequency rises, they tend to concentrate their energy into a progressively narrowing beam.
Quick and Easy to Set Up
The DDD driver’s omnidirectional radiation pattern and wide operating frequency range make the Borderland MK IV less critical of positioning in the room than conventional loudspeakers, so they are usually very quick and easy to set up. In addition, because the Borderland MK IV is omnidirectional, there is no toe-in adjustment to worry about, which is one less variable to deal with on set-up.
The Borderland MK IV will drive rooms up to 90 square metres (950 sq ft)in size, yet the footprint is a modest 404mm x 404mm (15.9” x 15.9”). It can also work well in smaller rooms. We have successfully used them at shows in rooms as small as 285 sq ft (27 square metres), but as with any loudspeaker, we always recommend a home demonstration before you make a final choice.
High Quality Input Terminals
Two sets of high quality WBT nextgen™ loudspeaker terminals are fitted allowing the Borderland MK IV to be bi-wired or bi-amped. High quality jumpers are supplied to enable the loudspeaker to be used with just one set of loudspeaker cables.
Adjustable High Frequency Output
Jumpers on the rear panel allow the high frequency output level to be adjusted in 4 steps: -2dB, flat, +2dB and +4dB. This allows the user to easily compensate for the variations in the absorption of high frequencies that occur due to different types of furnishings and room constructions.
Low Resonance Cabinet Design Enhances Transparency
The Borderland MK IV uses an octagonal cross-section cabinet constructed from heavy panels of MDF, with re-enforcements fitted to critical points within the structure. The use of an octagonal cross-section allows the individual panels to be made smaller and therefore stiffer than they would be if a conventional square or rectangular cross-section were used. This construction minimises the colouration caused by cabinet resonances, which would otherwise degrade the loudspeaker’s ability to resolve fine detail and so reduce its ability to produce a sense of realism.
Residual resonances are minimised by applying a special damping material called Hawaphon® to the inside of each panel.
Hawaphon® is a polymer sheet containing a matrix of small cells filled with very fine steel shot and was originally developed as an anti-surveillance measure for use in military and government buildings. It adds mass to the panel to reduce the resonant frequency and the ability of the shot in each cell to move against each other provides a very effective way of converting vibration energy into heat. Hawaphon® achieves a broadband attenuation of structure-borne sound of more than 50dB, which is a remarkably high figure.
Finally, to damp resonances of the air within the cabinet, the whole of the inside of the cabinet is lined with a thick layer of high-density felt.
Designed for a Lifetime of Listening Pleasure
As you would expect from a German product, the quality of construction and reliability are first class. We use the same quality of parts in the Borderland MK IV as in our reference products, where we design for a minimum life expectancy of 25 years.
For this reason we have selected highly corrosion resistant V4 grade stainless steel for the DDD driver support pillars, terminal mounting plates and all the screws.
Meticulous care and attention is paid during the manufacture of the Borderland MK IV. Prior to assembly all components and materials are subject to a rigorous inspection. We also carry out detailed inspections at each stage of the manufacturing process. We can afford to do this as we build our products by hand in small batches. After assembly, the performance of each loudspeaker is measured. Then it is burnt in for at least 12 hours and measured again. Once the burn process is complete each loudspeaker is given a final detailed physical inspection before being packed.
Product Finishes

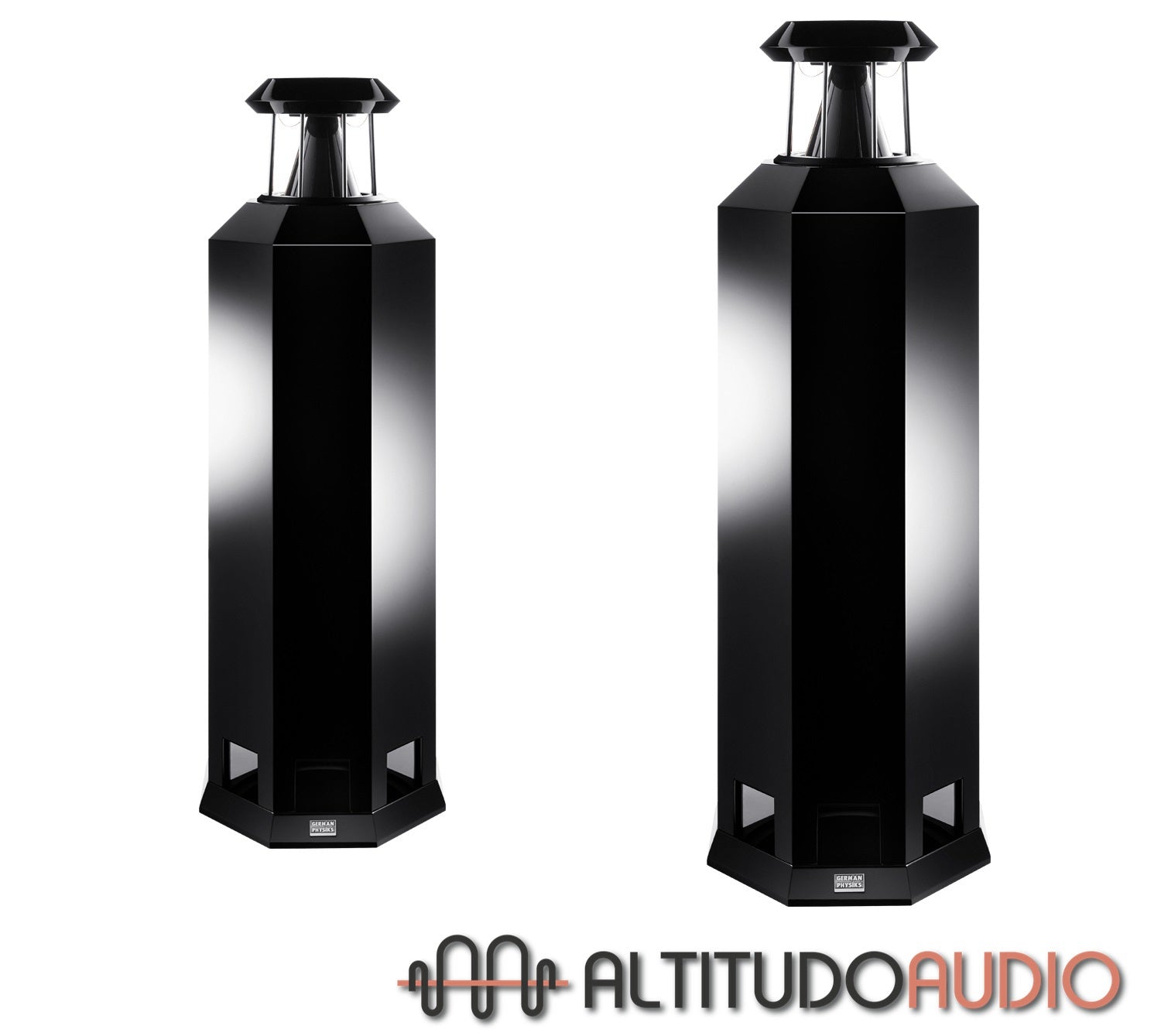

The standard finish for the Borderland MK IV loudspeaker is high-polish polyester in black or white. Other finishes are available to special order. These include satin and high-polish veneers and satin and high-polish paint finishes. A version of the Borderland Mk IV design finished in carbon fibre is also available and this is marketed as our Carbon Mk IV model.
Hand Finished For Ultimate Quality
Because the look of our products is as important as the sound, all cabinets are hand built and finished in Germany by skilled cabinet makers for the best possible furniture grade finish.
They are built in small batches, so that they can maintain a consistently high level of quality. Nothing is rushed.
Polyester Black Polyester White Carbon Fibre
Pappel Burl American Cherry Bubinga Cognac
Bubinga Pommele Pappel Cluster Cognac European Walnut
Macassar Ebony Macassar Bubinga
Walnut Burl Walnut Cluster
Product Specifications
Impedance
4 ohms
Frequency Response
28 – 24,000Hz
Power Handling
Nominal 300W
Short term 600W
Amplification required
Minimum 160W/4 ohms
Crossover frequency
190Hz
Crossover slopes
DDD section 12dB/octave electronic & 18dB/octave acoustic
Woofer section 12dB/octave electronic & 18dB/octave acoustic
High frequency adjustment
-2dB, flat, +2dB and +4dB centred at 8,000Hz
Sensitivity
86.1dB for 1W at 1
Operating principle
2-way loudspeaker with 360° surround radiation
using the German Physiks DDD driver
Input connectors
2 sets of WBT nextgen™ binding posts
Drivers
1 x carbon fibre DDD driver
1 x 12-inch woofer
Recommended room size
15 - 90 square metres
160 – 950 square feet
Finish
Standard:
High polish polyester black or white, carbon fibre
Special order:
Satin or high polish veneer
Satin or high polish paint
Dimensions
404mm W x 1,229mm H x 404mm D
15.9" W x 48.4" H x 15.9" D
Weight
54kg / 119lbs
Warranty
5 years
