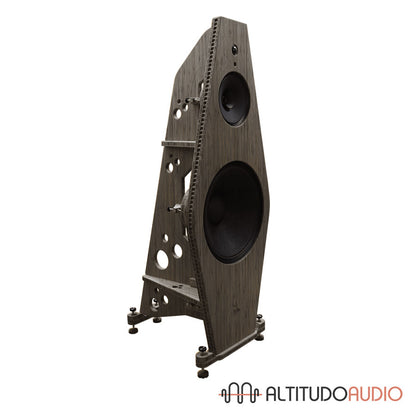

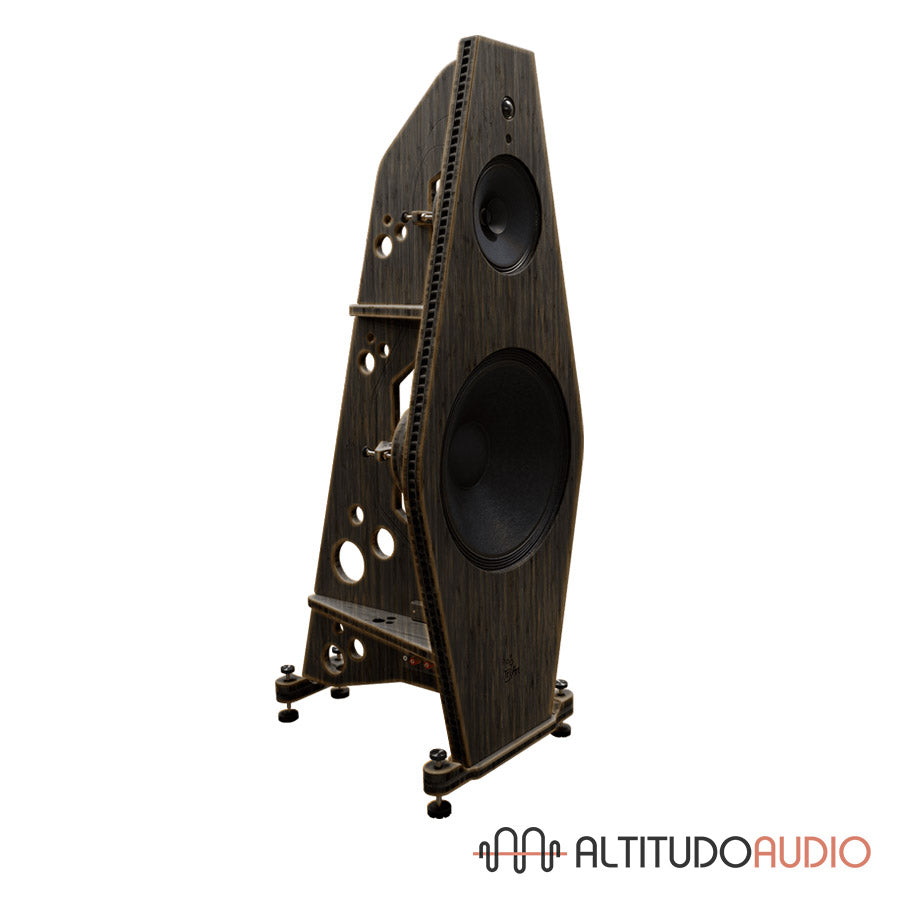

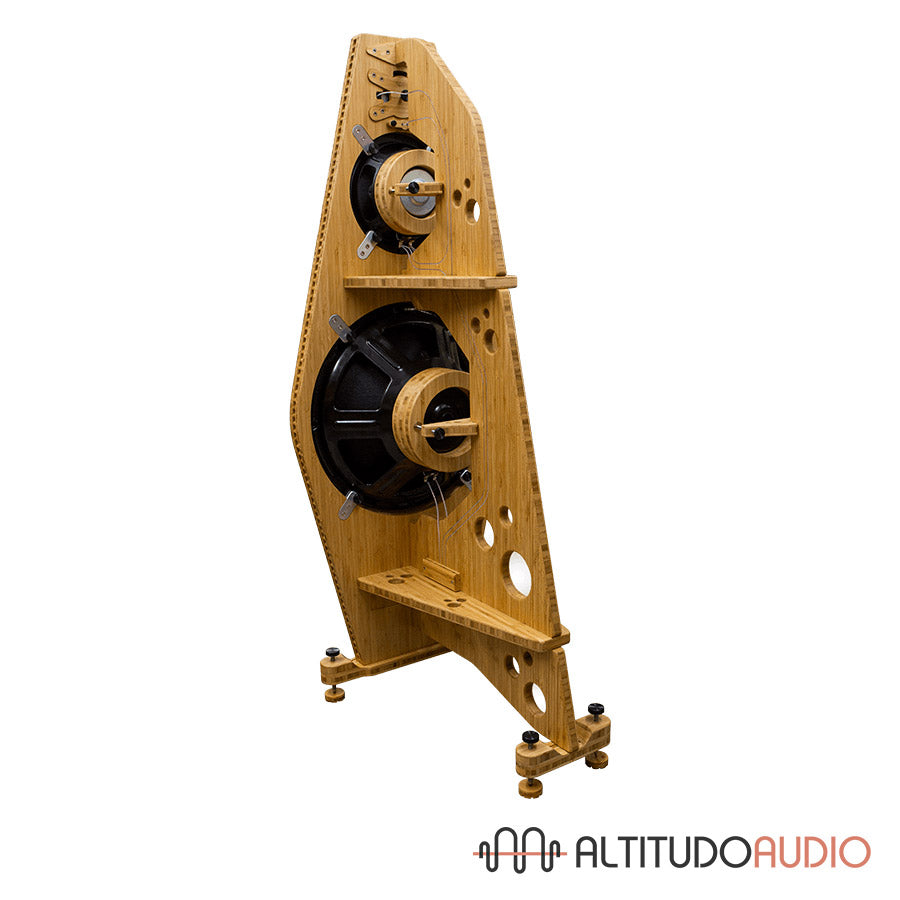

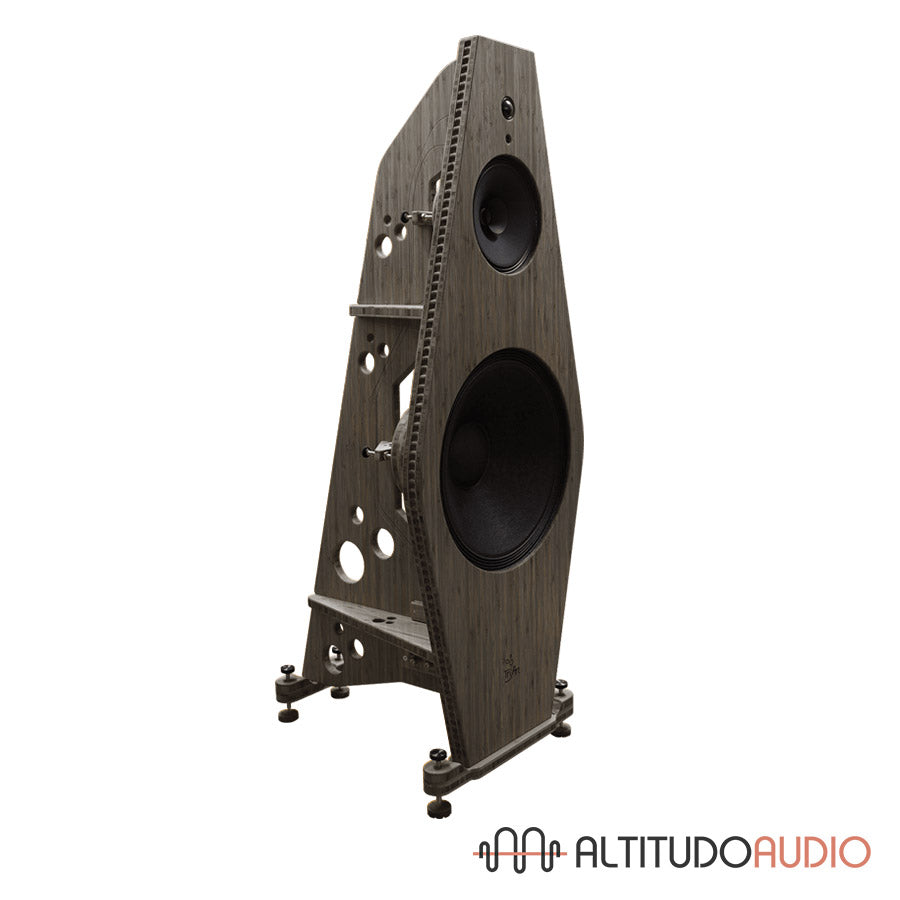

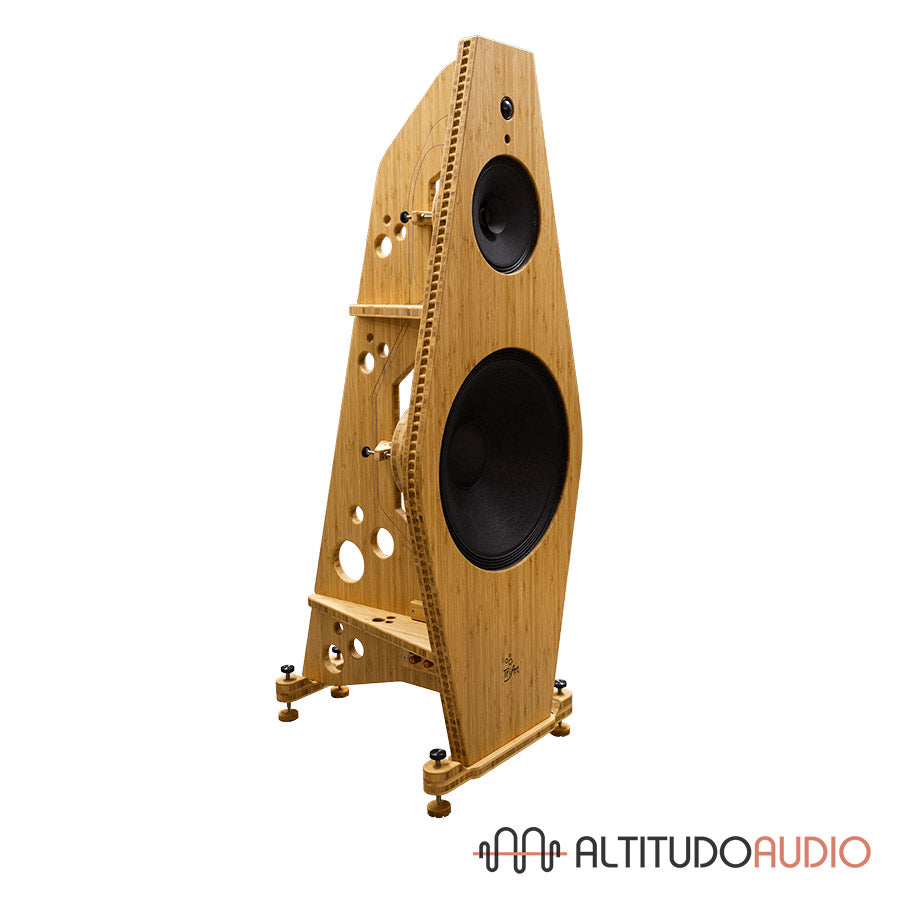

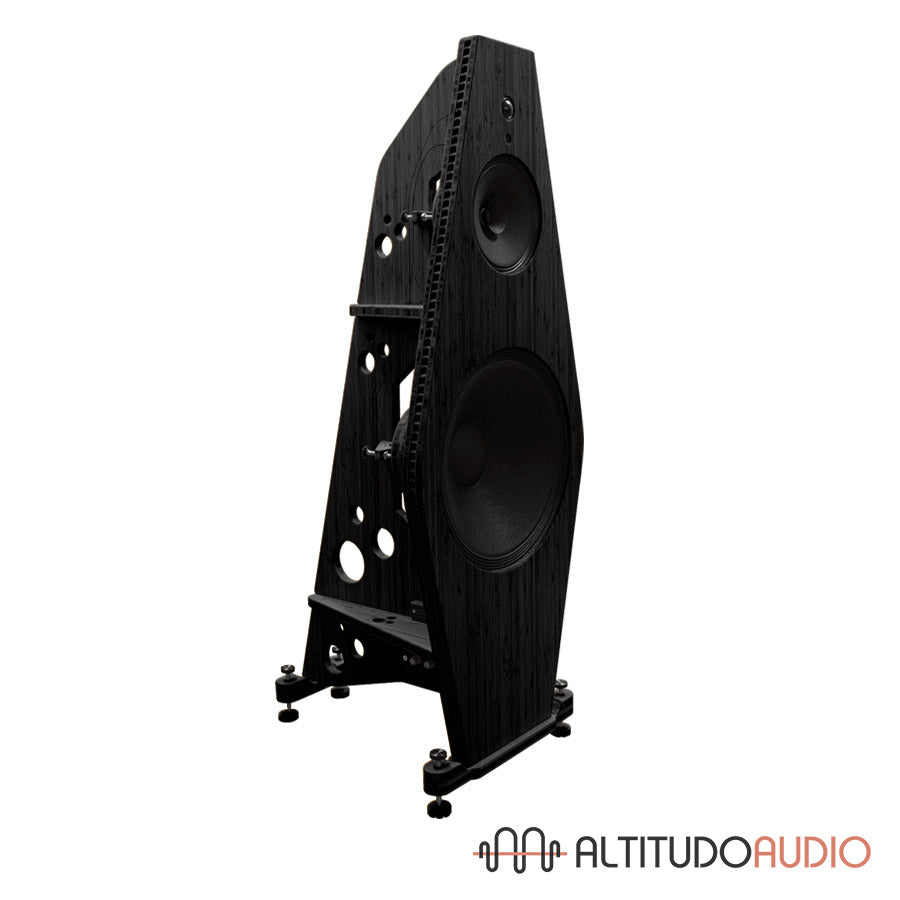

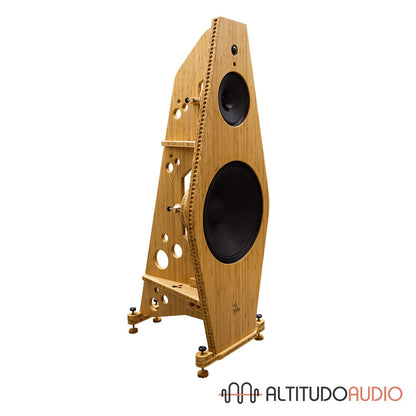

Tri-Art B-Series 4 Open Speaker with Crossovers (Pair) - SPECIAL ORDER
Tri-Art B-Series 4 Open Speaker with Crossovers (Pair) - SPECIAL ORDER
Tri-Art B-Series 4 Open Speaker with Crossovers (Pair) - SPECIAL ORDER
Tri-Art B-Series 4 Open Speaker with Crossovers (Pair) - SPECIAL ORDER
Tri-Art B-Series 4 Open Speaker with Crossovers (Pair) - SPECIAL ORDER
Tri-Art B-Series 4 Open Speaker with Crossovers (Pair) - SPECIAL ORDER
Tri-Art

Tri-Art B-Series 4 Open Speaker with Crossovers (Pair) - SPECIAL ORDER

Regular price $3,761.00 $0.00 Unit price per

Shipping : FREE in Canada


*Available in Showroom for Demo. Please call or email to order.

Finely handcrafted in Canada

Experience a higher level of sound staging with stunning depth of field and striking musical imagery



TRI ART  4-OPEN

General Series Specifications



EA9724Design

Open Baffle / 3-Way

Amplification

Possibility to passively or actively bi-amp

Materials

Main drivers all paper with accordion style surround.

Drivers mounted with stainless bolts and brass nuts

3 ply Bamboo Constraint Baffle

Finish: Bamboo Laminate Soaked in Hemp Oil

Stands

Bamboo Stand with 4 Brass-Collared, Bronze Spikes with Bamboo Spike Cups

Dimensions

H: 45″    W: 16.5″    D: 19.5″



Open Baffle System



Rated Impedance :  8 Ohm
Sensitivity :  92 dB (1W/1m)
Frequency range :  35 – 40'000 Hz (+/- 3dB)
Recommended Amplifier rating (tube amps) :

12 - 75 W at 8 Ohm

Recommended amplifier rating (SS amps)

25 - 150 W at 8 Ohm


2 INPUTS


Input 1 :

20 watts

8" full range Paper Cone Cloth Edge

1" Fabric Dome Tweeter - 13kHz and up

Super Tweeter - 18 to 40kHz



Input 2 :

Up to 150watts

15" : 35-100Hz @ 1st Order 6dB Slope

Crossover



2 INPUTS & 2 OUTPUTS

Adjustable Volume Control for Full Range Speaker

Includes a set .5 meter jumper cables

with banana plugs



Output 1 - Full range

100watt Solen attenuator

47ohm resistor

100Hz single solen cap filter



Output 2 - Bass

Single open air inductor filter 100Hz



All Inputs and outputs are 5-way binding posts

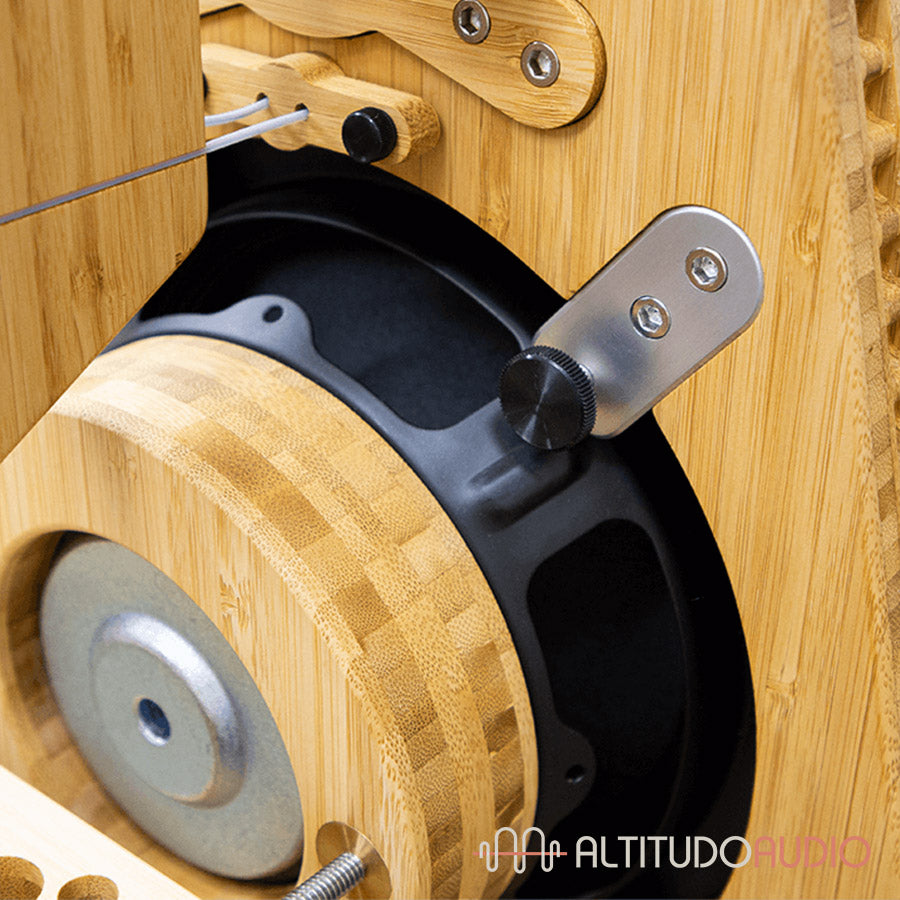

The 4 Open Speaker is similar to our flagship 5 Open. It has
one (1) single 15” (381,mm) bass driver. The solid bamboo 3-ply laminate
finish, the full range driver reflects Tri-Art’s commitment to creating a
superb, natural sounding loudspeaker. A design that intentionally does
not sound like a conventional speaker. The 4 Open with its impressive
soundstage, depth, spectacular imaging and articulate accurate bass,
will most certainly redefine your perception of how real music can be
presented from an audio speaker.



These beautiful speakers and the crossover cabinets are soaked in an hemp oil bath for a natural beautiful finish. The 4.0’s will work with tube or solid state high current amplifiers.

 "But you don’t have to spend an outrageous amount of money to achieve what we all want :
The satisfaction of hearing 3 dimensional sound come through 2 points of light with a level of clarity, transparency that removes all sound fatigue.
And if it is true that our brains, in listening to music, are constantly trying to match what we hear to our own understanding of the world, of humanity’s ability to create sound, then we need speakers that translate the source as authentically as possible. These speakers do this"


Charles Brown, Audiophilia (Star Component)




Design:
Open Baffle

Nominal Impedance: Single Input 8Ω

Recommended Amplifiers: 25 Up to 150 Watts RMS

Sensitivity: 92 dB SPL

Volume Matching: Crossover Only

Frequency Range: 35 – 40,000 Hz (+/- 3dB)

Driver Details

Upper Drivers:

One 1″ Fabric Dome Tweeter (13,000 Hz and up)

One 8″ Full Range Paper Cone Cloth Edge

One Super Tweeter (40,000 Hz)

Bass Drivers:

One 15″ Paper Cone Cloth Edge Woofer

45-100Hz @ 1st Order 6dB Slope

Crossover Details (Optional)

Inputs: 2

Outputs: 2 (including a set of 0.5 meter jumper cables with banana plugs)

Output 1 (Full Range)

100 Watt Attenuator

47 Ohm Resistor

100 Hz Single Cap Filter

Output 2 (Bass)

Single open air inductor filter 100Hz @ 1st Order 6 dB Slope

Dimensions

H: 45″ (114.0cm) W: 15.6″ (39.5cm) D: 19.5″ (49.0cm) Weight: 12.1kgs (25.75lbs)

Crossover

H: 4.33″ (11.0cm) W: 10.0″ (25.0cm) D: 11.0″ (28.0cm) Weight: 3.8kgs (8.75lbs)
