Tri-Art B-Series 5 Open Speaker with Crossover (Pair) - SPECIAL ORDER

Regular price $6,980.00 $0.00 Unit price per

Shipping : FREE in Canada

*Available in Showroom for Demo. Please call or email to order.

Finely handcrafted in Canada



Experience a higher level of sound staging with stunning depth of field and striking musical imagery







OPEN BAFFLE LOUDSPEAKERS



TRI ART  5-OPEN

General Series Specifications



Design

Open Baffle / 3-Way +1

Amplification

Possibility to passively or actively bi-amp

Materials

Main drivers all paper with accordion style surround.

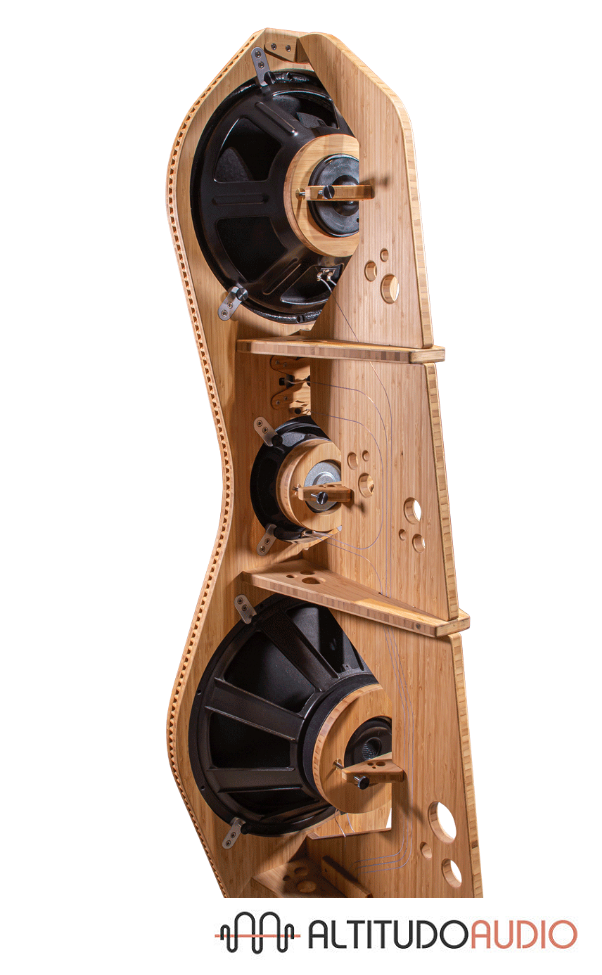

Drivers mounted with stainless bolts and brass nuts

3 ply Bamboo Constraint Baffle

Finish: Bamboo Laminate Soaked in Hemp Oil

Stands

Bamboo Stand with 4 Brass-Collared, Bronze Spikes with Bamboo Spike Cups

Dimensions

H: 62.0″ (157.48cm) W: 19″ (48.26cm) D: 16.25″ (41.27cm)

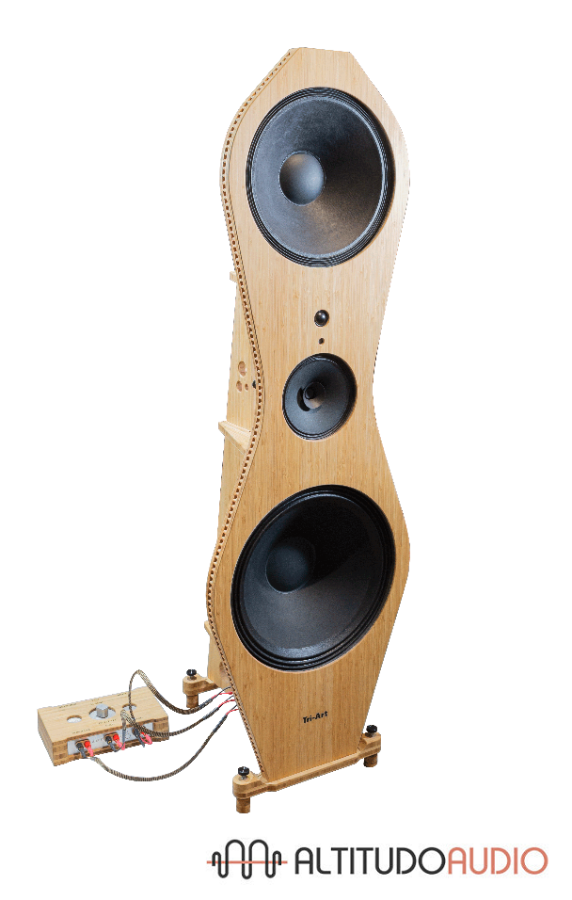

The definitive shape of the speaker and the solid bamboo laminate design reflect his commitment to making a reference loudspeaker, both stunning in its musicality and appearance. Two 15″ woofers provide impressive bass response without the boom of conventional box speakers. The midrange is sweet, voices come through with a natural real tone. Instruments are presented with space and air, with outstanding soundstage and imaging.

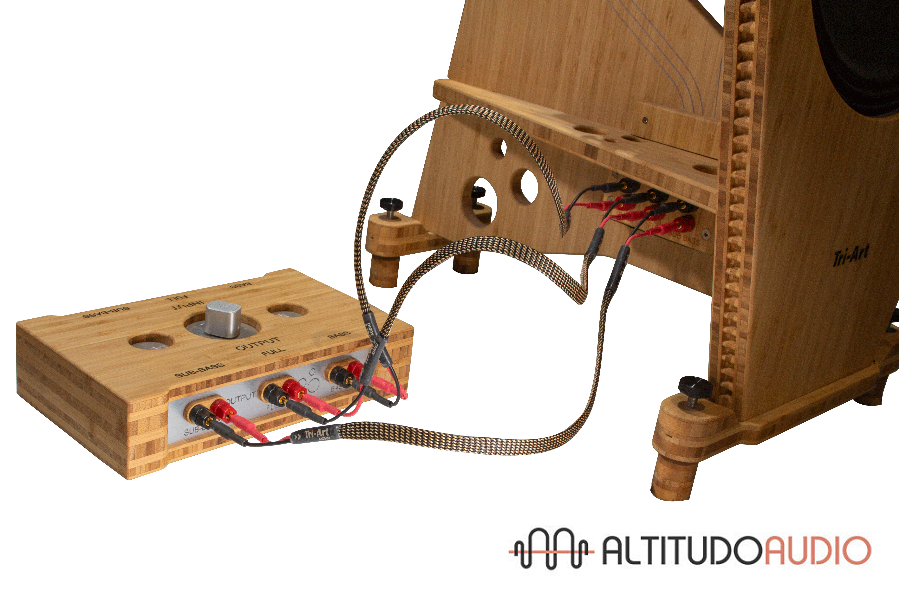

The 5.0 has two external crossovers, each with two inputs, three outputs and adjustable volume control for the full range driver. The speakers come complete with spikes and bamboo feet, the crossovers come with a set of 0.5 meter jumper cables.



These beautiful speakers and the crossover cabinets are soaked in an hemp oil bath for a natural beautiful finish. The 5.0’s will work with tube or solid state high current amplifiers.



Open Baffle System



Rated Impedance :  8 Ohm
Sensitivity :  94 dB (1W/1m)
Frequency range :  27 – 40'000 Hz (+/- 3dB)
Recommended Amplifier rating (tube amps) :

12 - 75 W at 8 Ohm

Recommended amplifier rating (SS amps)

25 - 150 W at 8 Ohm


2 INPUTS


Input 1 :

20 watts

8" full range Paper Cone Cloth Edge

1" Fabric Dome Tweeter - 13kHz and up

Super Tweeter - 18 to 40kHz



Input 2 :

Up to 150watts

Top :  15" woofer 30-100Hz @ 1st Order 6dB Slope

Bottom : 18" : 27-50Hz @ 1st Order 6dB Slope





Crossover



2 INPUTS & 3 OUTPUTS

Adjustable Volume Control for Full Range Speaker

Includes a set .5 meter jumper cables

with banana plugs



Output 1 - Full range

100watt Solen attenuator

47ohm resistor

100Hz single solen cap filter



Output 2 - Bass

Single open air inductor filter 100Hz



Ouput 3 - Subbass

Single open air inductor filter 50Hz





All Inputs and outputs are 5-way binding posts





The creation of the The B Series 5.0 Open Speaker is the result of 40 years of experience in the Audio industry from its designer Steve Ginsberg. The definitive shape of the speaker and the solid bamboo laminate design reflect his commitment to making a reference loudspeaker, both stunning in its musicality and appearance. Two 15 & 18″ woofers provide impressive bass response without the boom of conventional box speakers. The midrange is sweet, voices come through with a natural real tone. Instruments are presented with space and air, with outstanding soundstage and imaging. The 5.0 has two external crossovers, each with two inputs, three outputs and adjustable volume control for the full range driver. The speakers come complete with spikes and bamboo feet, the crossovers come with a set of 0.5 meter jumper cables. These beautiful speakers and the crossover cabinets are soaked in an hemp oil bath for a natural beautiful finish. The 5.0’s will work with high current amplifiers tube or solid state, however the speakers were designed and voiced with our B Series Passive Amplifier and Power Amplifier.

Design: Open Baffle

Nominal Impedance: Single Input 8 Ω

Recommended Amplifiers: 25 Up to 150 Watts RMS

Sensitivity: 94 dB SPL (1W/1M)

Volume Matching: Crossover Only

Frequency Range: 27 – 40,000 Hz

Driver Details

Total Drivers: Five

Input 1:

1″ Fabric Dome Tweeter (13,000 Hz and up) 20 Watts

8″ Full Range Paper Cone Cloth Edge

Super Tweeter (40,000 Hz)

Input 2:

Up to 150 Watts

Two Paper Cone Cloth Edge Woofers

Top 15″: 30-100Hz @ 1st Order 6dB Slope

Bottom 18″: 27-50Hz @ 1st Order 6 dB Slope

Crossover Details (Optional)

Inputs: 2

Adjustable Volume Control for Full Range Speaker Section: Crossover Only

Outputs: 3

Cables: Set of 0.5-meter jumper cables with banana plugs.

Output 1 (Full Range)

100-Watt Attenuator

47-Ohm Resistor

100 Hz Single Cap Filter

Output 2 (Bass)

Single open-air inductor filter 100Hz @ 1st Order 6 dB Slope

Output 3 (Sub Bass)

Single open-air inductor filter 50 Hz @ 1st Order 6 dB Slope

Mode: Floor Standing

Finish: Bamboo Laminate Soaked in Hemp Oil

Stands: Bamboo Stand with 4 Brass-Collared, Bronze Spikes with Bamboo Spike Cups

Dimensions

H: 62.0″ (157.48cm) W: 19″ (48.26cm) D: 16.25″ (41.27cm)
