Tri-Art Ta-1 Turntable without arm

 Tri-Art Ta-1 Turntable without arm

Tonearm is not included

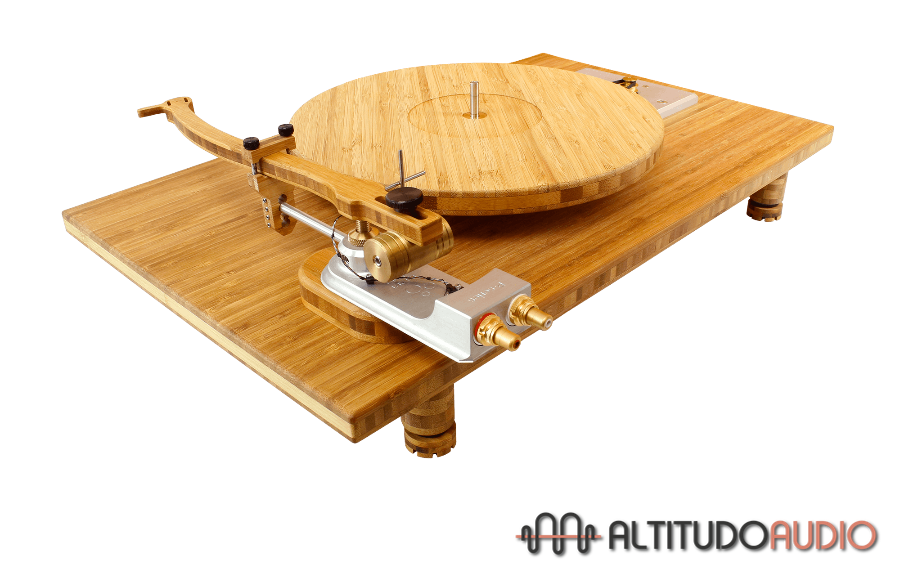

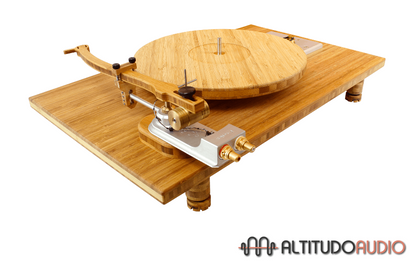

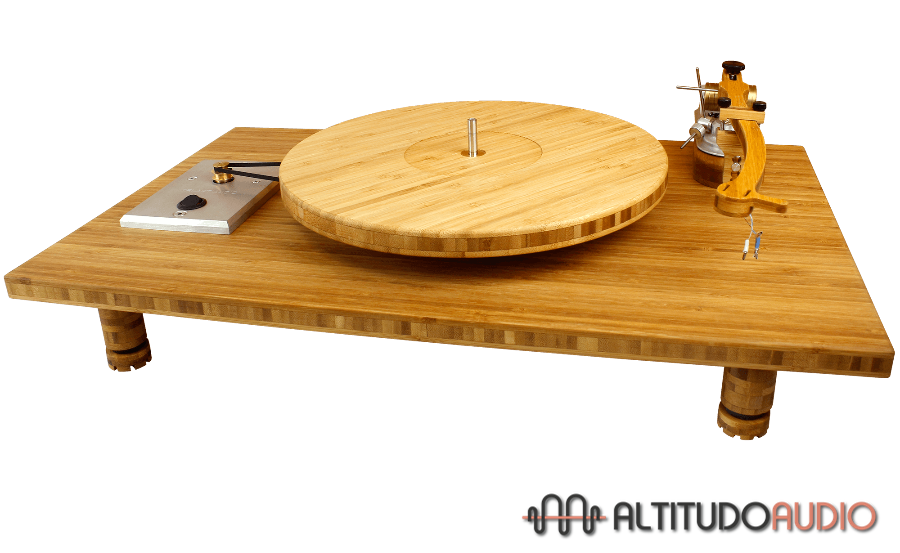

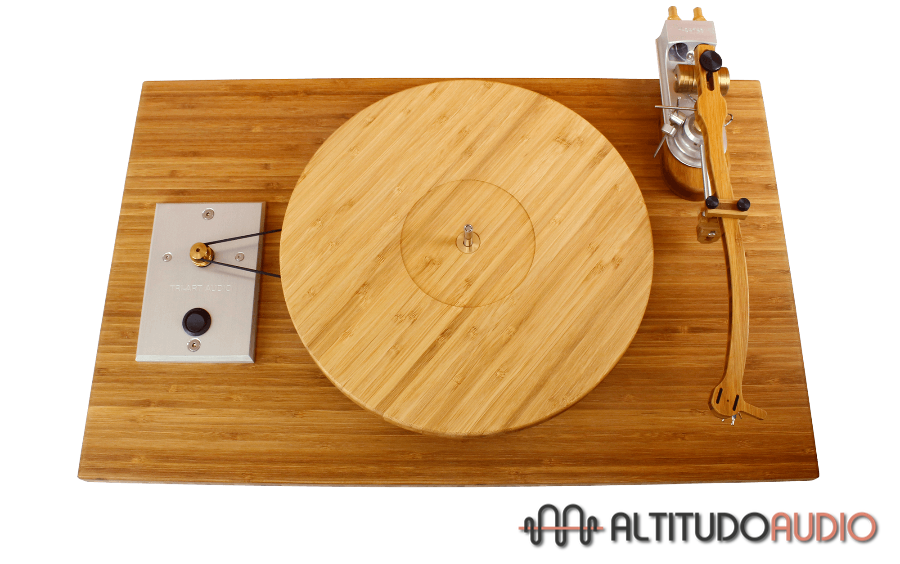

The P-Series TA-1 Turntable is designed for serious audio enthusiasts that effectively balances extensive features with a competitive price. The TA-1 Turntable is a unique design, featuring solid bamboo plinth, platter, and tone arm. It presents a warm, natural, engaging sound when matched with our Optional Ta-1 Tonearm or  optional Ta-2 tonearm (or most competitive tone arms ). Combined with a good quality cartridge the TA-1 can surpass competitive turntable models many times the cost of a TA-1 turntable. The TA-1 Turntable has been a featured product in our audio shows for the past 10 years.

How to Set Up P-Series TA-1 Turntable

Table Details

Motor: Single 24 Pole Synchronous AC Motor Pulley: Brass Pulley Speed: 33.3 & 45rpm Drive: Single Belt Drive Platter: Bamboo Platter Spindle: Removable Spindle Cover Sub Platter: Aluminum Sub Platter with bronze shaft. Legs: Leveling Legs and Sorbothane Iso Feet Bearings: Bronze Collar Spike Bearing with ABEC7 Carbonized Ceramic Ball Bearing *Accommodates B and P-series 9″ tonearms.

Dimensions

W: 21.5″ (54.61cm) H: 14″ (35.56cm) Weight: 4kgs (9lbs)

Table Details

Motor: Single 24 Pole Synchronous AC Motor

Pulley: Brass Pulley

Speed: 33.3 & 45rpm

Drive: Belt Drive

Platter: Bamboo Platter

Spindle: Removable Spindle Cover

Sub Platter: Aluminum Sub Platter with bronze shaft.

Legs: Leveling Legs and Sorbothane Iso Feet

Bearings: Bronze Collar Spike Bearing with ABEC7 Carbonized Ceramic Ball Bearing

*Accommodates B and P-series 9″ tonearms.

Dimensions

W: 21.5″ (54.61cm) H: 14″ (35.56cm) Weight: 4kgs (9lbs)

Arm Details

The P-series TA-1 Tonearm #7230 is a manual arm made from 3-ply solid bamboo. The 9” TA-1 Tonearm can be purchased independently and mounted on most turntables. It is fitted standard on our TA-1 Turntable #7230. The 9″ version #10726 mounts on both P-series and B-series Turntables. The 12″ version #10727 only mounts on the B-series Turntable. The TA-1 and TA-2 tonearms are not compatible with our TA-0.5 Turntables.

Material: Three Ply Bamboo Laminate 12mm Thick

Settings: VTA & Azimuth Adjustments

Bearing: Bronze with Brass Collar Spike and Synthetic, High Viscosity Grease Bearing

Arm Wire: Cardas Wire 33 AWG Uninterrupted from Headshell Clips to Brass Female RCA

Arm Length: 9″ (229mm)

Tone Arm Mass: 10g

Anti-Skate: Anti-Skating Mechanism

Weights: Brass Counter and Brass Azimuth Weights
