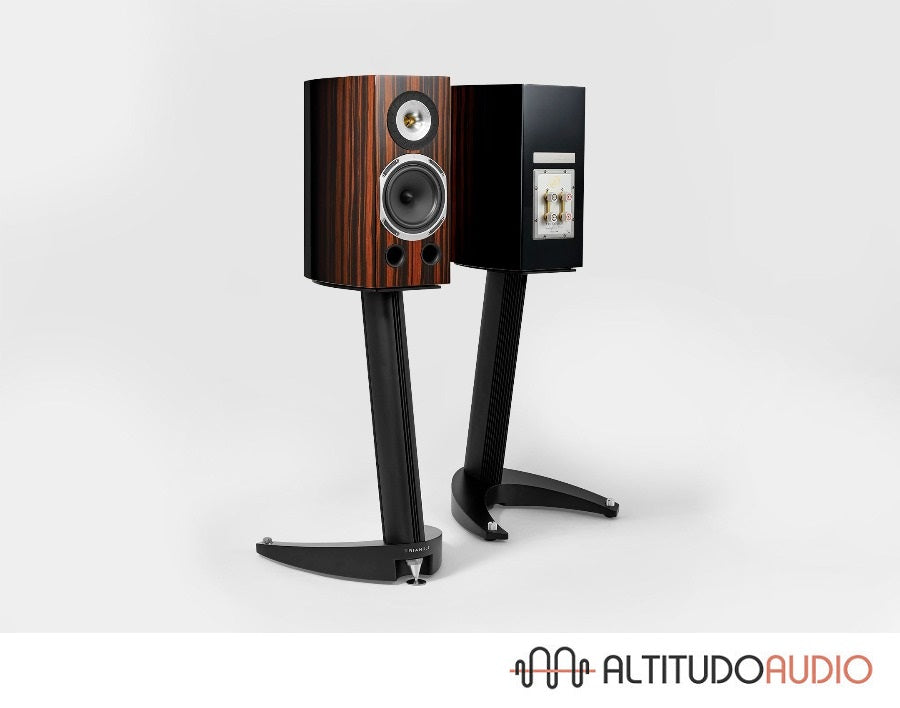

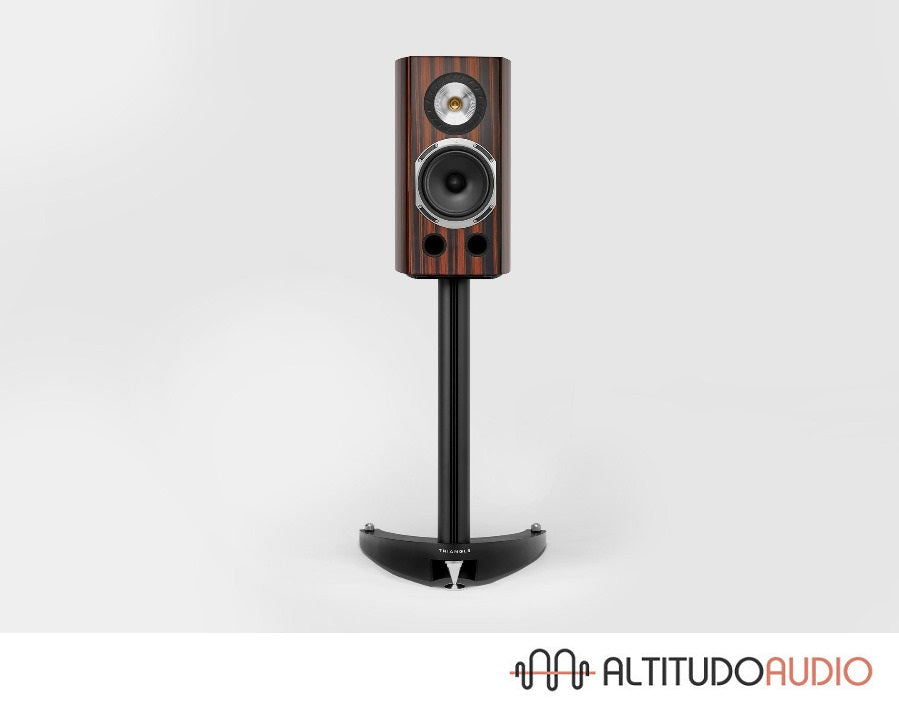

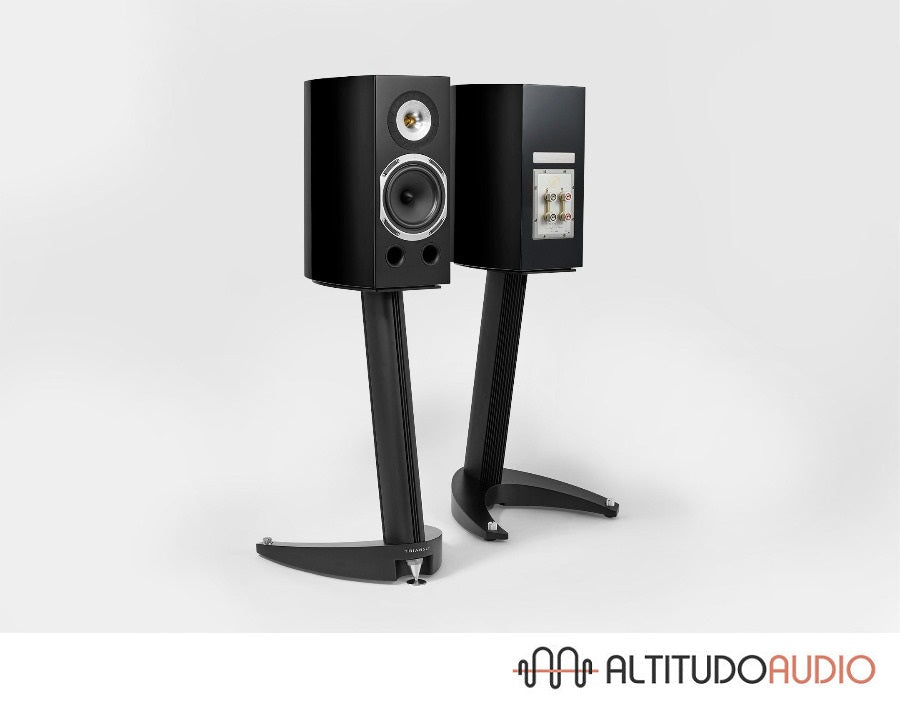

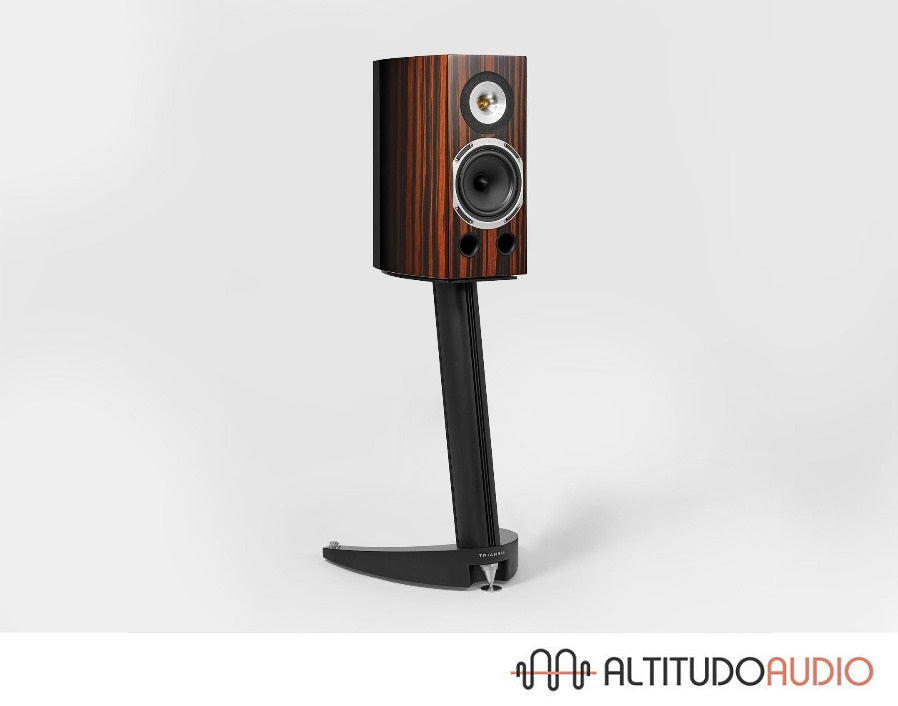

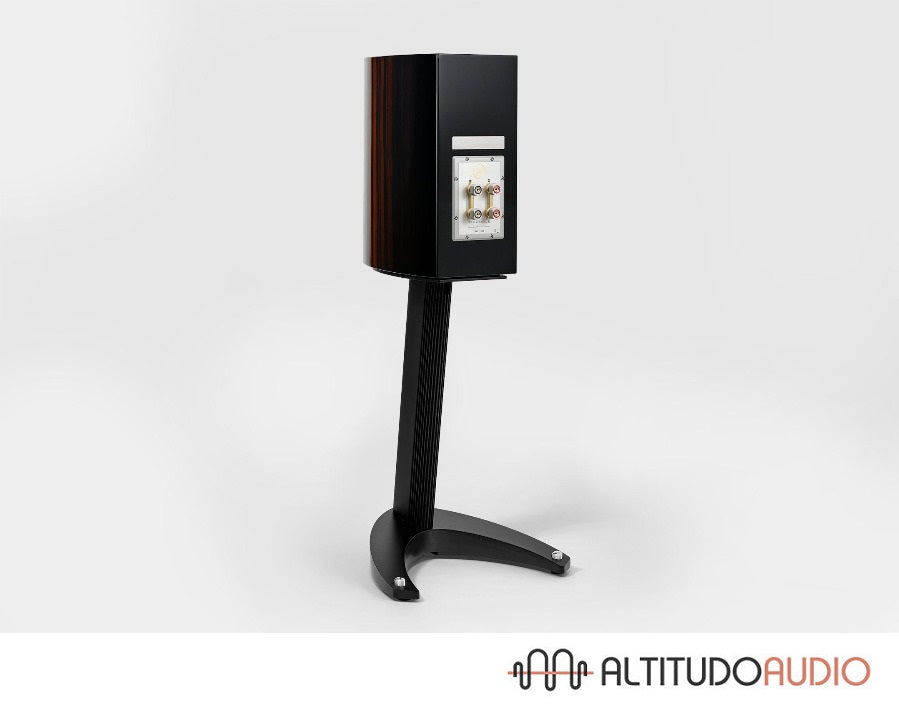

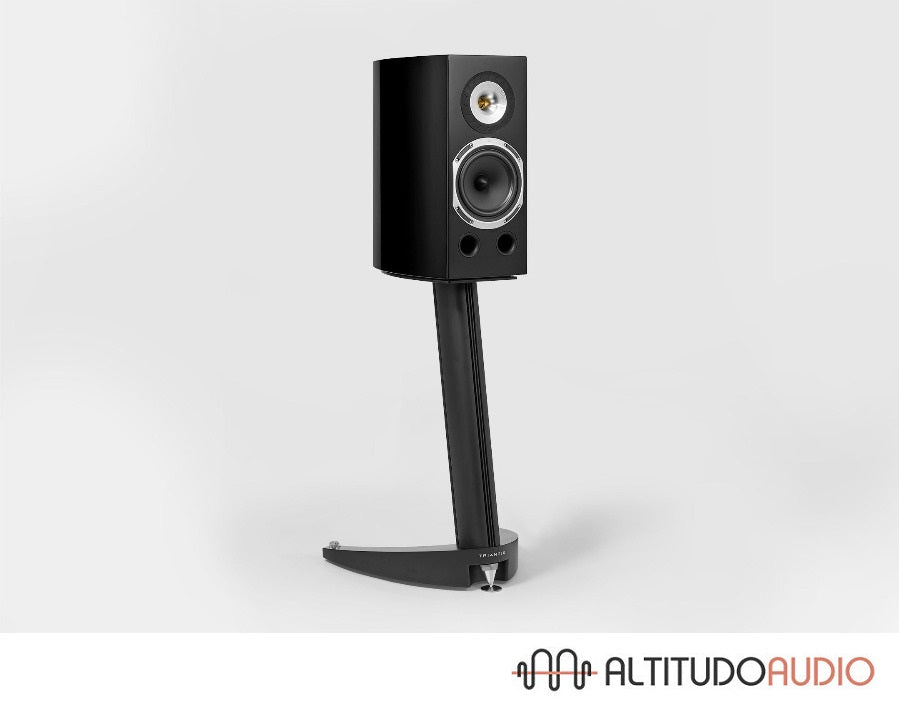

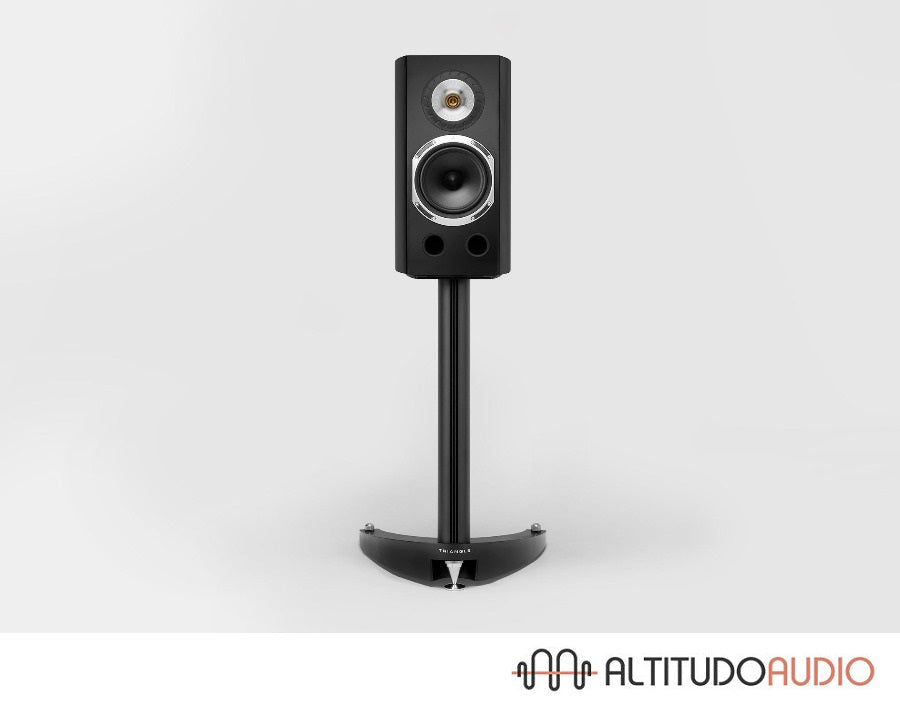

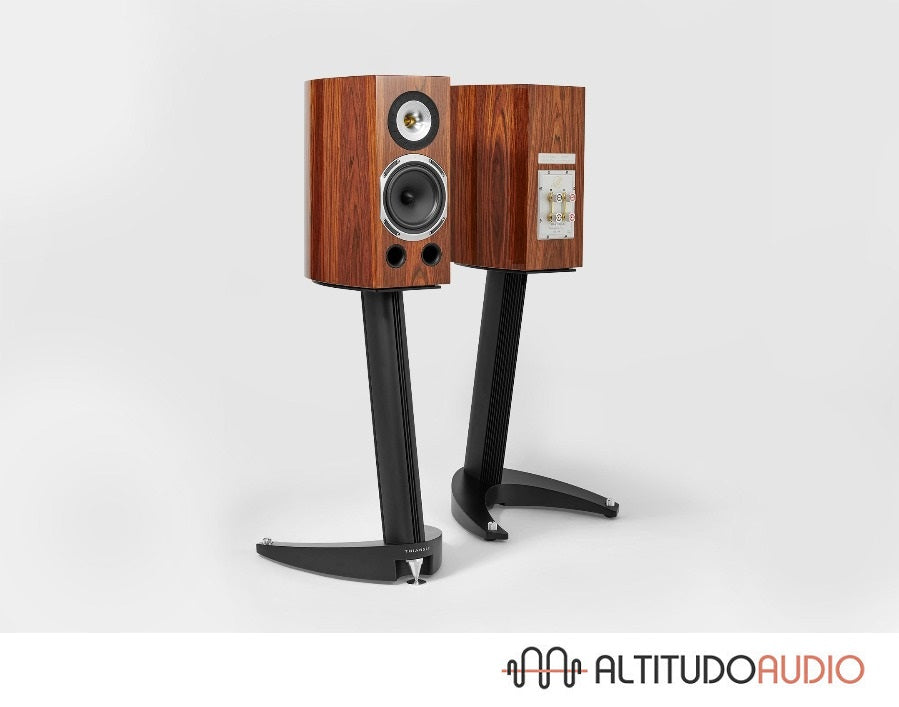

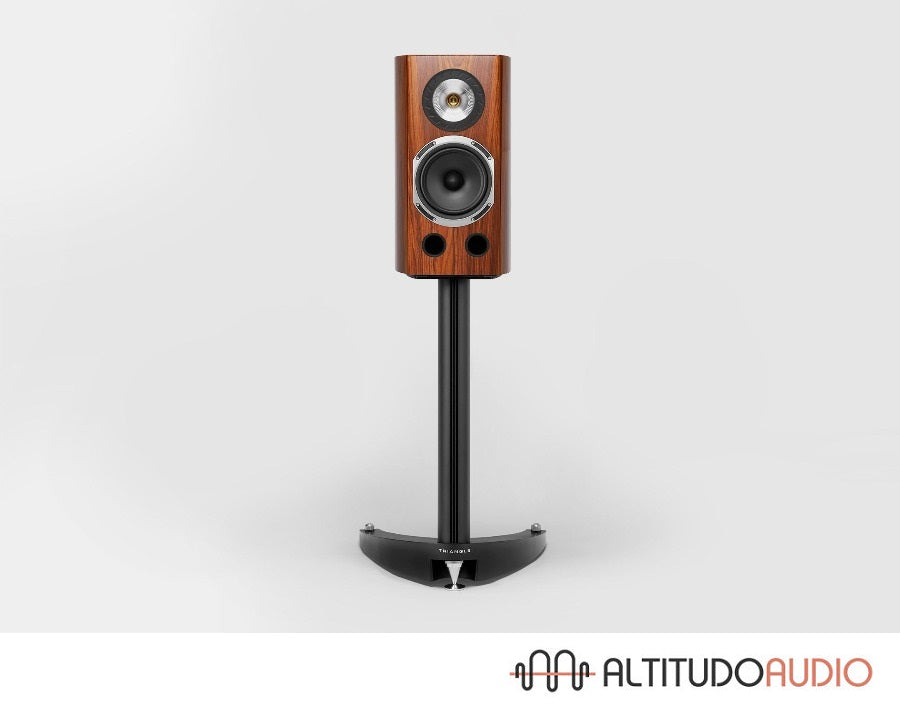

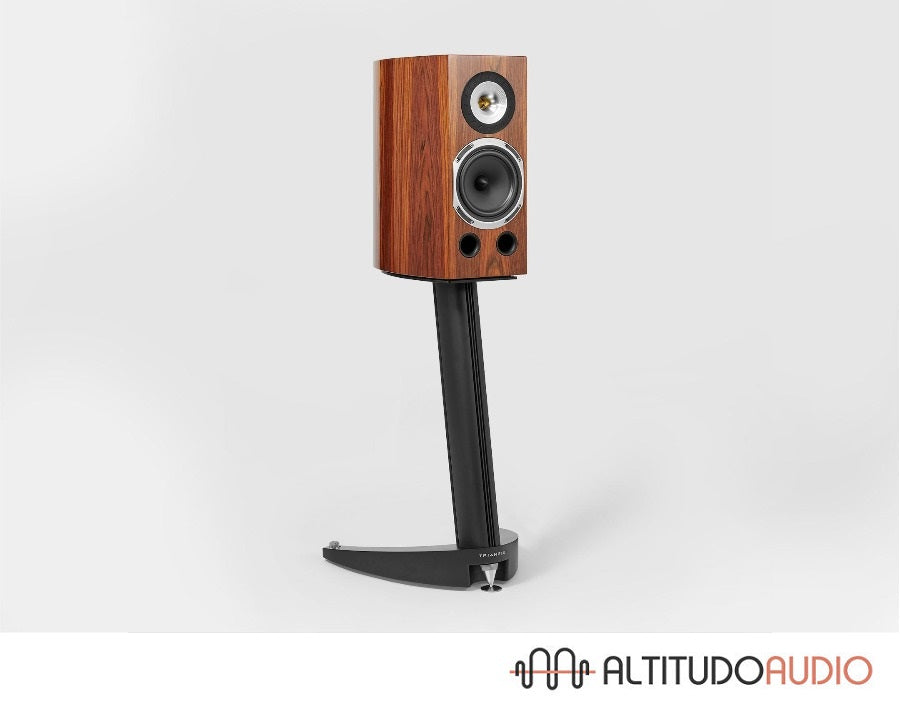

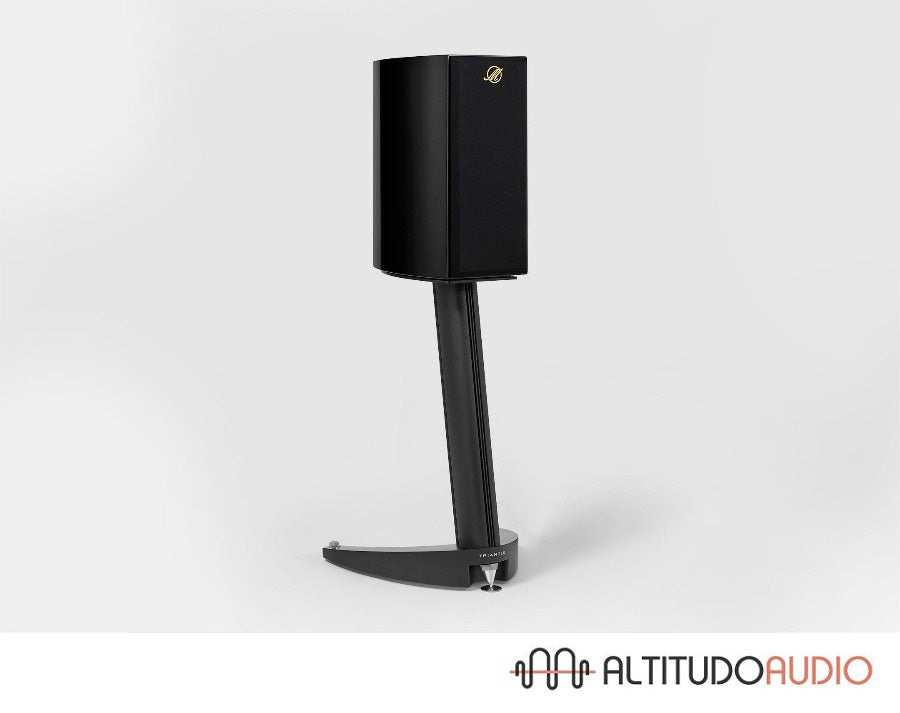

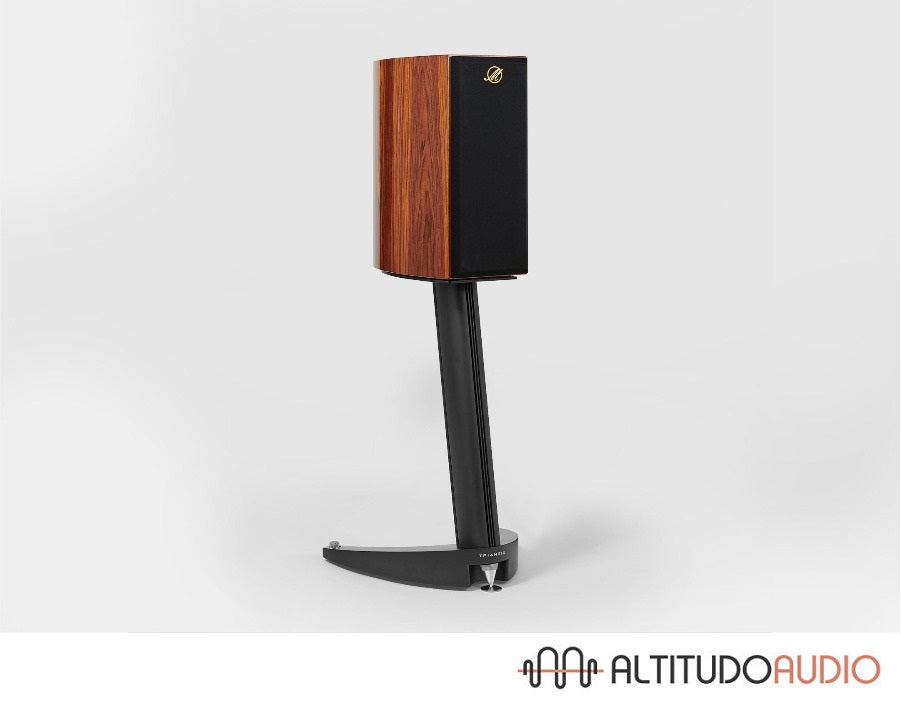

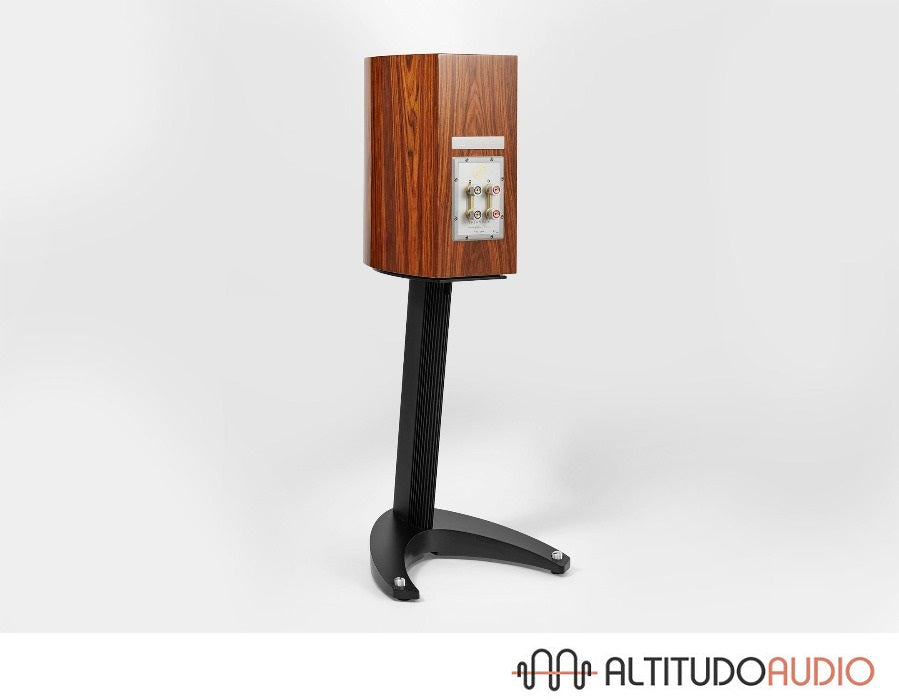

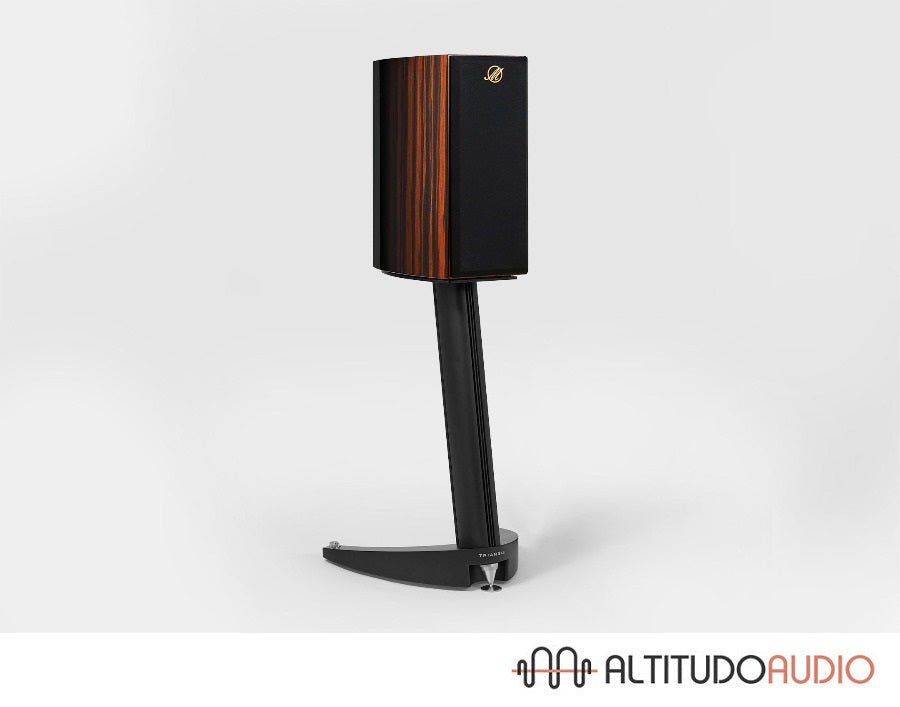

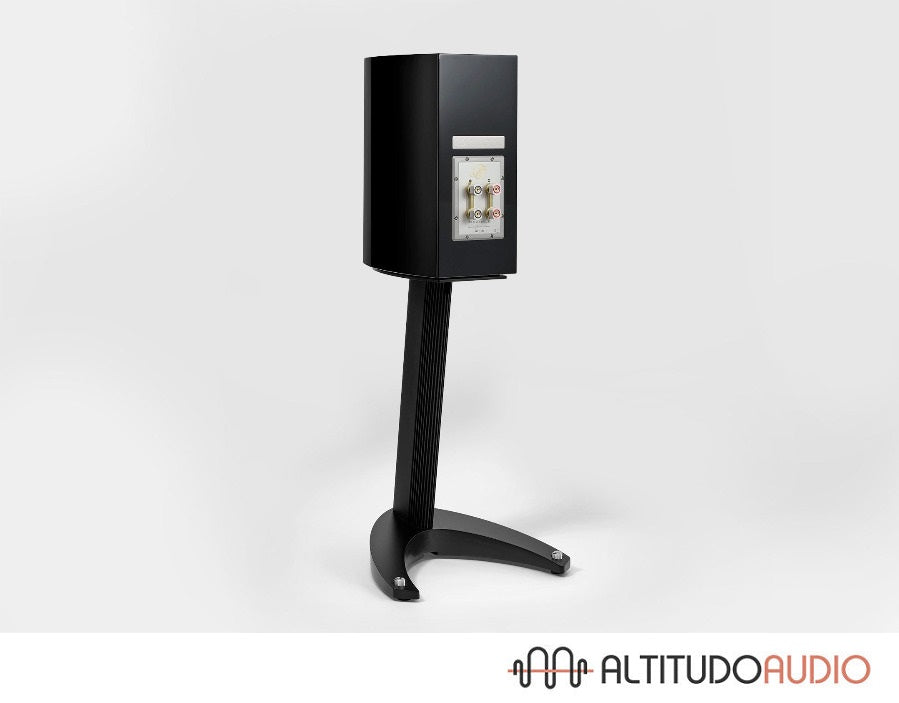

Triangle Magellan Duetto Bookshelf Speakers (Pr.)
Liveliness and dynamics are hallmarks of triangle’s sound and they are packed into this gem, which takes up so little space. Being so compact, this loudspeaker will fit effortlessly into rooms measuring 12 to 30m2, producing the same performances as a column speaker with meticulous bass precision and depth.
Liveliness and dynamics are hallmarks of triangle’s sound and they are packed into this gem, which takes up so little space.
Being so compact, this loudspeaker will fit effortlessly into rooms measuring 12 to 30m2, producing the same performances as a column speaker with meticulous bass precision and depth. Its compression tweeter reveals the most delicate details of your sound recordings and blends in perfectly with triangle’s famous midrange driver.
Duetto reproduces such clarity that the loudspeakers suddenly vanish, simply to be replaced by the music. A lightweight paper cone bass-midrange combined with a twin vent system produces rich bass detail. Its sophisticated filter featuring polypropylene capacitors optimizes the process of phasing bass and treble, resulting in astonishing transparency.
Duetto is a benchmark speaker for the recording studios in Meudon. Technological wizardry for a loudspeaker consisting of only two drivers, which just goes to prove that triangle is the master in the field.
MAGELLAN TWEETER TZ2900
The TZ2900 tweeter is an exquisite combination of state-of-the-art engineering and meticulous tooling. The horn was modeled through extensive computer simulations, which present the ideal profile in relation to mechanical and acoustic characteristics of its dome design.
This form reduces extremes in directivity above 15 kHz. We also added a counter-cap to the motor in order to limit the distortion at the low end of the tweeter’s tonal spectrum. This cap contains a duct lined with damping material that reduces reflections in the rear waves. Located just in front of the dome is a phase plug, which has been carefully designed to limit distortion and regulate the upper end of the sound spectrum.
The tweeter provides an exceptionally smooth and fluid musical quality whilst ensuring accurate reproduction and realistic dynamics.
The new T16GM F100 is the culmination of many years of research and development that TRIANGLE has invested in achieving the best in wide- range loudspeaker systems. This diaphragm uses a new exponential profile and contains cellulose fibre material, in the established TRIANGLE tradition.
It features an ultra-light anti-vortex polypropylene nose cone covered in specially formulated latex to prevent aerodynamic disturbances. The power handling capacity has been uniquely improved by developing a heat transmission ring located behind the motor yoke. This heat sink provides excellent heat dissipation between the motor and the basket.
TRIANGLE’s engineers took it upon themselves to design an electro-dynamic transducer capable of covering – with the least distortion and the best possible linearity – a frequency band from 70 Hz to 4 kHz.
Midrange speaker Magellan triangle hifi EN
In order to obtain high level performance in the extremely low (28 – 35 Hz) frequency range with minimum distortion, we designed an SVA diaphragm (honeycomb structure, green sandwiched foam). This cone-shaped diaphragm is characterized by a ‘sandwich’ structure, with two glass layers containing a cellular material that provides the ideal combination of mass damping and rigidity to the moving coil.
The MAGELLAN GRAND CONCERT subwoofer can easily handle very low frequencies (down to 28 Hz) within -3dB of the reference level. We have employed special high-purity metals to machine the magnetic motor’s pole pieces. A four-layer voice coil provides a linear displacement of ± 7mm. The LHSTM 2 system (the heat conduction ring) is also used on the T21GM order to increase heat handling capacity.
The basket’s unique design allows for maximum clearance of the radiating rear surface of the diaphragm. Its side vents improve the damping of the voice coil. The T16GM F100 and T21GM models are also equipped with specific connector blocks that were designed in order to ensure that the cables from the filter are uniformly clamped
Features & Specifications
Number of drivers
Number of ways
Midrange – woofer
38 Hz– 20 Khz (+/- 3 dB)
Repetitive peak power
High frequency roll-off
460 x 253 x 350 mm
