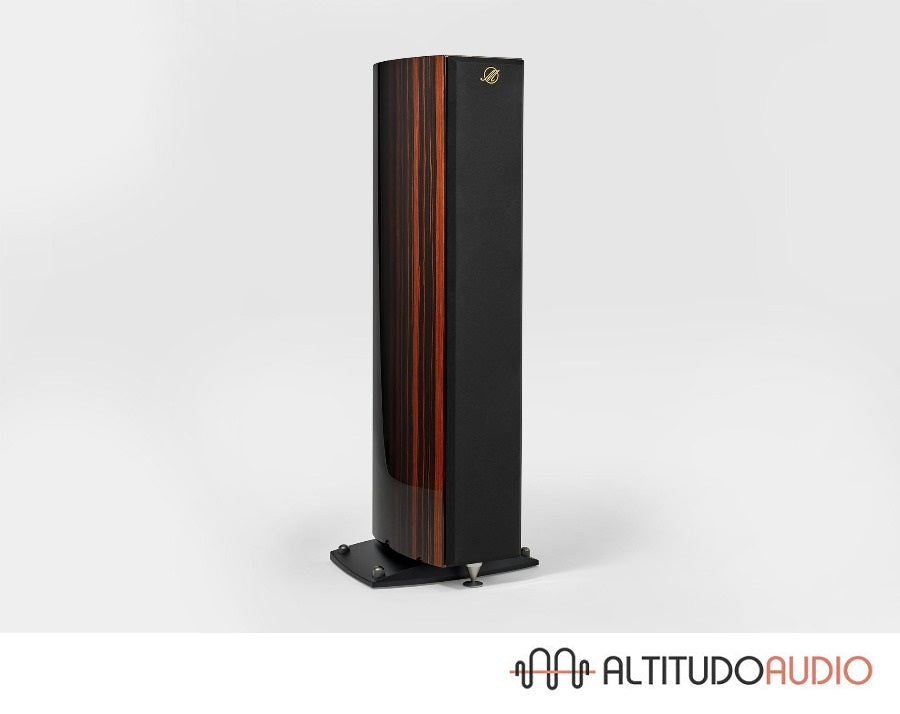

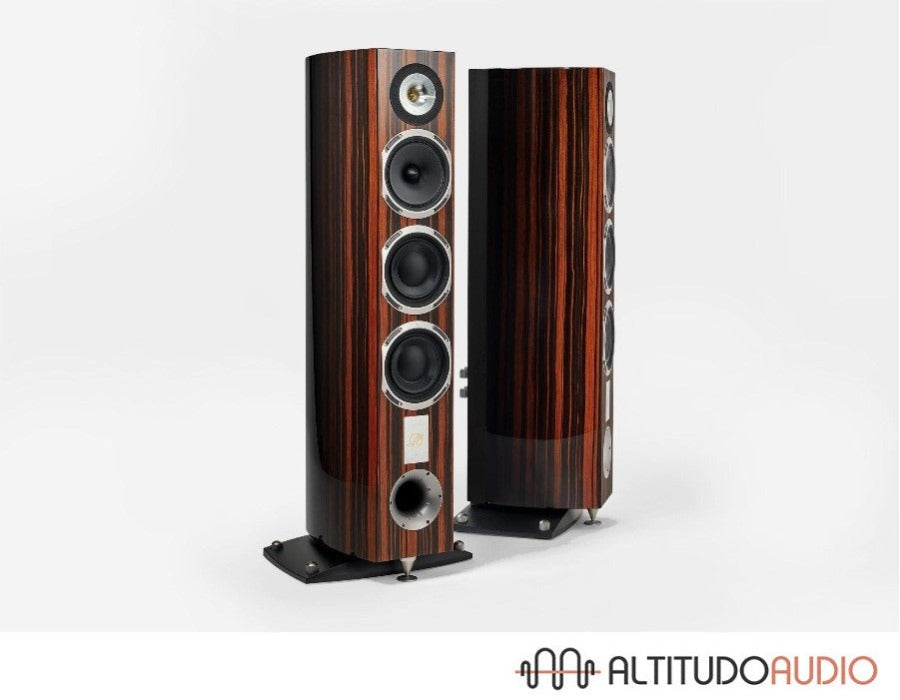

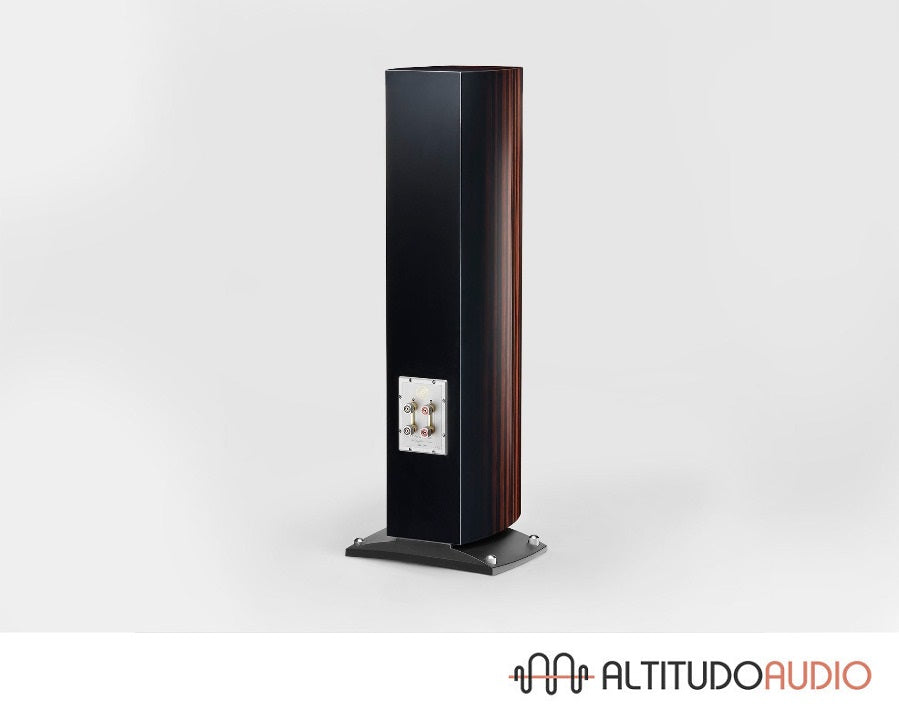

Triangle Magellan Cello 40th Anniversary Edition
Please Contact Us To Order. Thank you.

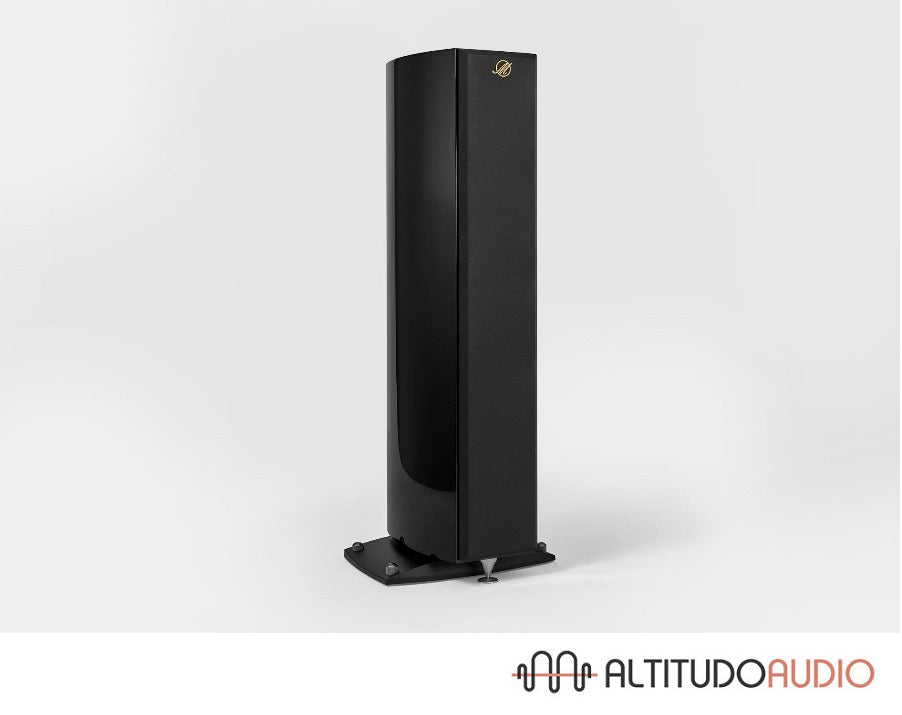

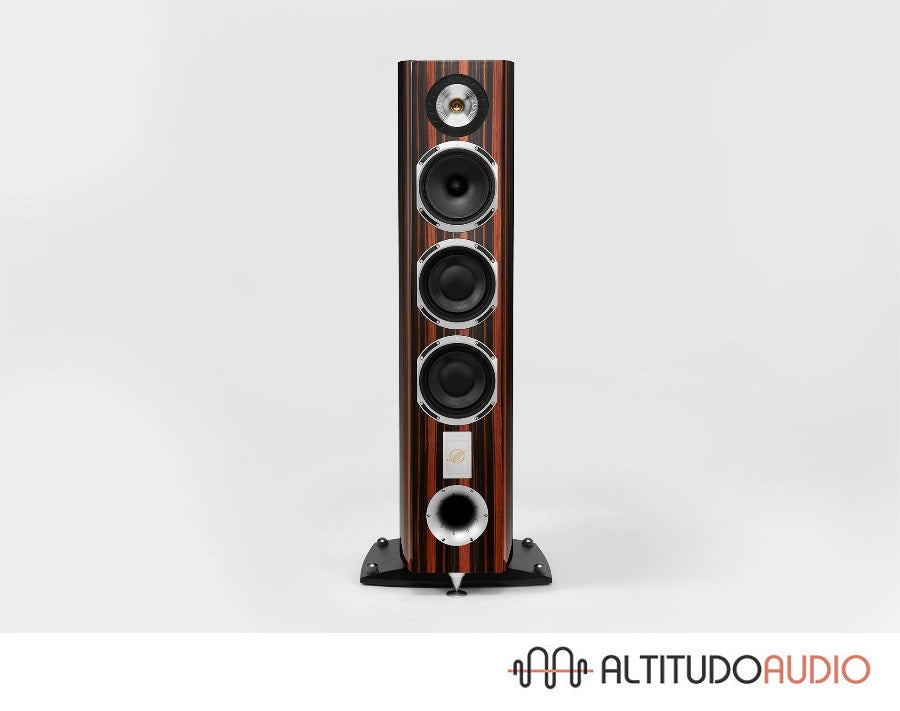

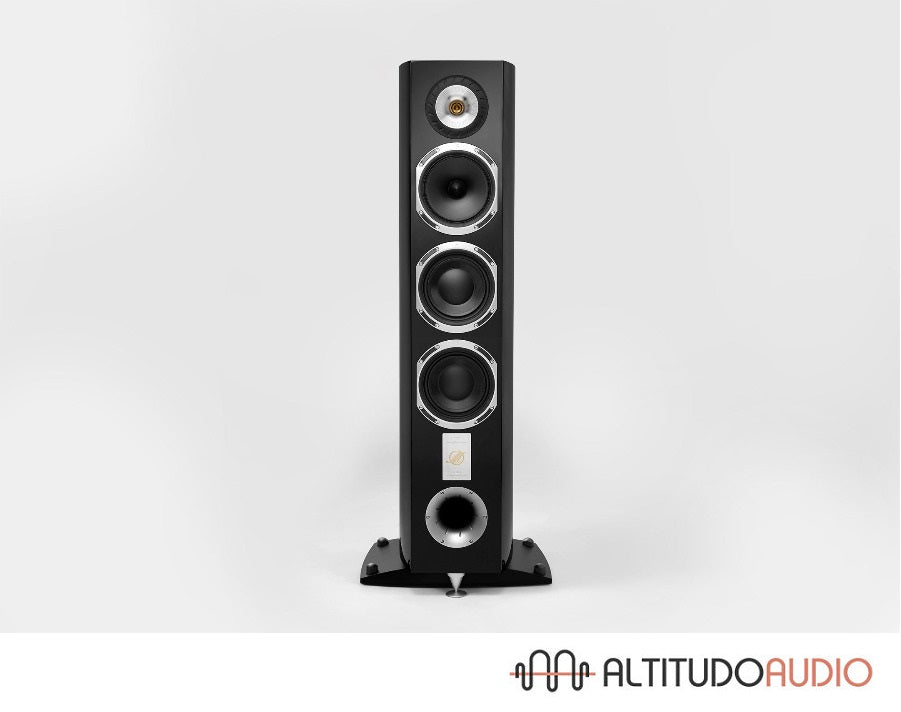

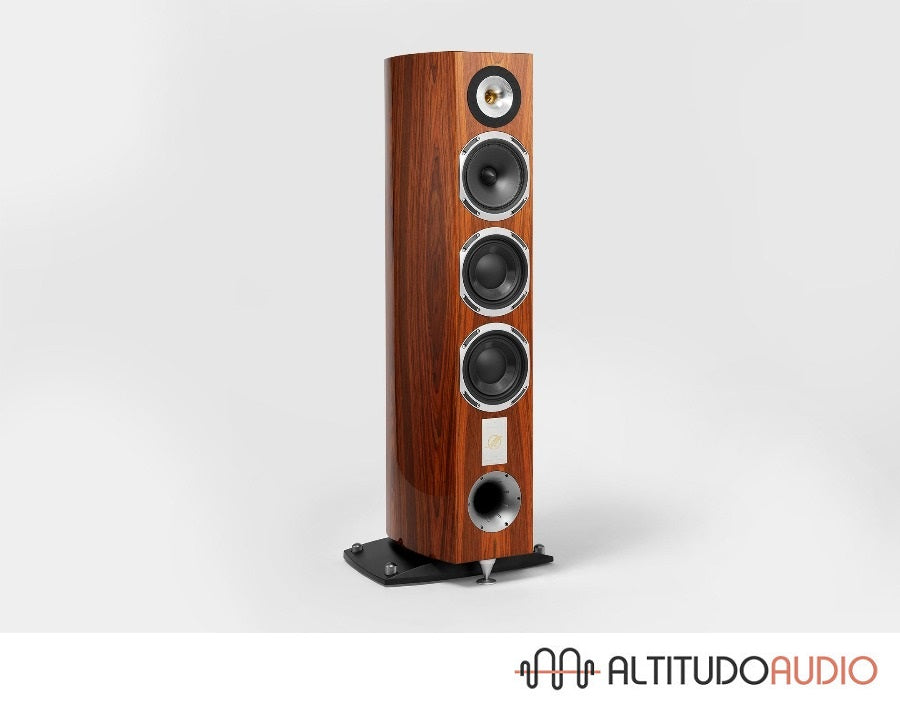

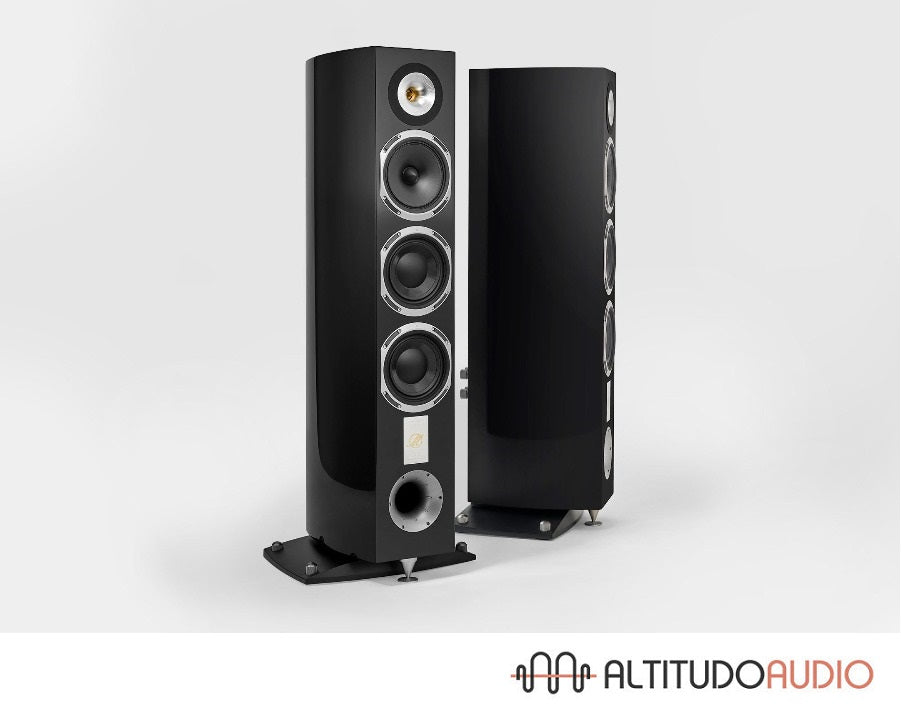

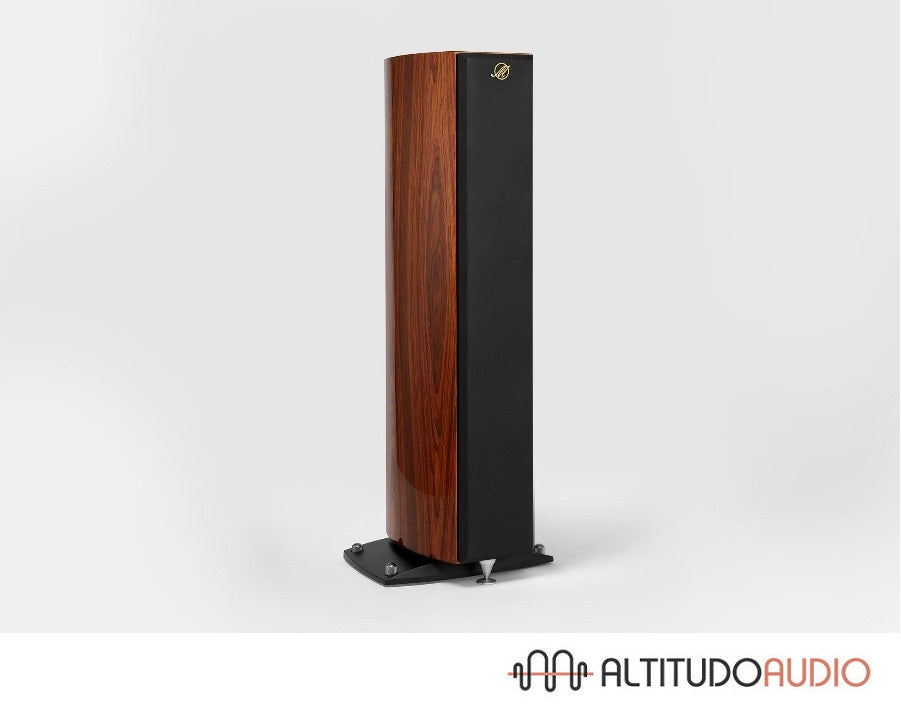

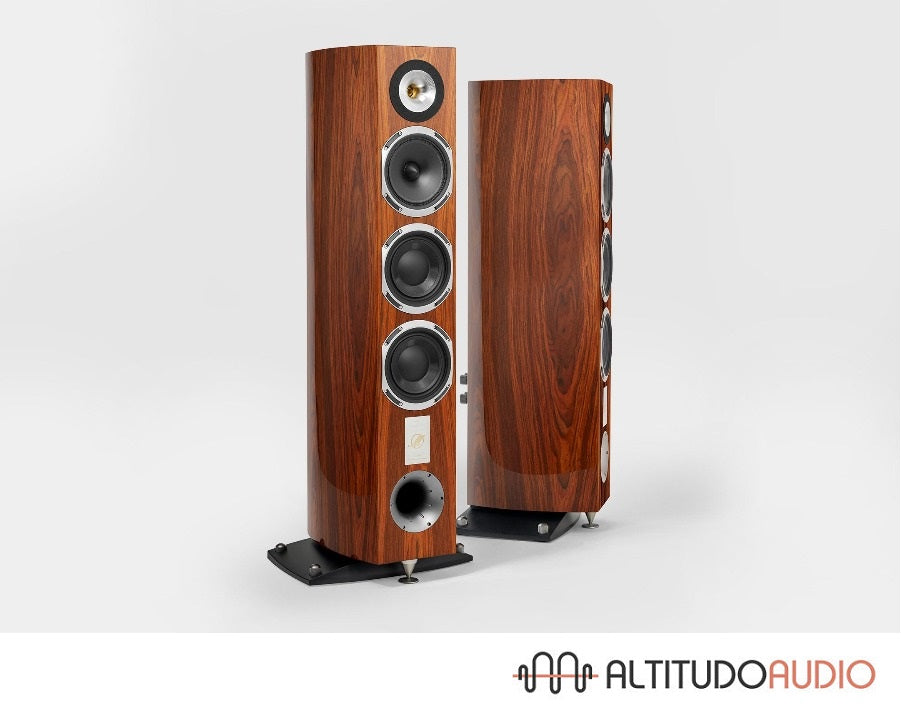

All the magic of music unfolds in this compact 110cm high 3-way floorstander. The real achievement lies in the transfer of the performance of the MAGELLAN Grand Concert into a modestly sized speaker.
The TZ2900 horn tweeter features a next generation dome in magnesium alloy that enhances the finest details of your recordings. This transducer brings out all the details of the upper harmonics.
Specialized in the midrange frequency range, Triangle perpetuates its tradition with a 16cm driver with a paper diaphragm and small pleat suspensions, reproducing the vocal register with great neutrality and without the slightest coloration.
The sandwich technology developed by the aerospace industry ensures that the two bass drivers are extremely lightweight and at the same time also exceptionally rigid.
The Cello achieves a unique kind of intensity. The listening experience is pure unlimited pleasure regardless of the type of music, delivered with magnificent scale and it is never fatiguing. It has a wide array of musical skills. It is as perfectly at ease at high volume as it is for intimate listening and is suitable for rooms measuring 25 to 50 m2.
LHS2 COOLING SYSTEM
The high rigidity die-cast aluminum basket has a heat sink ring in contact with the back of the yoke – the heat conduction ring. This ring collects heat dissipated from the core and the yoke and brings it towards the outer cover. The power handling capacity for each speaker can thus exceed 200 W RMS. This system prevents the risk of overheating and ensures better speaker performance. As an example, a 20° change is measurable over 120 minutes, with a pink noise registered at 100 watts and filtered with high pass at 80Hz.
The driver features a proprietary SVA diaphragm. This computer-modeled composite diaphragm is characterized by a ‘sandwich’ structure, composed of a double sheet of fiberglass with a cellulose pulp internal structure. It provides the ideal combination of mass damping and rigidity to the moving coil. The driver thus handles strong impulses without distortion.
HORN-LOADED TWEETER WITH A MAGNESIUM DOME
The TZ2900PM tweeter is equipped with a next generation dome in magnesium alloy providing a significant improvement in terms of consistency. Its horn is shaped to limit directivity, i.e., off-axis drop in high frequency level. Together with the phase plug, this pairing allows the frequency response to be linearized.
- Number of drivers4
- Number of ways3
- Sensitivity90 dB/W/m
- Frequency range35 Hz – 30 Khz (+/- 3 dB)
- Amplifier power output (w)40-300 W
- Repetitive peak power350 W
- Low cutoff frequency300 (12dB/Oct)
- Treble cutoff frequency2.6 (24dB/Oct)
- Nominal impedance8 Ω
- Minimum impedance3.4 Ω
- Dimensions w x d x h9.9 x 13.4 x 42.5 inch
- Dimensions with pedestal w x d xh16.7 x 14.6 x 44.9 inch
- Weight85,5 lbs
