Matrix Audio

TT-1 Network Audio Transport

TT-1 Network Audio Transport

Regular price $2,750.00 CAD
Regular price Sale price $2,750.00 CAD
Sale Sold out

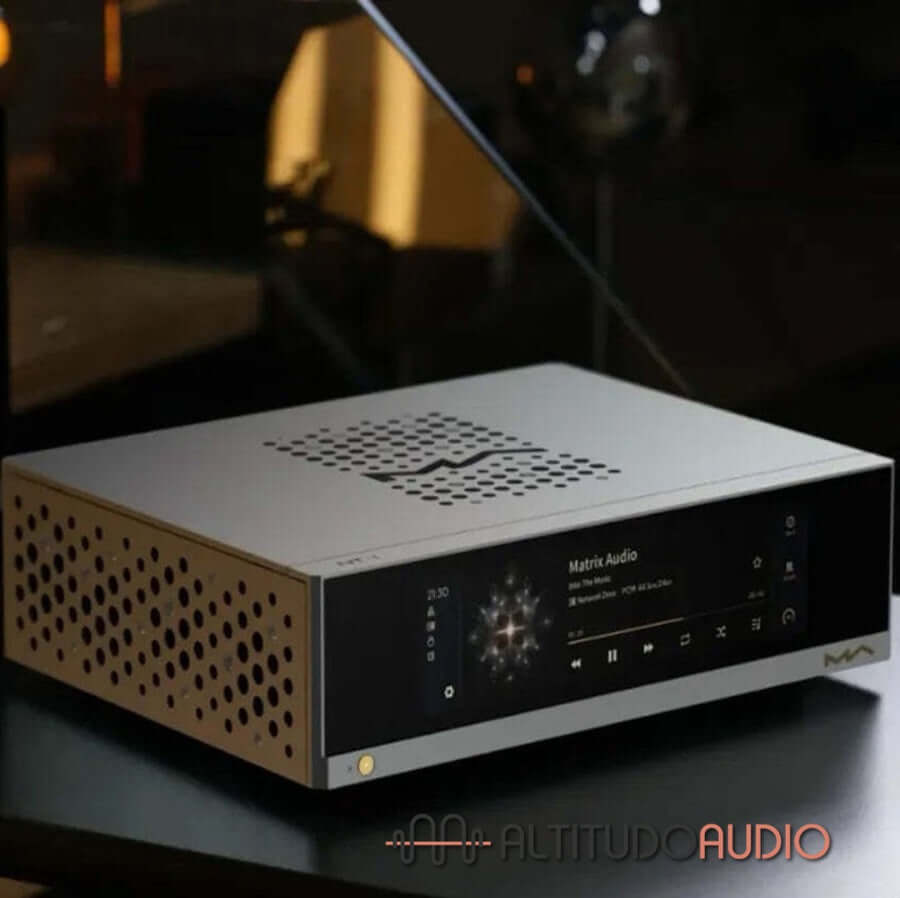

The new Matrix Audio TT-1 is a digital audio music server/network transport. Inheriting the essence of Matrix Audio's core technologies, it also leaves room for future upgrades. Whether you are an audiophile seeking enhanced sound quality or an advanced audio enthusiast looking to elevate your digital source, the TT-1 is an excellent digital source for your audio system.

Mount your NAS drive to the device, allowing you to create a music library directly from your NAS. If your music is stored in the cloud, such as Baidu Netdisk, it can also be mounted directly on the device.

The bottom of the device features an NVMe SSD slot, allowing for the installation of an SSD to expand internal storage. A specially designed ultra-low-noise independent power supply ensures a quiet operating environment for the SSD, which surpasses what an ordinary computer can offer.

With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.

Equipped with two ultra-low phase noise femtosecond clocks, each dedicated to serving as the clock reference for 44.1kHz and 48kHz sampling rates and their multiples. Powered by independent low-noise linear regulators, and with intelligent control through FPGA, it automatically handles frequency division and switching operations. This design lays a solid foundation for low-jitter digital audio output.

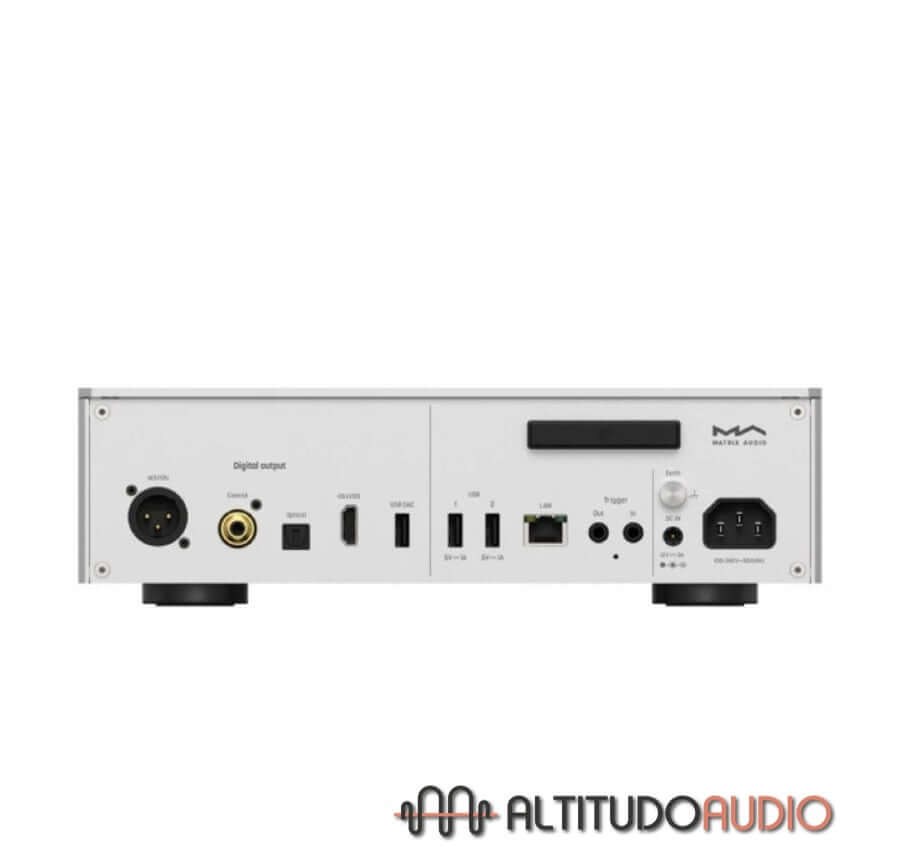

Optical, coaxial, AES/EBU and IIS-LVDS output ports are available, which can easily connect to various digital audio devices such as DACs and amplifiers to meet your diverse audio connection needs. If you connect it to an active speaker with digital input, you can also enable the digital volume function, no need to add an additional speaker controller, and the volume can be adjusted easily.



Specifications:

COAXIAL,

OPTICAL & AES/EBU

PCM 16-24Bit /44.1kHz, 48kHz,   88.2kHz, 96kHz, 176.4kHz, 192kHz

DSD 2.8MHz (DoP)

IIS LVDS PCM 16-32Bit /44.1kHz, 48kHz,   88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz

DSD 2.82MHz, 3.07MHz, 5.64MHz,   6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz
USB DAC Depends on the specifications   supported by the connected USB DAC device.

The USB DAC port provides a   maximum of 5V/1A low-noise power supply.

Network

LAN 10/100/1000 Mbps
Wi-Fi 2.4 GHz / 5 GHz

USB

USB 3.0   * 2 The USB port provides a maximum   power of 5V/1A.

The USB port works with devices   which conform to the USB mass storage standard and supports FAT, FAT32,   exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

Trigger

Trigger in DC 6-12V<10mA
Trigger out DC 12V/50mA MAX

Storage Extension


M.2 2280  2260 2240 NVMe PCIe SSD slot *1

The maximum power specification  provided by the expansion slot is DC 3.3V/3A.

Power Specs

AC Input

Wide voltage switching power supply

Power Voltage: AC 100V-240V 50/60Hz

 Power Consumption: < 35W


DC Input

External power voltage: DC 12V ±10%

External power wattage: Larger than 35W

Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)

Weight & Size

Weight 2.76kg (6.08 pounds)
Size Width: 280 mm (11.02 inches)

Depth: 210 mm (8.27 inches)

Height: 82 mm (3.23 inches)

Accessories




Power cable *1

Printed material *1
