TW AD-8300 - 11 CHANNEL AMP - 3X300W & 8X155W @ 8 OHMS

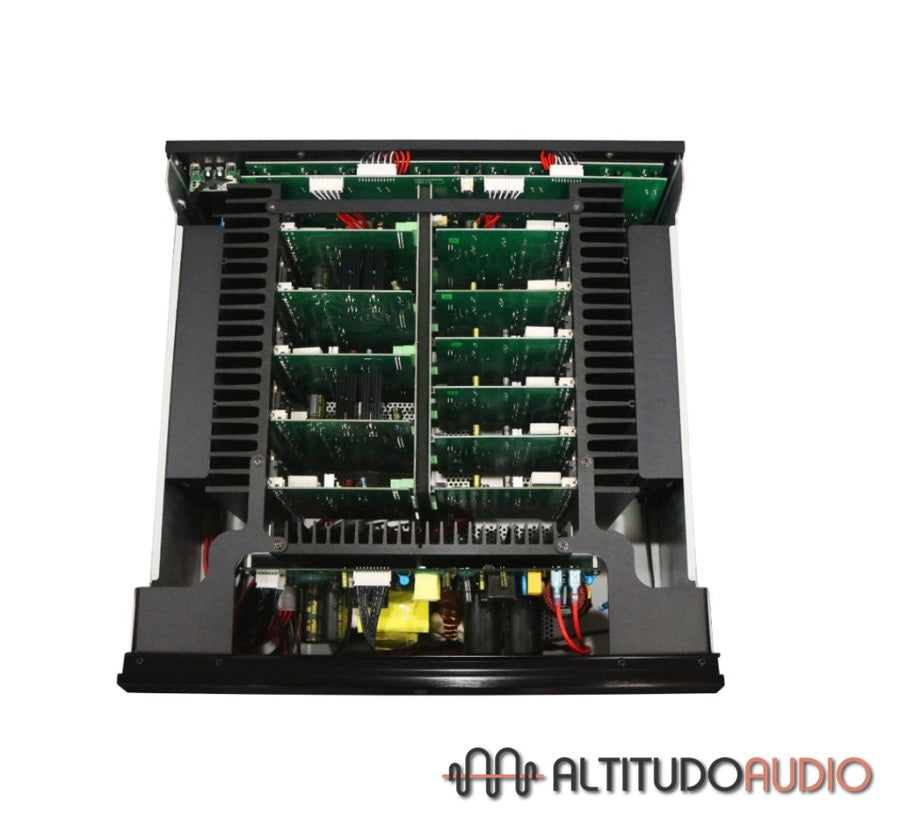

CIRCUIT TOPOLOGY

AUDIO SPECIFICATIONS

AUDIO SPECIFICATIONS (HIGH-POWERED SINGLE CHANNEL MODULES): LCR CHANNELS & SURROUND CHANNELS

• LCR Channels 350 Watts & LS,RS,LBS,RBS 155 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven
• LCR Channels 605 Watts & LS,RS,LBS,RBS 276 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven
• LCR Channels 320 Watts & LS,RS,LBS,RBS 150 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; Two channel driven
• LCR Channels 516 Watts & Surround Modules 207+ Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; Two channel driven
• LCR Channels 240+ Watts & Surround Modules 105+ Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; all channel driven
• Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 10 Hz to 20 kHz (+ / – 0.1 dB)
• Broadband Frequency Response: 1 Hz to 89 kHz +0/-2 dB.THD + noise: < 0.009%; at 100 watts RMS; 1 kHz; 8 Ohms
• Signal to Noise Ratio (8 Ohm load):
• > 111 dB; ref FTC rated power; unbalanced input (A-weighted).
• > 86 dB; ref 1 watt; unbalanced input (A-weighted)
• Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
• Damping Factor (8 Ohm load): 141
• Gain: 29.3 dB
• Maximum Power Consumption: 2,540 watts.
• 2 Years Warranty

• 20 kOhms (balanced).
• 15 kOhms (unbalanced).

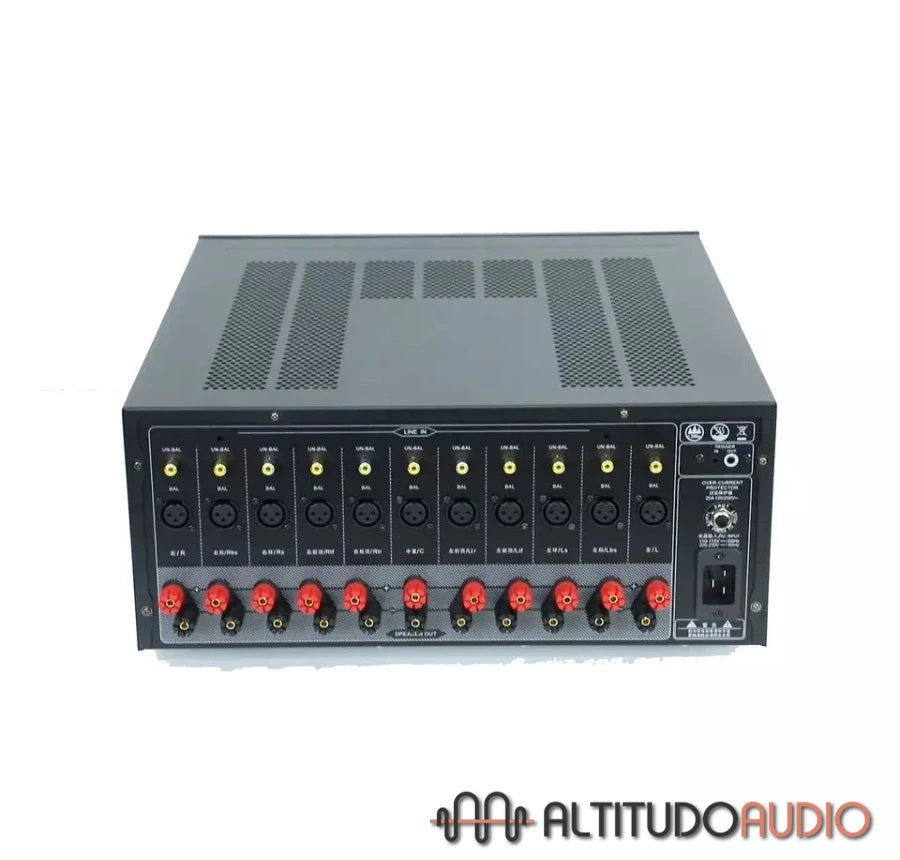

INPUT AND OUTPUT CONNECTIONS

• Input Connections (High-Powered independent L+C+R Channel Modules):
• L+C+R 3 way main channels selectable balance / unbalance inputs
• Input Connections (Independent Surround Channel Amplifier Modules):
• 8 way surround channels selectable balance / unbalance inputs
• Speaker Output Connections: Audiophile grade, gold plated, 11-way binding posts.
• Trigger Input: 5 – 12 V (AC or DC)
• Trigger Output: 12V DC
• Power Requirement Between 115V/230V @ 50 / 60 Hz (automatically detected).

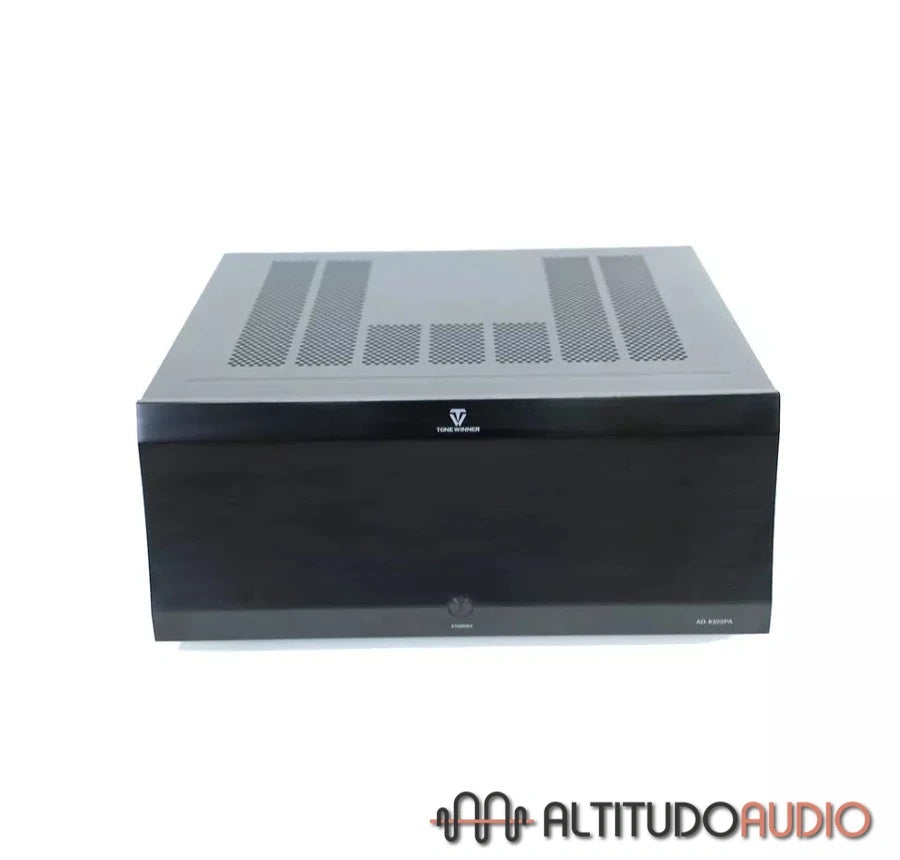

FRONT PANEL CONTROLS AND INDICATORS

• Standby: push button (halo ring changes color to indicate Standby or On)
• Status LEDs change to flashing red to indicate a fault condition.

REAR PANEL CONTROLS

• Over current circuit breaker: press button to reset circuit breaker.

 PROTECTION :

      -> AD-8300 is protected against excessive operating temperature, shorted speaker       connections, ground faults, and other common fault conditions.

      -> The Amplifier has over heat protection, DC protection, short circuit protection, over load protection

      -> For the high frequency transformer used on power supply: It has overheat protection, overload protection, short protection, over voltage protection and under voltage protection

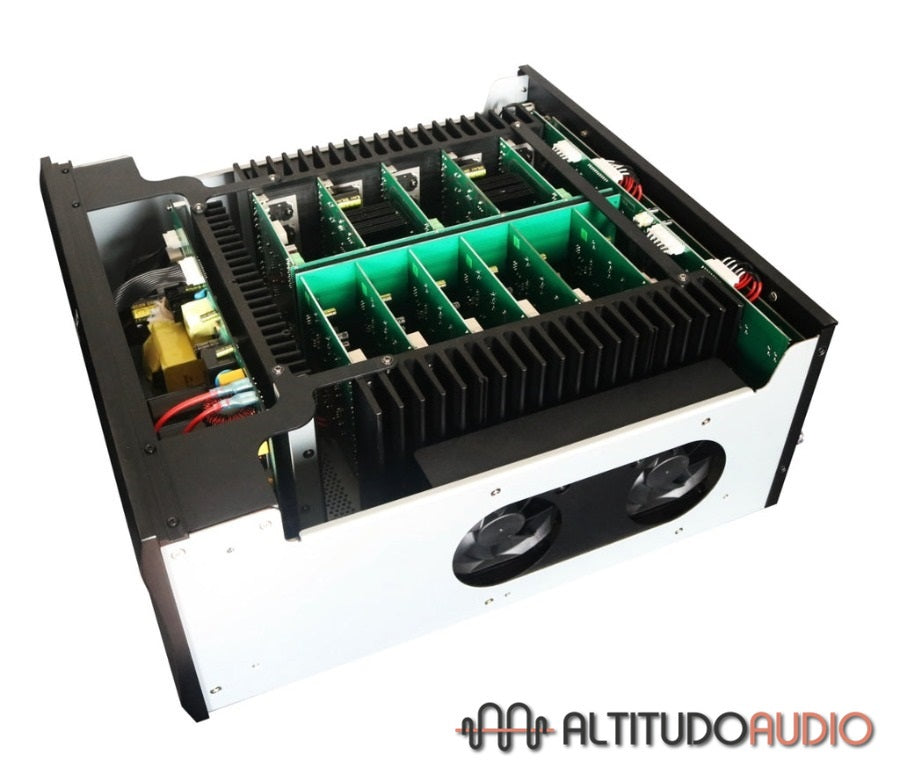

     -> Fan: The speed of the fan is determined by the temperature within the unit. At lower temperature the fan will be off, When the temperature increases the fan will auto detect and increase the speed to control the temperature of the unit
