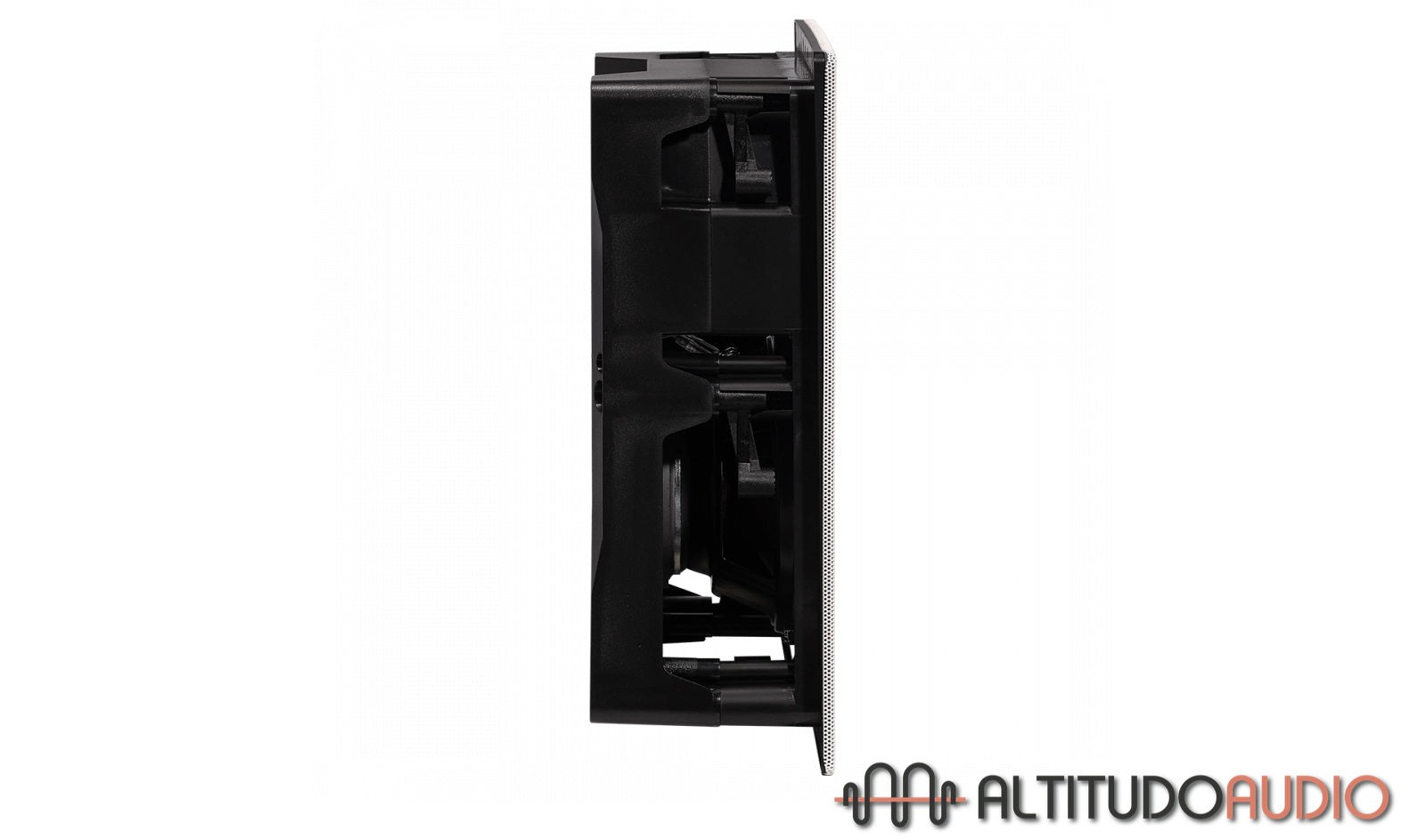

Vertex I IW-V61 In-Wall Speaker (Each)
Shipping : FREE in Canada
Vertex I IW-V61 In-Wall Speaker
With a slim profile, the easily installed Vertex in-ceiling speakers expand the Integrator Series of custom products. Keeping our philosophy of providing our core technologies across product lines, the Vertex series of speakers will match and complement bookshelf, floorstanding, on-wall, and in-wall products.
VERTEX I
IN-WALL
Recognized around the world for manufacturing speakers with exceptional build quality and unmatched performance at affordable prices, ELAC continues to deliver with our new Vertex Series of speakers.
VERTEX I
IN-WALL
Custom Silk-Dome Tweeter
Custom silk dome tweeters have been developed for low mass and smooth, extended high frequency response
Custom-designed Woofers with Polypropelyne Cone
Polypropylene is employed due to its improved internal damping and smooth high frequency roll-off
Intricate Crossover
A custom multi-element crossover with audio-grade components is implemented to ensure smooth transition between the drivers
SPECIFICATIONS:

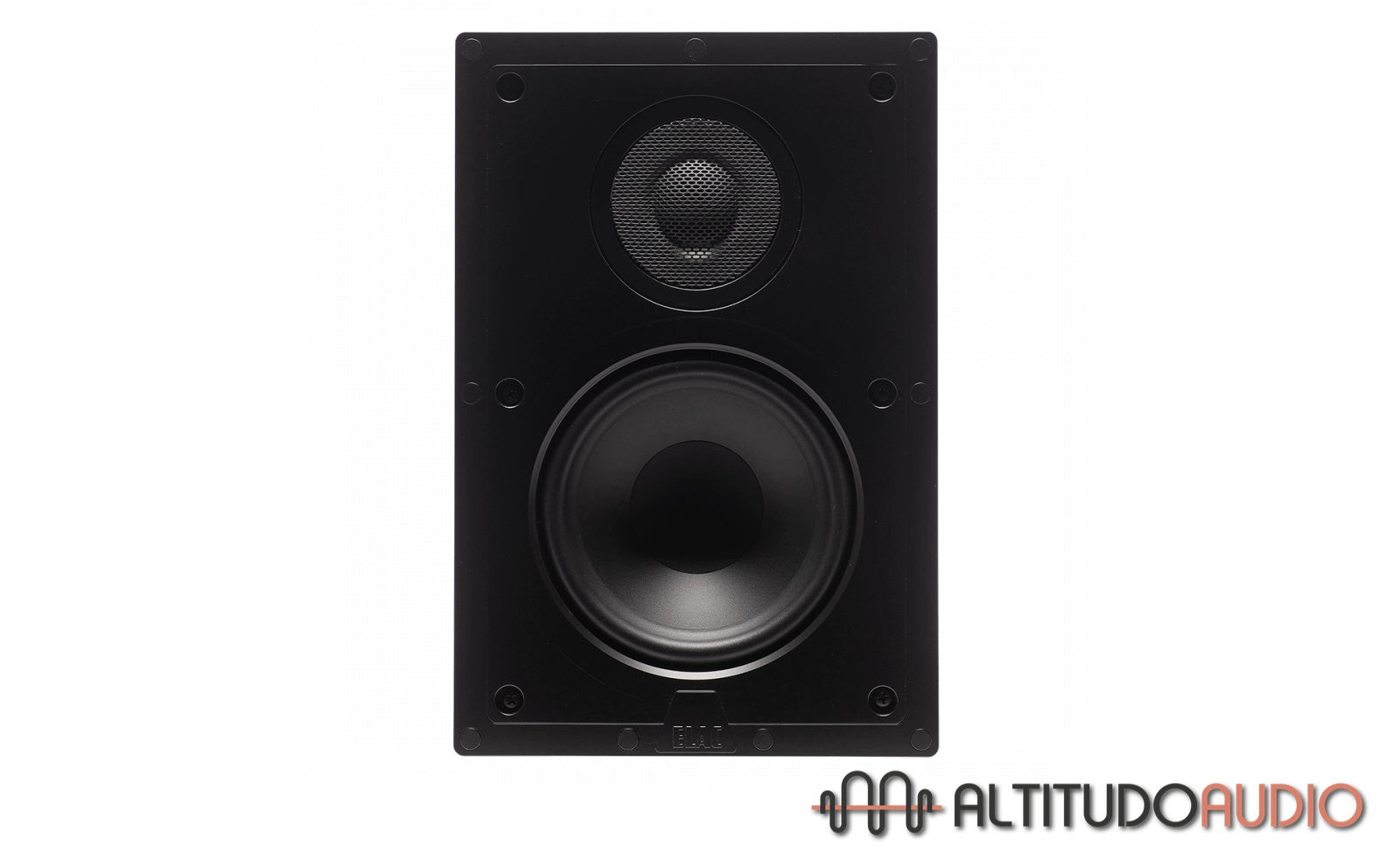

Speaker type | 2-way, rear side open |
---|---|
Tweeter | 1-inch soft dome |
Woofer | 6.5-inch polypropylene cone |
Crossover frequency | 3,000 Hz |
Frequency response | 45 to 20,000 Hz |
Sensitivity | 90 db at 2.83 v/1m |
Recommended amplifier power | 30 to 120 Watts |
Nominal/peak power handling | 50/120 Watts |
Nominal impedance | 6 Ohm |
Finish | Black baffle/White grille |

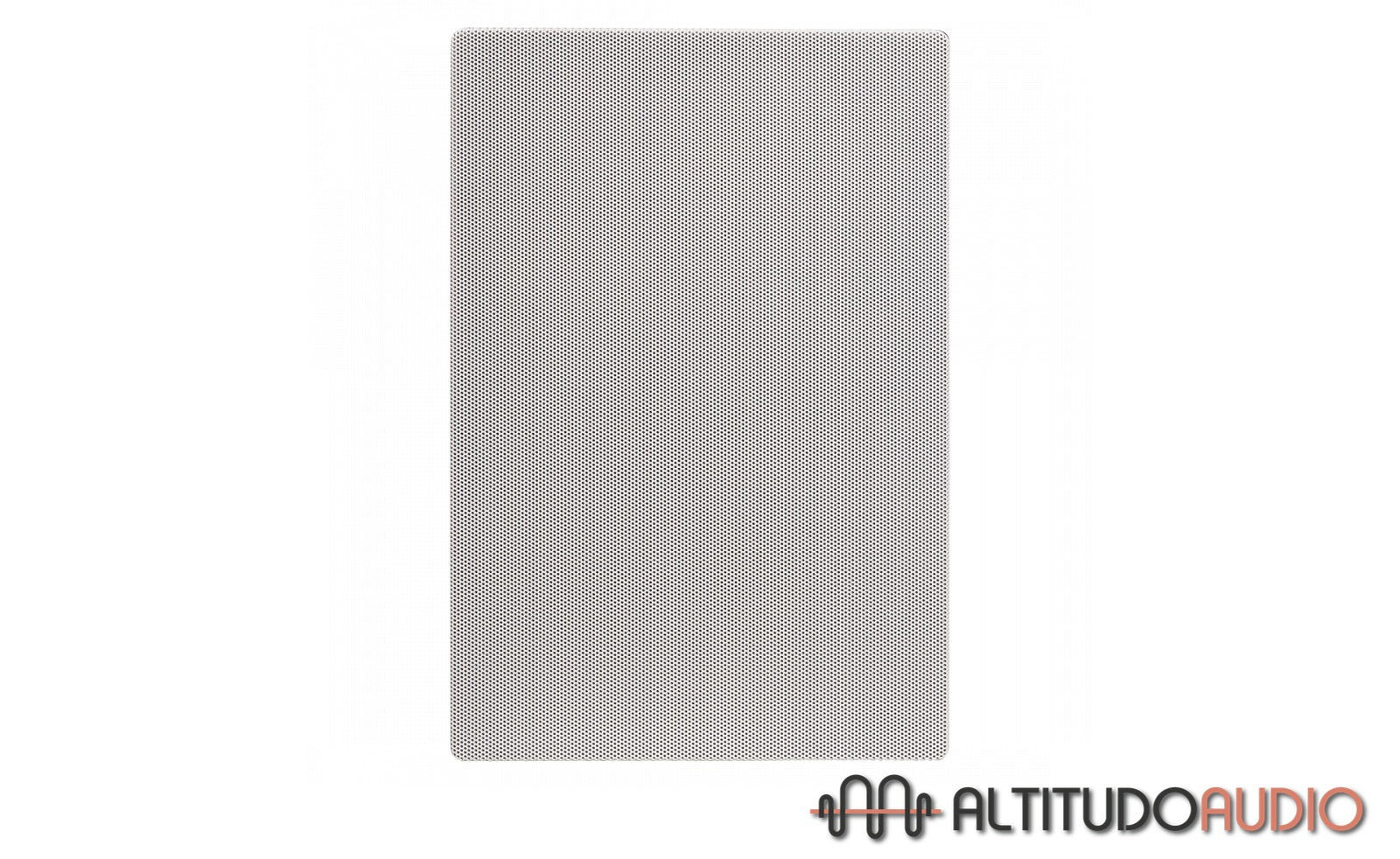

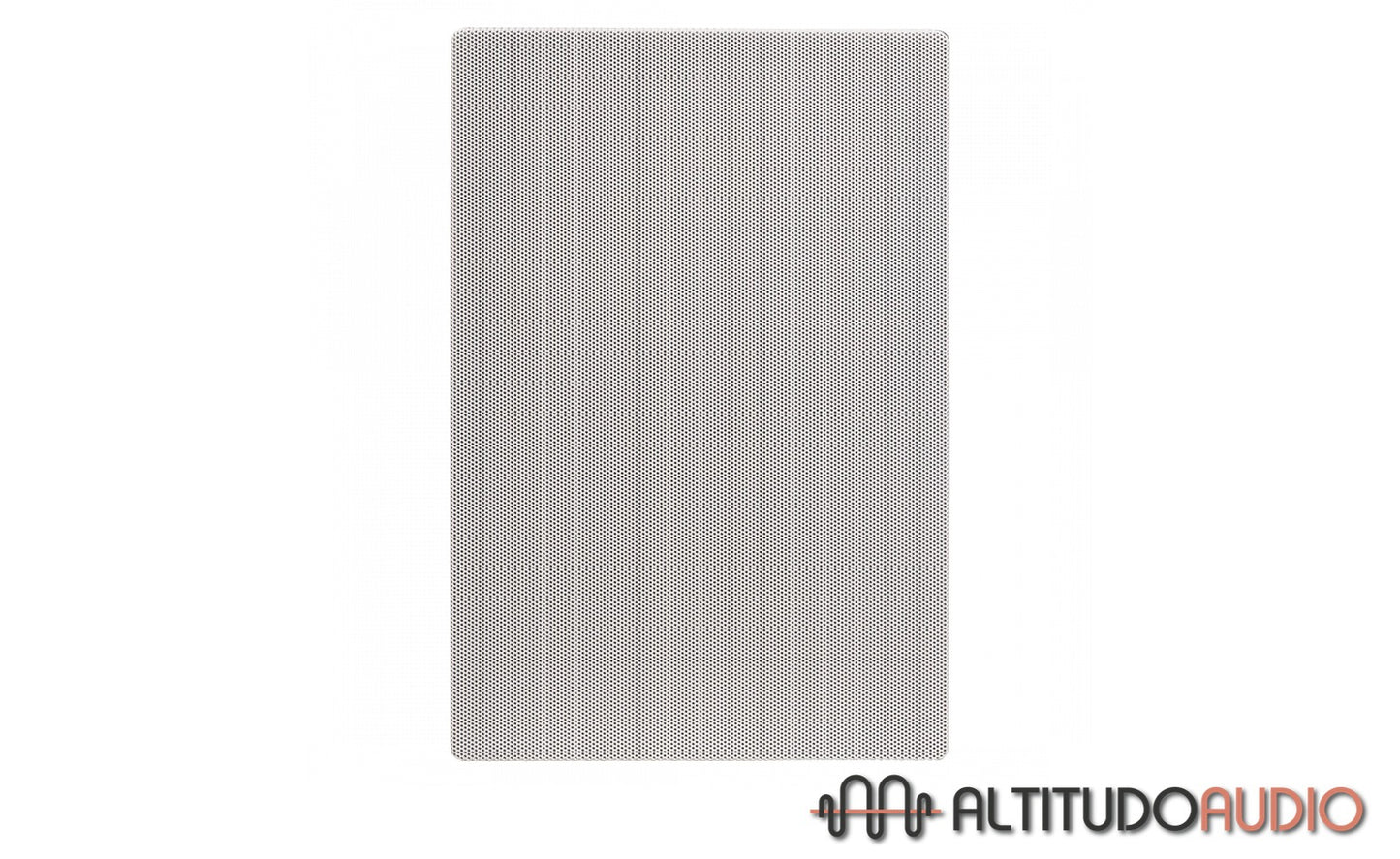

Grille | Metal magnetic / Paintable |
Accessories included | Cutout template, manual |
Dimensions (Height) | 12.69 in / 322.3 mm |
Dimensions (Width) | 8.48 in / 215.3 mm |
Cut-out (Height) | 11.61 in / 295 mm |
Cut-out (Width) | 7.36 in / 187 mm |
Mounting depth | 3.94 in / 100 mm |
