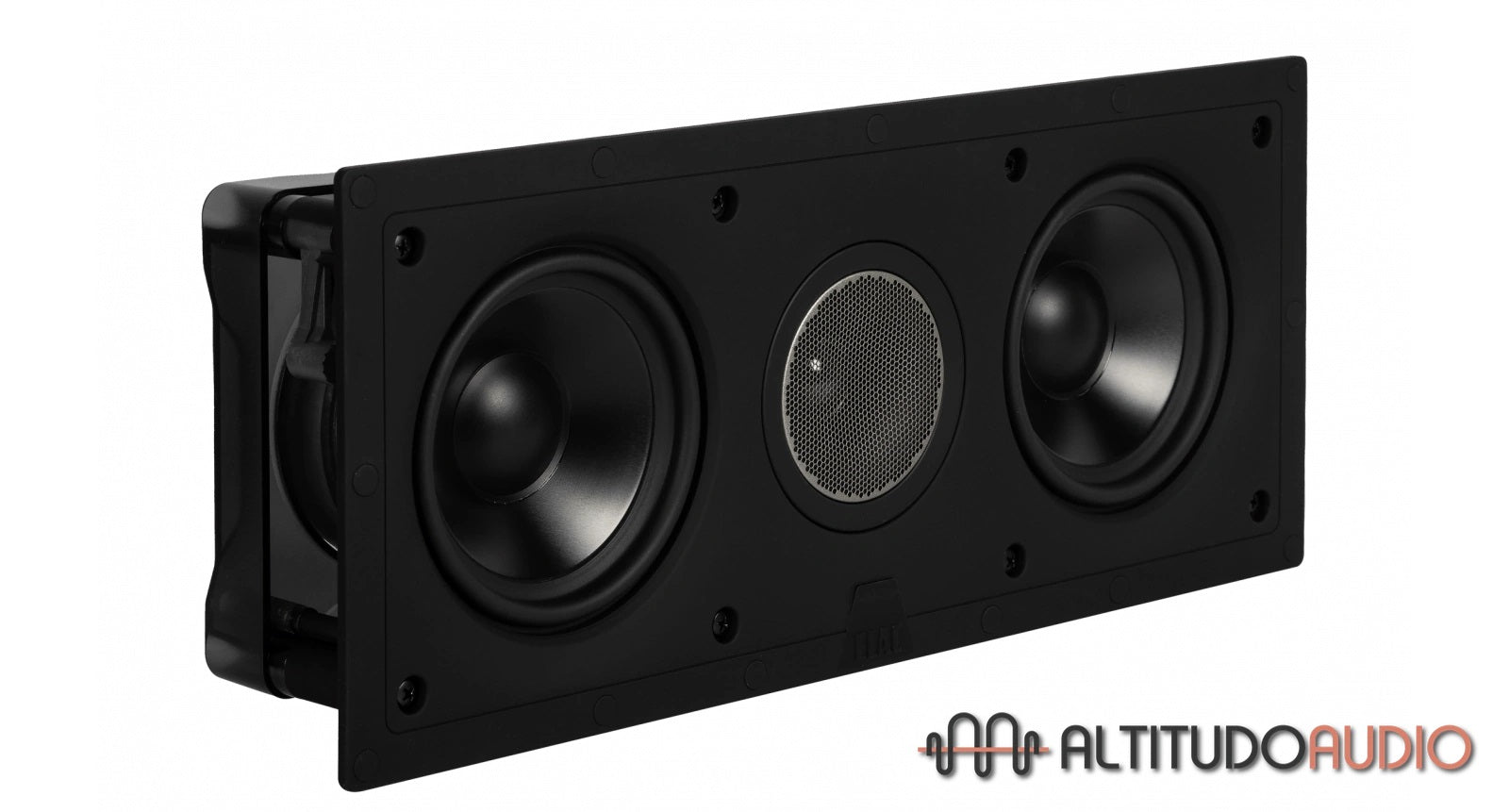

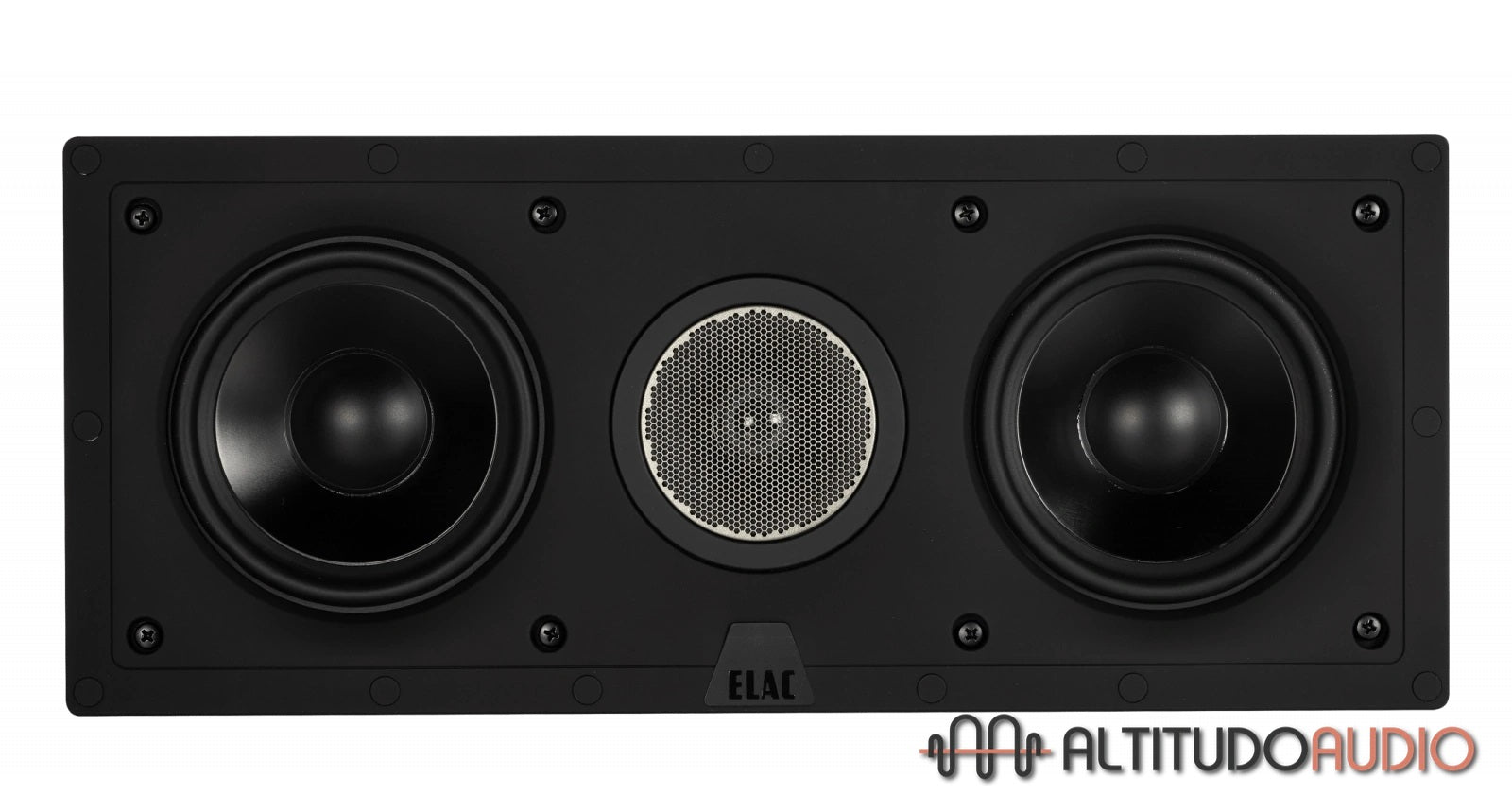

Vertex II 5.25" In-Wall Center Speaker (Each)
Shipping : FREE in Canada
Vertex II - 5.25" In-Wall Center Speaker (Each)
Using the same technology and materials as the newly developed Reference speaker line, the Vertex Series II eloquently combines aesthetics and pure performance. The easily installed Vertex Series II speakers utilize the same components throughout the series to ensure a perfect sonic match across the line. Keeping with our philosophy of delivering high-end audio sound, Vertex series II speakers will complement any environment.
VERTEX I
IN-WALL
Recognized around the world for manufacturing speakers with exceptional build quality and unmatched performance at affordable prices, ELAC continues to deliver with our new Vertex Series of speakers.
VERTEX I
IN-WALL
Custom Silk-Dome Tweeter
Custom silk dome tweeters have been developed for low mass and smooth, extended high frequency response
Custom-designed Woofer with Aluminum Cone
An aluminum cone is employed due to its rigid, light weight characteristics. This results in dynamic, accurate frequency response.
Intricate Crossover
A custom multi-element crossover with audio-grade components is implemented to ensure smooth transition between the drivers
SPECIFICATIONS:
| Speaker type | 2-way, rear side open |
|---|---|
| Tweeter | 1-inch cloth dome |
| Woofer | 2 x 5.25-inch aluminum cone |
| Crossover frequency | 2,100 Hz |
| Frequency response | 45 to 20,000 Hz |
| Sensitivity | 86 db at 2.83 v/1m |
| Recommended amplifier power | 30 to 120 Watts |
| Nominal/peak power handling | 50/120 Watts |
| Nominal impedance | 6 Ohm |
| Finish | Soft Paint Black baffle |

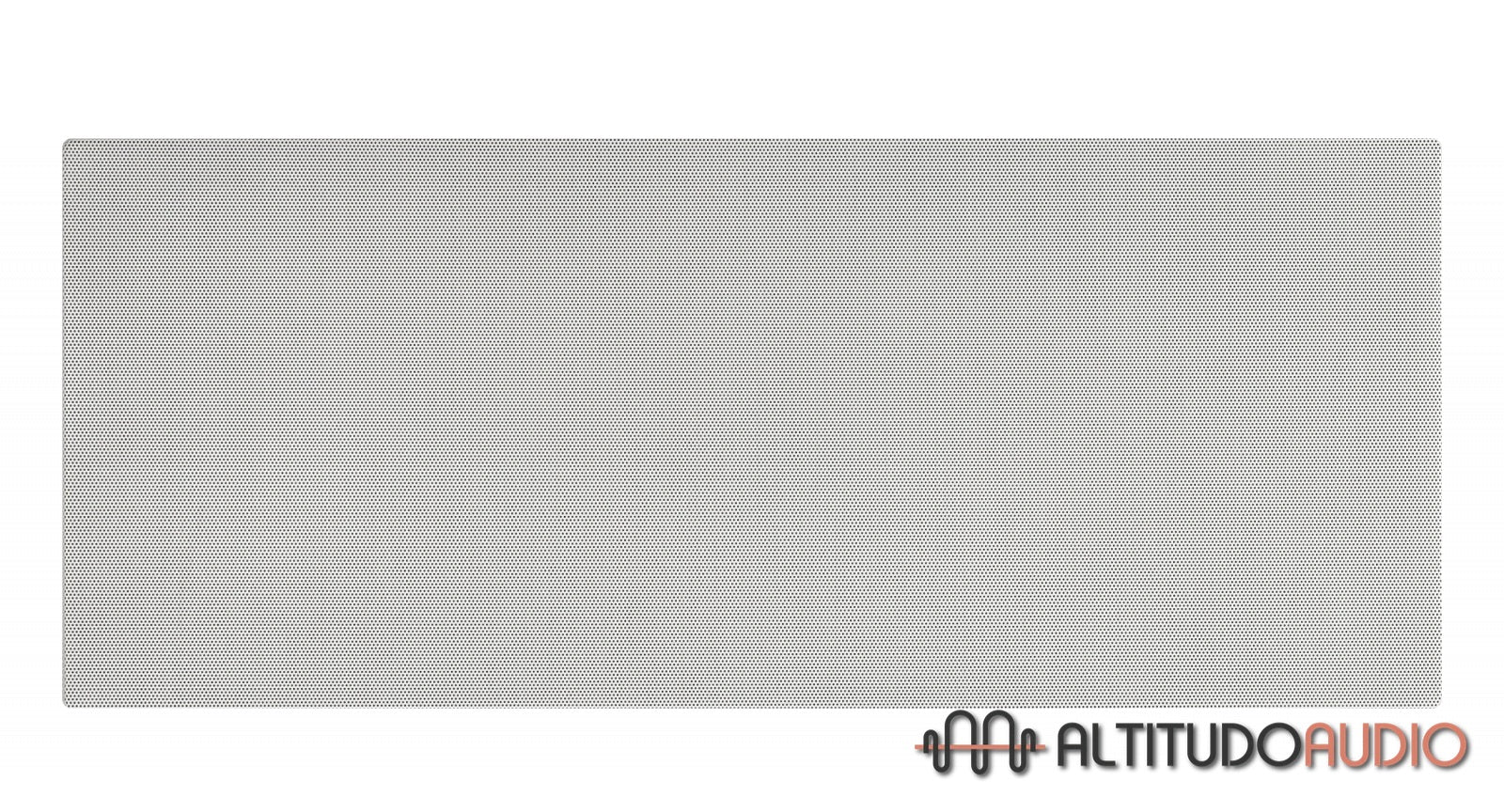

| Grille | Metal magnetic / Paintable |
| Accessories included | Cutout template, manual |
| Dimensions | H: 7.4 in / 188.3 mm W: 17.7 in / 448.3 mm D: 3.4 in / 85.6 mm |
| Cut-out | H: 6.2 in / 157 mm W: 16.4 in / 417 mm |
| Mounting depth | 3.3 in / 84 mm |
