Vertex III OW-VJ63M On-Wall Speaker (Each)
Shipping : FREE in Canada

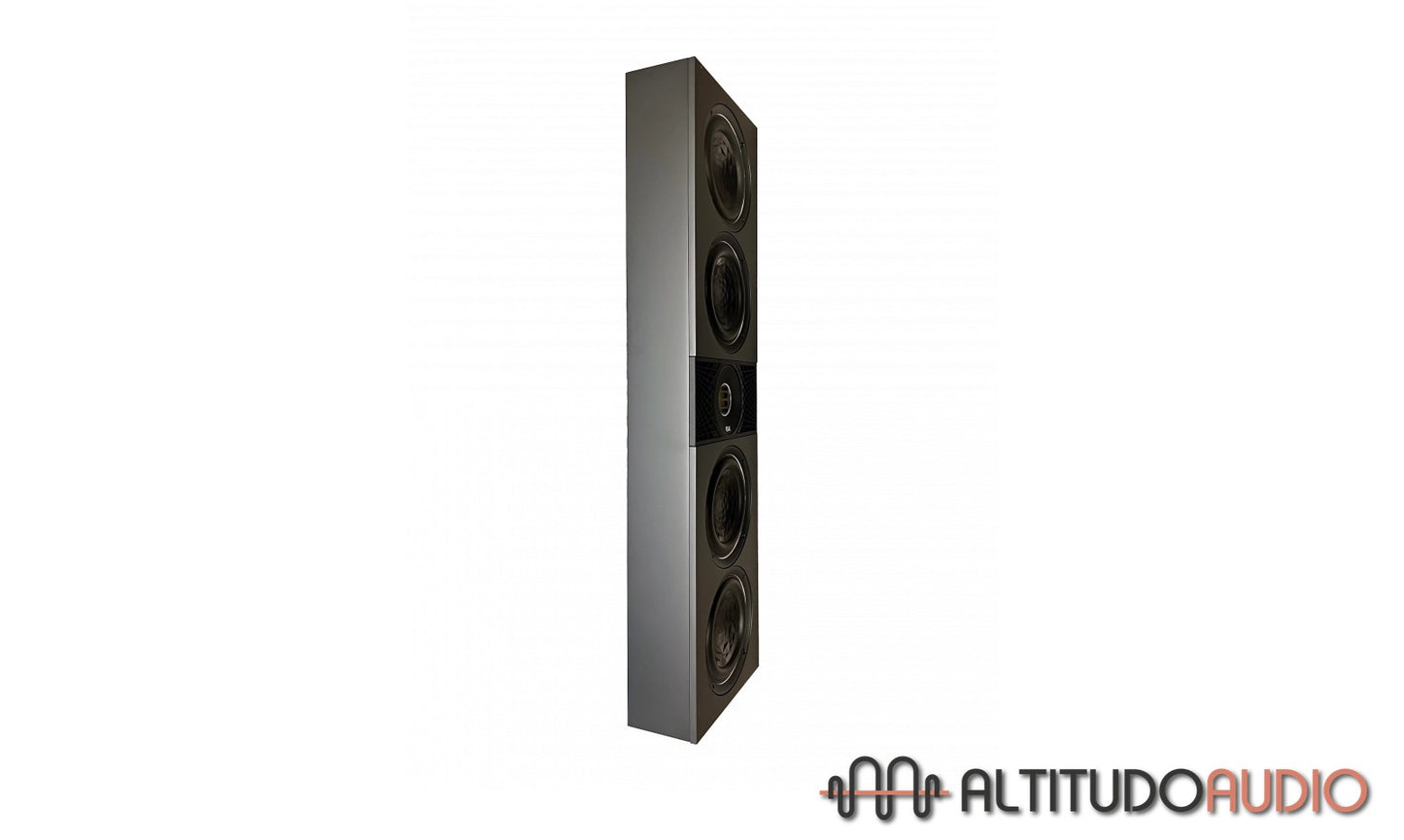

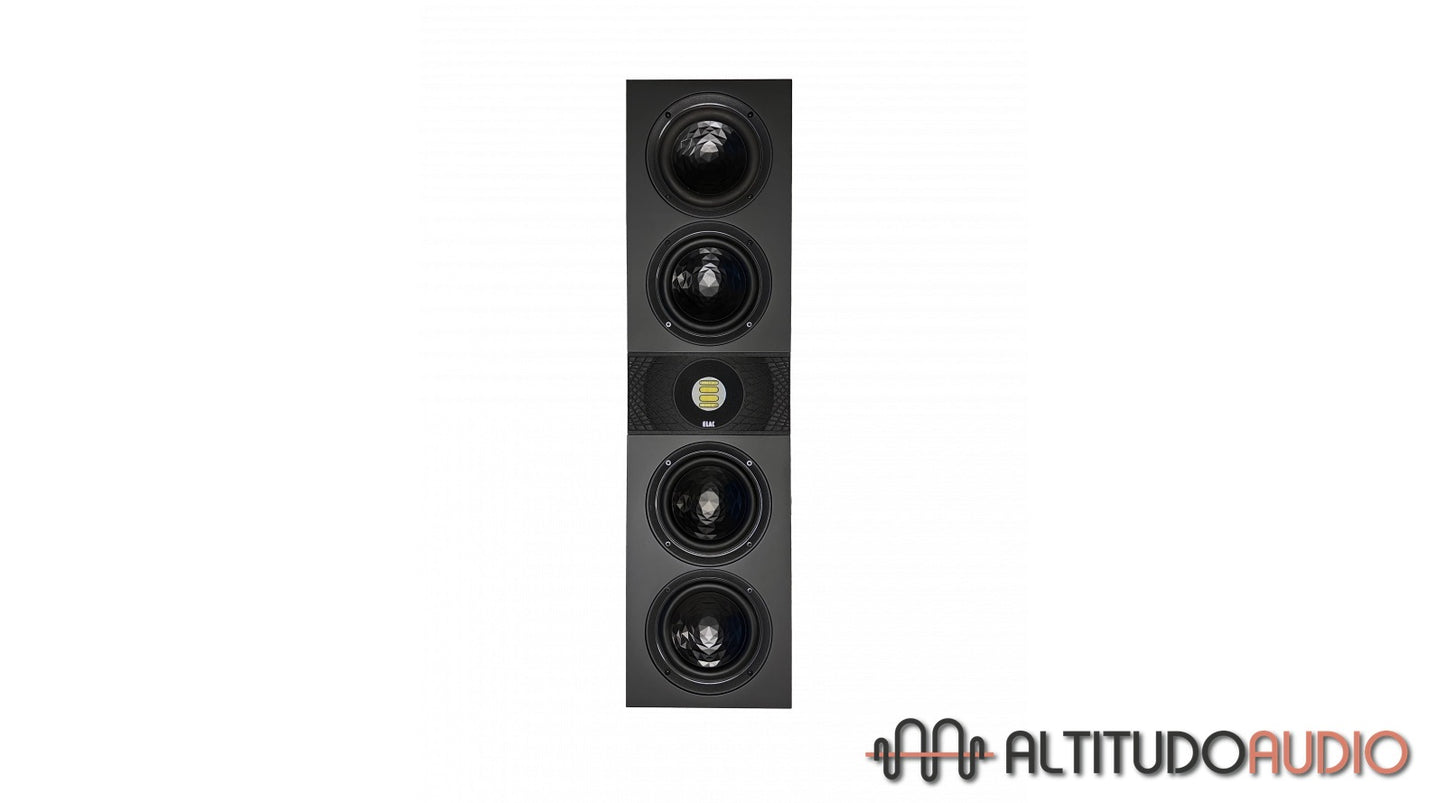

Vertex III OW-VJ63M On-Wall Speaker
Bringing Elac Core Technologies to Custom Audio
Designed for performance and compatibility, the Vertex III Custom Series carries the same sonic signature as our Home Audio Speakers. This means you can combine components to meet the needs of every environment, and deliver exceptional audio experiences. Whether it’s building a home theater with Vela Front Channels and On-Wall Surrounds—or In-Ceiling Atmos combined with our flagship Vertex Soundbars—it will all sound great together.
Wall
Mounting

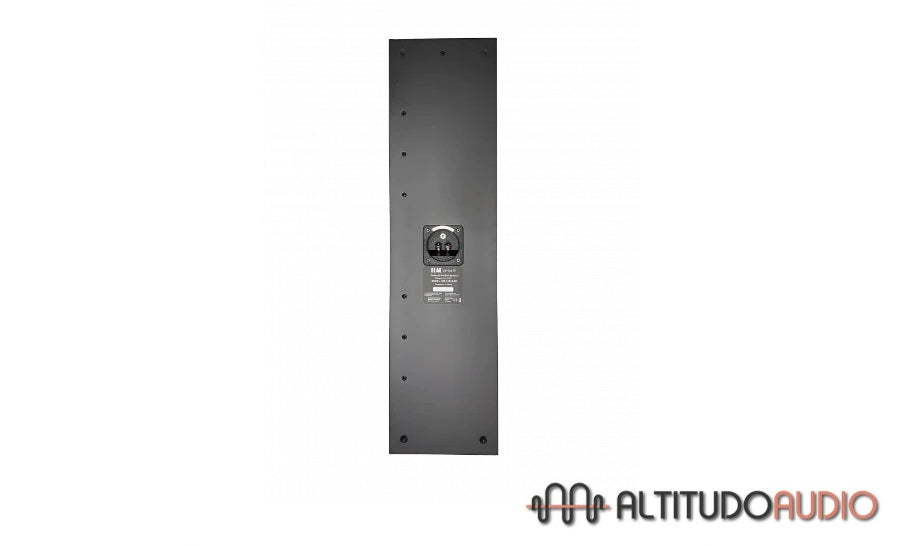

Horizontal and Vertical mounting is facilitated with 4 recessed keyhole inserts. Routed channels provide easy cavity for wires to allow flush mounting to wall
Flexible
Tuning
A switch located in rear of the cabinet modifies the tuning of the tweeter to facilitate Vertical or Horizontal mounting.
Wall Mounting
Alternative
Supplied brackets can be used to hang the speakers both in the vertical and horizontal position.
AS Technology
Crystal Membrane
The The eye-catching surface of the crystal membrane is more than just an attractive design feature.
Increased stiffness through crystal shape of aluminum cone
Extended frequency range (XR), smooth roll-off
Excellent large signal behaviour
Minimized VAS, (lot of bass out of small cabinets)
JET Technology
JET 5
Air Motion Transformer principle
Linear Frequency response > 50 kHz
Extended lower frequency range
Efficiency 92 dB / W / m
Improved signal accuracy
The inimitable JET tweeter
JET 5
ELAC’s JET 5 tweeter is used throughout our loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
SPECIFICATIONS:
Speaker type | 2 1/2-way, sealed cabinet |
---|---|
Tweeter | Jet Folded Ribbon |
Woofers | 2x6 |
Crossover frequency | 450 / 2,400 Hz |
Frequency response | 42 to 50,000 Hz |
Sensitivity | 88 db at 2.83 v/1m |
Recommended amplifier power | 40 to 200 Watts |
Nominal/peak power handling | 120/160 Watts |
Nominal impedance | 4 Ohm |
Finish | Black baffle |

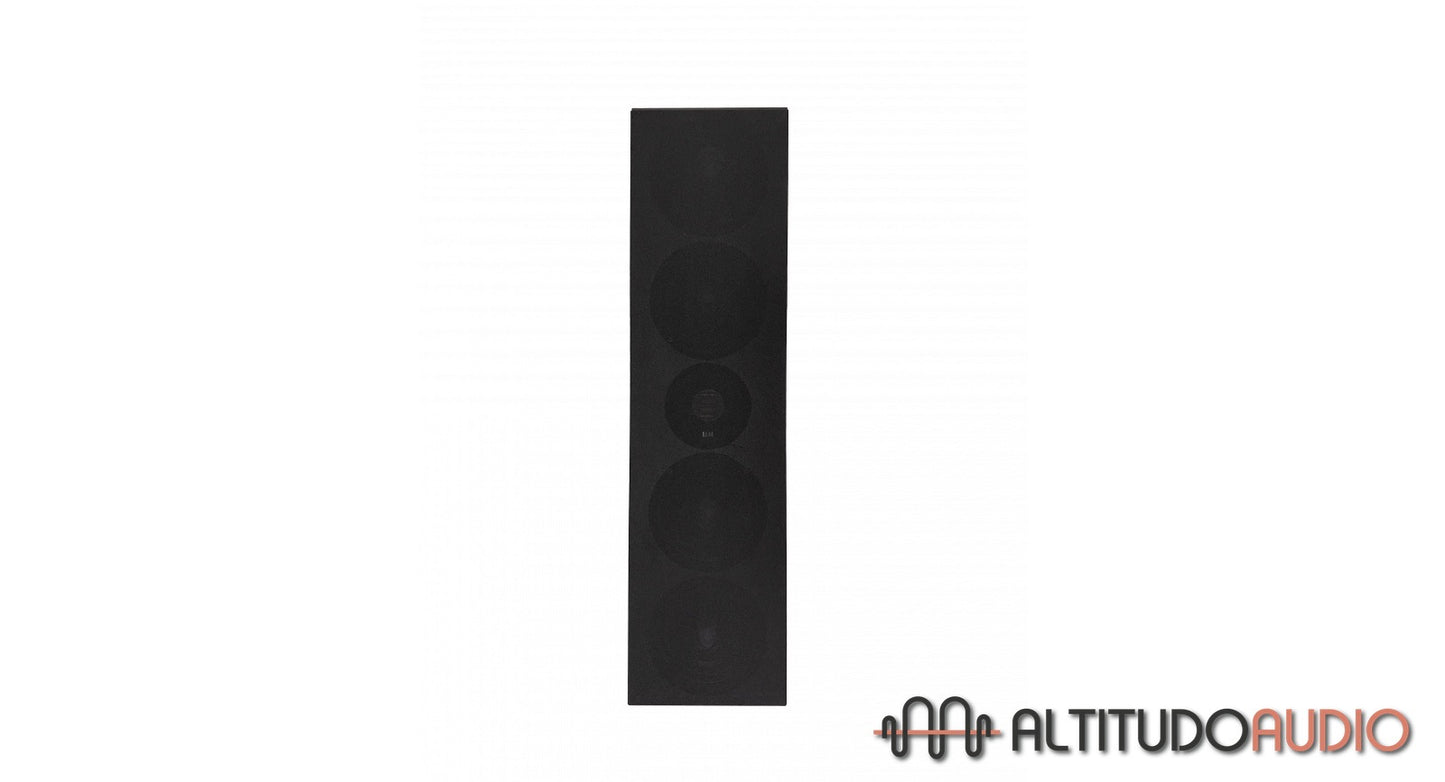

Grille | Black Fabric Grille |
Wall mount brackets | Included |
Dimensions | H: 33.54 in / 852 mm W: 9.76 in / 248 mm |
Mounting depth | 3.82 in / 97.0 mm |
