Vertex In-Ceiling Subwoofer Dual 6.5"
Shipping : FREE in Canada
In-Ceiling Subwoofer dual 6.5" IC-VS6-B

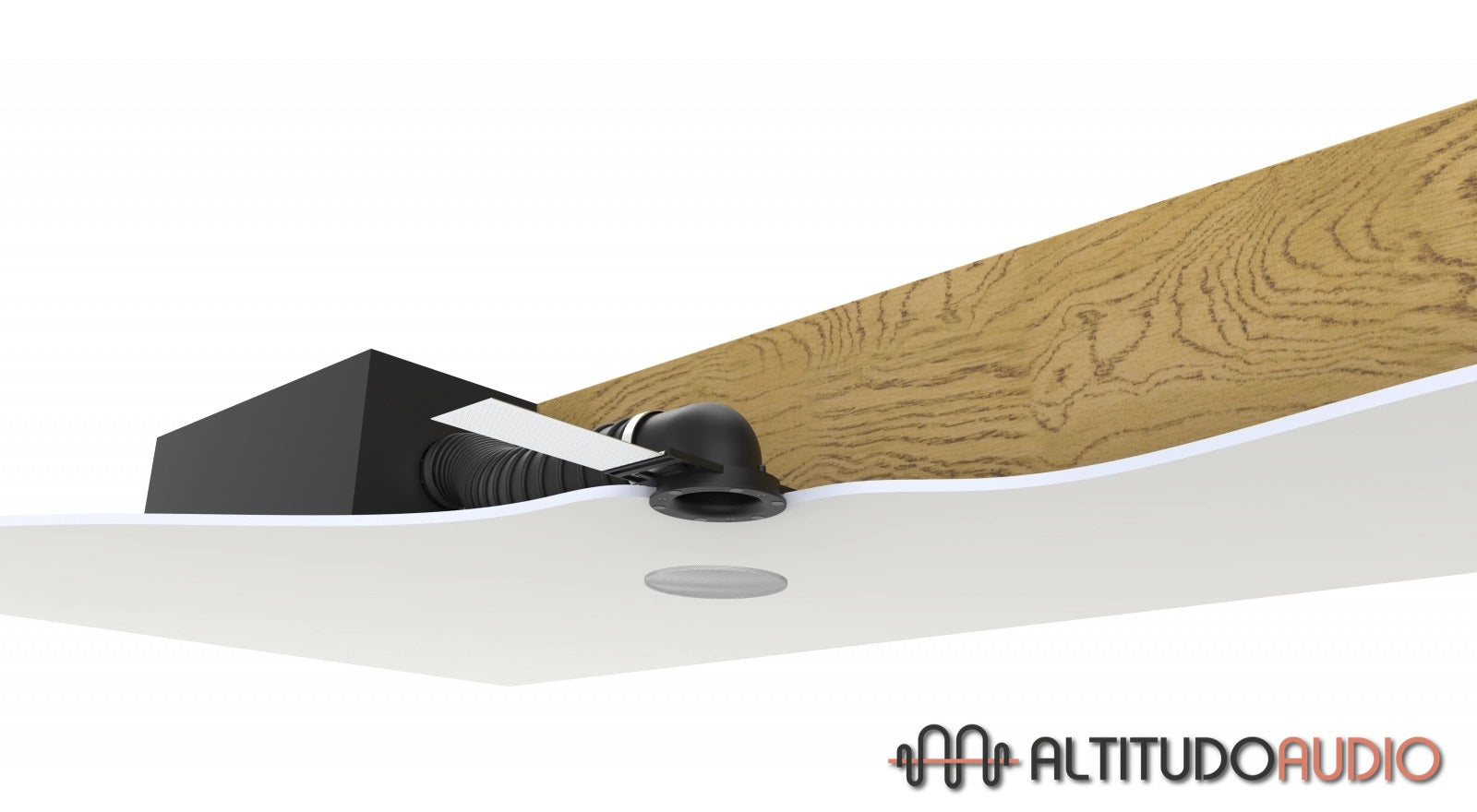

This Vertex subwoofer is designed to fit between standard ceiling joists. The port coupling ring allows for the trim out to match ELAC’s IC-V31 speaker with either a roundor square grill. When matched with the IC-V31 speakers
in a ceiling, the installation becomes complimentary with contemporary small aperture ceiling lights.

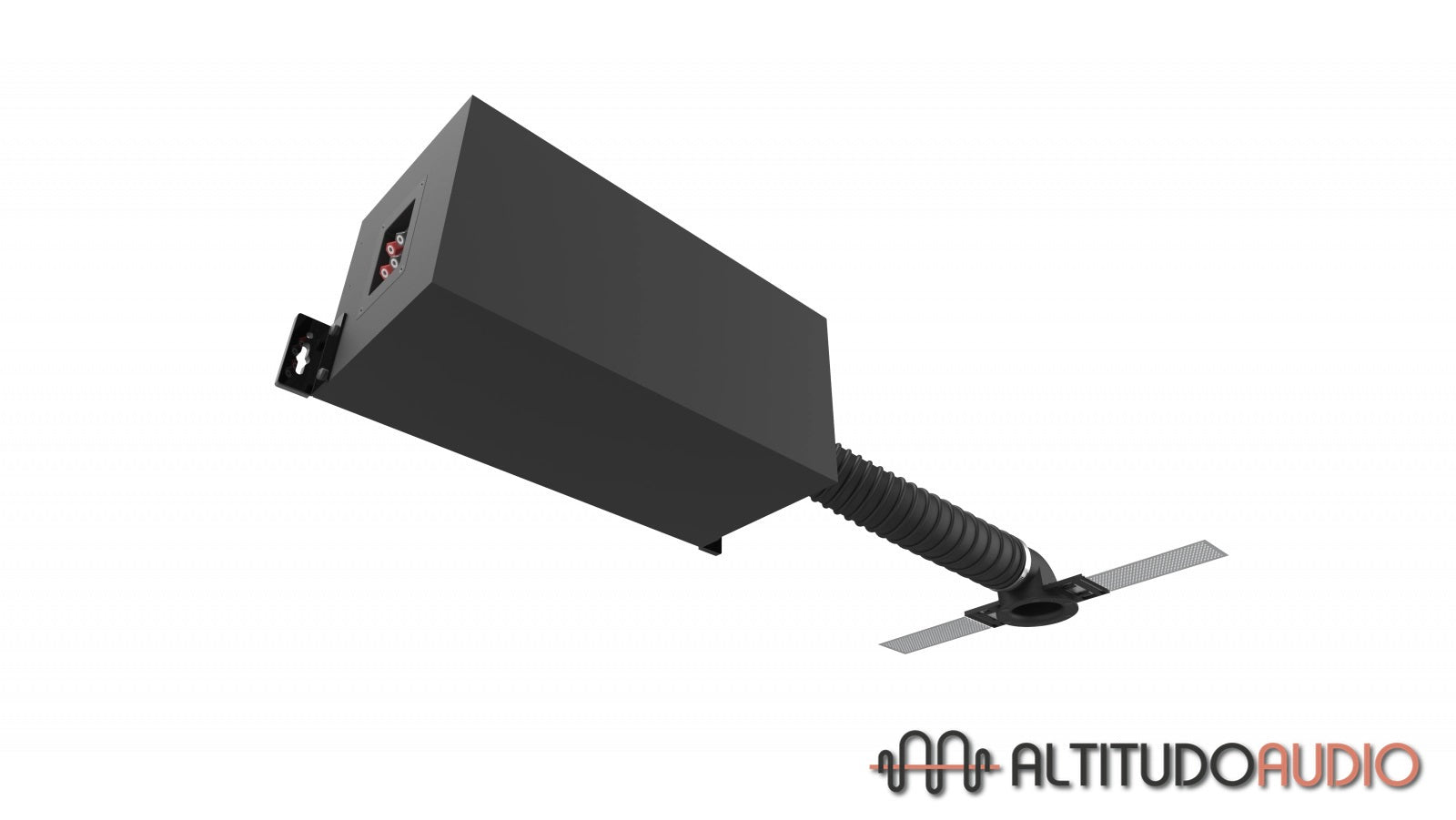

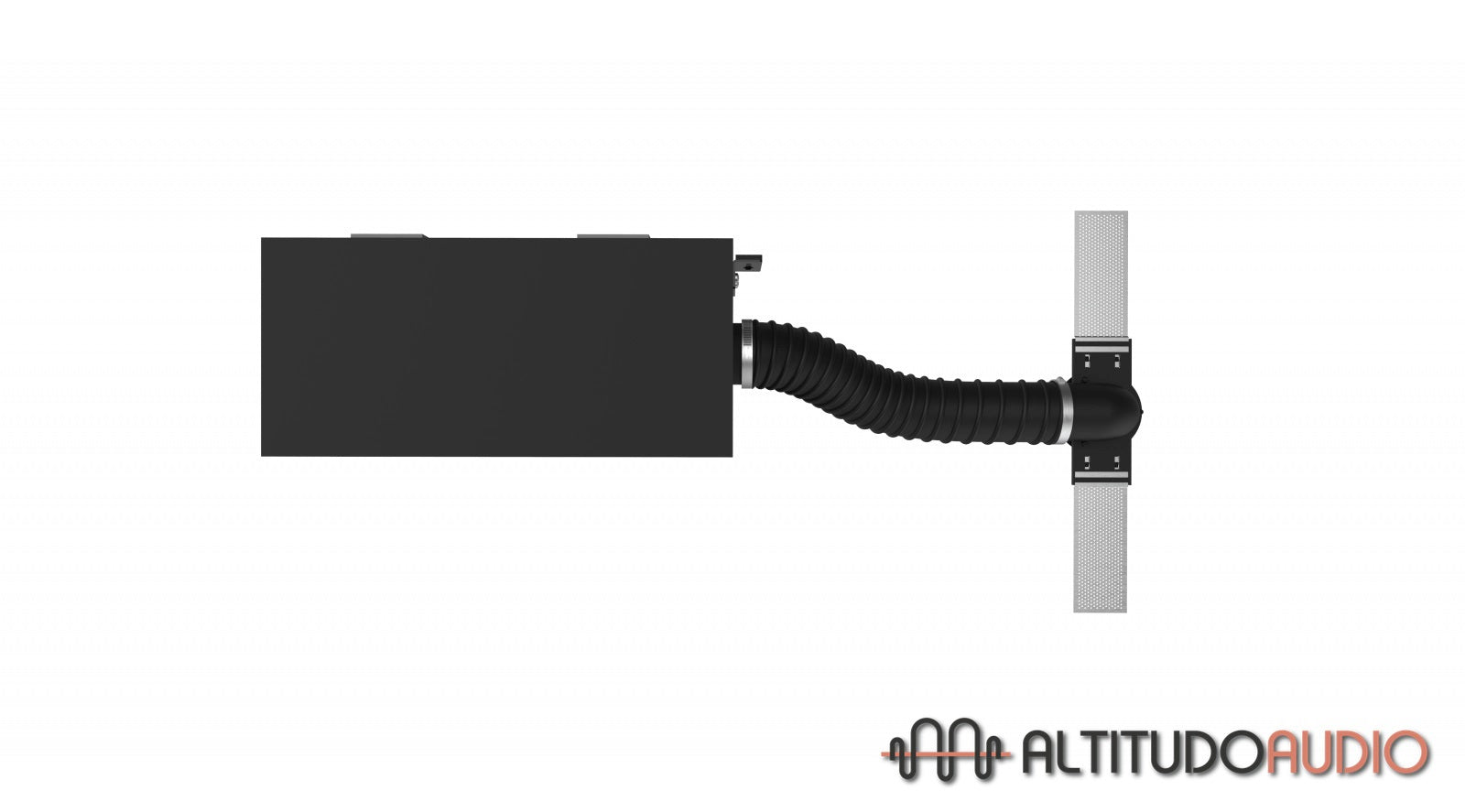

FLEXIBLE PORT TUBE
The port tube is flexible enough to allow versatile installation, but rigid enough to minimize wind turbulence which can result in port noise
6.5” DUAL VOICE COIL SPEAKER
The subwoofer includes a 6.5” dual voice coil subwooferto deliver an incredible amount of low frequency response in a small form factor. This subwoofer is sonically matched to the IC-V31 to create a balanced system, however, canbe used to compliment any speaker to reinforce low frequency response.
IN-CEILING SUBWOOFER
PASSIVE

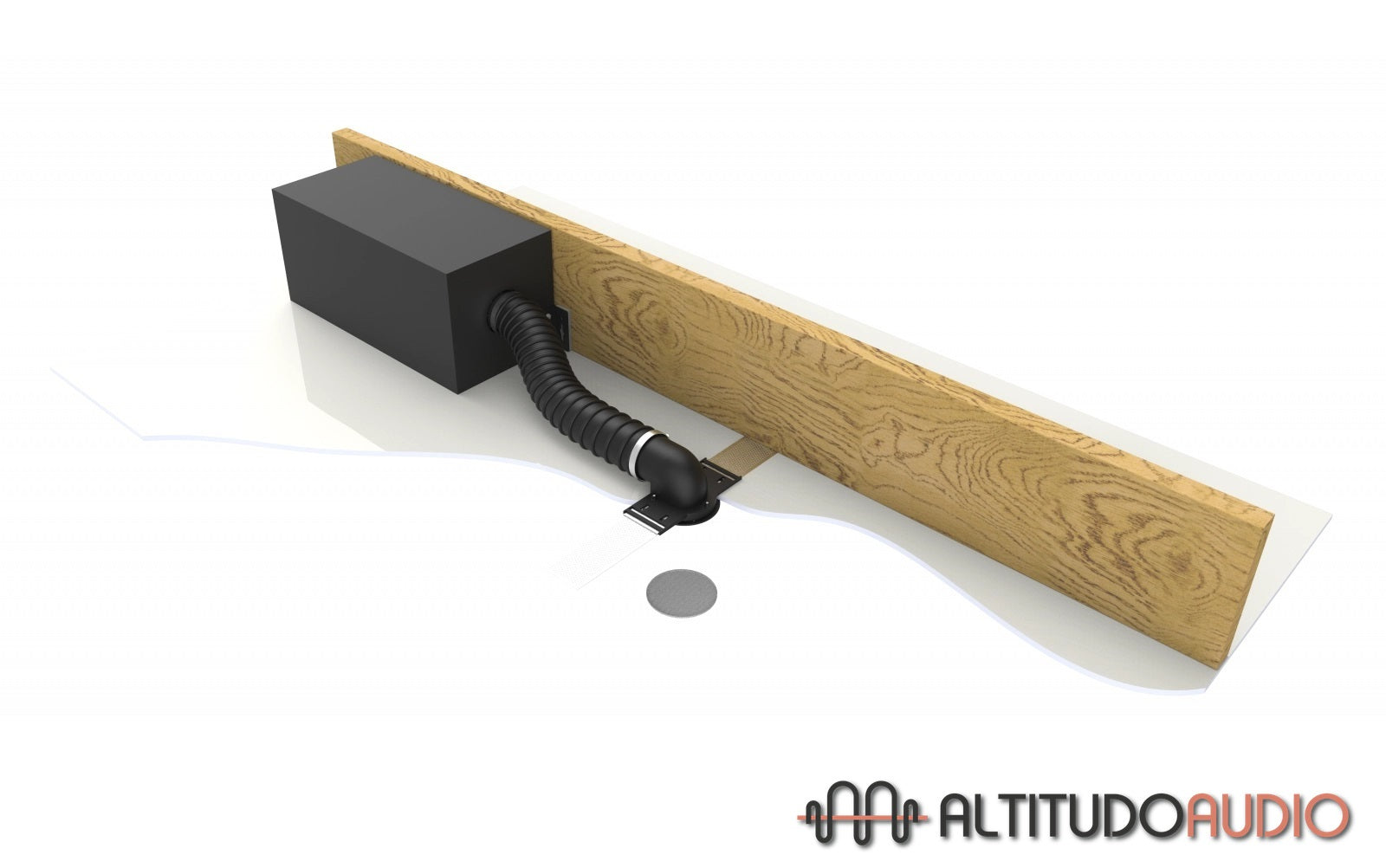

Our in-ceiling subwoofer is designed to discreetly install ceiling joists and trim out to match small aperture lighting. Low frequencies are delivered by way of one 6” DVC woofer in a bandpass enclosure that vents out through a port opening. The end result is low frequency reinforcement in a form factor that works with interior design.
IN-CEILING SUBWOOFER
Grilles
Square grill and round grilles are available to cosmetically match lighting
SPECIFICATIONS:
| Woofers | 6.5 |
|---|---|
| Frequency Response | 35Hz - 125Hz + 3dB |
| Sensitivity | 87 db @ 2.83V/1m |
| Crossover | 125 Hz @ 12db per octave |
| Impedance | 6 ohms nominal |
| Frequency Response | 20 Hz - 20 KHz |
| Max Power Input | 150 watts |
| Height | 9.06 in / 230 mm |
| Width | 19.49 in / 495 mm |
| Depth | 9.06 in / 230 mm |
| Flexible Port Tube Diameter | 76.2mm (3 |
