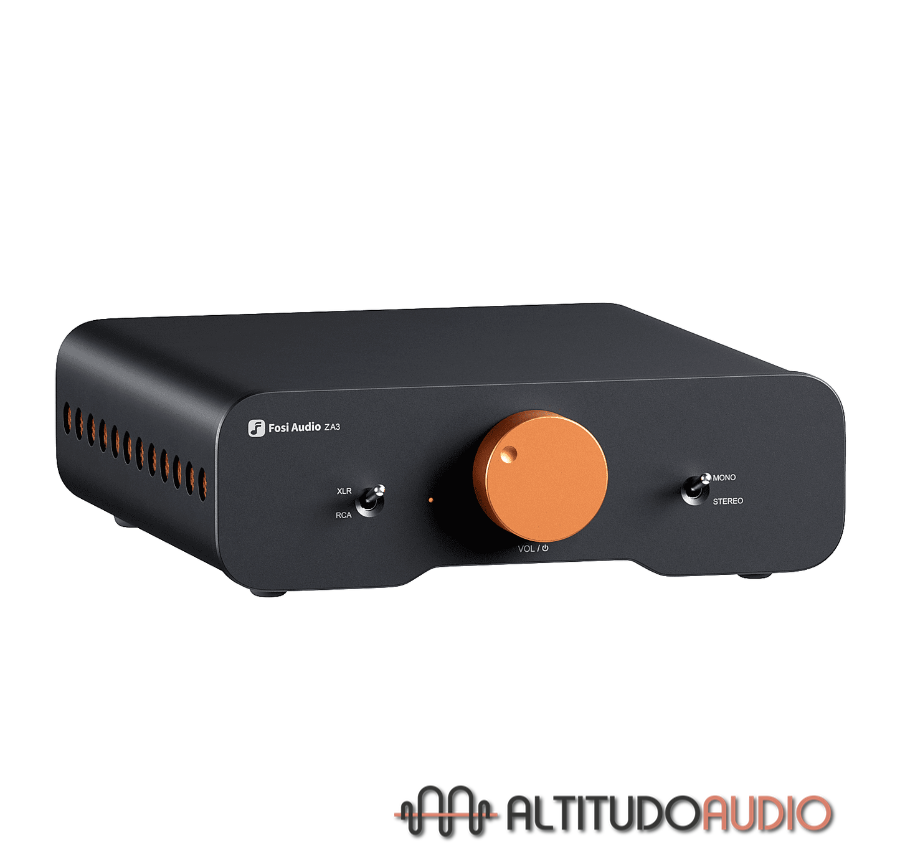

ZA3-48V Stereo Balanced Amplifier
Fosi Audio

ZA3-48V Stereo Balanced Amplifier

$199.99 $0.00

    Amplifying Your Voice, Shaping Our Innovation

    At Fosi Audio, behind every innovation, there's a story. The birth of the ZA3 amplifier is just such a story, centered around our users. After the launch of the V3 amplifier, we gathered innumerable feedback from passionate audiophiles. They expressed a desire for us to develop an even better amplifier based on V3.
    Input: RCA, XLR, ¼”TRS; Output: Stereo, Mono
    SNR≥106dB; THD<0.006%; SINAD: 89dB; Frequency Response: 20Hz-20kHz (±0.1dB)
    Rated Power Output: Stereo 180W*2 @4Ω; Mono 235W @4Ω

    • Dual-Mode Innovation: This new generation mini amplifier offers both stereo and mono modes, adapts flexibly to your diverse needs, allowing seamless mode switching. In stereo mode, it delivers a robust output of up to 180W, while in mono mode, the power soars to a maximum of 235W. Pair two ZA3 units in mono configuration to create a powerful audio system, significantly enhancing your listening experience.
    • Richer Connectivity: Debut amplifier with balanced input and trigger in, the ZA3 features a balanced combo audio signal input connector supporting both XLR and 1/4" TRS plugs. This design minimizes interference and reduces noise floor. The 12V trigger-in connector enables synchronization with other devices, streamlining the process of turning on/off without individual operations.
    • Audiophile-Grade Components: The ZA3 features the TPA3255 high-end Class-D amp chip and utilizes premium Japanese NCC, ELNA, and German WIMA capacitors, and Japanese Sumida inductors for exceptional audio quality. With a SINAD rating of up to 89dB, an SNR of up to 106dB, and a low noise floor of only 150μV, it delivers exceptional clarity and low distortion.
    • Advanced Heat Dissipation: Based on V3's groundbreaking heat dissipation design, we upgraded ZA3's cooling system by featuring a larger chassis, moving vents to the sides, and adding dust covers to achieve better ventilation for a sustained and stable high power output.
    • Enhanced Scalable Fun: Personalize your audio experience with the op-amp rolling feature! The ZA3 stocks five swappable op-amps for left and right channel outputs, balanced input, and subwoofer output. Experiment with compatible DIP8 dual op-amps such as
    • Sparkos SS3602, MUSES02, OPA2604, OPA2134PA, OP249, AD827, RM4558, LM4562, LME49720HA, etc. to fine-tune your sound to perfection.

    Specifications:

    • Chip Set: Texas Instruments TPA3255
    • Output Power:
      With 48V/5A PSU Stereo; 155Wx2 @4Ω; Mono: 235Wx1 @4Ω
      With 32V/5A PSU Stereo; 95Wx2 @4Ω; Mono: 110Wx1 @4Ω
    • Terminating Impedance: 2-8Ω
    • Input Mode: RCA, XLR, 1/4" TRS
    • Output Mode: Speaker Output (supports banana plug or bare wire connection), Active Subwoofer Output
    • Frequency Range: 20Hz - 20KHz(±0.1dB)
    • SINAD: 89dB
    • THD: ＜0.006%
    • SNR: ≥106dB
    • Dynamic Range: ≥106dB
    • Device Dimension: 15.49 x 18.39 x 5.08 cm; 1.78 Kilograms
    • DC Input Range: 24-48V
    • Power Supply: 32V/5A, 48V/5A
