Zidoo DAC -Z8
Zidoo DAC -Z8
Zidoo DAC -Z8
Zidoo DAC -Z8
ZIDOO

Zidoo DAC -Z8

$999.00 $0.00

Shipping : FREE in Canada

EverSolo-DAC-Z8-User-Manual

USER GUIDES

Description

Functional overview

ESS Sabre flagship ES9038Pro 32 bits D\A converter chip.
The 3rd generation XMOS XU316 with higher performance and faster speed.
High precision, low jitter dual clock oscillators synchronous processing.
OPA1612*8 I/V operational amplifier circuit.
8-channel shunt compensation technology.
Up to DSD512 Native, PCM768KHz@32Bit decoding.
Optical, Coaxial and USB support MQA full decoding and rendering.
Qualcomm QCC5125 Bluetooth 5.0 module supports APTX HD/LDAC protocol.
Fully balanced audio architecture.
differential amplifier circuit and professional calibration.
High-performance headphone amp output, 16-300 ohm headphone driver.

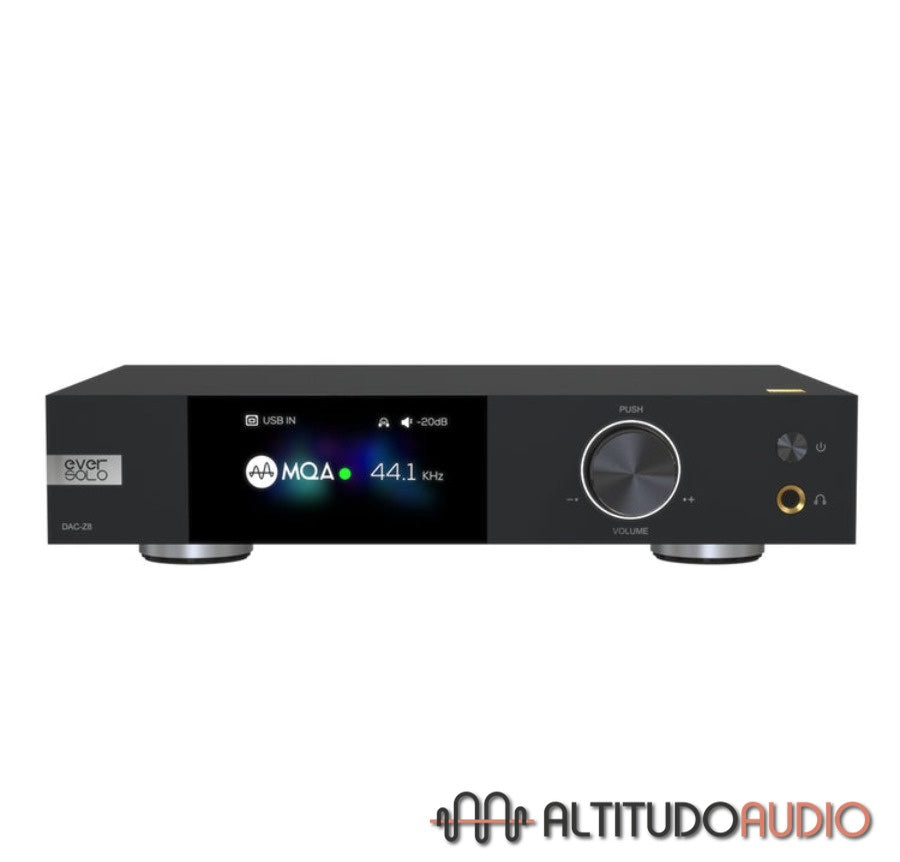

3-inch LCD screen, with diverse VU meter modes.
Low ripple power supply to ensure a purer power source.

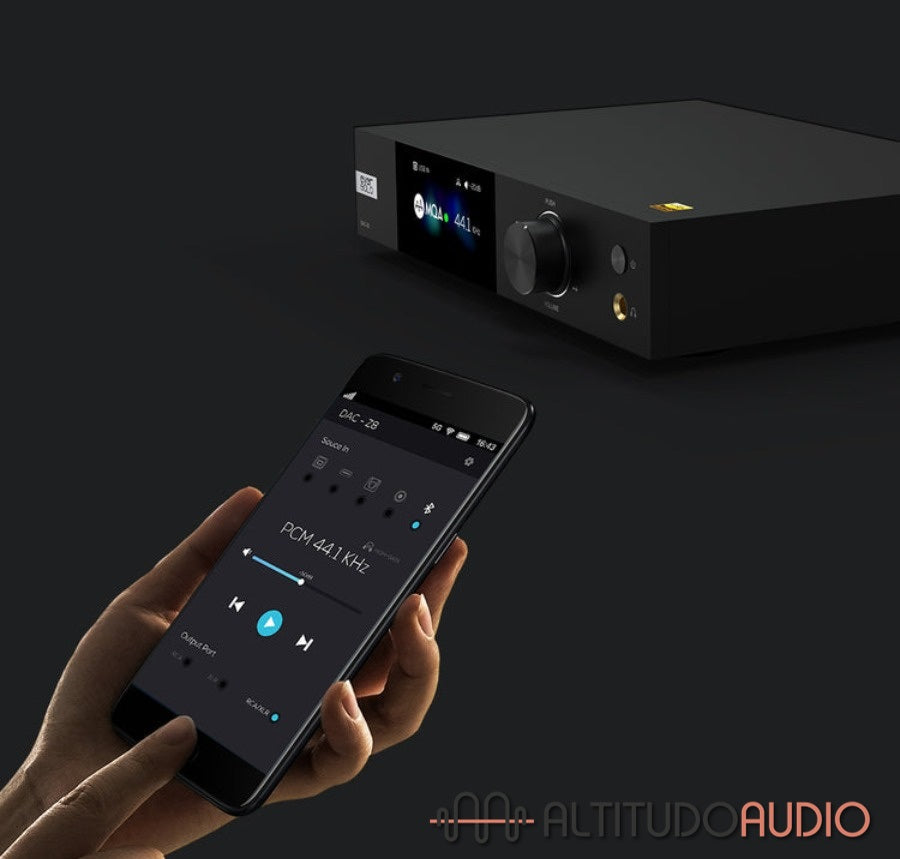

Exclusive mobile phone controller APP for global control.



Specs

Model
EverSolo DAC-Z8

Display Screen
3-inch LCD Screen

Chassis
Aviation aluminum alloy

DAC
ES 9038Pro

Audio Processor
XMOS XU316

OPA Chip
OPA1612*10

Power Supply
Low noise switching power supply

Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, BT5.0
Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol

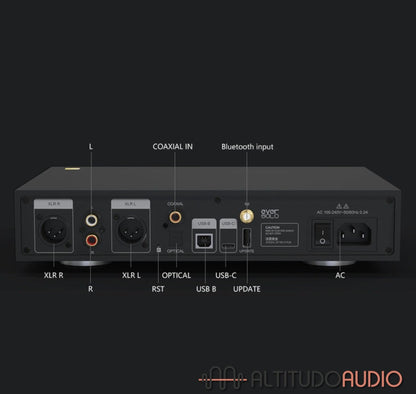

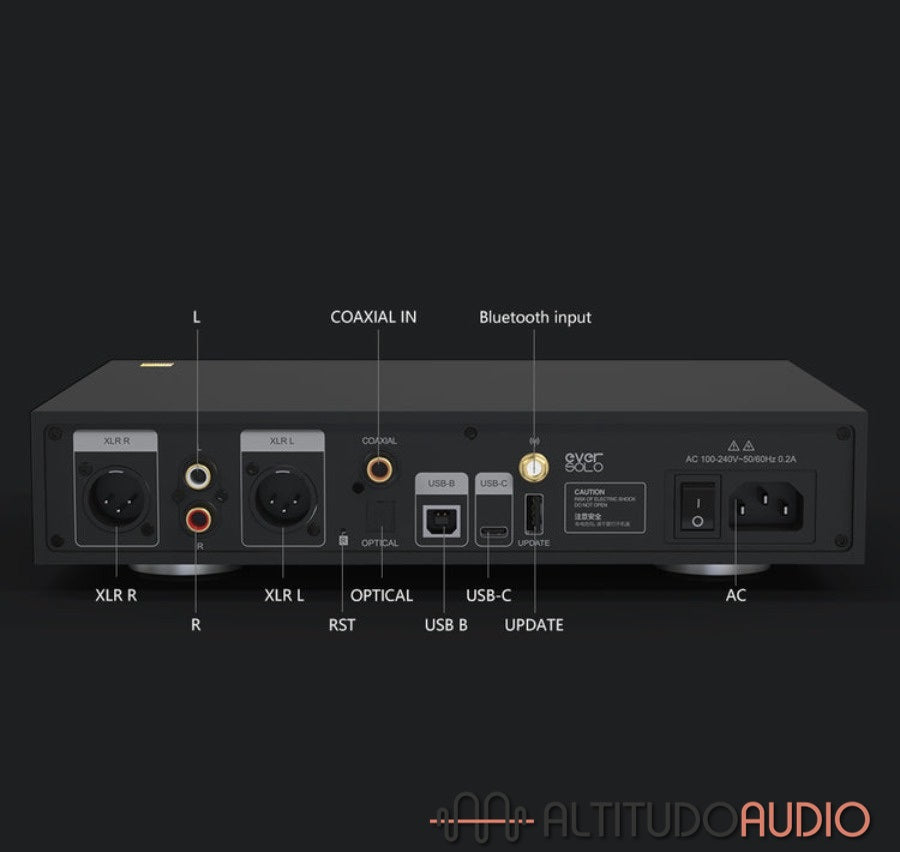

USB-B DAC Input
Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit and MQA

USB-C DAC Input
Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit, MQA

Optical Audio Input
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

Coaxial Audio Input
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

Analog Audio Output
Preamp output: XLR (balanced), RCA;
Headphone amp output: 6.35mm single-ended

USB Port
USB2.0*1（only for firmware upgrade）

Control Methods
Remote control, mobile APP control and knob control

Headphone Impedance
16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）

XLR Audio Characteristics
Output level(Vrms): 4.1Vrms@0dBFS
THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz）
THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz）
Noise@No-wt: <1.2uVrms
SNR @No-wt: 133dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -130dB@1kHz
DNR @No-wt: 133dB@1kHz

RCA Audio Characteristics
Output level (Vrms): 2.3Vrms@0dBFS
THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz)
THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz)
Noise @No-wt: <1.5uVrms
SNR @No-wt: 126dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -123dB@1kHz
DNR@No-wt: 126dB@1kHz

Headphone
(low gain mode)
Output level(Vrms): 1.2Vrms@0dBFS
Maximum undistorted power: 45 mW@32Ω
THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz)
Noise @No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
DNR @No-wt: 119dB@1kHz

Headphone
(high gain mode)
Output level(Vrms): 2.8Vrms@0dBFS
Maximum undistorted power: 26 mW@300Ω
THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response): 20Hz-20kHz(±0.1dB)
DNR @No-wt: 124dB@1kHz

Power Input
AC 110~240V 50/60Hz

Rated Power
9W

Dimensions
270mm(W) * 187mm(D)* 50mm(H)

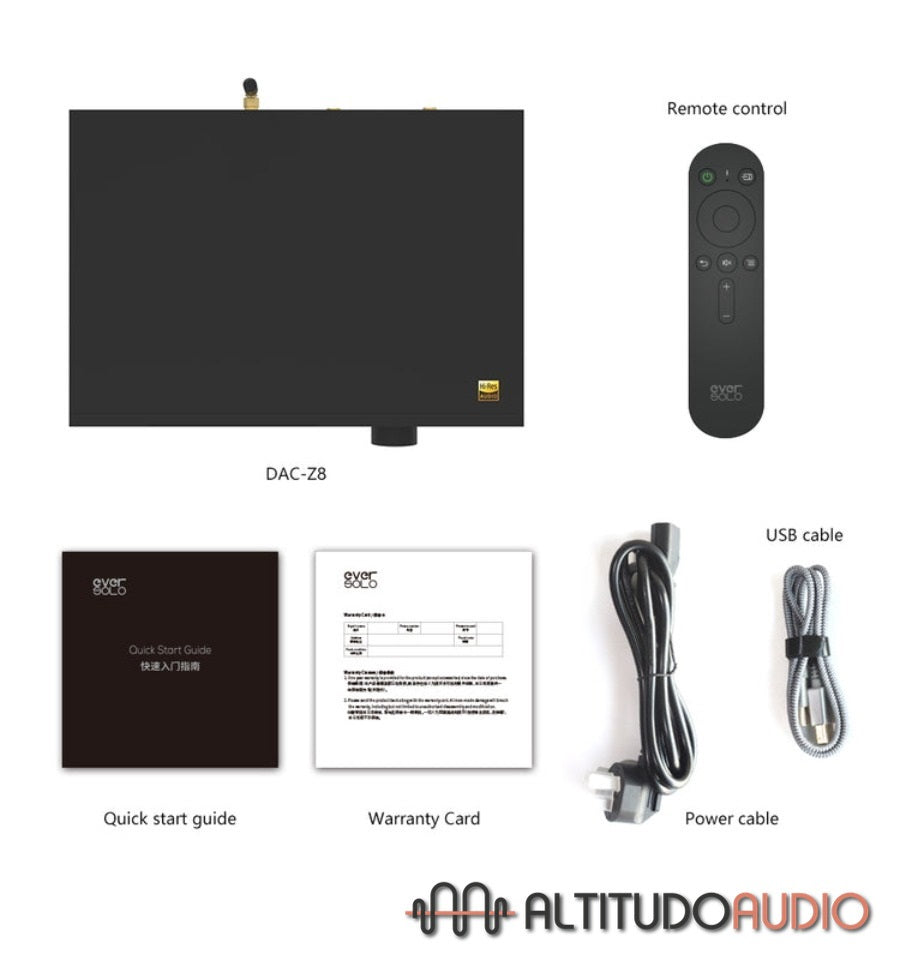

Packing List
Remote control*1, power cable*1, USB cable*1, product manual*1
