Zidoo DMP-A10
Zidoo DMP-A10
ZIDOO

Zidoo DMP-A10

Regular price $5,299.00 $0.00 Unit price per

Shipping : FREE in Canada and USA

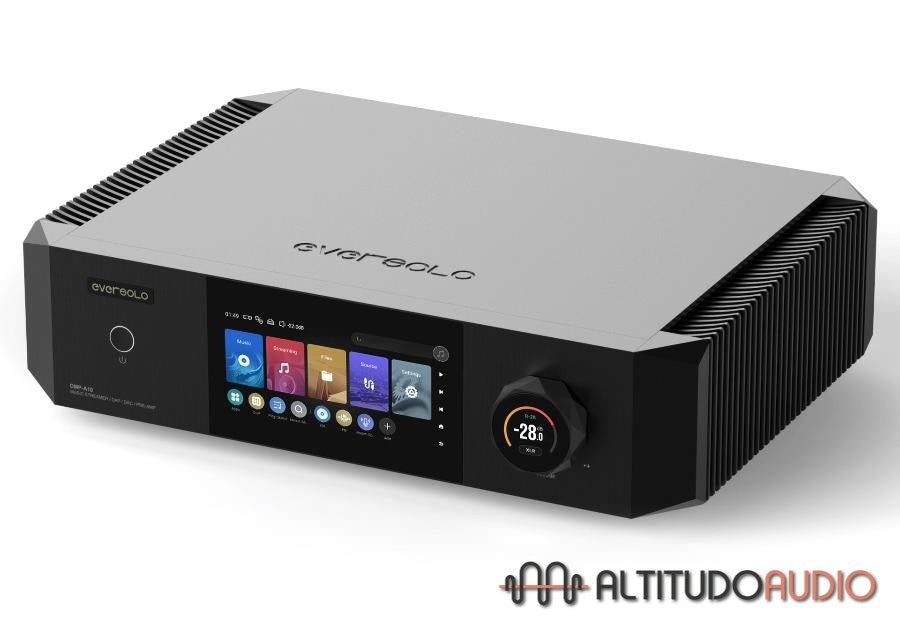

Crafted Like a Piece of Art

The DMP-A10 chassis blends modern aesthetics with romanticism, precision-engineered with CNC technology. At 430mm, it fits seamlessly into high-end audio systems, combining functionality and elegance.

Precision Meets Purity

With a high-speed electrical isolation system , the DMP-A10 separates noise and interference from different circuit boards. The complete physical isolation eliminates any possible interference to audio circuits in the transmission of system circuit signals, ensuring that the audio signal remains pure and undisturbed. The display panel features a shielding design as well, resulting in outstanding audio clarity and precision for an unrivaled listening experience.

Isolated USB Audio, Ultimate Accuracy

By incorporating an advanced electrical isolation circuit, the DMP-A10 minimizes interference from high-noise power sources and grounding loop issues when connecting external DACs and USB devices. Utilizing iCoupler ® technology, it transmits both the clock signal and data to the isolated side in the correct time order and then resynchronizes them to maintain consistency. This ensures that USB signals are transmitted with high fidelity, reducing jitter and maintaining signal accuracy.

Double Subwoofer Output

Featured two subwoofer output ports, the DMP-A10 allows you to connect single or dual subwoofers as needed, or even disable the subwoofer function. MIXER and STEREO modes can be switched with ease, independent adjustments of subwoofer gain, crossover frequency, and delay are available as well.

(*Subwoofer function is only available for PCM signals below 192KHz.)

OCXO Clock System

The Eversolo custom-developed temperature control technology for OCXO clock system ensures both audio crystal oscillators(45.1584MHz and 49.152MHz) operate at a constant optimal temperature point, thus eliminating frequency fluctuations caused by temperature changes, delivering extremely low phase noise. Each oscillator undergoes a strict testing process. Therefore, with jitter levels below 50fs, more accurate clock signals are provided to the audio system, adding more clarity, detail and air in sound.

SFP Fiber Network Interface

To eliminate interference from high-frequency noise in network switches and other network equipment, the DMP-A10 introduces an SFP Fiber port, allowing users to connect DMP-A10 to local network via fiber optics. In this case, cleaner audio is delivered without electrical connection between the network switch and the DMP-A10. Traditional RJ45 Ethernet connections are also supported for easy integration. (*SFP module needs to be purchased separately.)

Crystal Clear Audio

Featured with excellent conductivity and signal transmission, silver-plated single-crystal copper wires are used to connect DMP-A10's audio terminals, bringing extra benefit to audio with more clarity, transparency and details

Room Correction Technology

With Eversolo Digital Room Correction, the DMP-A10 analyzes your listening environment with the high-precision microphone, adjusting sound frequencies through complex algorithms to eliminate acoustic issues. The result? A listening experience that feels more immersive and lifelike, tailored specifically to your space.

Digital to Digital Converter

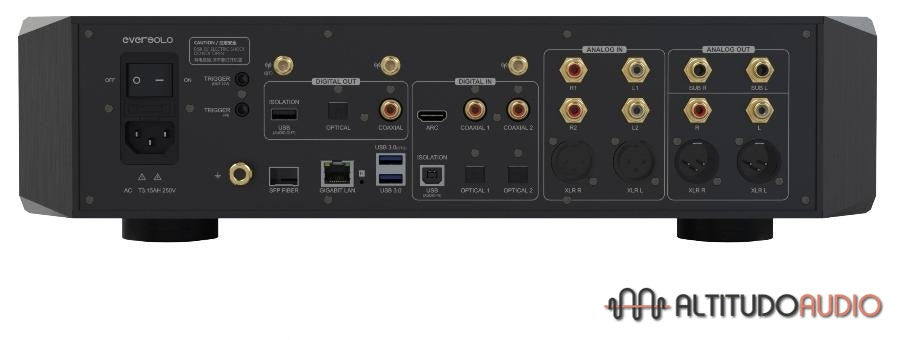

The DMP-A10 supports DDC(Digital to Digital Converter) functionality. Digital signals from USB audio input, coaxial/optical input, and ARC input can be output as SPDIF signals or analog signals after various EQ adjustments. Additionally, analog signal input can be captured by the high-spec ADC (up to 192kHz) , then output as SPDIF signals or analog signals after EQ adjustments.

Robust Power, Ultra-Low Noise

To further enhance sound purity, the DMP-A10 features dual power supplies with ultra-low background noise, providing stable power output for both the digital system and analog audio circuits. The ripple of the analog audio power supply can be reduced to below 30µVrms, creating a quiet and pure listening environment. Additionally, it incorporates a patented intelligent switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.

Fully Balanced Analog Preamplifier Circuit

The DMP-A10 is equipped with a high-performance fully balanced preamp circuit, supporting XLR/RCA analog inputs. It features a +10dB analog gain and the R-2R analog volume control, ensuring ultra-low noise and distortion, providing better signal-to-noise ratio, dynamic range, and other performance metrics.

Powered by EOS

The Eversolo Original Sampling-rate Audio Engine(EOS) ensures original sample rate output from your favorite music apps. The DMP-A10 bypasses the SRC limitations, sending audio to your speakers without any changes. It also supports direct output from third-party apps like Apple Music for high-resolution lossless playback.

Cutting-Edge Global Technology

As a flagship all-in-one streamer, material selection for DMP-A10 is extremely meticulous. The DMP-A10 is built with audiophile-grade components from worldwide. WIMA capacitors from Germany, TI audio operational amplifiers from US, NICHICON audiophile capacitance and Murata SMT parts from Japan, every detail is engineered for superior sound quality.

XMOS316 Audio Processor

using the third-generation XMOS316 processor, the DMP-A10 delivers faster processing and USB bandwidth, supporting lossless transmission of audio data. USB ports support up to DSD512 Native and PCM768kHz@32bit. Optical and Coaxial ports support DOP64, PCM192kHz@24Bit.

Next-Level DAC Solution

Powered by the industry-leading ES9039PRO DAC chip, the DMP-A10 brings audio to life with its HyperStream IV architecture and enhanced signal processing capabilities, significantly reducing distortion and noise to provide pure audio output. It also introduces a new clock management series to minimize the impact of jitter on audio signals.

Stream Your Favorite Music Services

Enjoy direct access to mainstream music services on DMP-A10. Whether it’s TIDAL, Qobuz, Amazon Music, Tuneln, IDAGIO, Radio Paradise, SoundCloud, Calm Radio, KKbox or Highresaudio, the DMP-A10 covers it all. (More music services will be added in the future.)
