UHD3000 Media Player
UHD3000 Media Player
UHD3000 Media Player
ZIDOO

UHD3000 Media Player

Regular price $1,499.00 $0.00 Unit price per

Shipping : FREE in Canada

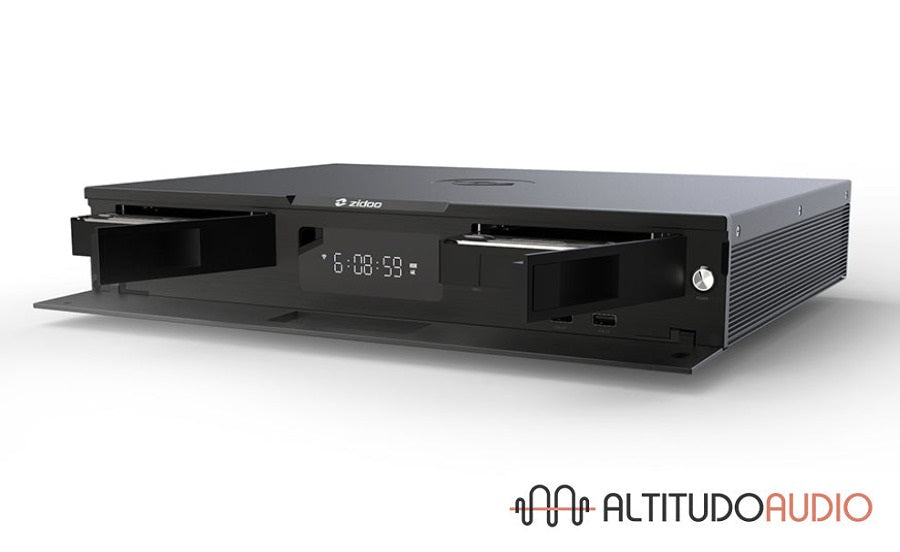

Appearance

Functional overview

*430mm standard size, excellent texture with all-aluminum alloy brushed panel, frosted upper cover, thickened bottom and shockproof foot pad.
*A new generation of Realtek RTD1619 DR hexa-core 64-bit A55 CPU with larger bus processing capacity and faster computing efficiency.
*4G DDR4 + 32GB eMMC large memory, 64-bit bandwidth, system is fluent.
*XMOS+ESS9068 DAC supports hard decoding DSD512/PCM 768KHz 32Bit/MQA.
*Supporting MQA,SACD ISO (stereo), DSF, DFF, WAV, FLAC etc. and seamless playback and CUE track.
*Supporting USB DAC in as good as high end audio decoders, it is also compatible with Windows 7/10, MAC OS and Android.
*High-quality switching power supply + large toroidal linear power supply, which is specially designed for audio and video circuits independently to ensure strong power source and good signal output.
*High-fidelity audio decoding supports XLR full balance and RCA analog audio output.
*Dual HDMI audio and video separate output can enjoy 4K video and HD audio at the same time without upgrading AV amplifier.
*Android 9.0 operating system has significantly improved system performance and stability, the operation is more free and smooth.
*Large LED display panel, dual hidden NSS patented HDD bays and each HDD bay support capacity up to 16TB.
*The built-in VS10 image quality engine supports Dolby Vision processing and mapping any image to colors similar to Dolby Vision, which greatly improves the image quality.
*HDMI 2.0 supports 4K 60Hz point-to-point output, HDR (HDR10/HLG/HDR10+/Dolby Vision), 12Bit, BT.2020 wide color range and YCbCr 4:4:4 color space. Supporting outputting raw three-dimensional multi-channel audio format based on object.
*Processing HDR10 static metadata (MaxFall, MaxCll) more accurately which shows higher brightness and deeper black level.
*Supporting acquiring and processing HDR10+ dynamic metadata, colors and brightness are obtained frame by frame and scene by scene.
*More advanced Dolby Vision technology supports high-quality Dolby Vision low latency (LLDV) output, which can output the most suitable brightness for each frame and scene, shadow is darker while highlight is brighter, vision effect is amazing.
*Automatic frame rate 23.976 and resolution ensures smooth movie playback without interruption.
*Supporting external BD/DVD (unencrypted)/CD discs and CD ripping.
*Complete BD/BD3D/UHD Blu-ray menu playback and Blu-ray seamless branching playback are supported.
*Almost all common 3D video formats could be played, including MVC 3D (Blu-ray, MKV).
*Graphics special effects subtitles are supported and subtitles brightness can be adjusted. Subtitles can be downloaded. Zidoo is the only one among the field to support BLURAY and MKV forced subtitle.
*Spotify music streaming and high-definition online video playback are supported.  DRM Widevine L1 is also supported.
*Home Theater app supports automatic poster scanning, movie trailers and custom classification and management.
*The newly upgraded version of Music Player supports seamless playback, personalized configuration, associated lyrics and songs matching.
*Standard WOL works well. Zidoo can be integrated into smart home with Control4 OS 3.0 control system (on/off can be controlled).
*Supporting the exclusive Zidoo Controller APP for iOS and Android mobile phones, which can seamlessly play and control Zidoo media players (on/off can be controlled).

UHD3000 spec
UHD3000 spec
UHD3000 spec
UHD3000 spec

Remote Control

UHD3000 spec

Specification

Model UHD3000
Front Display LED
Chassis Aviation aluminum alloy
OS Android 9.0
CPU Realtek RTD1619DR ARM Cortex-A55(hexa-core)
GPU ARM Mali-G51 MP3
RAM 4GB DDR4
Internal Storage 32GB eMMC
Bluetooth BT 4.2
WiFi 2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
Ethernet 1*RJ-45(10/100/1000Mbps)
HDMI Output 2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output) + 1.4 (Audio Only passthrough) separate audio and video output
Video Decoding 4K@60p,HEVC/H.265 12Bit,HDR10,HDR10+,Dolby Vision
Audio Decoding Support HD audio passthrough and decode 2 channels
Built-in XMOS+ESS 9068 DAC,supporting DSD、MQA decoding
USB Audio Input USB audio input supports Windows 7, Windows 10, Mac and Android
Up to two channels DSD512, PCM 768KHz@32bit PCM, MQA decoding
Other Audio Port 1*Optical,1*Coaxial,1*RCA L/R,XLR L/R balanced
Analog Audio Characteristics Frequency range: 20Hz-20KHz +/-0.35dB
SNR: > 128dBrA
THD+N: < 0.00026%
Output level: (XLR) 4.0±0.4Vrms. (RCA) 2.0±0.2Vrms.
DNR: > 125dB
Crosstalk: > 135dBrA
Power Supply AC 110~120/220~240V 50/60Hz (built-in switching power supply + linear power supply)
USB 2*USB3.0,2*USB2.0
SATA 2*SATA3.0 and 3.5" HDD bay (HDD is not included)
Other Ports 1*IR input,1*RCA composite video connector,1*RS232
Dimensions 312mm*430mm*72mm
Accessories 1*remote control,1*power cable,2*antennas,1*user manual
